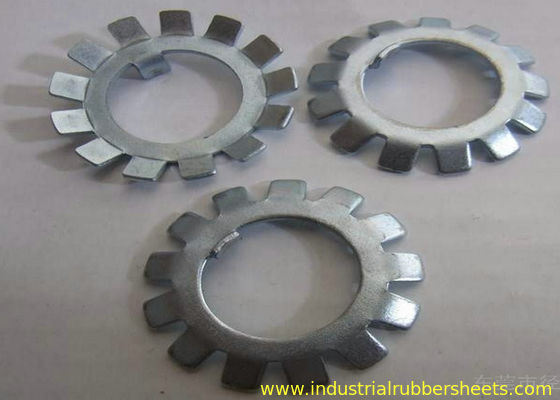

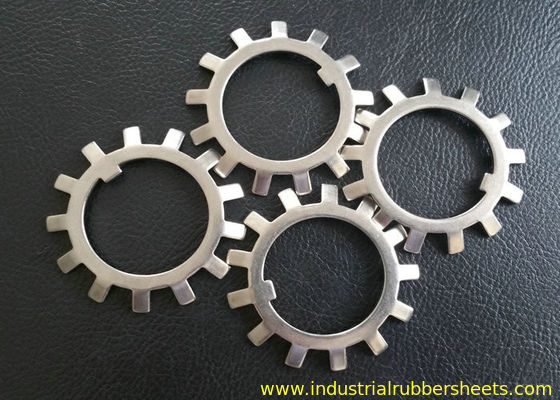

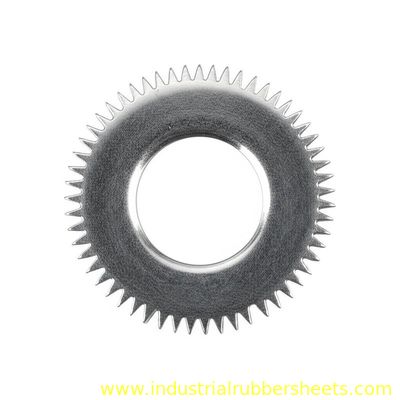

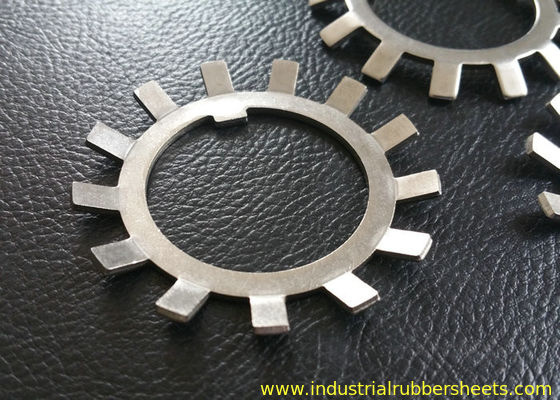

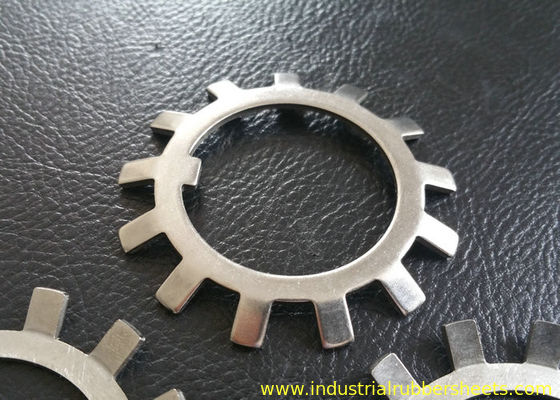

SS304 SS316 External Teeth Serrated Lock Washer with Natural Color for Industrial Applications
Product Details
| Commodity | Lock Washer | Standard | Chinese National Standard |
|---|---|---|---|
| Material | SS304, SS316, MS Steel | Color | Natural Color |
| Size | MB01-MB07 | Packing | In Cartons |
| MOQ | 100pieces | ||
| Highlight | rubber vibration damper,rubber shock absorber |
||
Product Description
SS304 SS316 MS Steel Lock Washer With External Teeth Serrated
MB01 - MB20 SS304, SS316 Lock Washer with External Teeth Serrated
Product Specifications
Model No.: 3A7001
Type: Lock Washer
Material: Stainless Steel
Specification: MB01-MB20
Origin: China
Product Details
MB01-MB20 MS, SS304, SS316 Lock Washer with External Teeth Serrated designed for adapter sleeve bearing applications.
Technical Specifications
| Place of Origin | China (Mainland) |
|---|---|
| Brand Name | 3A Rubber, OEM |
| Model Number | MB10 |
| Standard | DIN |
| Material | Carbon Steel, SS304, SS316 |
| Application | Adapter Sleeve Bearing |
| Service | REM Brand or OEM Service |
| Payment Terms | T/T, Western Union, PayPal |
| Delivery Terms | By Sea or Air, Express |

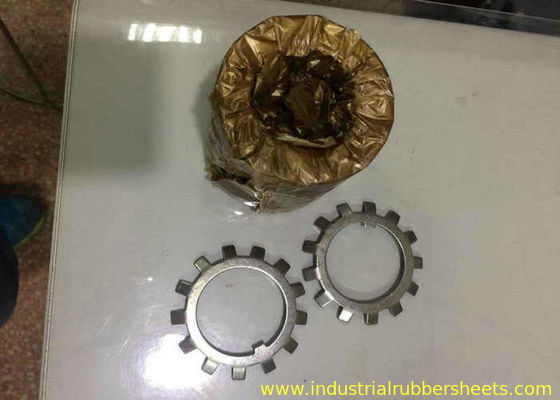

Packaging & Delivery
| Packaging Details | Single Box, Color Box, Carton, Pallet |
|---|---|
| Delivery Detail | 3 Days |
Our Strengths
- Many years export experience
- Strict quality control
- Delivery in time
- OEM service available with competitive prices
- Your success is our business and future
Product Features
Model: External Teeth Serrated Lock Washer
Sizes: External teeth serrated lock washer d 50 D 74 B 1.25
Material: Carbon Steel
It is the RIGHT product for you
Size Specifications
| Item No. | d (mm) | d1 (mm) | d2 (mm) | F (mm) | B (mm) | f (mm) | f1 (mm) | Kgs |
|---|---|---|---|---|---|---|---|---|
| MB0 | 10 | 13.5 | 21 | 8.5 | 1 | 3 | 3 | 0.131 |
| MB1 | 12 | 17 | 25 | 10.5 | 1 | 3 | 3 | 0.2 |
| MB2 | 15 | 21 | 28 | 13.5 | 1 | 4 | 4 | 0.26 |
| MB3 | 17 | 24 | 32 | 15.5 | 1 | 4 | 4 | 0.32 |
| MB4 | 20 | 26 | 36 | 18.5 | 1 | 4 | 4 | 0.35 |
| MB5 | 25 | 32 | 42 | 23 | 1.25 | 5 | 5 | 0.64 |
| MB6 | 30 | 38 | 49 | 27.5 | 1.25 | 5 | 5 | 0.78 |
| MB7 | 35 | 44 | 57 | 32.5 | 1.25 | 5 | 5 | 1.05 |
| MB8 | 40 | 50 | 62 | 37.5 | 1.25 | 6 | 6 | 1.24 |
| MB9 | 45 | 56 | 69 | 42.5 | 1.25 | 6 | 6 | 1.52 |
| MB10 | 50 | 61 | 74 | 47.5 | 1.25 | 6 | 6 | 1.6 |
| MB11 | 55 | 67 | 81 | 52.5 | 1.5 | 7 | 8 | 1.96 |
| MB12 | 60 | 73 | 86 | 57.5 | 1.5 | 7 | 8 | 2.53 |
| MB13 | 65 | 79 | 92 | 62.5 | 1.5 | 7 | 8 | 2.9 |
| MB14 | 70 | 85 | 98 | 66.5 | 1.5 | 8 | 8 | 3.34 |
| MB15 | 75 | 90 | 104 | 71.5 | 1.5 | 8 | 8 | 3.56 |
| MB16 | 80 | 95 | 112 | 76.5 | 1.8 | 8 | 10 | 4.65 |
| MB17 | 85 | 102 | 119 | 81.5 | 1.8 | 8 | 10 | 5.24 |
| MB18 | 90 | 108 | 126 | 86.5 | 1.8 | 10 | 10 | 6.1 |
| MB19 | 95 | 113 | 133 | 91.5 | 1.8 | 10 | 10 | 6.7 |
| MB20 | 100 | 120 | 142 | 96.5 | 1.8 | 10 | 12 | 7.65 |
Product Images
