Rough Surface Silicone Rubber Sheet with Anti-Aging and Corrosion Resistance for Industrial Applications
| Place of Origin | China |
|---|---|
| Brand Name | 3A rubber |
| Certification | ISO9001 |
| Model Number | 3A1001 |
| Minimum Order Quantity | 1roll |
| Price | FCA Sanhe China USD10.00/SQM |
| Packaging Details | packing in rolls, bags and pallets |
| Delivery Time | 7-15days after receive the buyer's payment |
| Payment Terms | L/C,D/P,T/T,Western Union,Paypal,Alipay,Wechat |
| Supply Ability | 10000SQM/month |
Product Details
| Top Material | Virgin Silicone With Rough Surface | Bottom | Backing Adhesive 3M |
|---|---|---|---|
| Color | Translucent, Black, White, Grey, Red | Tensile Strength | 7.5Mpa |
| Hardness | 60shore A | Elongation | 350% |
| Density | 1.25g/cm3 | Thickness | 0.5mm, 1mm, 1.5mm, 2mm, Etc. |
| Width | 1m | Length | 5m, 10m, 15m, 20m, Etc. |
| Gasket | As Per The Buyer's Drawing | Sample | Available |
| Ozone Resistance | Excellent | Aging Resistance | Excellent |
| Top | Smooth, Matt | Flammability | UL94-V0 |
| Cured | Platinum Cured | Temperature | 200℃ |
| Production | Mold Compression | Tear Strength | 26-42N/mm |
| Surface | Smooth/impression Fabric | Fda Compliant | Yes |
| Working Temp | -40^C ~ +260^C | Weather Resistance | Excellent |
| Highlight | silicone gasket sheet,flexible rubber sheet |
||
Product Description
Rough Surface Silicone Rubber Sheet for Anti-Aging and Corrosion Resistance
Product Overview

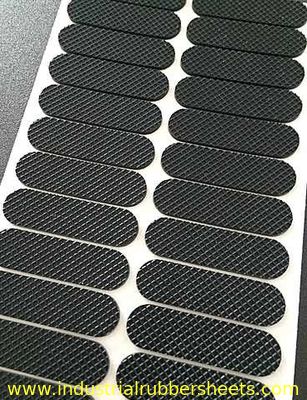

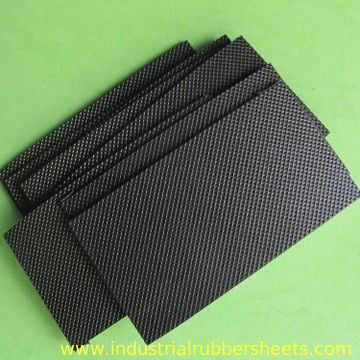

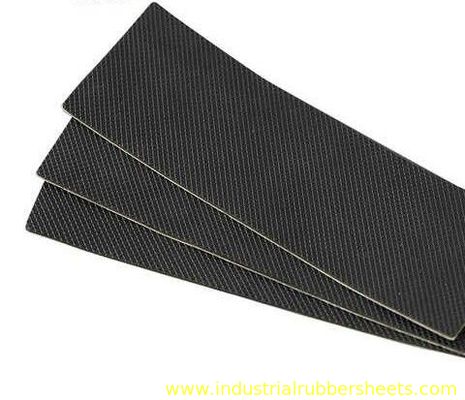

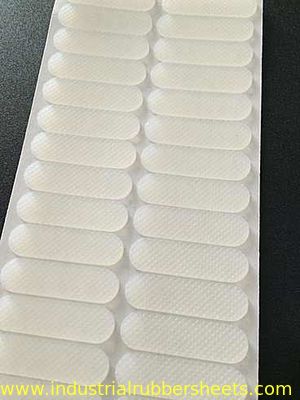

Rough silicone rubber sheet, silicone rubber rolls, and silicone gaskets available in sizes 1-6mm thickness * 1m width * 10m length.
- Top surface: Rough texture

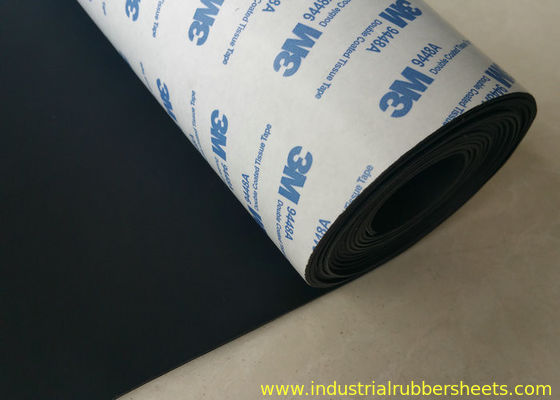

- Bottom surface: 3M adhesive backing
Technical Characteristics
Manufactured using high-quality silicone rubber on drum-type vulcanizing presses or standard vulcanizing presses according to customer requirements. Our advanced management, innovative techniques, and strict quality control ensure superior products.
We overcome limitations of traditional manufacturing methods, providing seamless products without joints and infinite length capabilities. Our super-wide drum-type vulcanizing press accommodates widths up to 4000mm, producing high-quality products maximum 3600mm wide without joints.
High-quality silicone rubber offers excellent performance characteristics including anti-aging, ozone resistance, heat resistance, electrical insulation, oil resistance, solvent resistance, corrosion resistance, non-toxic and odorless properties, and pollution-free composition.
Operating temperature range: -60°C to +260°C (momentary maximum 300°C) with high stability, reliability, and non-sticky surface properties. Suitable for use in air, water, oil, and other media.
Applications include punching various rubber seal gaskets and specialized uses for PVC vacuum laminating presses, wooden door vacuum laminating presses, glass vacuum laminating presses, solar vacuum laminating presses, hot laminating presses, and card laminating presses.
Specifications
| Material | 100% virgin HTV silicone rubber |
|---|---|
| Grade | Industrial grade, food grade, medical grade, FDA grade postcured |
| Quality | High tear resistant, middle tear resistant |
| Color | Transparent, translucent, dark red, black, milk white, grey, blue, etc. |
| Surface | Smooth/smooth, smooth/impression fabric, smooth/sand or double impression fabric |
| Tensile Strength | 7.5 MPa |
| Hardness | 50-60 Shore A |
| Elongation | 350% |
| Density | 1.25 g/cm³ |
| Tear Strength | 26 N/mm |
| Working Temperature | -60°C to +260°C (momentary 300°C) |
| Thickness | 1-6 mm |
| Width | 1 m |
| Length | 10 m |
