Food Grade Silicone Hose 5-32mm ID -30 to 250C

  • Food Grade Silicone Hose 5-32mm ID -30 to 250C
  • Food Grade Silicone Hose 5-32mm ID -30 to 250C
  • Food Grade Silicone Hose 5-32mm ID -30 to 250C
  • Food Grade Silicone Hose 5-32mm ID -30 to 250C
  • Food Grade Silicone Hose 5-32mm ID -30 to 250C
  • Food Grade Silicone Hose 5-32mm ID -30 to 250C
Place of Origin China
Brand Name 3A Rubber
Certification SGS
Model Number 3A1003
Minimum Order Quantity 10m
Price USD1.00-5.00/m
Packaging Details packing in rolls, cartons and pallets
Delivery Time 7-15days after receive the buyer's payment
Payment Terms L/C,D/P,T/T,Western Union,MoneyGram,Paypal,Alipay,Wechat
Supply Ability 100000m/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Virgin Silicone + Polyester Quality Food Grade Without Smell
Working Temperature -30 ~ +250^C Working Press 10kgs
Inside Diameter 5-32mm Outside Diameter 6-42mm
Tensile Strength 6.5Mpa Hardness 50shore A
Color Transparent Density 1.2g/cm3
Insert Polyester Tolerance ±0.1mm
Wall Thickness 3-4mm Compression Set Less Than 35%
Fda Compliant Yes Cured Platinum Cured
Elongation 500-700% Density 1.25-1.35 G/cm3
Hardness Shore A 50-80 Surface Smooth
Lead Time 7-15 Days Chemical Resistance Excellent
Size As Per The Buyer's Drawing
Highlight

flexible silicone tubing

,

high temperature silicone rubber tubing
Leave a Message
Product Description

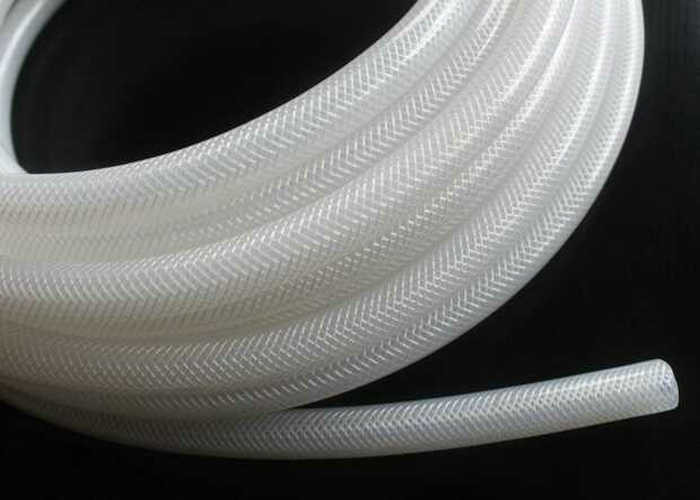

Polyester Braid Silicone Rubber Tubing - Food Grade Flexible Silicone Hose
Our food-grade silicone braided hose offers exceptional performance with excellent electrical insulation, aging resistance, chemical stability, and resistance to extreme temperatures (-30°C to 250°C continuously, with peak tolerance from -60°C to 300°C).
Key Features
  • Superior temperature resistance (-60°C to 300°C)
  • Excellent chemical and aging resistance
  • Food-grade, odorless material
  • Physiologically inert and non-toxic
  • High tensile strength (7.5Mpa) with 245% elongation
  • Available in various sizes from 5mm to 32mm ID
  • Polyester braid reinforcement for added durability
Applications
Ideal for aviation, electronics, petroleum, chemical, medical, and food industries. Commonly used in small appliances, medical equipment, automotive accessories, and industrial liquid transfer systems.
Technical Specifications
Item Food Hose
Material Food Grade Silicone Rubber
Reinforcement Polyester
Standard Color Transparent or custom
Tensile Strength 7.5Mpa
Hardness 50 Shore A
Working Pressure 10Kgs
Temperature Range -30°C to +250°C
Standard Sizes
Available in multiple sizes with precise tolerances (±0.3mm for ID less than 1/2", ±0.5mm for larger IDs):
  • 5mm ID × 11mm OD
  • 6mm ID × 12mm OD
  • 8mm ID × 14mm OD
  • 11mm ID × 17mm OD
  • 13mm ID × 21mm OD
  • 16mm ID × 24mm OD
  • 19mm ID × 27mm OD
  • 25mm ID × 35mm OD
  • 32mm ID × 42mm OD
Product Advantages
Customizable solutions with high performance, superior quality, competitive pricing, and extensive industry experience.
Product Images
Food Grade Silicone Hose 5-32mm ID -30 to 250C 0 Food Grade Silicone Hose 5-32mm ID -30 to 250C 1 Food Grade Silicone Hose 5-32mm ID -30 to 250C 2 Food Grade Silicone Hose 5-32mm ID -30 to 250C 3
