Polyester Braid Reinforced Silicone Braided Hose with High Temperature Resistance and Food Grade Without Smell

  • Polyester Braid Reinforced Silicone Braided Hose with High Temperature Resistance and Food Grade Without Smell
  • Polyester Braid Reinforced Silicone Braided Hose with High Temperature Resistance and Food Grade Without Smell
  • Polyester Braid Reinforced Silicone Braided Hose with High Temperature Resistance and Food Grade Without Smell
  • Polyester Braid Reinforced Silicone Braided Hose with High Temperature Resistance and Food Grade Without Smell
  • Polyester Braid Reinforced Silicone Braided Hose with High Temperature Resistance and Food Grade Without Smell
  • Polyester Braid Reinforced Silicone Braided Hose with High Temperature Resistance and Food Grade Without Smell
Place of Origin China
Brand Name 3A Rubber
Certification SGS
Model Number 3A1003
Minimum Order Quantity 10m
Price USD1.00-5.00/m
Packaging Details packing in rolls, cartons and pallets
Delivery Time 7-15days after receive the buyer's payment
Payment Terms L/C,D/P,T/T,Western Union,Paypal,Alipay,Wechat
Supply Ability 100000m/month
Product Details
Material Virgin Silicone + Polyester Quality Food Grade Without Smell
Working Temperature -30 ~ +250^C Working Press 10kgs
Inside Diameter 5-32mm Outside Diameter 6-42mm
Tensile Strength 6.5Mpa Hardness 50shore A
Color Transparent Density 1.2g/cm3
Insert Polyester Tolerance ±0.1mm
Wall Thickness 3-4mm Compression Set Less Than 35%
Fda Compliant Yes Cured Platinum Cured
Elongation 500-700% Density 1.25-1.35 G/cm3
Hardness Shore A 50-80 Surface Smooth
Lead Time 7-15 Days Chemical Resistance Excellent
Size As Per The Buyer's Drawing
Highlight

flexible silicone tubing

,

high temperature silicone rubber tubing
Leave a Message
Product Description
Polyester Braid Silicone Rubber Tubing, Flexible Silicone Hose Food Grade Without Smell

Our silicone braided hose is a specialized comprehensive rubber product with exceptional properties including excellent electrical insulation, aging resistance, chemical stability, anti-oxidative weathering, radiation resistance, physiological inertness, air permeability, and outstanding resistance to both high and low temperatures.

This food-grade silicone tubing maintains stable performance between -30°C and 250°C for extended periods, with capability to operate from -60°C to 300°C under specific conditions.

Product Classification
  • Fine silicone wire
  • Silicone tube (strip)
  • High pressure-resistance silicone tube
  • Gear-like silicone tube
  • Silicone seals
  • Special-shaped bars
  • Food safety silicone tube and strip (non-toxic)
  • Medical silicone tube
  • Medicinal silicone tube
  • Fiber silicone tube (for delivering liquid food, biological products)
  • Medical silicone fittings
  • Silicone sealed pipe
  • Flame-retardant pipe (tube)
  • Silicone foaming tube and strip
  • Temperature-resistant products
Applications

Silicone braided hose is widely used as superior sealing material and for liquid transfer in aviation, electronics, petroleum, chemical industry, machinery, electrical equipment, medical, oven, and food industries. Applications include ancillary facilities for small home appliances, coffee pots, sukey, irons, rice cookers, deep fryers, disinfection cabinets, water dispensers, fruit syrup machines, bread machines, gas appliances, water heaters, electronics, automobile accessories, and medical machine products.

Product Specifications
Item Food Hose
Material Food Grade Silicone Rubber
Reinforcement Polyester
Standard Color Transparent or as requested
Surface Smooth
Tensile Strength 7.5 MPa
Hardness 50 Shore A
Elongation 245%
Density 1.2 g/cm³
Working Pressure 10 kgs
Minimum Working Temperature -30°C
Maximum Working Temperature +250°C
ID Size 5~32 mm
Wall Thickness 3~5 mm
Size Tolerance ID less than 1/2": ±0.3 mm; ID more than 1/2": ±0.5 mm
Standard Sizes
  • ID 5mm × OD 11mm
  • ID 6mm × OD 12mm
  • ID 8mm × OD 14mm
  • ID 11mm × OD 17mm
  • ID 13mm × OD 21mm
  • ID 16mm × OD 24mm
  • ID 19mm × OD 27mm
  • ID 25mm × OD 35mm
  • ID 32mm × OD 42mm
Key Properties

Anti-aging, erosion-endurable, high temperature resistance, anti-shock, and more

Product Advantages

Customized solutions + High performance + Superior quality + Competitive pricing + Extensive industry experience

Product Images

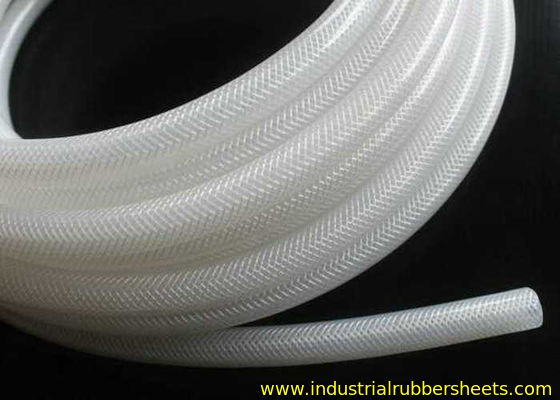

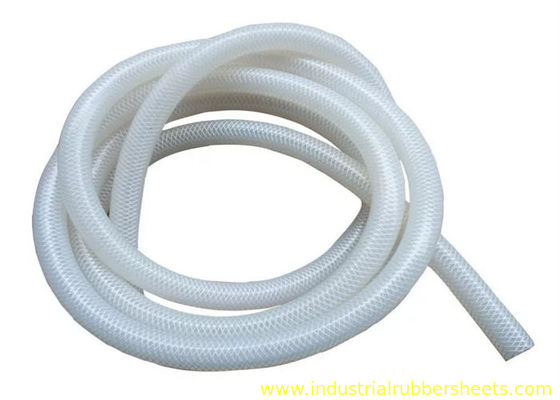

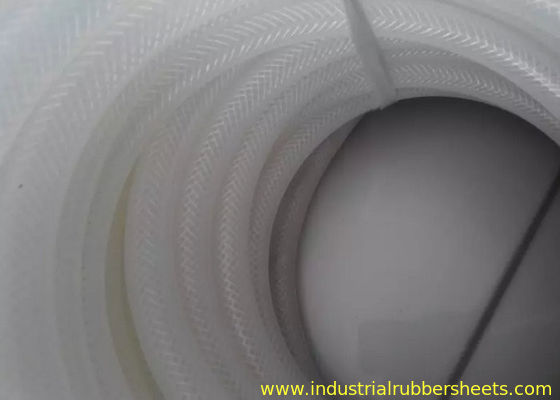

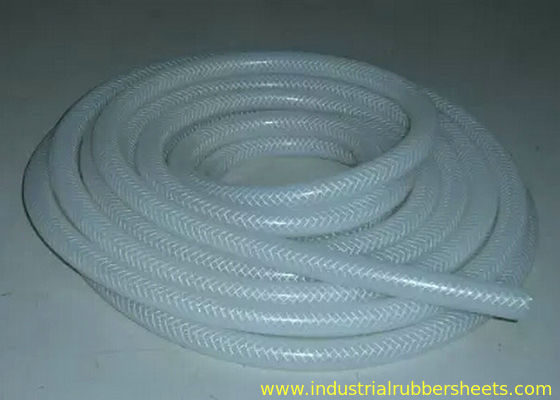

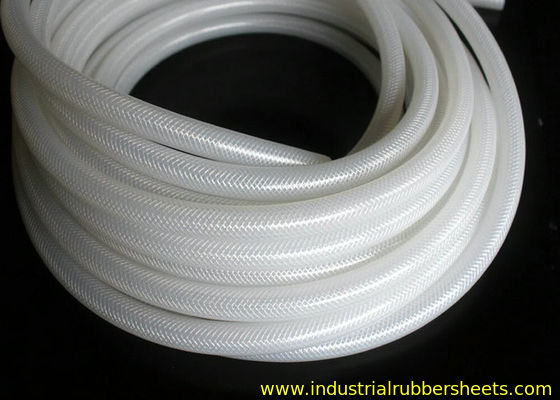

Food grade silicone braided hose close-up view showing transparent construction Silicone reinforced hose with polyester braiding visible through transparent material Industrial application of silicone rubber tubing in food processing equipment Various sizes of food grade silicone hoses for different industrial applications
