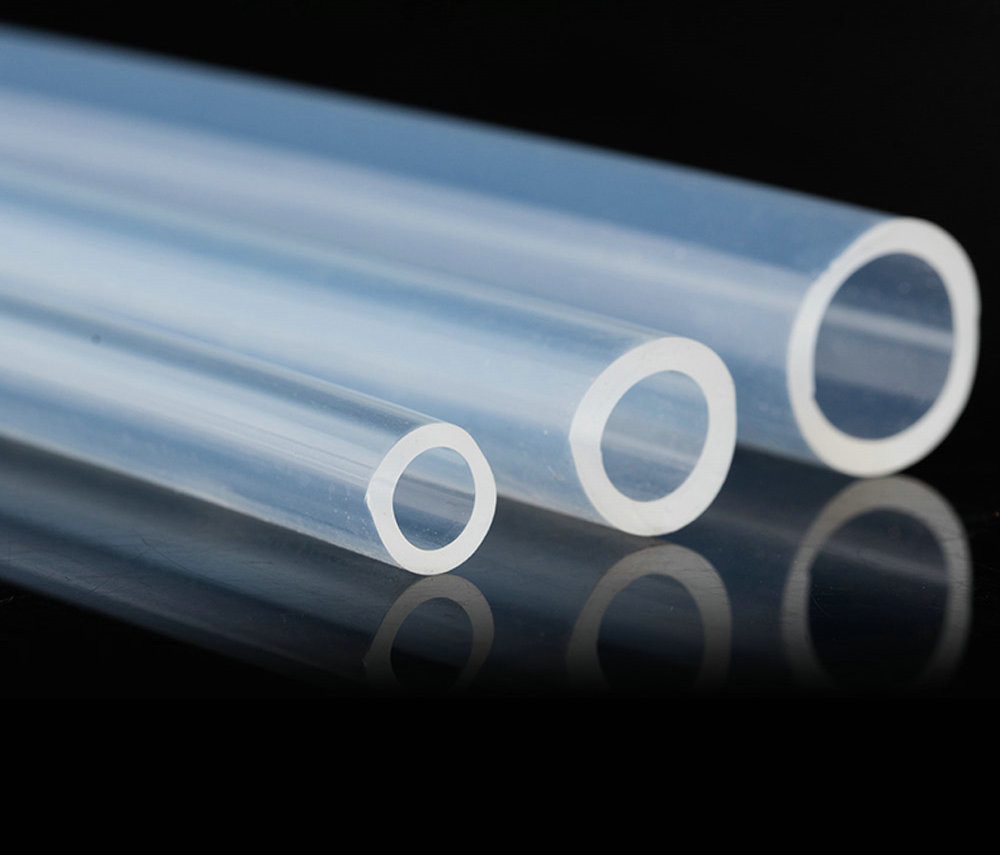

Food Grade Silicone Hose , Silicone Tube , Silicone Tubing Without Smell
Specifications:
material: 100% virgin silicone material
quality: industrial grade, food grade under postcured or platinum cured
color: transparent, translucent, dark red, orange, black, milk white, blue, grey etc.
surface: smooth/smooth
fiber reinforced: insert 1-5PLY polyester fiber
tensile strength: 7.5-9.8Mpa
hardness: 50, 60, 70, 80+/-5shore A
elongation: 350-720%
density: 1.25+/-0.05g/cm3
tear strength: 26-42N/mm
working temperature: -60°C - +250°C
wall thickness: 1.0, 2.0, 3.0, 4.0, 5.0mm
standard size:
Ø0.5mm x Ø1.0mm x 5-20kgs
Ø0.5mm x Ø1.5mm x 5-20kgs
Ø0.5mm x Ø2.0mm x 5-20kgs
Ø0.8mm x Ø1.9mm x 5-20kgs
Ø1.0mm x Ø2.0mm x 5-20kgs
Ø1.0mm x Ø3.0mm x 5-20kgs
Ø1.0mm x Ø4.0mm x 5-20kgs
Ø1.5mm x Ø2.5mm x 5-20kgs
Ø1.5mm x Ø3.0mm x 5-20kgs
Ø1.6mm x Ø3.2mm x 5-20kgs
Ø2.0mm x Ø3.0mm x 5-20kgs
Ø2.0mm x Ø4.0mm x 5-20kgs
Ø2.0mm x Ø5.0mm x 5-20kgs
Ø2.0mm x Ø6.0mm x 5-20kgs
Ø3.0mm x Ø4.0mm x 5-20kgs
Ø3.0mm x Ø5.0mm x 5-20kgs
Ø3.0mm x Ø6.0mm x 5-20kgs
Ø3.0mm x Ø8.0mm x 5-20kgs
Ø3.0mm x Ø9.0mm x 5-20kgs
Ø4.0mm x Ø5.0mm x 5-20kgs
Ø4.0mm x Ø6.0mm x 5-20kgs
Ø4.0mm x Ø7.0mm x 5-20kgs
Ø4.0mm x Ø8.0mm x 5-20kgs
Ø5.0mm x Ø8.0mm x 5-20kgs
Ø5.0mm x Ø9.0mm x 5-20kgs
Ø5.0mm x Ø10.0mm x 5-20kgs
Ø6.0mm x Ø9.0mm x 5-20kgs
Ø6.0mm x Ø10.0mm x 5-20kgs
Ø6.0mm x Ø12.0mm x 5-20kgs
Ø7.0mm x Ø9.0mm x 5-20kgs
Ø7.0mm x Ø10.0mm x 5-20kgs
Ø7.0mm x Ø12.0mm x 5-20kgs
Ø8.0mm x Ø10.0mm x 5-20kgs
Ø8.0mm x Ø12.0mm x 5-20kgs
Ø8.0mm x Ø14.0mm x 5-20kgs
Ø9.0mm x Ø12.0mm x 5-20kgs
Ø9.0mm x Ø14.0mm x 5-20kgs
Ø9.0mm x Ø16.0mm x 5-20kgs
Ø10.0mm x Ø14.0mm x 5-20kgs
Ø10.0mm x Ø16.0mm x 5-20kgs
Ø10.0mm x Ø18.0mm x 5-20kgs
Ø12.0mm x Ø16.0mm x 5-20kgs
Ø12.0mm x Ø18.0mm x 5-20kgs
Ø12.0mm x Ø20.0mm x 5-20kgs
Ø14.0mm x Ø18.0mm x 5-20kgs
Ø14.0mm x Ø20.0mm x 5-20kgs
Ø14.0mm x Ø22.0mm x 5-20kgs
Ø16.0mm x Ø18.0mm x 5-20kgs
Ø16.0mm x Ø20.0mm x 5-20kgs
Ø20.0mm x Ø30.0mm x 5-20kgs
Ø30.0mm x Ø40.0mm x 5-20kgs
Ø40.0mm x Ø50.0mm x 5-20kgs
OEM & customized size are agreed
packing in rolls, bags, cartons, pallets or crates
Description: the silicone hose, silicone tube, silicone sleeve are extruded or moulded by special silicone extruding machine or moulded machine with high quality silicone material under full sets mould of different inside diameter and outside diameter according to the request from buyers, high tensile strength, flexibility strong anti-pull and wider revise hardness range with good aging resistant, ozone resistant, heat resistant, insulation property, fuel oil resistance and lube resistance, working in the air, water or oil medium at the temperature of -60°C - +250°C. industrial grade silicone hose is made with standard extrude silicone and vulcanized with import peroxide without smell; food grade silicone hose is made with food grade transparent fumed silicone, platinum vulcanized, nonpoisonous and tasteless; medical grade silicone hose is made with medical grade transparent fumed silicone, platinum vulcanized with FDA and LFGB certificate. Apply to corona roller or transfer water, air, oil and other medium etc.

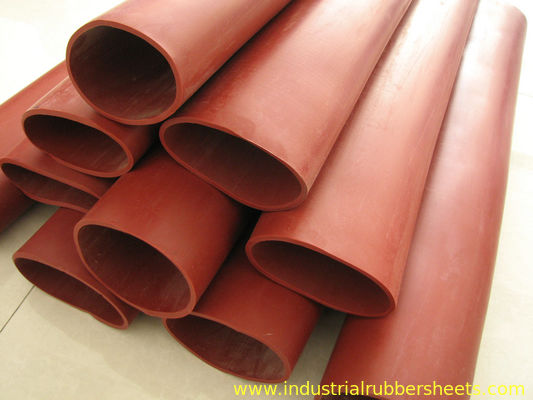

Silicone tube, silicone sleeve for corona roller:
Description: the corona silicone tube, silicone sleeve are made with high quality import fume silicone material which can resistant high voltage and inflaming retarding and special for corona machine. The high voltage corona sparkle is well-proportioned, it is easy to print color on plastic film with surface activation and millipore after corona treatment. Resistant 25KV at 1mm wall thickness. Apply for the roller sleeve, high-voltage terminal, protective sleeve, flexing tubing for all kinds of corona machine.
Specifications:
material: 100% virgin fume silicone material
color: orange, dark red, translucent, black etc.
tensile strength: 9.8Mpa
hardness: 60-70shore A
elongation: 700%
density: 1.25g/cm3
working temperature: -60°C - +250°C
resistant: 18-25KV/mm
wall thickness: 2.0, 3.0, 4.0, 6.0mm
standard size:
Ø32mm x Ø38mm x 2-20m
Ø32mm x Ø40mm x 2-20m
Ø34mm x Ø42mm x 2-20m
Ø46mm x Ø54mm x 2-20m
Ø50mm x Ø58mm x 2-20m
Ø55mm x Ø62mm x 2-20m
Ø60mm x Ø66mm x 2-20m
Ø60mm x Ø68mm x 2-20m
Ø63mm x Ø71mm x 2-20m
Ø67mm x Ø75mm x 2-20m
Ø75mm x Ø83mm x 2-20m
Ø80mm x Ø88mm x 2-20m
Ø90mm x Ø98mm x 2-20m
Ø98mm x Ø102mm x 2-20m
Ø106mm x Ø114mm x 2-20m
Ø140mm x Ø150mm x 2-20m
Ø145mm x Ø153mm x 2-20m
Ø162mm x Ø172mm x 2-20m
OEM & customized size are agreed
packing in bags and crates
***when you enquiry, pls confirm the color, quality, hardness, size, quantity***
