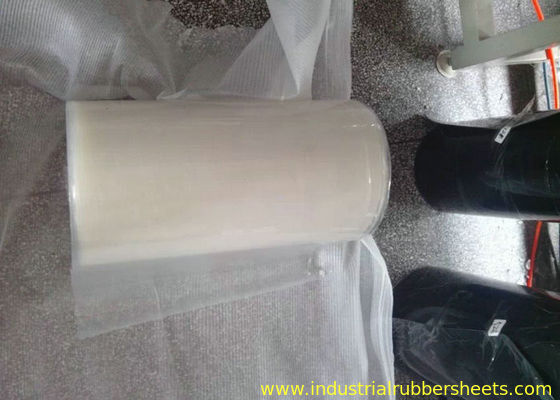

Super Thin Transparent Silicone Rubber Sheet with High Temperature Resistance for Gaskets and Seals
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A1001 |
| Minimum Order Quantity | 100kgs |
| Price | USD3-15.00/kg |
| Packaging Details | packing in rolls, bags and pallets |
| Delivery Time | 10-20 working days after received your payment |
| Payment Terms | T/T,L/C,Paypal,Western Union,D/P |
| Supply Ability | 100000kgs per month |
Product Details
| Thickness | 0.1-1.0mm | Width | 0.5-1.0m |
|---|---|---|---|
| Length | 50, 100m | Material | Plastic+silicone+PET |
| Color | Transparent | Application | Gaskets, Seals, Insulation, Cushioning |
| Hardness | 40, 50, 60, 70shore A | Elongation | 300% |
| Tensile Strength | 7.0Mpa | Tear Strength | 26N/mm |
| Working Temperature | -60°C - +240°C | Working Temp | -40^C ~ +260^C |
| Aging Resistance | Excellent | Chemical Resistance | Excellent |
| Rohs Compliance | Yes | Oem | OEM Service Available |
| Electrical Isolation | Excellent | Process | Extrusion |
| Feature | Heat Conducting,High Pressure Resistance | ||
| Highlight | silicone gasket sheet,flexible rubber sheet |
||
Product Description
0.1-1.0mm x 0.5-1.0mm x 50m Super Thin Transparent Silicone Rubber Sheet Silicone Film Silicone Rolls
Product Overview
Super thin silicone film, silicone rubber sheet, and silicone roll available in various thicknesses and widths for industrial applications.
Standard Sizes
| Thickness | Width | Length |
|---|---|---|
| 0.1±0.05mm - 1.0±0.05mm | 0.5m | 50m |
| 0.1±0.05mm - 1.0±0.05mm | 1.0m | 50m |
Packaging & Delivery
| Packaging Details | Standard export packaging |
| Delivery Detail | Within 7 days |
Key Features
- High resistance to tear
- High temperature resistance
- Corrosion resistance
Technical Specifications
Material: High grade silicone material
Specification: 0.1-1.0mm * 500-1000mm * 50m or custom
Specific Gravity: 1.25
Tearing Strength: 7.0Mpa
Tension: 300%
Hardness: 40, 50, 60, 70 ±5 shore A
Elongation at Break: ≥ 300%
Linear Shrinkage: 3.60%
Temperature Range: -60°C to +240°C
Luster: Available in various finishes
Performance Characteristics
High resistance to tear, high temperature resistance, corrosion resistance, anti-aging performance, non-toxic, odorless, excellent elasticity, insulation properties, and environmentally friendly.
Applications
- Punched gaskets, washers, seals with excellent sealing performance for medicine, industry, and food industries
- Suitable for pressure-demanding environments
- LCD screens of computers, time clocks, computer components
- Fax machines, printers with high-temperature components
- Automotive mechanical body, kitchen appliances, home appliances, and other equipment sealing
