Standard Vibration Dampening Mounts Rubber Slient Block With M6 / M8 Thread

Place of Origin China
Brand Name 3A Rubber
Certification ROHS/FCC/SGS
Model Number 3A4008
Minimum Order Quantity 100pieces
Price negotiation
Packaging Details Packed in cartons
Delivery Time 10 working days after received your payment
Payment Terms T/T, L/C, Paypal, Western Union
Supply Ability 1000000pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Rubber + Galvanized Metal Type TB-MF
Color Black Quality Industrial Grade
Hardness 40, 50, 60shore A Size Standard Size
OEM Agreed
Highlight

rubber shock absorber

,

anti vibration mounts

Leave a Message
Product Description

TB-MF type rubber shockabsorber , rubber mounting , rubber mounts , rubber vibration dampers , rubber buffer

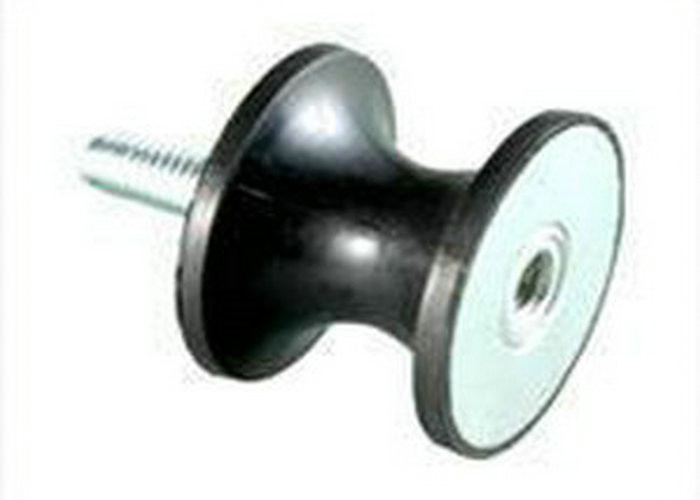

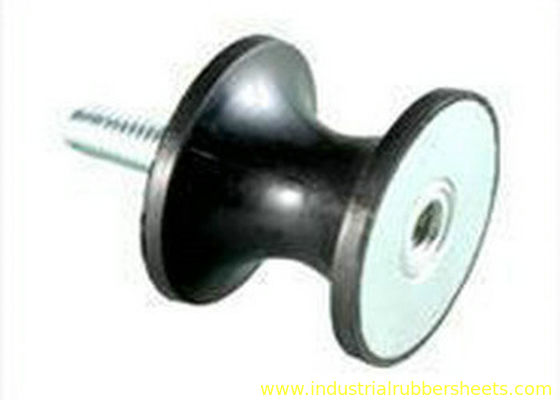

TB-MF rubber mountings is one of shock absorber screw with professional technology, inimitable formulation and full set of moulds without mould cost. one sides is male bolts and another side is female screw made with high quality zinc coated metal and standard screwthread, the middle is " V " surface with high quality rubber of NR, NBR, EPDM, SBR etc.(currently rubber is NR). Apply to the anti-vibration and shock absorption for all kinds machinery, include mobile anti-vibration parts, health care equipment, machinery anti-vibration parts, computer parts.

Specifications:
material: galvanized metal + rubber
rubber: NR, NBR, EPDM, SBR etc.(default is NR)
quality: industrial grade
color: black
top: screw thread
middle: saddle rubber
bottom: screw bolt
surface: smooth
tensile strength: 8Mpa
hardness: 40, 50, 60+/-5shore A
elongation: 350%
density: 1.4g/cm3
size: standard without mould cost
OEM: agree to produce by the buyer's drawing
packing in cartons
***when you order, pls confirm the quantity and product code number or your drawings***

Standard Vibration Dampening Mounts Rubber Slient Block With M6 / M8 Thread 0Standard Vibration Dampening Mounts Rubber Slient Block With M6 / M8 Thread 1


Code

A (mm)

C (mm)

B (mm)

M

H (mm)

I (mm)

TB201015M6

20

10

15

M6

8-10-12-16

6-8

TB251020M6

25

10

20

M6

10-12-16-18-20

6-8

TB251818M6

25

18

18

M8

18-20

6-8

TB251820M8

25

18

20

M8

18-20

6-8

TB401530M8

40

15

30

M8

14-18-20-23-25

6-8-10

TB402030M8

40

20

30

M8

14-18-20-23-25

6-8-10

TB402730M8

40

27

30

M8

14-18-20-23-25

6-8-10

TB403030M8

40

30

30

M8

14-18-20-23-25

6-8-10
