Industrial Grade Rubber Shock Mounts with Galvanized Metal and Standard Size for Vibration Dampening
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A4008 |
| Minimum Order Quantity | 100pieces |
| Price | negotiation |
| Packaging Details | Packed in cartons |
| Delivery Time | 10 working days after received your payment |
| Payment Terms | T/T,L/C,Paypal,Western Union |
| Supply Ability | 1000000pieces per month |
Product Details
| Material | Rubber + Galvanized Metal | Type | TB-MF |
|---|---|---|---|
| Color | Black | Quality | Industrial Grade |
| Hardness | 40, 50, 60shore A | Size | Standard Size |
| OEM | Agreed | ||
| Highlight | rubber shock absorber,anti vibration mounts |
||
Product Description
Standard Vibration Dampening Mounts Rubber Silent Block With M6 / M8 Thread
Product Overview
TB-MF type rubber shock absorber, rubber mounting, rubber mounts, rubber vibration dampers, rubber buffer
Product Description

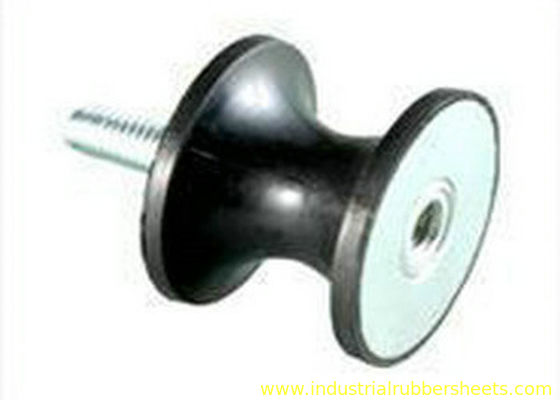

TB-MF rubber mountings are professional shock absorber screws featuring unique formulation and complete mold sets without mold cost. One side features male bolts while the other side has female screws made with high-quality zinc-coated metal and standard screw thread. The middle section has a "V" surface constructed with high-quality rubber materials including NR, NBR, EPDM, SBR (currently using NR). Designed for anti-vibration and shock absorption across various machinery applications including mobile anti-vibration parts, healthcare equipment, machinery anti-vibration components, and computer parts.
Specifications
Material:
Galvanized metal + rubber
Rubber:
NR, NBR, EPDM, SBR (default is NR)
Quality:
Industrial grade
Color:
Black
Top:
Screw thread
Middle:
Saddle rubber
Bottom:
Screw bolt
Surface:
Smooth
Tensile Strength:
8Mpa
Hardness:
40, 50, 60+/-5 shore A
Elongation:
350%
Density:
1.4g/cm³
Size:
Standard without mold cost
OEM:
Available according to buyer's drawings
Packing:
Cartons
Product Dimensions
| Code | A (mm) | C (mm) | B (mm) | M | H (mm) | I (mm) |
|---|---|---|---|---|---|---|
| TB201015M6 | 20 | 10 | 15 | M6 | 8-10-12-16 | 6-8 |
| TB251020M6 | 25 | 10 | 20 | M6 | 10-12-16-18-20 | 6-8 |
| TB251818M6 | 25 | 18 | 18 | M8 | 18-20 | 6-8 |
| TB251820M8 | 25 | 18 | 20 | M8 | 18-20 | 6-8 |
| TB401530M8 | 40 | 15 | 30 | M8 | 14-18-20-23-25 | 6-8-10 |
| TB402030M8 | 40 | 20 | 30 | M8 | 14-18-20-23-25 | 6-8-10 |
| TB402730M8 | 40 | 27 | 30 | M8 | 14-18-20-23-25 | 6-8-10 |
| TB403030M8 | 40 | 30 | 30 | M8 | 14-18-20-23-25 | 6-8-10 |
When ordering, please confirm the quantity and product code number or provide your technical drawings.
