Galvanized Metal + Rubber Shock Mounts with 40-60 Shore A Hardness and ISO9001 & TS16949 Certification

  • Galvanized Metal + Rubber Shock Mounts with 40-60 Shore A Hardness and ISO9001 & TS16949 Certification
  • Galvanized Metal + Rubber Shock Mounts with 40-60 Shore A Hardness and ISO9001 & TS16949 Certification
  • Galvanized Metal + Rubber Shock Mounts with 40-60 Shore A Hardness and ISO9001 & TS16949 Certification
  • Galvanized Metal + Rubber Shock Mounts with 40-60 Shore A Hardness and ISO9001 & TS16949 Certification
  • Galvanized Metal + Rubber Shock Mounts with 40-60 Shore A Hardness and ISO9001 & TS16949 Certification
  • Galvanized Metal + Rubber Shock Mounts with 40-60 Shore A Hardness and ISO9001 & TS16949 Certification
Place of Origin China
Brand Name 3A Rubber
Certification ROHS/FCC/SGS
Model Number 3A4002
Minimum Order Quantity 100pieces
Price negotiation
Packaging Details Packed in cartons
Delivery Time 10 working days after received your payment
Payment Terms T/T,L/C,Paypal,Western Union
Supply Ability 1000000pieces per month
Product Details
Material Rubber + Galvanized Metal Type B-MF
Color Black Tensile Strength 8-12Mpa
Hardness 40, 50, 60shore A Size Standard Size
OEM Agreed
Highlight

rubber vibration damper

,

rubber shock absorber
Leave a Message
Product Description
Galvanized Metal + Rubber Shock Mounts For Machinery / Rubber Vibration Dampers
Product Overview

B-MF rubber mounting, rubber shock mounts, rubber shock absorber, rubber to metal damper anti vibration mounts

B-MF rubber mountings are shock absorber screws featuring professional technology, unique formulation, and complete mold sets without mold cost. One side features male bolts and the other side female screws made with high-quality zinc-coated metal and standard screw thread. The middle section consists of high-quality rubber materials including NR, NBR, EPDM, SBR (default is NR). Designed for anti-vibration and shock absorption applications across various machinery types, including mobile anti-vibration parts, healthcare equipment, machinery anti-vibration components, and computer parts.

Specifications
  • Material: Galvanized metal + rubber
  • Rubber: NR, NBR, EPDM, SBR etc. (default is NR)
  • Quality: Industrial grade
  • Color: Black
  • Top: Screw bolt
  • Bottom: Screw thread
  • Surface: Smooth
  • Tensile strength: 8Mpa
  • Hardness: 40, 50, 60+/-5 shore A
  • Elongation: 350%
  • Density: 1.4g/cm³
  • Size: Standard without mold cost
  • OEM: Available according to buyer's drawings
  • Packing: Cartons
When ordering, please confirm the quantity and product code number or provide your drawings.
Technical Properties
Property Specifications
Materials of Rubber to Metal Bonding NBR, NR, CR, EPDM, SILICONE, FKM, SBR, etc. (as requested)
Hardness 30~90 shore A
Temperature Range -40~+260 celsius degrees (or as requested)
Color Black, or as requested
Size As requested
Certifications All manufacturing processes comply with ISO9001 & TS16949
Materials Approved Materials meet RoHS directive, REACH, NSF, KTW, WRAS, etc.
Logo As requested
QC/QA Experienced quality control and assurance system
Service OEM and ODM orders welcome according to 2D, 3D, drawings or samples
Guarantee High quality, reasonable price, reliable service and quick shipment
MOQ Negotiable, small order quantity welcomed
Applications
  • Electrical Enclosure Seals
  • Grommets
  • Light Fixture Seals
  • Rubber to Metal Bonding
  • Wire Access Seals

Compliance: ISO9001:2000 and TS 16949

Industries Served
  • Automotive
  • Consumer Appliances
  • Electrical Enclosures
  • Lighting
  • Marine
  • Transportation

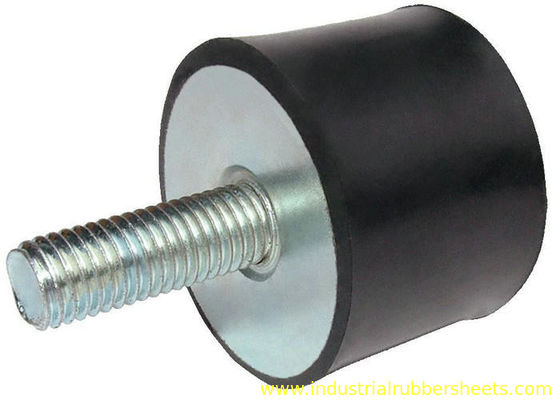

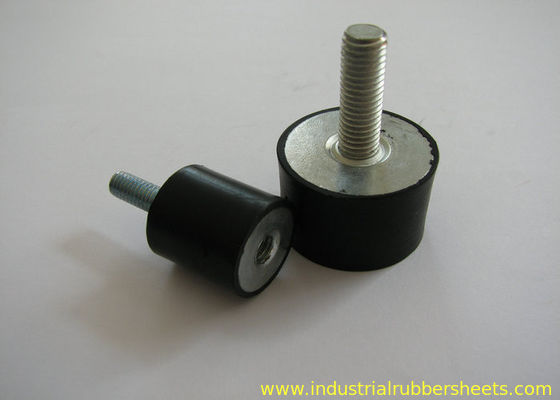

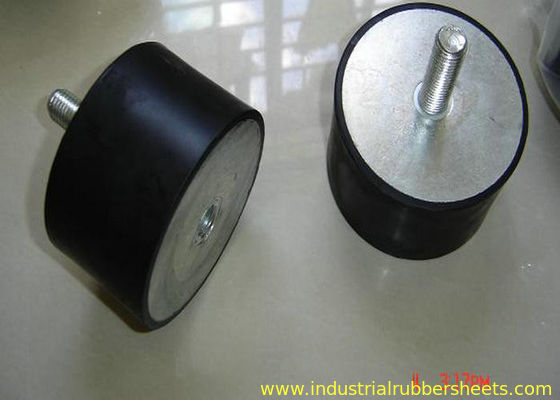

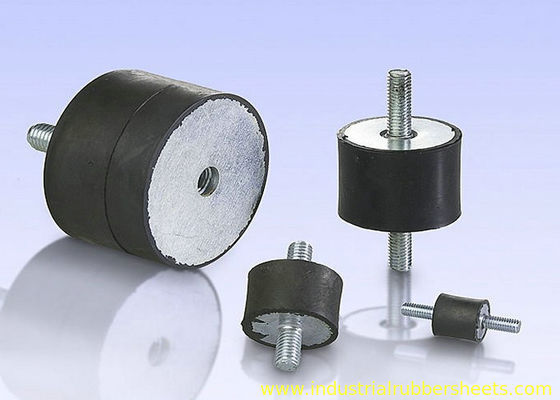

B-MF rubber shock mount product illustration showing construction details Close-up view of galvanized metal and rubber vibration damper components
Product Dimensions
Code A (mm) B (mm) M H / I (mm)
B0607M367M35
B0808M388M34-6-10
B1008M4108M46.5-8-10
B1010M41010M46.5-8-10
B1015M41015M46.5-8-10
B1508M4158M46-8-10-14
B1510M41510M46-8-10-14
B1515M41515M46-8-10-14
B1520M41520M46-8-10-14
B1525M41525M48-10
B1508M5158M58-10
B1510M51510M58-10
B1520M51520M58-10
B1525M51525M58-10
B1610M41610M48-10-12
B1615M41615M48-10-12
B1620M41620M48-10-12
B1610M51610M58-10-12
B1615M51615M58-10-12
B1620M51620M58-10-12
B2010M62010M68-10-12-16-18-20
B2015M62015M68-10-12-16-18-20
B2020M62020M68-10-12-16-18-20
B2030M62030M68-10-12-16-18-20
B2510M62510M610-12-14-16-18-20
B2513M62513M610-12-14-16-18-20
B2515M62515M610-12-14-16-18-20
B2520M62520M610-12-14-16-18-20
B2522M62225M6
B2525M62525M68-10-12-16-18-20
B2530M62530M68-10-12-16-18-20
B2510M82510M88-12-14-18-20
B2513M82513M88-12-14-18-20
B2515M82515M88-12-14-18-20
B2520M82520M88-12-14-18-20
B2522M82522M88-12-14-18-20
B2525M82525M88-12-14-18-20
B2530M82530M88-12-14-18-20
B3010M63010M612-15-18
B3012M63012M612-15-18
B3015M63015M612-15-18
B3017M63017M612-15-18
B3020M63020M612-15-18
B3022M63022M612-15-18
B3025M63025M612-15-18
B3030M63030M612-15-18
B3040M63040M612-15-18
B3010M83010M814-18-20-23-25-35
B3012M83012M814-18-20-23-25-35
B3015M83015M814-18-20-23-25-35
B3017M83017M814-18-20-23-25-35
B3020M83020M814-18-20-23-25-35
B3022M83022M814-18-20-23-25-35
B3025M83025M814-18-20-23-25-35
B3030M83030M814-18-20-23-25-35
B3040M83040M814-18-20-23-25-35
B4010M84010M814-18-20-23-25-35
B4015M84015M814-18-20-23-25-35
B4020M84020M814-18-20-23-25-35
B4025M84025M814-18-20-23-25-35
B4028M84028M814-18-20-23-25-35
B4030M84030M814-18-20-23-25-35
B4035M84035M814-18-20-23-25-35
B4040M84040M814-18-20-23-25-35
B4045M84045M814-18-20-23-25-35
B4010M104010M1015-18.5-20-25-28-35
B4015M104015M1015-18.5-20-25-28-35
B4020M104020M1015-18.5-20-25-28-35
B4025M104025M1015-18.5-20-25-28-35
B4028M104028M1015-18.5-20-25-28-35
B4030M104030M1015-18.5-20-25-28-35
B4035M104035M1015-18.5-20-25-28-35
B4040M104040M1015-18.5-20-25-28-35
B4045M104045M1015-18.5-20-25-28-35
B5015M105015M1015-18.5-20-25-28-35
B5020M105020M1015-18.5-20-25-28-35
B5025M105025M1015-18.5-20-25-28-35
B5030M105030M1015-18.5-20-25-28-35
B5040M105040M1015-18.5-20-25-28-35
B5045M105045M1015-18.5-20-25-28-35
B5050M105050M1015-18.5-20-25-28-35
B6030M106030M1015-18.5-20-25-28-35
B6035M106035M1015-18.5-20-25-28-35
B6040M106040M1015-18.5-20-25-28-35
B6045M106045M1015-18.5-20-25-28-35
B6050M106050M1015-18.5-20-25-28-35
B6030M126030M1228-37
B6035M126035M1228-37
B6040M126040M1228-37
B6045M126045M1228-37
B6050M126050M1228-37
B7030M127030M1228-37
B7040M127040M1228-37
B7050M127050M1228-37
B7525M127525M1228-37
B7530M127530M1228-37
B7540M127540M1228-37
B7545M127545M1228-37
B7550M127550M1228-37
B8080M128080M1235-45-57
B8080M168080M1635-45-57
B10040M1610040M1635-45-57
B10050M1610050M1635-45-57
B10055M1610055M1635-45-57
B10060M1610060M1635-45-57
B100100M16100100M1635-45-57
