Industrial Grade Translucent Silicone Extrusion with High Temperature Resistance for Seals and Profiles
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A1004 |
| Minimum Order Quantity | 20kgs |
| Price | USD3-15.00/kg |
| Packaging Details | packing in rolls, cartons and pallets |
| Delivery Time | 7-15days after receive the buyer's payment |
| Payment Terms | T/T,L/C,Paypal,Western Union,D/P |
| Supply Ability | 100000kgs per month |
Product Details
| Material | 100% Virgin Silicone | Color | Transparent |
|---|---|---|---|
| Hardness | 45-75shore A | Density | 1.2-1.3 G/cm³ |
| Working Temperature | -60°C - +260°C(moment 300°C) | Size | Build Mould As Per The Buyer's Drawing |
| Diameter | 1mm-50mm | Oem Odm | Available |
| Certifications | FDA, RoHS, REACH | Outside Diameter | 6-42mm |
| Tear Strength | 20-40 N/mm | Tolerance | ±0.1mm |
| Elongation | 500-700% | Rohs Compliance | Yes |
| Inside Diameter | 2-350mm | Wall Thickness | 2-5mm |
| Lead Time | 7-15 Days | Rohs Compliant | Yes |
| Outer Diameter | 3mm-55mm | ||
| Highlight | flexible silicone tubing,silicone rubber pipe |
||
Product Description

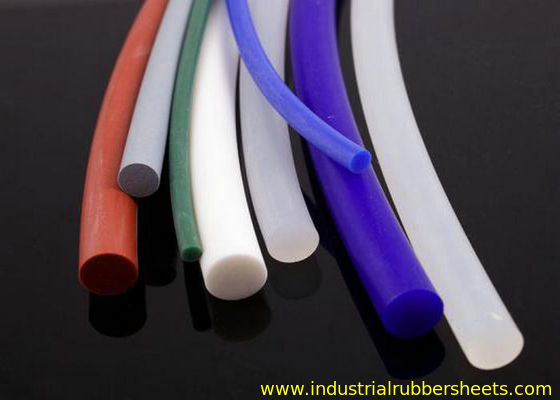

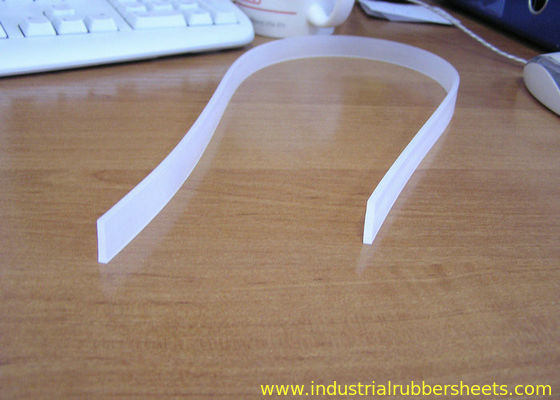

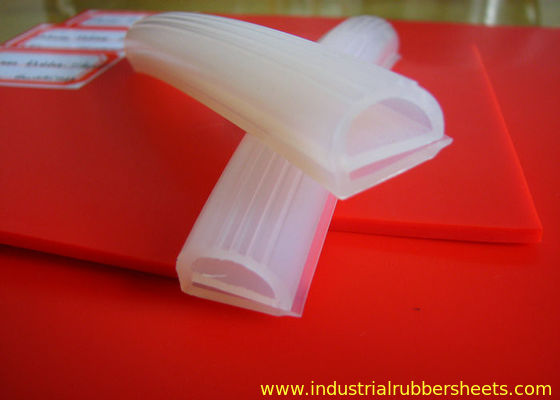

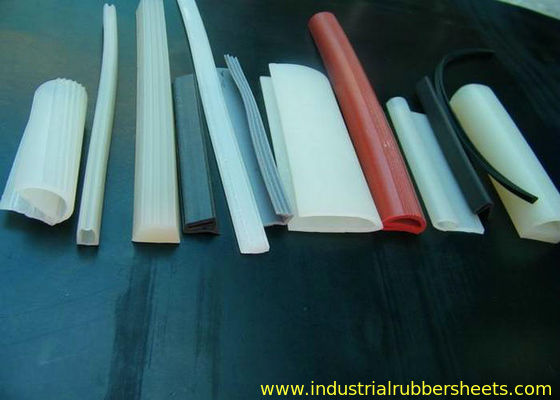

Industrial Grade Translucent Silicone Extrusion
This silicone cord is an extremely resilient silicone material that displays excellent resistance to heat, weathering, ozone, and a wide range of chemicals. It is impervious to UV lighting, non-toxic, chemically inert, features even wall thickness, and will retain its flexibility and properties within -60°C to 300°C.
Specifications & Technical Data
| Item | Transparent Silicone Rubber Seal Cord |
|---|---|
| Material | 100% silicone |
| Color | Black, transparent, and other pantone colors |
| Diameter | Customized per customer's requirement |
| Tensile Strength | 8 Mpa |
| Temperature Resistance | -60°C ~ 300°C |
| Packaging Size | Roll packaging: length (50-200 meters/roll), or customized per customer's requirement |
Product Features
High quality silicone as raw material, high elasticity
Easy installation, sound insulation, shock absorption
Ozone/acid/alkali/oil/water/abrasion/heat resistance
Perfect airtightness, non-discoloring, low flammability
Eco-friendly, anti-aging, durable, non-toxic, odorless
Product Applications
Doors, windows, curtains, refrigerator, oven, microwave oven, freezer, automobiles, railway, bridge, industrial & agricultural machines, and more.
Our Advantages
Professional design team with 15 years of R&D experience
Annual sales revenue: $8M, 150 employees including 5 QC
Factory: three production workshops, 8000 square meters
Daily two shifts production running, 100% on-time delivery
Packaging & Shipping
| Packing Type | Usually packed in roll, 50-200 meter/roll or according to specific request from customer |
|---|---|
| Packing Material | Inner PE film wrapped over each roll + outer woven bag (3~4 rolls/bag) or outer carton box (one roll/carton box); palletized for extra reinforcement if necessary |
| Shipping Marks | Neutral packing with printed marks |
| Delivery Time | Shipped out within 5-7 days after receiving of the PO and advance payment (30%) |
| Freight | Sea (FCL & LCL) or air freight |
| Special Size Service | We provide cutting/die punching services for special sizes (can with reversed adhesive) |
Detailed Specifications
| Material | 100% virgin silicone rubber |
| Quality | Industrial grade, food grade |
| Color | Translucent, dark red, black, milk white, blue, grey etc. |
| Surface | As per the buyer's drawing |
| Tensile Strength | 8Mpa |
| Hardness | 40, 50, 60, 70+/-5 shore A |
| Elongation | 380% |
| Density | 1.25g/cm3 |
| Tear Strength | 26N/mm |
| Working Temperature | -60°C - +250°C |
| Size | Build mould according to the buyer's drawing |
Important: When you enquire, please confirm the color, hardness, quantity and drawing.
