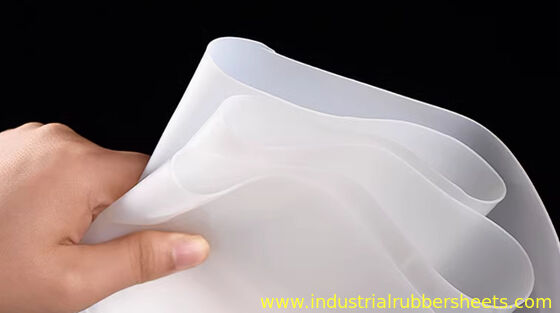

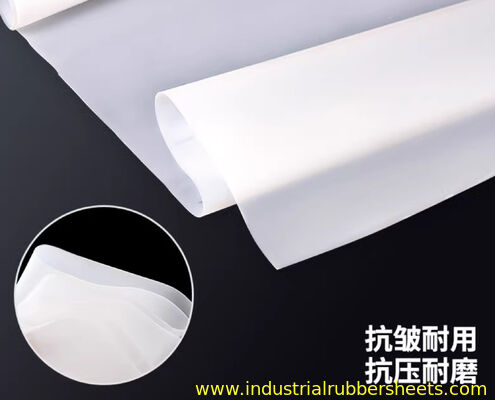

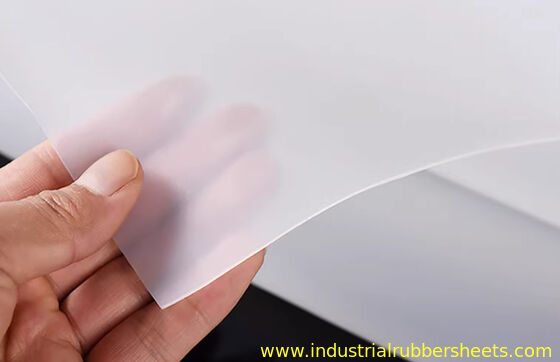

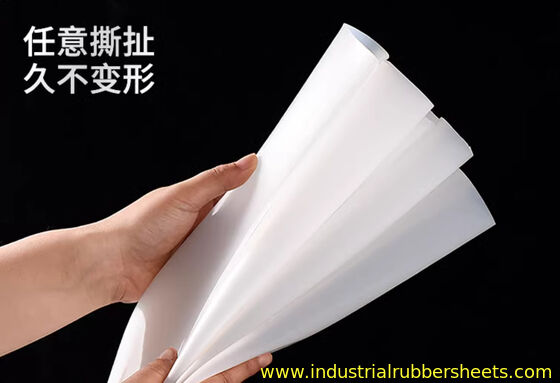

300%-720% Elongation Virgin HTV Silicone Rubber Sheet with 3-4mm Thickness for Industrial Applications

  • 300%-720% Elongation Virgin HTV Silicone Rubber Sheet with 3-4mm Thickness for Industrial Applications
  • 300%-720% Elongation Virgin HTV Silicone Rubber Sheet with 3-4mm Thickness for Industrial Applications
  • 300%-720% Elongation Virgin HTV Silicone Rubber Sheet with 3-4mm Thickness for Industrial Applications
  • 300%-720% Elongation Virgin HTV Silicone Rubber Sheet with 3-4mm Thickness for Industrial Applications
  • 300%-720% Elongation Virgin HTV Silicone Rubber Sheet with 3-4mm Thickness for Industrial Applications
Brand Name 3A Rubber
Certification ISO9001
Model Number 3A1001
Minimum Order Quantity 100kgs
Price USD3.00-15.80/kg
Packaging Details Packing In Rolls And Pallets
Delivery Time 7-15days
Payment Terms T/T,L/C,D/P,Western Union,Paypal
Supply Ability 500000kgs/month
Product Details
Surface Smooth/smooth, Smooth/impression Fabric, Smooth/sand Or Double Impression Fabric Hardness 10, 20, 30, 40, 50, 60, 70, 80+/-5shore A
Grade Industrial Grade, Food Grade, Medical Grade, FDA Grade With Platinum Cured And Postcured Density 1.25-1.50g/cm3
Quality High Tear Resistant, Middle Tear Resistant, General Tear Resistant Elongation 300%-720%
Tear Strength 26-42N/mm Material Virgin HTV Silicone Material
Highlight

high elongation silicone rubber sheet

,

3-4mm thick silicone rubber sheet

,

720% stretch silicone rubber sheet
Leave a Message
Product Description
Elongation 300 to 720 Percent Silicone Rubber Sheet 3-4mm Thickness
The Silicone Rubber Sheet is a versatile and durable material designed for industrial and commercial applications. Known for excellent heat resistance and flexibility, this product is ideal for environments where high temperature performance is critical. Our high temp silicone rubber sheet maintains physical integrity under extreme temperatures, making it reliable for sealing, gasketing, insulation, and cushioning purposes.
Available in various tear resistance levels—high tear resistant, middle tear resistant, and general tear resistant—this sheet offers solutions for both heavy-duty industrial use and lighter applications. The thickness range spans from 0.5mm to 10mm, with the 3mm thickness providing an excellent balance between flexibility and strength for electrical insulation, gasketing, and vibration dampening.
Multiple surface finishes include smooth/smooth, smooth/impression fabric, smooth/sand, and double impression fabric to suit different operational needs. With a density range of 1.25 to 1.50g/cm³ and hardness levels from 10 to 80 shore A (±5 shore A), this material offers customizable performance for diverse requirements.
Key Features
  • Product Name: Silicone Rubber Sheet
  • Material: Virgin HTV Silicone Material
  • Elongation: 300% - 720%
  • Hardness: 10, 20, 30, 40, 50, 60, 70, 80 ±5 Shore A
  • Tear Strength: 26-42 N/mm
  • Color Options: Translucent, Red, Black, White, Grey, Blue, etc.
  • Available as Silicone Rubber Sheet 3mm thickness
  • Comes in Silicone Rubber Sheet roll for easy handling
  • Ideal for heat press applications
Technical Parameters
Parameter Specification
Elongation 300% - 720%
Tear Strength 26 - 42 N/mm
Tensile Strength 7.0 - 12.0 MPa
Thickness 0.5mm to 10mm (including 3mm and 1mm)
Grade Industrial Grade, Food Grade, Medical Grade, FDA Grade with Platinum Cured and Postcured
Surface Smooth/smooth, Smooth/impression Fabric, Smooth/sand, or Double Impression Fabric
Material Virgin HTV Silicone Material
Density 1.25 - 1.50 g/cm³
Quality High Tear Resistant, Middle Tear Resistant, General Tear Resistant
Color Translucent, Red, Black, White, Grey, Blue, etc.
Applications
The Silicone Rubber Sheet from 3A Rubber (model 3A1001) is certified by ISO9001 and available in Industrial, Food, Medical, and FDA Grades with platinum cured and postcured options. Supplied in rolls and pallets with thickness options from 0.5mm to 10mm, it offers excellent elongation (300%-720%) and tear strength (26-42N/mm) for demanding applications.
Ideal for automotive gaskets, industrial seals, and insulation components where high temperature tolerance is critical. In food and medical industries, the food grade and medical grade sheets are used for hygienic sealing solutions, tubing, and protective covers. The 3mm thickness provides optimal balance for custom gaskets, vibration dampening pads, and protective liners.
With a supply capacity of 500,000 kgs per month, minimum order quantity of 100kgs, and competitive pricing from USD 3.00 to 15.80 per kilogram, this product offers flexible purchasing options with delivery times of 7-15 days.
Frequently Asked Questions
Q1: What is the brand and model number of the Silicone Rubber Sheet?
A1: The Silicone Rubber Sheet is branded as 3A Rubber, and the model number is 3A1001.
Q2: Where is the Silicone Rubber Sheet manufactured?
A2: The Silicone Rubber Sheet is manufactured in China.
Q3: What certifications does the Silicone Rubber Sheet have?
A3: The Silicone Rubber Sheet is certified with ISO9001.
Q4: What is the minimum order quantity and pricing for the Silicone Rubber Sheet?
A4: The minimum order quantity is 100 kgs. The price ranges from USD 3.00 to 15.80 per kg depending on specifications and order size.
Q5: How is the Silicone Rubber Sheet packaged and what is the typical delivery time?
A5: The sheets are packed in rolls and pallets. The typical delivery time is between 7 to 15 days.
Q6: What payment methods are accepted for purchasing the Silicone Rubber Sheet?
A6: Accepted payment methods include T/T, L/C, D/P, Western Union, and Paypal.
Q7: What is the supply capacity for the Silicone Rubber Sheet?
A7: The supply ability is 500,000 kgs per month.
