Magnaloy Rubber Coupling High-Performance and Durable Solution for Machinery Misalignment and Vibration Damping

Magnaloy is a well-known brand of industrial couplings manufactured by Reynolds (a Rexnord company). They offer both rubber (elastomeric) and metal flexible couplings, designed to accommodate misalignment, transmit torque, and dampen vibration between connected shafts in machinery. Here's a breakdown of the two types:

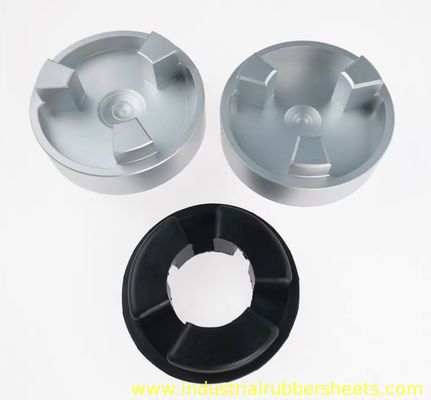

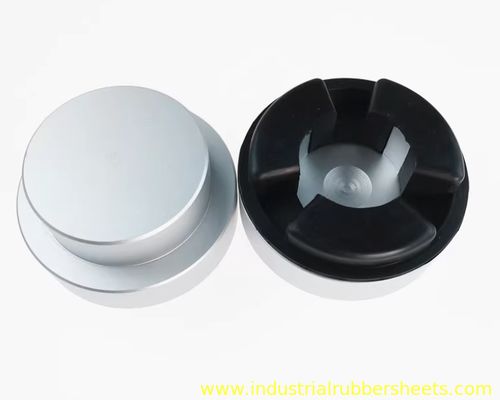

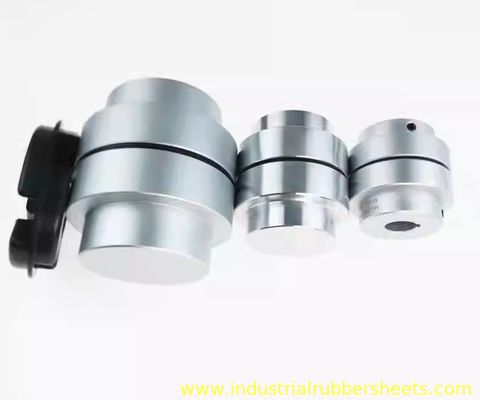

1. Magnaloy Rubber (Elastomeric) Couplings:

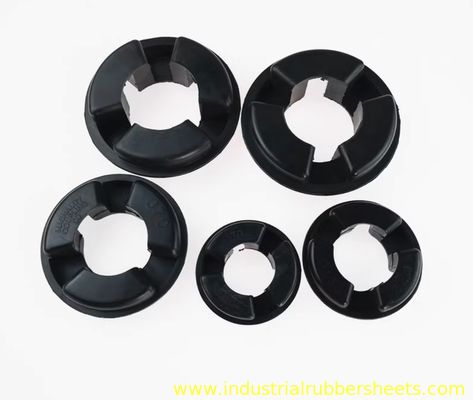

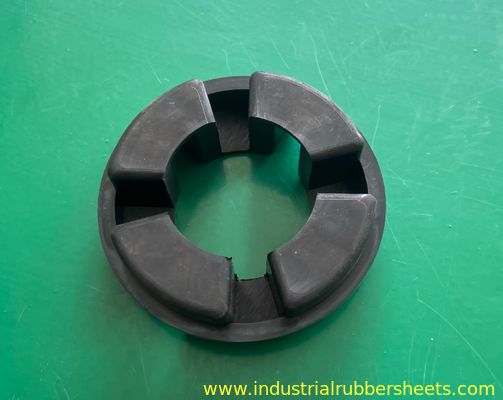

   • Type: These use a flexible rubber or polyurethane element (spider, sleeve, tire, or shaped element) as the torque-transmitting and misalignment-accommodating component.

   • Key Features:

     • Excellent Vibration Damping: Highly effective at absorbing shock loads and reducing vibration transmission between connected machines.

     • Electrical Isolation: Provides insulation between driver and driven shafts.

     • Misalignment Accommodation: Handles moderate amounts of parallel, angular, and axial misalignment.

     • Ease of Installation/Maintenance: Generally simple to install and replace the elastomeric element without moving the connected equipment. Element replacement is often the primary maintenance task.

     • Torsional Flexibility: Offers some torsional softness, protecting connected equipment from sudden torque spikes.

     • Lower Cost (Initial & Maintenance): Typically lower initial cost than comparable metal couplings, and element replacement is usually inexpensive.

     • No Lubrication Required: The elastomeric element operates dry.

   • Common Magnaloy Series Examples: MagnaDrive, MagnaFlex, MagnaTorque, MagnaShear, MagnaGrip.

   • Typical Applications: Pumps, compressors, fans, blowers, conveyors, mixers, generators, light industrial drives – anywhere vibration damping and moderate misalignment are priorities.

2. Magnaloy Metal Couplings:

   • Type: These use flexible metal components (discs, grids, or springs) to transmit torque and accommodate misalignment. There are no elastomeric parts in the torque path.

   • Key Features:

     • High Torque Density & Capacity: Can transmit very high torque in a compact space.

     • High Speed Capability: Engineered for precision balance and operation at very high rotational speeds.

     • Zero Backlash: Provides precise motion control (critical for servo applications).

     • Torsional Stiffness: Offers minimal windup (angular deflection under load), important for timing and positioning.

     • High Misalignment Capability (Specific Types): Certain designs (like disc couplings) can handle significant parallel and angular misalignment.

     • High Temperature & Chemical Resistance: Can operate in environments where elastomers would fail (extreme heat, corrosive chemicals, oils).

     • Long Service Life & Predictability: Metal components generally have longer, more predictable fatigue lives than elastomers under constant load. Minimal maintenance (often just periodic inspection).

     • Requires Lubrication (Grid Couplings): Grid couplings need periodic lubrication. Disc couplings are typically lubrication-free.

   • Common Magnaloy Series Examples:

     • Metallic Disc Couplings: MagnaDisc, MagnaDyne (High-performance, lubrication-free, high-speed, high-misalignment).

     • Grid Couplings: MagnaGrid (High torque, robust, requires lubrication).

     • Spring Couplings: (Less common in Magnaloy's primary industrial focus).

   • Typical Applications: Turbines, high-speed compressors, precision servos, large pumps, heavy-duty conveyors, crushers, mills, marine drives, steel mills, and applications involving high temperatures, chemicals, or requiring high torsional stiffness/precision.

Key Differences Summary:

Choosing Between Them:

• Choose Rubber (Elastomeric) if: Vibration damping, electrical isolation, moderate cost, and ease of maintenance are top priorities, and operating conditions (temperature, chemicals) are within the elastomer's limits.

• Choose Metal (Disc or Grid) if: You need very high torque/speed, precise motion control (zero backlash), operation in extreme temperatures/harsh chemical environments, long predictable life, high misalignment capacity (discs), or minimal maintenance (discs).

Important Note: Always consult the specific Magnaloy product catalog, engineering data, or a qualified distributor/engineer to select the exact coupling type and size based on your application's torque, speed, misalignment, environmental conditions, and space constraints. Rexnord provides detailed selection guides and software for this purpose.
