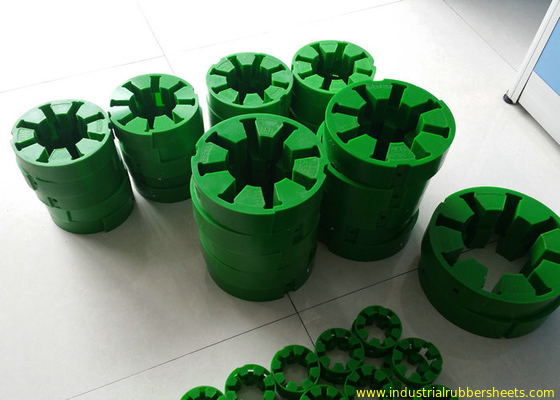

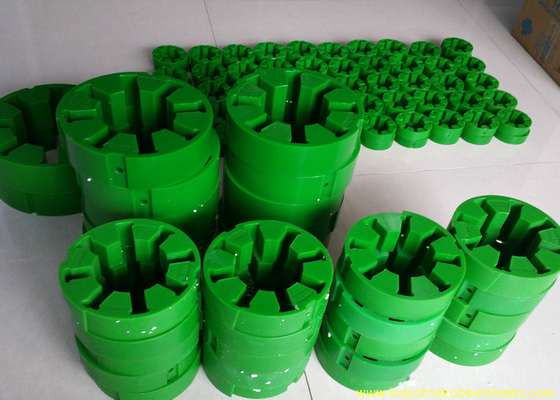

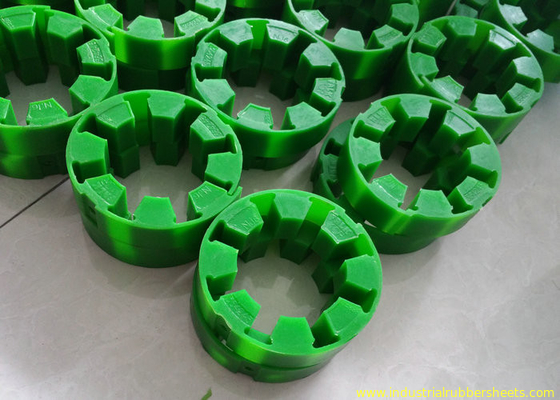

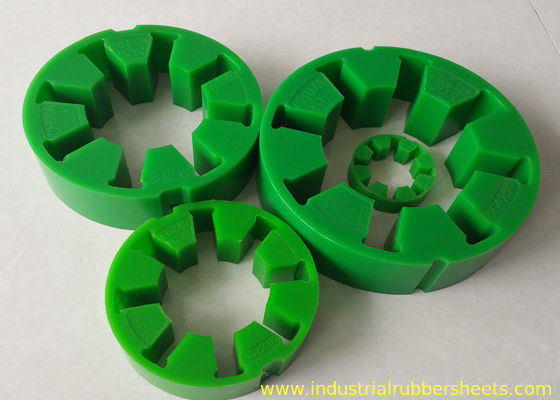

High Tensile Strength Green Polyurethane Coupling 97 Shore A Falk 10R - 80R
made by injection with high quality polyester. It is designing and special for all kinds of metal shaft coupling with very good performance of high tensile strength, high wear resistant, high elastic resilience, water resistant, oil resistant and excellent fatigue resilience, high impact resistant etc. We have full sets moulds and supply full range of Falk R couplings with high quality and excellent experience. Apply to all kinds of industrial metal shaft coupling.
Specifications:
material: polyester
color: green
surface: smooth
tensile strength: 55Mpa
hardness: 97Shore A
elongation: 650%
density: 1.25g/cm3
elasticity impact: >25%
tear strength: 155KN/m
akron abrasion loss: <0.05cm3/1.61km
compression set (22h*70oC): <10%
working temperature: 100oC
Size | OD(mm) | ID(mm) | Thickness(mm) | Gear Qty | Color | Hardness |
Falk 10R | 80 | 49 | 23 | 8 | Green | 97Shore A |
Falk 20R | 114 | 61 | 31 | 8 | Green | 97Shore A |
Falk 30R | 131 | 74 | 35 | 8 | Green | 97Shore A |
Falk 40R | 164 | 82 | 47 | 8 | Green | 97Shore A |
Falk 50R | 210 | 106 | 60 | 8 | Green | 97Shore A |
Falk 60R | 250 | 140 | 65 | 8 | Green | 97Shore A |
Falk 70R | 293 | 164 | 72 | 8 | Green | 97Shore A |
Other standard size for polyurethane coupling:
GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180
MT1, MT2, MT3, MT4, MT5, MT6, MT7, MT8, MT9, MT10, MT11, MT12, MT13
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225, L276
FALK-R 10R, 20R, 30R, 40R, 50R, 60R, 70R, 80R
standard size for rubber coupling:
Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225
NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265
Gear 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J
special size build molding according to the buyer's drawings
***when you enquiry, pls confirm product's number and quantity***
