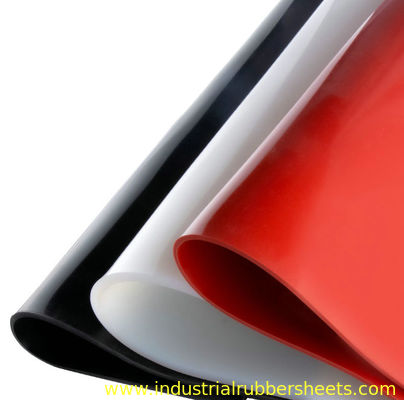

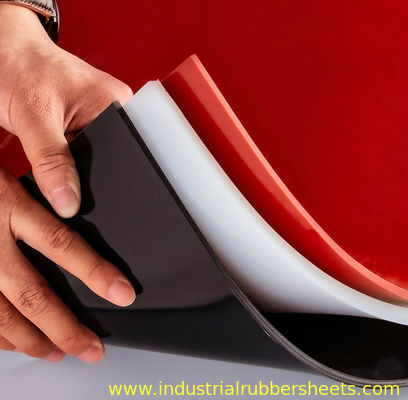

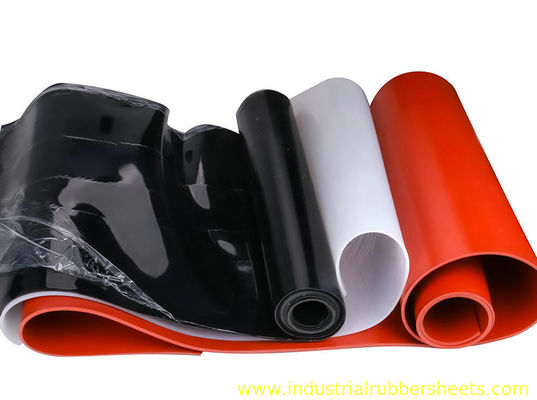

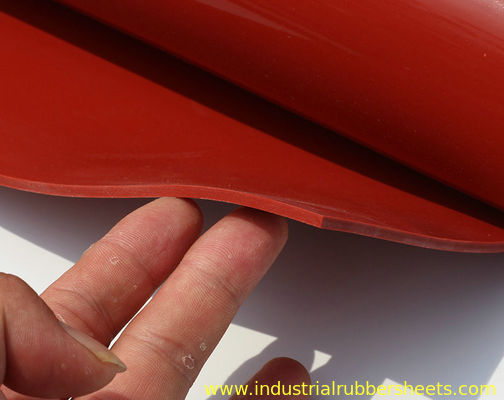

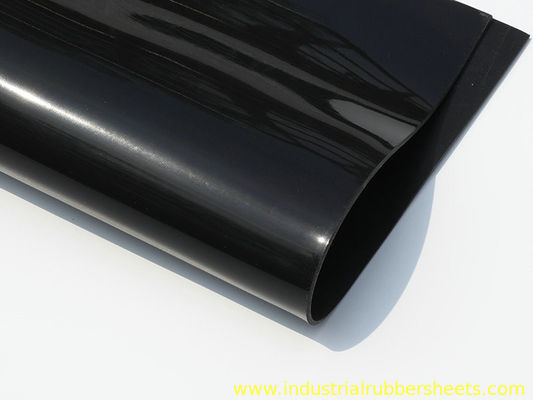

2mm Thick High Hardness Silicone Rubber Sheet with UL94-V0 Rating for Industrial Use
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ISO9001 |
| Model Number | 3A1001 |
| Minimum Order Quantity | 100kgs |
| Price | USD3.00-15.80/kg |
| Packaging Details | packing in rolls, cartons and pallets |
| Delivery Time | 7-15days after receive the buyer's payment |
| Payment Terms | T/T,L/C,D/P,Western Union,Paypal |
| Supply Ability | 500000kgs/month |
Product Details
| Features | High Temperature Resistance, Aging Resistance, Weather Resistance, Chemical Resistance, Electrical Insulation, Non-toxic, Odorless, Etc. | Temperature Range | -60℃-300℃ |
|---|---|---|---|
| Material | Silicone Rubber | Hardness | 20-80 Shore A |
| Name | Silicone Rubber Sheet | Aging Resistance | Excellent |
| Ozone Resistance | Excellent | Length | 1m-20m |
| Tear Strength | 26-32N/mm | Breakdown Voltage | ≥20KV/mm |
| Color | Translucent, White, Black, Red, Etc. | Compression Set | ≤25% |
| Dielectric Strength | 20-30KV/mm | Elongation | 200-700% |
| Size | Per The Buyer's Request | Surface Resistivity | 10^13-10^15Ω |
| Tensile Strength | 3.5-8Mpa | Thickness | 0.5mm-50mm |
| Volume Resistance | 10^13-10^15Ω·cm | Operatingtemperature | -60℃ To +200℃ |
| Usage | Widely Used | Tensile Strenth | 7.5-12Mpa |
| Lead Time | 7-15 Days | Flammability | UL94-V0 |
| Lower Rubber Layer | 1.5mm,3.0mm,6.0mm | Specific Gravity | 1.25-1.50g/cm3 |
| Keyword | Soft Silicone Rubber Sheet | Products | Silicone Rubber Sheet |
| Highlight | 2mm soft silicone rubber sheet,high hardness soft silicone rubber sheet,2mm white silicone rubber sheet |
||
Product Description
High Hardness 2mm Thick Silicone Rubber Sheet with UL94-V0 Rating
2mm Soft Silicone Rubber Sheet UL94-V0 1.2-1.25g/cm³ High Hardness
Product Overview
Silicone rubber sheet is a highly versatile product suitable for a wide range of applications, from medical supplies to industrial products. Manufactured from a blend of silicone rubber and synthetic materials, it offers excellent tensile strength, elongation, and heat resistance properties.
With tensile strength of 6-12MPa and elongation of 300-700%, this material is available in various colors including translucent, white, black, red, and blue. Sheet widths range from 0.5m to 3.6m, making it suitable for diverse applications, particularly in heat press and vacuum press operations.
Key Features
- Product Name: Silicone Rubber Sheet
- Width: 0.5m-3.6m
- Color: Translucent, White, Black, Red, Blue, etc.
- Thickness: 0.2mm-50mm
- Length: 1m-20m
- Temperature Range: -60°C to +260°C
- Available Variants: 2mm Silicone Rubber Sheet, 3mm Silicone Rubber Sheet, Silicone Rubber Sheet for Heat Press
Technical Specifications
| Parameter | Value |
|---|---|
| Material | Silicone Rubber |
| Thickness | 0.2mm-50mm |
| Width | 0.5m-3.6m |
| Tear Strength | 25-50N/mm |
| Tensile Strength | 6-12MPa |
| Hardness | 20-80 Shore A |
| Specific Gravity | 1.2-1.25g/cm³ |
| Flammability | UL94-V0 |
| Ozone Resistance | Excellent |
| Aging Resistance | Excellent |
Applications
Also known as 3A Rubber (Model Number 3A1001), this ISO9001 certified material is manufactured in China with a minimum order quantity of 100kg. Available in rolls and pallets, it features a supply capacity of 500,000kg/month.
Silicone rubber sheets are extensively used in manufacturing gaskets, seals, and insulation components. Their exceptional temperature resistance makes them ideal for high-temperature applications, while also serving as protective layers in electrical equipment. The material's cushioning properties provide excellent shock absorption and noise reduction capabilities.
Customization & Ordering
3A Rubber offers superior quality silicone rubber sheets specifically designed for heat press applications. Our high-grade sheets feature excellent aging and ozone resistance, with thickness options from 0.2mm to 50mm.
Minimum order quantity: 100kg | Price range: USD 3.00-15.80/kg | Delivery time: 7-15 days
Payment methods: T/T, L/C, D/P, Western Union, PayPal | Packaging: Rolls and pallets
Technical Support & Services
- Design and engineering assistance
- Material selection and testing assistance
- On-site consultation and installation
- Product recommendation and specification
- Custom fabrication and machining
- Repair and maintenance services
Packaging & Shipping
Silicone rubber sheets are packaged in rolls or flat sheets wrapped in plastic or cardboard and sealed in boxes. Shipping methods vary based on sheet size and quantity, with smaller shipments via USPS or FedEx, and larger shipments requiring specialized freight carriers.
Frequently Asked Questions
What is the Brand Name of Silicone Rubber Sheet?
The Brand Name is 3A Rubber.
What is the Model Number of Silicone Rubber Sheet?
The Model Number is 3A1001.
Where is the Place of Origin for Silicone Rubber Sheet?
The Place of Origin is China.
Does Silicone Rubber Sheet have Certification?
Yes, it is ISO9001 certified.
What is the Minimum Order Quantity for Silicone Rubber Sheet?
The Minimum Order Quantity is 100kg.
