Food Grade Silicone Tube 7.5Mpa Tensile Strength -60°C to +250°C

  • Food Grade Silicone Tube 7.5Mpa Tensile Strength -60°C to +250°C
  • Food Grade Silicone Tube 7.5Mpa Tensile Strength -60°C to +250°C
  • Food Grade Silicone Tube 7.5Mpa Tensile Strength -60°C to +250°C
  • Food Grade Silicone Tube 7.5Mpa Tensile Strength -60°C to +250°C
  • Food Grade Silicone Tube 7.5Mpa Tensile Strength -60°C to +250°C
  • Food Grade Silicone Tube 7.5Mpa Tensile Strength -60°C to +250°C
Place of Origin China
Brand Name 3A Rubber
Certification ISO9001
Model Number 3A1003
Minimum Order Quantity 20kgs
Price USD3-15.00/kg
Packaging Details Packing in rolls, cartons and pallets
Delivery Time 7-15days
Payment Terms L/C,D/P,T/T,Western Union,,D/P
Supply Ability 100000kgs/month
Product Details
Name Silicone Tube Keyword Silicone Tube
Material Food Grade Silicone Application For Air And Water
Color Transparent Tensile Strength 7.5Mpa
Elongation 400% - 600% Density 1.25g/cm3
Working Press 10kgs Quality Industrial Grade
Elongation At Break 300-600% Rohs Compliant Yes
Uv Resistance Good Surface Smooth
Resistant 18-25KV/mm Certifications FDA, RoHS, REACH
Oem Odm Available Shape Tube
Temperature Range -60°C To +200°C Working Temperature -60°C - +260°C(moment 300°C)
Hardness Shore A 50
Highlight

food grade braided silicone tubing

,

7.5mpa braided silicone tubing

,

without smell silicone braided hose pipe
Leave a Message
Product Description
Food Grade 7.5mpa Braided Silicone Tubing Without Smell
Premium Quality Silicone Hose for Food Applications
Our food grade silicone tubing is manufactured using platinum-vulcanized transparent fumed silicone, ensuring non-toxic, odorless performance. The product offers exceptional tensile strength (7.5-9.8Mpa) and operates effectively in temperatures ranging from -60°C to +250°C. Ideal for transferring water, air, oil, and other media in food processing applications.
Key Features
  • 100% virgin silicone material
  • Platinum vulcanized for food safety
  • Excellent aging, ozone, and heat resistance
  • Superior fuel oil and lube resistance
  • Available in multiple colors and hardness levels
  • Fiber reinforced options available
Technical Specifications
Property Value
Material Food grade silicone
Tensile Strength 7.5-9.8Mpa
Hardness 50-70 Shore A (±5)
Elongation 300-720%
Density 1.25±0.05g/cm³
Tear Strength 26-42N/mm
Temperature Range -60°C to +250°C
Wall Thickness 1.0-5.0mm (standard)
Standard Sizes
Ø0.5mm x Ø1.0mm x 5-20kgs
Ø0.5mm x Ø1.5mm x 5-20kgs
Ø0.5mm x Ø2.0mm x 5-20kgs
Ø0.8mm x Ø1.9mm x 5-20kgs
Ø1.0mm x Ø2.0mm x 5-20kgs
Ø1.0mm x Ø3.0mm x 5-20kgs
Ø1.0mm x Ø4.0mm x 5-20kgs
Ø1.5mm x Ø2.5mm x 5-20kgs
Ø1.5mm x Ø3.0mm x 5-20kgs
Ø1.6mm x Ø3.2mm x 5-20kgs
Ø2.0mm x Ø3.0mm x 5-20kgs
Ø2.0mm x Ø4.0mm x 5-20kgs
Ø2.0mm x Ø5.0mm x 5-20kgs
Ø2.0mm x Ø6.0mm x 5-20kgs
Ø3.0mm x Ø4.0mm x 5-20kgs
Ø3.0mm x Ø5.0mm x 5-20kgs
Ø3.0mm x Ø6.0mm x 5-20kgs
Ø3.0mm x Ø8.0mm x 5-20kgs
Ø3.0mm x Ø9.0mm x 5-20kgs
Ø4.0mm x Ø5.0mm x 5-20kgs
Ø4.0mm x Ø6.0mm x 5-20kgs
Ø4.0mm x Ø7.0mm x 5-20kgs
Ø4.0mm x Ø8.0mm x 5-20kgs
Ø5.0mm x Ø8.0mm x 5-20kgs
Ø5.0mm x Ø9.0mm x 5-20kgs
Ø5.0mm x Ø10.0mm x 5-20kgs
Ø6.0mm x Ø9.0mm x 5-20kgs
Ø6.0mm x Ø10.0mm x 5-20kgs
Ø6.0mm x Ø12.0mm x 5-20kgs
Ø7.0mm x Ø9.0mm x 5-20kgs
Ø7.0mm x Ø10.0mm x 5-20kgs
Ø7.0mm x Ø12.0mm x 5-20kgs
Ø8.0mm x Ø10.0mm x 5-20kgs
Ø8.0mm x Ø12.0mm x 5-20kgs
Ø8.0mm x Ø14.0mm x 5-20kgs
Ø9.0mm x Ø12.0mm x 5-20kgs
Ø9.0mm x Ø14.0mm x 5-20kgs
Ø9.0mm x Ø16.0mm x 5-20kgs
Ø10.0mm x Ø14.0mm x 5-20kgs
Ø10.0mm x Ø16.0mm x 5-20kgs
Ø10.0mm x Ø18.0mm x 5-20kgs
Ø12.0mm x Ø16.0mm x 5-20kgs
Ø12.0mm x Ø18.0mm x 5-20kgs
Ø12.0mm x Ø20.0mm x 5-20kgs
Ø14.0mm x Ø18.0mm x 5-20kgs
Ø14.0mm x Ø20.0mm x 5-20kgs
Ø14.0mm x Ø22.0mm x 5-20kgs
Ø16.0mm x Ø18.0mm x 5-20kgs
Ø16.0mm x Ø20.0mm x 5-20kgs
Ø20.0mm x Ø30.0mm x 5-20kgs
Ø30.0mm x Ø40.0mm x 5-20kgs
Ø40.0mm x Ø50.0mm x 5-20kgs
Braided Silicone Hose Specifications
Feature Specification
Reinforcement Braided polyester fiber
Color Options Transparent, red, blue, black or custom
Working Pressure 10Kgs
Temperature Range -30°C to +250°C
ID Range 4-50mm
Wall Thickness 3-5mm
Product Advantages
  • Anti-aging and erosion-resistant construction
  • Excellent high temperature resistance
  • Superior shock absorption properties
  • Customizable specifications available
  • Competitive pricing with premium quality
  • Manufactured with extensive industry experience
Product Images

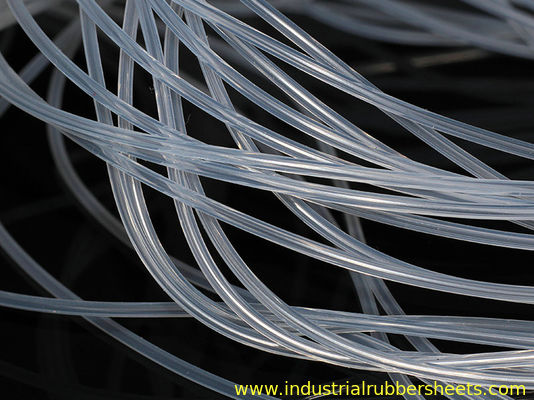

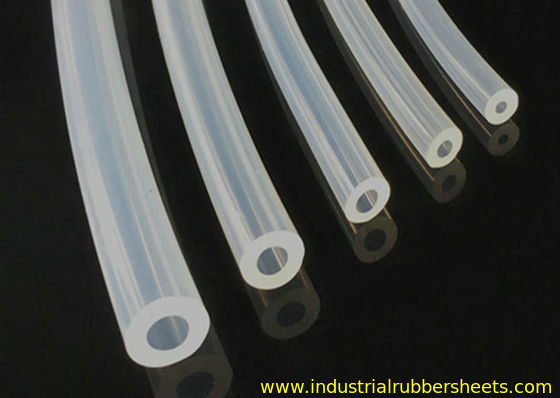

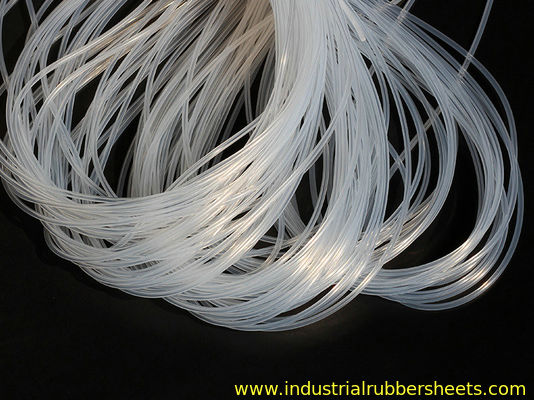

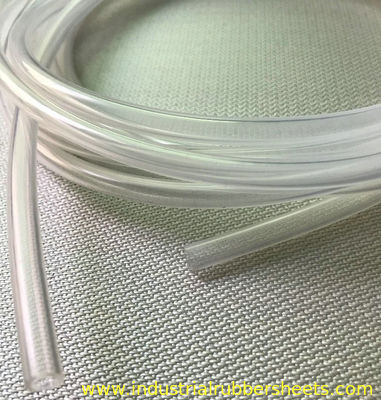

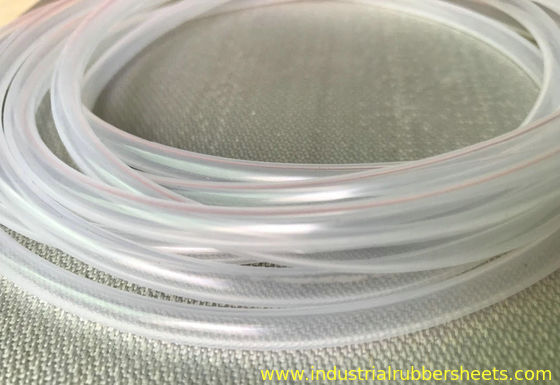

Food grade silicone tubing close-up Silicone hose cross-section view Braided silicone tubing sample Silicone hose manufacturing process Silicone tubing in various sizes Food grade silicone hose applications Quality inspection of silicone tubing
Contact for More Information

For detailed specifications, custom sizes, or bulk orders, please contact our sales team:

Email: sales@3Arubber.com

When making an inquiry, please specify required hardness, color, size, and quantity.
