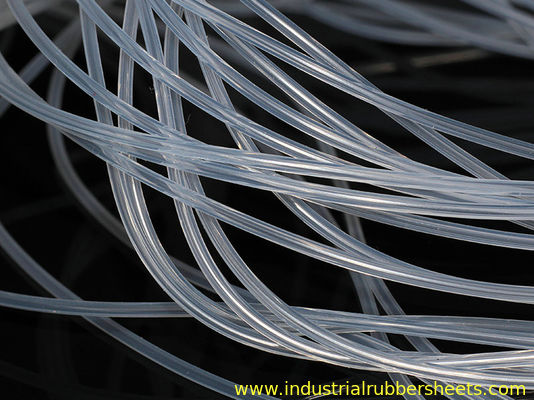

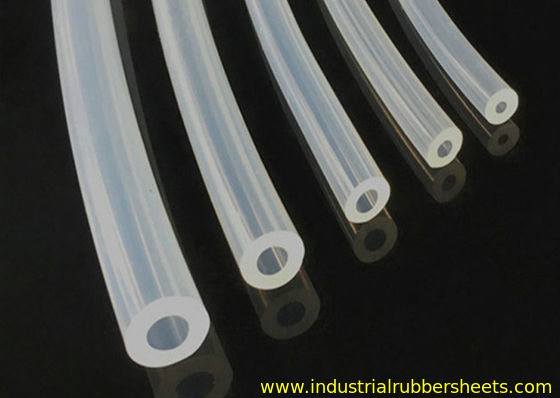

Food Grade Silicone Tube, Silicone Hose, Silicone Tubing Without Smell
Description: the silicone hose, silicone tube, silicone sleeve are extruded or moulded by special silicone extruding machine or moulded machine with high quality silicone material under full sets mould of different inside diameter and outside diameter according to the request from buyers, high tensile strength, flexibility strong anti-pull and wider revise hardness range with good aging resistant, ozone resistant, heat resistant, insulation property, fuel oil resistance and lube resistance, working in the air, water or oil medium at the temperature of -60°C - +250°C. industrial grade silicone hose is made with standard extrude silicone and vulcanized with import peroxide without smell; food grade silicone hose is made with food grade transparent fumed silicone, platinum vulcanized, nonpoisonous and tasteless; medical grade silicone hose is made with medical grade transparent fumed silicone, platinum vulcanized with FDA and LFGB certificate. Apply to corona roller or transfer water, air, oil and other medium etc.
Specifications:
material: 100% virgin silicone material
quality: industrial grade, food grade under postcured or platinum cured
color: transparent, translucent, dark red, orange, black, milk white, blue, grey etc.
surface: smooth/smooth
fiber reinforced: insert 1-5PLY polyester fiber
tensile strength: 7.5-9.8Mpa
hardness: 50, 60, 70, 80+/-5shore A
elongation: 350-720%
density: 1.25+/-0.05g/cm3
tear strength: 26-42N/mm
working temperature: -60°C - +250°C
wall thickness: 1.0, 2.0, 3.0, 4.0, 5.0mm
standard size:
Ø0.5mm x Ø1.0mm x 5-20kgs
Ø0.5mm x Ø1.5mm x 5-20kgs
Ø0.5mm x Ø2.0mm x 5-20kgs
Ø0.8mm x Ø1.9mm x 5-20kgs
Ø1.0mm x Ø2.0mm x 5-20kgs
Ø1.0mm x Ø3.0mm x 5-20kgs
Ø1.0mm x Ø4.0mm x 5-20kgs
Ø1.5mm x Ø2.5mm x 5-20kgs
Ø1.5mm x Ø3.0mm x 5-20kgs
Ø1.6mm x Ø3.2mm x 5-20kgs
Ø2.0mm x Ø3.0mm x 5-20kgs
Ø2.0mm x Ø4.0mm x 5-20kgs
Ø2.0mm x Ø5.0mm x 5-20kgs
Ø2.0mm x Ø6.0mm x 5-20kgs
Ø3.0mm x Ø4.0mm x 5-20kgs
Ø3.0mm x Ø5.0mm x 5-20kgs
Ø3.0mm x Ø6.0mm x 5-20kgs
Ø3.0mm x Ø8.0mm x 5-20kgs
Ø3.0mm x Ø9.0mm x 5-20kgs
Ø4.0mm x Ø5.0mm x 5-20kgs
Ø4.0mm x Ø6.0mm x 5-20kgs
Ø4.0mm x Ø7.0mm x 5-20kgs
Ø4.0mm x Ø8.0mm x 5-20kgs
Ø5.0mm x Ø8.0mm x 5-20kgs
Ø5.0mm x Ø9.0mm x 5-20kgs
Ø5.0mm x Ø10.0mm x 5-20kgs
Ø6.0mm x Ø9.0mm x 5-20kgs
Ø6.0mm x Ø10.0mm x 5-20kgs
Ø6.0mm x Ø12.0mm x 5-20kgs
Ø7.0mm x Ø9.0mm x 5-20kgs
Ø7.0mm x Ø10.0mm x 5-20kgs
Ø7.0mm x Ø12.0mm x 5-20kgs
Ø8.0mm x Ø10.0mm x 5-20kgs
Ø8.0mm x Ø12.0mm x 5-20kgs
Ø8.0mm x Ø14.0mm x 5-20kgs
Ø9.0mm x Ø12.0mm x 5-20kgs
Ø9.0mm x Ø14.0mm x 5-20kgs
Ø9.0mm x Ø16.0mm x 5-20kgs
Ø10.0mm x Ø14.0mm x 5-20kgs
Ø10.0mm x Ø16.0mm x 5-20kgs
Ø10.0mm x Ø18.0mm x 5-20kgs
Ø12.0mm x Ø16.0mm x 5-20kgs
Ø12.0mm x Ø18.0mm x 5-20kgs
Ø12.0mm x Ø20.0mm x 5-20kgs
Ø14.0mm x Ø18.0mm x 5-20kgs
Ø14.0mm x Ø20.0mm x 5-20kgs
Ø14.0mm x Ø22.0mm x 5-20kgs
Ø16.0mm x Ø18.0mm x 5-20kgs
Ø16.0mm x Ø20.0mm x 5-20kgs
Ø20.0mm x Ø30.0mm x 5-20kgs
Ø30.0mm x Ø40.0mm x 5-20kgs
Ø40.0mm x Ø50.0mm x 5-20kgs
OEM & customized size are agreed
packing in rolls, bags, cartons, pallets or crates
For more data & information, pls mail to sales@3Arubber.com
When you enquiry, pls confirm the hardness, color, size and quantity
| Food grade silicone fiber hose, silicone braided hose, silicone reinforeced hose | |
| Item | silicone fiber hose, silicone braided hose, silicone reinforeced hose |
| Material | food grade silicone material |
| Reinforeced | braided polyester fiber |
| Color | transparent, red, blue, black or as the buyer's request color |
| Surface | smooth |
| Tensile strength | 7.5-9.8Mpa |
| Hardness | 50-70shore A |
| Elongation | 300% |
| Density | 1.25g/cm3 |
| Working press | 10Kgs |
| Minimum working temperature | -30°C |
| Maximum working tempeerature | +250°C |
| ID(Inside diameter) | 4~50mm |
| Wall thickness | 3~5mm |
| Tolerance | ID less than 1/2'', ±0.3mm; ID more than 1/2'', ±0.5mm |
| Size | id4mm x od9mm |
| id5mm x od11mm | |
| id6mm x od10mm, id6mm x od12mm | |
| id7.5mm x od14.5mm | |
| id8mm x od12mm, id8mm x od14mm, id8mm x od16mm | |
| id9mm x od15mm | |
| id10mm x od15mm, id10mm x od17mm, id10mm x od18mm, id10mm x od19.5mm | |
| id12mm x od20mm | |
| id12.7mm x od20mm | |
| id13mm x od19mm, id13mm x od20mm, id13mm x od21mm | |
| id16mm x od24mm | |
| id19mm x od27mm, id19mm x od28mm | |
| id19.5mm x od27.5mm | |
| id22mm x od32mm | |
| id25mm x od35mm | |
| id32mm x od42mm | |
| id38mm x od46mm | |
| id38mm x od48mm | |
| id50mm x od60mm | |
| Properties: znti-aging, erosion-endurable, high temperature resistance, anti-shock, etc. | |
| Advantages: customized + high performance + high quality + favorable price + rich experience | |
