Closed Cell Silicone Sponge Sheet High Temperature Resistant UL94-V0 Flammability for Gaskets and Seals

  • Closed Cell Silicone Sponge Sheet High Temperature Resistant UL94-V0 Flammability for Gaskets and Seals
  • Closed Cell Silicone Sponge Sheet High Temperature Resistant UL94-V0 Flammability for Gaskets and Seals
  • Closed Cell Silicone Sponge Sheet High Temperature Resistant UL94-V0 Flammability for Gaskets and Seals
  • Closed Cell Silicone Sponge Sheet High Temperature Resistant UL94-V0 Flammability for Gaskets and Seals
  • Closed Cell Silicone Sponge Sheet High Temperature Resistant UL94-V0 Flammability for Gaskets and Seals
  • Closed Cell Silicone Sponge Sheet High Temperature Resistant UL94-V0 Flammability for Gaskets and Seals
Place of Origin China
Brand Name 3A Rubber
Certification ISO9001
Model Number 3A1002
Minimum Order Quantity 100kgs
Price USD7.80/kg
Packaging Details packing in rolls and pallets
Delivery Time 7-15days after receive the buyer's payment
Payment Terms L/C,D/P,T/T,Western Union
Supply Ability 100000kgs/month
Product Details
Material Silicone Foam Rubber Color Red, White, Black, Grey
Surface Double Impression Fabric Hardness 10-40shore A
Tensile Strength 200psi Elongation 100%
Density 0.5-1.0g/cm3 Working Temp. -40^C ~ +260^C
Oem OEM Service Available Flammability UL94-V0
Cell Close Cell And Open Cell Application Gaskets, Seals, Cushions, Insulation
Surface Finish Smooth Or Textured Uv Resistance UV-resistant
Belt Width 500-1200mm Custom Service Is Available
Durability High
Highlight

adhesive closed cell silicone sponge sheet

,

1.5mm closed cell silicone sponge sheet

,

adhesive closed cell silicone foam sheet
Leave a Message
Product Description
Backing Adhesive Tape Closed Cell Silicone Sponge Sheet 1.5-50mm X 0.1-1.5m X 1-10m
Product Overview
1.5-50mm x 0.1-1.5m x 1-10m Close Cell Silicone Sponge Sheet, Silicone Foam Sheet
Product Description
Our silicone sponge and foam sheets are manufactured using specialized continuous plain press vulcanizers with high-quality closed cell or open cell silicone sponge material and unique sponge techniques. These products offer excellent performance characteristics including high temperature resistance, aging resistance, ozone resistance, heat insulation, fuel oil resistance, lubricant resistance, odor-free composition, and exceptional durability. They feature high compressibility and low compression set across a wide working temperature range, along with superior acoustic and thermal insulation properties.
Suitable for continuous use at -60°C to +220°C and intermittent use at -70°C to +260°C. Ideal for various ironing tables and specialized gasket applications.
Specifications
Parameter Specification
Material Virgin silicone sponge, silicone foam
Cell Structure Closed cell
Available Colors Dark red, white, grey, black, beige, brown, blue, etc.
Surface Finish Double impression fabric, smooth
Tensile Strength 100-200 PSI
Hardness 10, 15, 20, 25, 30, 35, 40+/-5 shore A (currently 20-25 shore A)
Elongation 100%
Density 0.48-1.00 g/cm³
Working Temperature -60°C to +220°C (momentary 260°C)
Thickness Range 1.5-50 mm
Width Range 0.1-1.5 m (maximum 1.5m @ more than 5mm thickness)
Length Range 0.1-10 m
Standard Sizes
  • 1.5-50mm x 1.0m x 10m
  • 1.5-50mm x 1.2m x 10m
  • 5.0-50mm x 1.5m x 10m
Hardness & Density Correlation
  • 10 shore A, density 0.48-0.50 g/cm³
  • 15 shore A, density 0.50-0.55 g/cm³
  • 20-25 shore A, density 0.60-0.65 g/cm³
  • 25-30 shore A, density 0.65 g/cm³
  • 30-40 shore A, density 1.00 g/cm³
Additional Options
  • OEM & customized sizes available upon agreement
  • Packing options: cartons, rolls, pallets, or crates
  • Backing adhesive options: Chinese general glue or USA 3M glue
  • Perforated silicone sponge sheet: 6, 8, 10mm x 0.9m x 1.8m in red, beige, white colors
  • Custom sizes for silicone sponge extrusion, profile, and stripe applications
For detailed technical data and additional information, please contact:
sales@3Arubber.com
When inquiring, please specify: hardness, color, size, and quantity requirements.

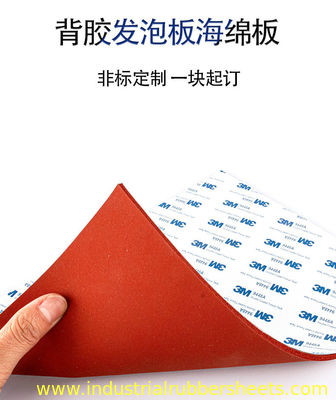

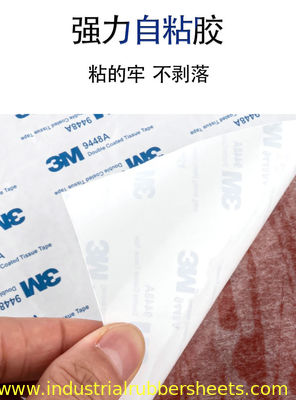

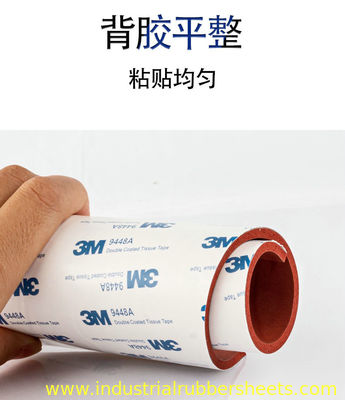

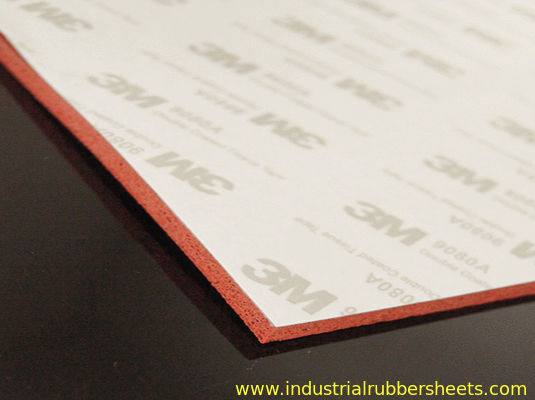

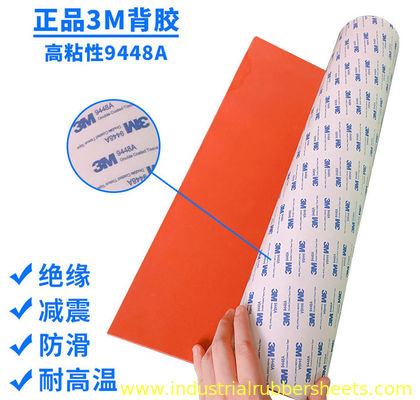

Closed cell silicone sponge sheet sample Silicone foam sheet application Silicone sponge sheet thickness demonstration Silicone sponge material close-up Silicone sponge sheet manufacturing process
