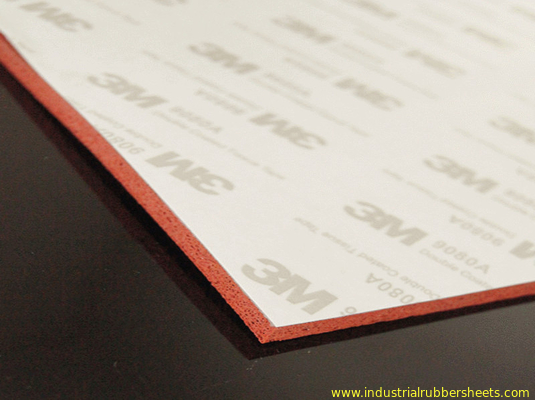

Closed Cell Silicone Sponge Sheet 10-40 Shore A, 1.5-50mm Thickness
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ISO9001 |
| Model Number | 3A1002 |
| Minimum Order Quantity | 100kgs |
| Price | USD7.80/kg |
| Packaging Details | packing in rolls and pallets |
| Delivery Time | 7-15days after receive the buyer's payment |
| Payment Terms | L/C,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 100000kgs/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Silicone Foam Rubber | Color | Red, White, Black, Grey |
|---|---|---|---|
| Surface | Double Impression Fabric | Hardness | 10-40shore A |
| Tensile Strength | 200psi | Elongation | 100% |
| Density | 0.5-1.0g/cm3 | Working Temp. | -40^C ~ +260^C |
| Oem | OEM Service Available | Flammability | UL94-V0 |
| Cell | Close Cell And Open Cell | Application | Gaskets, Seals, Cushions, Insulation |
| Surface Finish | Smooth Or Textured | Uv Resistance | UV-resistant |
| Belt Width | 500-1200mm | Custom Service | Is Available |
| Durability | High | ||
| Highlight | adhesive closed cell silicone sponge sheet,1.5mm closed cell silicone sponge sheet,adhesive closed cell silicone foam sheet |
||
Product Description
Backing Adhesive Tape Closed Cell Silicone Sponge Sheet 1.5-50mm X 0.1-1.5m X 1-10m
High-Performance Silicone Sponge Sheet
Manufactured using specialized continuous plain press vulcanization technology, our closed cell silicone sponge sheets offer exceptional performance characteristics for demanding industrial applications.
Key Features
- Excellent temperature resistance (-60°C to +220°C continuous, -70°C to +260°C intermittent)
- Superior aging, ozone, and chemical resistance
- Effective thermal and acoustic insulation properties
- High compressibility with low compression set
- Resistant to fuel oils and lubricants
- Odorless and durable for long-term use
Technical Specifications
| Material | Virgin silicone sponge/foam |
|---|---|
| Cell Structure | Closed cell |
| Available Colors | Dark red, white, grey, black, beige, brown, blue |
| Surface Finish | Double impression fabric or smooth |
| Tensile Strength | 100-200 PSI |
| Hardness (Shore A) | 10-40 (±5), standard 20-25 |
| Elongation | 100% |
| Density | 0.48-1.00 g/cm³ |
Standard Dimensions
- Thickness: 1.5-50mm
- Width: 0.1-1.5m (max 1.5m for thickness >5mm)
- Length: 0.1-10m
Common Configurations
- 1.5-50mm × 1.0m × 10m
- 1.5-50mm × 1.2m × 10m
- 5.0-50mm × 1.5m × 10m
Density by Hardness
- 10 Shore A: 0.48-0.50 g/cm³
- 15 Shore A: 0.50-0.55 g/cm³
- 20-25 Shore A: 0.60-0.65 g/cm³
- 25-30 Shore A: 0.65 g/cm³
- 30-40 Shore A: 1.00 g/cm³
Customization Options
- OEM sizes available

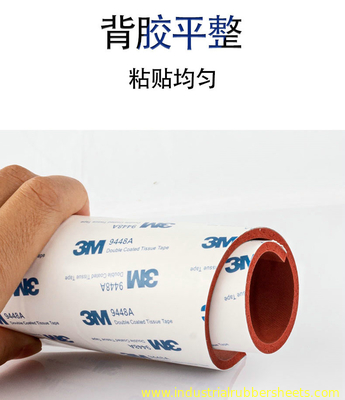

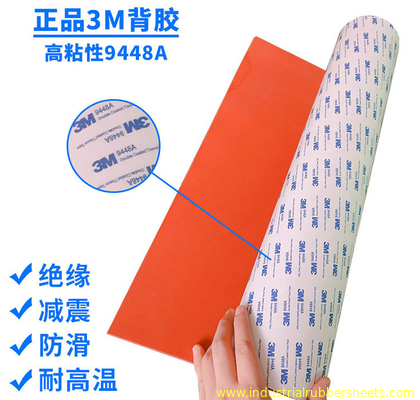

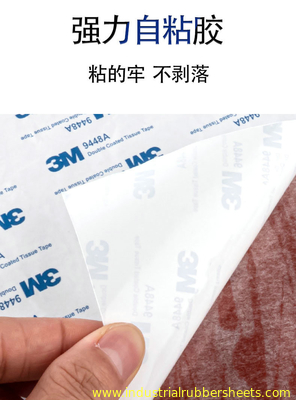

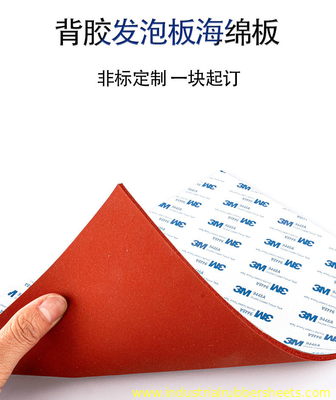

- Adhesive backing options (Chinese general glue or USA 3M glue)
- Perforated sheets (6/8/10mm × 0.9m × 1.8m in red, beige, white)
- Custom extrusions, profiles, and stripes
Packaging
Available in cartons, rolls, pallets, or crates to suit your requirements.
For detailed specifications or custom requirements, please contact: sales@3Arubber.com
When inquiring, please specify hardness, color, dimensions, and quantity requirements.
