Closed Cell Silicone Foam Sheet 10-40 Shore A, -60°C to +260°C
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ISO9001 |
| Model Number | 3A1002 |
| Minimum Order Quantity | 100kgs |
| Price | USD3-15.00/kg |
| Packaging Details | packing in rolls, bags and pallets |
| Delivery Time | 7-15days after receive the buyer's payment |
| Payment Terms | L/C,D/P,T/T,Western Union,MoneyGram, |
| Supply Ability | 100000kgs/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Close Cell Silicone Sponge | Color | Red, White, Black, Grey |
|---|---|---|---|
| Surface | Double Impression Fabric | Hardness | 10-40shore A |
| Tensile Strength | 200psi | Elongation | 100% |
| Density | 0.5-1.0g/cm3 | Working Temp. | -40^C ~ +260^C |
| Name | Closed Cell Silicone Foam Sheet Double Impression Fabric | Keyword | Closed Cell Silicone Foam Sheet |
| Service | OEM ODM | Working Temperaturing | -60℃-+260℃ |
| Working Temp | -40^C ~ +260^C | Temperature Range | -60°C - +260°C(moment 300°C) |
| Customization | Size, Color, Printing | Cell | Close Cell |
| Breakdown Voltage | ≥20KV/mm | Others | As Per Buyer's Drawing |
| Type | Bag Or Bucket | Operatingtemperature | -60℃ To +200℃ |
| Backing Adhesive | Agreed | Surface Treatment | Smooth, Embossed, Etc. |
| Fda Compliant | No | Origin | China |
| Rubber Name | Silicon Sponge Sheet | ||
| Highlight | 100psi closed cell silicone sponge sheet,oem closed cell silicone foam sheet,100psi closed cell silicone foam sheet |
||
Product Description

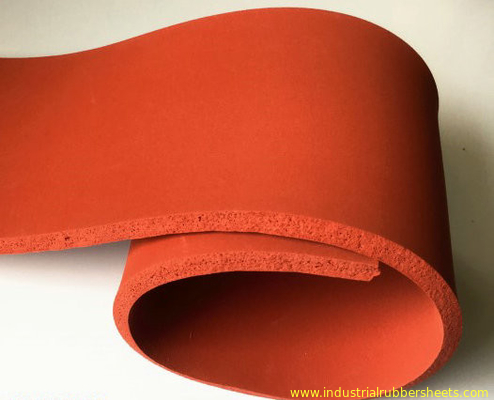

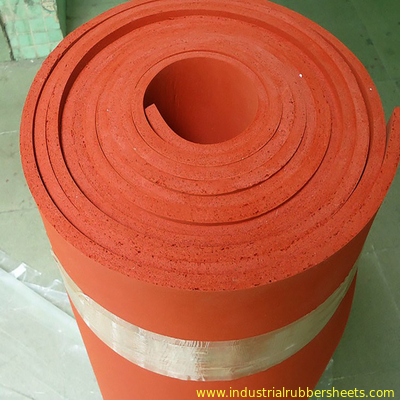

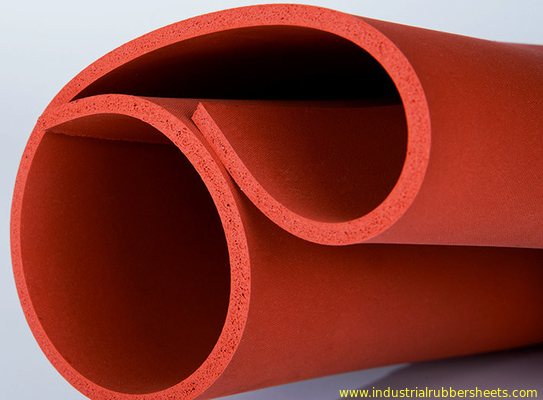

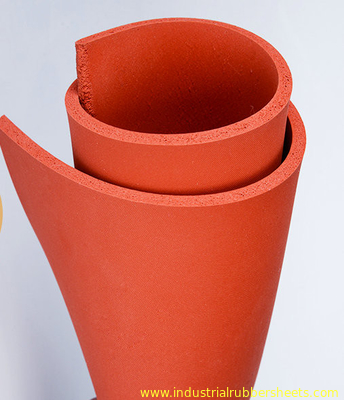

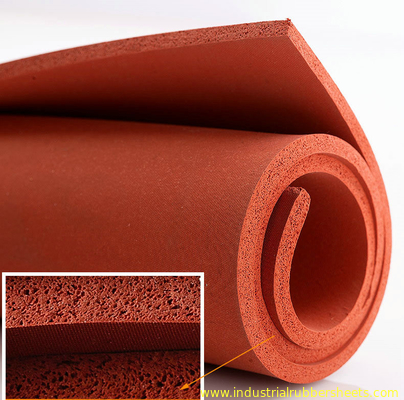

Close Cell Silicone Rubber Sheet for Heat Insulation and Protection in High Temperature Environments
1.5-50mm x 0.1-1.5m x 1-10m Close Cell Silicone Sponge Sheet, Silicone Foam Sheet
Our premium silicone sponge sheets are manufactured using specialized continuous plain press vulcanizers with high-quality closed cell silicone sponge material. These sheets offer exceptional performance in demanding environments with outstanding temperature resistance, durability, and insulation properties.
Key Features
- Excellent high temperature resistance and aging protection
- Superior ozone, fuel oil, and lubricant resistance
- Odorless with outstanding wear characteristics
- High compressibility with low compression set
- Effective acoustic and thermal insulation properties
- Temperature range: -60°C to +220°C (continuous use), -70°C to +260°C (intermittent use)
Technical Specifications
| Material | Virgin silicone sponge/foam |
|---|---|
| Cell Structure | Closed cell |
| Available Colors | Dark red, white, grey, black, beige, brown, blue |
| Surface Finish | Double impression fabric or smooth |
| Tensile Strength | 100-200 PSI |
| Hardness (Shore A) | 10-40 (±5), standard 20-25 |
| Elongation | 100% |
| Density | 0.48-1.00 g/cm³ |
Standard Dimensions
| Thickness | 1.5-50mm |
|---|---|
| Width | 0.1-1.5m (max 1.5m for thickness >5mm) |
| Length | 0.1-10m |
Standard Size Options
- 1.5-50mm × 1.0m × 10m
- 1.5-50mm × 1.2m × 10m
- 5.0-50mm × 1.5m × 10m
Density by Hardness
| 10 Shore A | 0.48-0.50 g/cm³ |
|---|---|
| 15 Shore A | 0.50-0.55 g/cm³ |
| 20-25 Shore A | 0.60-0.65 g/cm³ |
| 25-30 Shore A | 0.65 g/cm³ |
| 30-40 Shore A | 1.00 g/cm³ |
Additional Options
- OEM & customized sizes available
- Packing options: cartons, rolls, pallets, or crates
- Adhesive backing options: Chinese general glue or USA 3M glue
- Perforated sheets available in 6/8/10mm × 0.9m × 1.8m (red, beige, white)
- Custom silicone sponge extrusions, profiles, and stripes
For detailed specifications and custom solutions, please contact our sales team:
Email: sales@3Arubber.com
When making an inquiry, please specify:
- Required hardness
- Preferred color
- Desired dimensions
- Quantity needed
