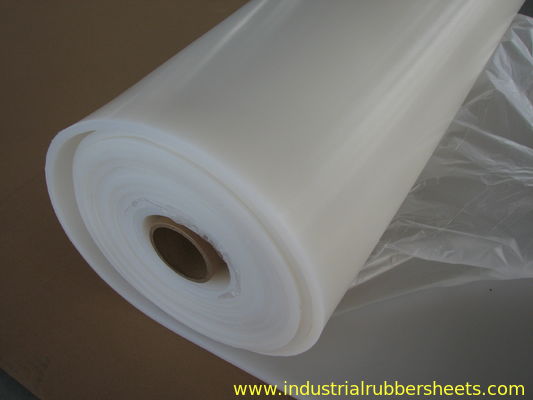

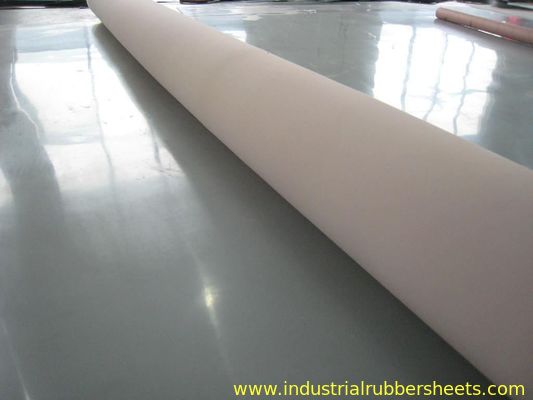

Virgin Silicone Rubber Sheet with High Tensile Strength and Wide Temperature Range for Industrial Applications
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ISO9001 |
| Model Number | 3A1001 |
| Minimum Order Quantity | 100kgs |
| Price | USD10.00/kg |
| Packaging Details | packing in rolls and pallets |
| Delivery Time | 7-15days after receive the buyer's payment |
| Payment Terms | L/C,D/P,T/T,Western Union |
| Supply Ability | 100000kgs/month |
Product Details
| Material | Virgin Silicone | Color | Translucent, Grey, Black, Blue |
|---|---|---|---|
| Surface | Smooth, Matt, Impression Fabric | Tensile Strenth | 7.5-12Mpa |
| Hardness | 10-75 Shore A | Elongation | 350-720% |
| Density | 1.25g/cm3 | Tear Strength | 26-42N/mm |
| Thickness | 1-6mm | Width | 1.5-3.6m |
| Length | 1-20m | Temperature Range | -60℃-260℃ |
| Port | Shanghai Port And Others | Finish | Smooth Or Textured Finish |
| Usage | Widely Used | Origin | Hebei, China |
| Belt Width | 500-3600mm | Others | As Per Buyer's Drawing |
| Highlight | Silicone Diaphragm,PVC Silicone Membrane,Wooden PVC Silicone Membrane |
||
Product Description
Silicone Rubber Sheet, Silicone Diaphragm for Wooden PVC Silicone Membrane
Our silicone rubber sheets, silicone rolls, silicone membranes, and silicone diaphragms are manufactured using high-quality silicone material on specialized rotocure vulcanizers or plain press vulcanizers according to customer specifications.
We utilize advanced management, innovative techniques, and strict quality control with excellent silicone materials and vulcanizer machines to overcome limitations of traditional manufacturing methods. Our products feature smooth surfaces, precise thickness tolerance, and are triumphantly manufactured without joints with infinite length capabilities.
Our super-wide drum-type vulcanizing press with 4000mm width capability allows us to produce maximum width 3800mm seamless products without joints. High quality silicone rubber provides excellent performance characteristics including anti-aging, ozone resistance, heat resistance, electric insulation, oil resistance, solvent resistance, corrosion resistance, non-toxic and tasteless properties, and pollution-free operation.

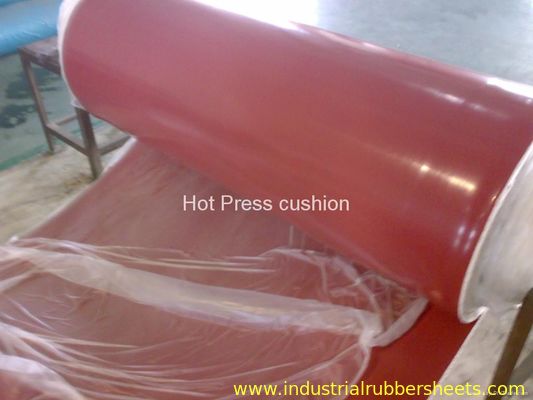

Working temperature range: -60°C to +260°C (moment maximum 300°C) with high stability, reliability, and surface inactive properties without stickiness. Suitable for punching various rubber seals, rubber gaskets, and specialized applications including wooden PVC vacuum laminators, steel door vacuum laminators, safety glass vacuum laminating bags, solar photovoltaic module vacuum laminators, hot press laminators, card press laminators, and other applications.
Specifications
| Material | 100% virgin HTV silicone material |
|---|---|
| Grade | Industrial grade, food grade, medical grade, FDA grade with postcured |
| Quality | High tear resistant, middle tear resistant, general tear resistant |
| Color | Translucent, dark red, black, milk white, grey, blue, etc. |
| Surface | Smooth/smooth, smooth/impression fabric, smooth/sand or double impression fabric |
| Reinforce | Insert 1 PLY fiberglass fabric, aramid fabric or wire mesh SS201, SS304, SS316 |
| Tensile Strength | 7.5-12.0 Mpa |
| Hardness | 10, 20, 30, 40, 50, 60, 70, 80 +/-5 shore A |
| Elongation | 350%-720% |
| Density | 1.25-1.50 g/cm³ |
| Tear Strength | 26-42 N/mm |
| Working Temperature | -60°C to +260°C (moment 300°C) |
| Thickness | 0.1-50 mm |
| Width | 0.1-3.6 m |
| Length | 1-50 m |
Standard Sizes
- 0.1-1.0mm * 0.3-1.0m * 25-50m
- 0.5-12.0mm * 0.5-1.5m * 10-20m
- 10.0-50.0mm * 0.5/1.0/1.2/1.5m * 1-20m
- 1.0-8.0mm * 1.5-3.8m * 10-20m
- OEM & customized sizes available
Special Silicone Membranes
- Grey, 9.8Mpa, 40 shore A, 750%, 42N/mm Germany silicone for "+" and "-" press on wooden PVC vacuum laminator
- Translucent, 7.5Mpa, 50 shore A, 400%, 26N/mm Chinese silicone for "-" press only on wooden PVC vacuum laminator
- Grey, 12.0Mpa, 60-70 shore A, 350%, 45N/mm Germany silicone for photovoltaic module on solar vacuum laminator
- Sky blue, 7.5Mpa, 50 shore A, 350%, 26N/mm Chinese silicone for safety glass on glass vacuum bag and laminator
- Dark blue, 8.0Mpa, 57 shore A, 450%, 30N/mm Chinese silicone for safety glass on glass vacuum bag and laminator
Special supply FDA grade silicone sheet with postcure and antistatic silicone sheet with fire-resistant, black color, smooth surface. Special supply black antistatic silicone sheet backing with or without adhesive 3M, thickness 0.2, 0.5, 0.8, 1.0, 1.2, 1.5, 2.0, 3.0mm.
For more data & information, please contact:
sales@3Arubber.com
When you enquire, please confirm the hardness, color, size and quantity.
