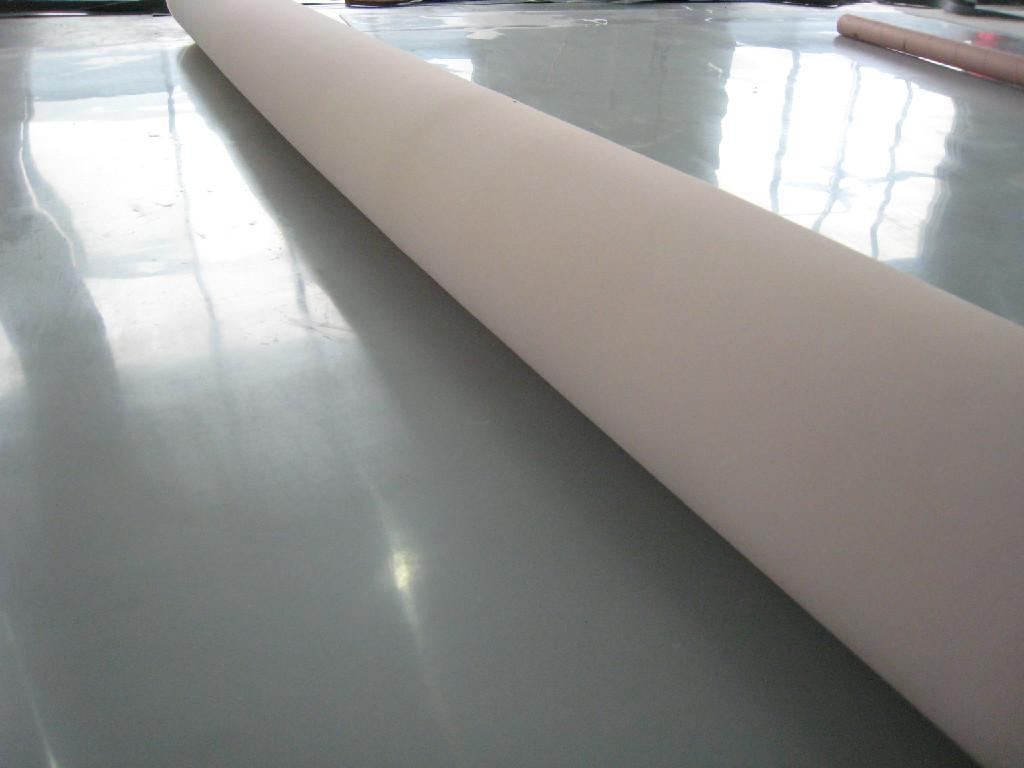

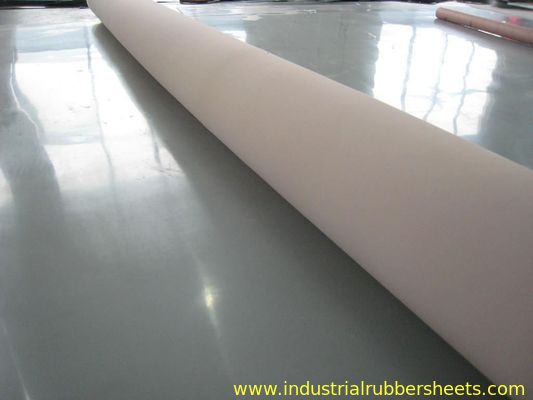

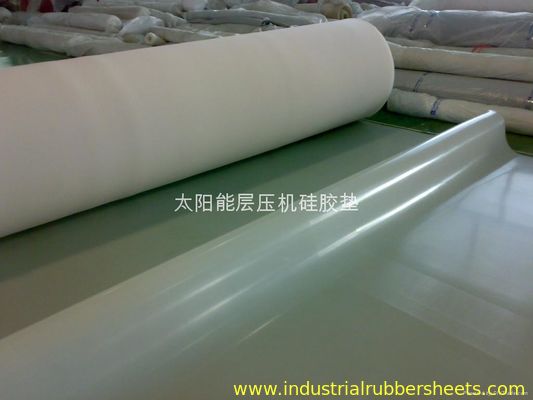

3.6m Width Seamless High Tear Resistant Silicone Rubber Sheet and Silicone Membrane
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ISO9001 |
| Model Number | 3A1001 |
| Minimum Order Quantity | 100kgs |
| Price | USD10.00/kg |
| Packaging Details | packing in rolls, bags and pallets |
| Delivery Time | 7-15days after receive the buyer's payment |
| Payment Terms | L/C,D/P,T/T,Western Union |
| Supply Ability | 100000kgs/month |
Product Details
| Material | Silicone | Color | Translucent, Grey, Black, Blue |
|---|---|---|---|
| Surface | Smooth, Matt, Impression Fabric | Tensile Strenth | 7.5-12Mpa |
| Hardness | 40-60shore A | Elongation | 350-720% |
| Density | 1.25-1.30 G/cm³ | Tear Strength | 26-42N/mm |
| Thickness | 1.0mm-4.0mm | Width | 1.5m-3.6m |
| Length | 10-20m | Quality | Middle & High Tear Resistant |
| Application | For Solar, Glass, Solar Vacuum Laminator | Size | Per The Buyer's Request |
| Temperature Resistance | -60℃ To 230℃ | Top | Impression Fabric |
| Compression Set | ≤25% | Standard Width | 0.5m,1.0m ,1.2m ,1.5m And 3.6m |
| Working Temperature | -50-220°C | Pattern | One Or Two Side Smooth,one Cloth Finish |
| Feature | Sustainable, Stocked | Lead Time | 7-15 Days |
| Products | Silicone Rubber Sheet | Usage | Widely Used |
| Production | Mold Compression | Specific Gravity | 1.25g/cm3 |
| Highlight | 3.6m Silicone Rubber Sheet,Silicone Diaphragm Sheet |
||
Product Description
Width 3.6m Seamless Silicone Rubber Sheet, Silicone Roll, Silicone Membrane, Silicone Diaphragm
Maximum Width 3.6m Silicone Sheet, Silicone Roll, Silicone Membrane, Silicone Diaphragm
Our silicone sheets, membranes, and rolls are manufactured using high-quality silicone material on specialized rotocure vulcanizers or plain press vulcanizers, tailored to meet specific customer size requirements.
Production capabilities include:
- General silicone sheets (0.5-12mm * 0.5-1.5m * 1-10m) produced on 4-roller rotocure vulcanizers
- Super width and special silicone sheets (1.0-8.0mm * 1.5-3.8m * 10-20m) produced on 2-roller rotocure vulcanizers
- Super thin and special silicone sheets (0.1-1.0mm * 0.3-1.0m * 25-50m) produced on special oven road vulcanizers
- Super thick silicone sheets produced on plain press vulcanizers
Through advanced management, innovative techniques, and strict quality control using premium silicone materials and vulcanizer machinery, we have resolved common manufacturing challenges including lower surface smoothness, high thickness tolerance on rotocure machines, and restricted width, length, and visible joints on press vulcanizing machines.
Our products feature seamless construction without joints and virtually infinite length. We operate super-wide drum-type vulcanizing presses with 4000mm width capacity, producing high-quality products up to 3800mm maximum width completely seamless.
High-quality silicone rubber offers excellent performance characteristics including anti-aging, ozone resistance, heat resistance, electrical insulation, oil resistance, solvent resistance, corrosion resistance, non-toxic and odorless properties, and pollution-free operation.
Operating temperature range: -60°C to +260°C (momentary maximum 300°C) with high stability, reliability, and surface inactivity without stickiness. Suitable for use in air, water, oil, and other media.
Applications include punching various rubber seals and gaskets, and specialized uses for wooden PVC vacuum laminators, steel door vacuum laminators, safety glass vacuum laminating bags, solar photovoltaic module vacuum laminators, hot press laminators, card press laminators, and other applications.
Specifications
| Material | 100% virgin HTV silicone material |
|---|---|
| Grade | Industrial grade, food grade, medical grade, FDA grade with postcured |
| Quality | High tear resistant, middle tear resistant, general tear resistant |
| Color | Translucent, dark red, black, milk white, grey, blue, etc. |

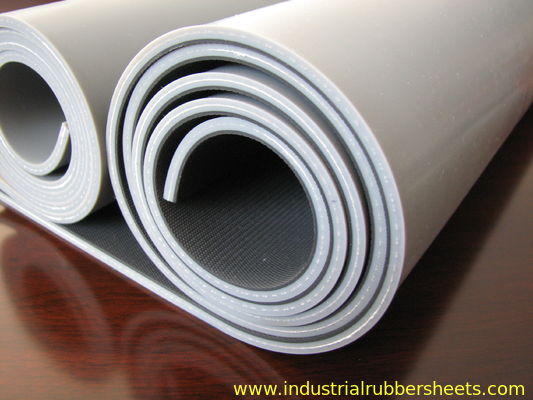

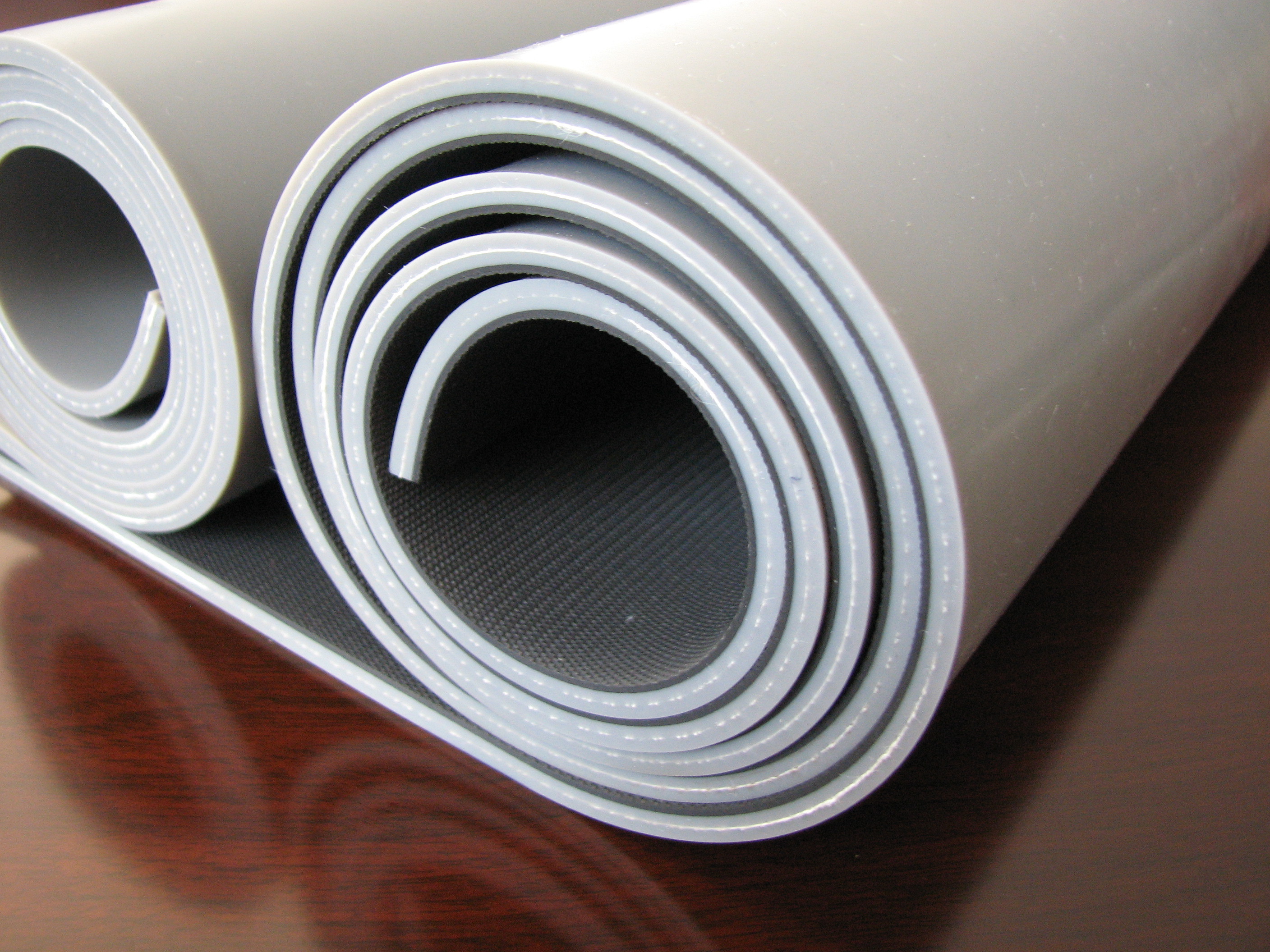

| Surface | Smooth/smooth, smooth/impression fabric, smooth/sand or double impression fabric |
| Reinforce | Insert 1 PLY fiberglass fabric, aramid fabric or wire mesh SS201, SS304, SS316 |
| Tensile Strength | 7.5-12.0 MPa |
| Hardness | 10, 20, 30, 40, 50, 60, 70, 80 ±5 Shore A |
| Elongation | 350%-720% |
| Density | 1.25-1.50 g/cm³ |
| Tear Strength | 26-42 N/mm |
| Working Temperature | -60°C to +260°C (momentary 300°C) |
| Thickness | 0.1-50 mm |
| Width | 0.1-3.6 m |
| Length | 1-50 m |
Standard Sizes
- 0.1-1.0mm * 0.3-1.0m * 25-50m
- 0.5-12.0mm * 0.5-1.5m * 10-20m
- 10.0-50.0mm * 0.5/1.0/1.2/1.5m * 1-20m
- 1.0-8.0mm * 1.5-3.8m * 10-20m
- OEM & customized sizes available upon agreement
Packing options: rolls, pallets, or crates
Special Silicone Membranes

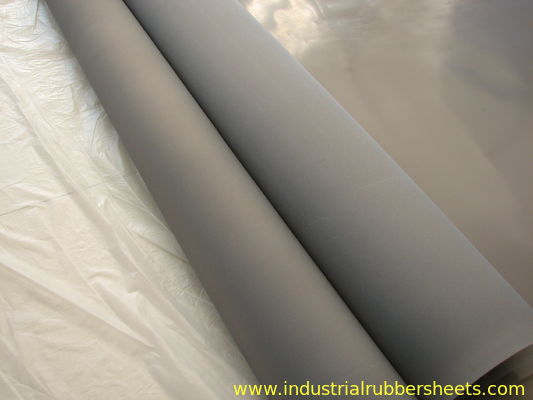

- Grey, 9.8 MPa, 40 Shore A, 750%, 42 N/mm Germany silicone for "+" and "-" press on wooden PVC vacuum laminator
- Translucent, 7.5 MPa, 50 Shore A, 400%, 26 N/mm Chinese silicone for "-" press only on wooden PVC vacuum laminator

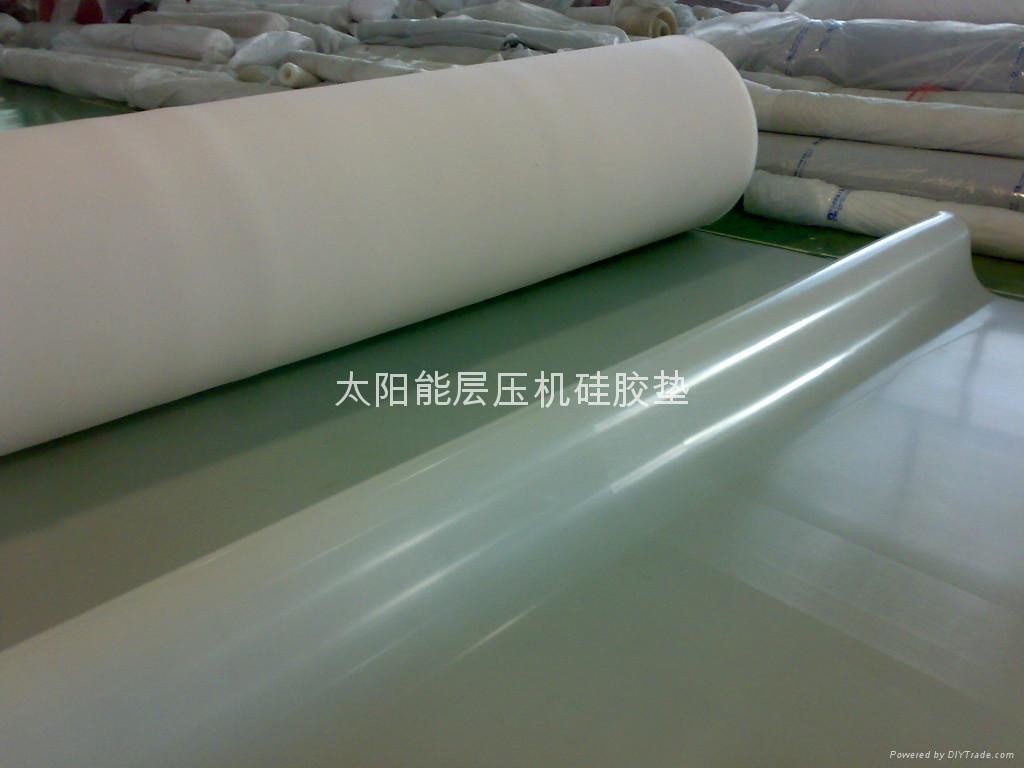

- Grey, 12.0 MPa, 60-70 Shore A, 350%, 45 N/mm Germany silicone for photovoltaic module on solar vacuum laminator

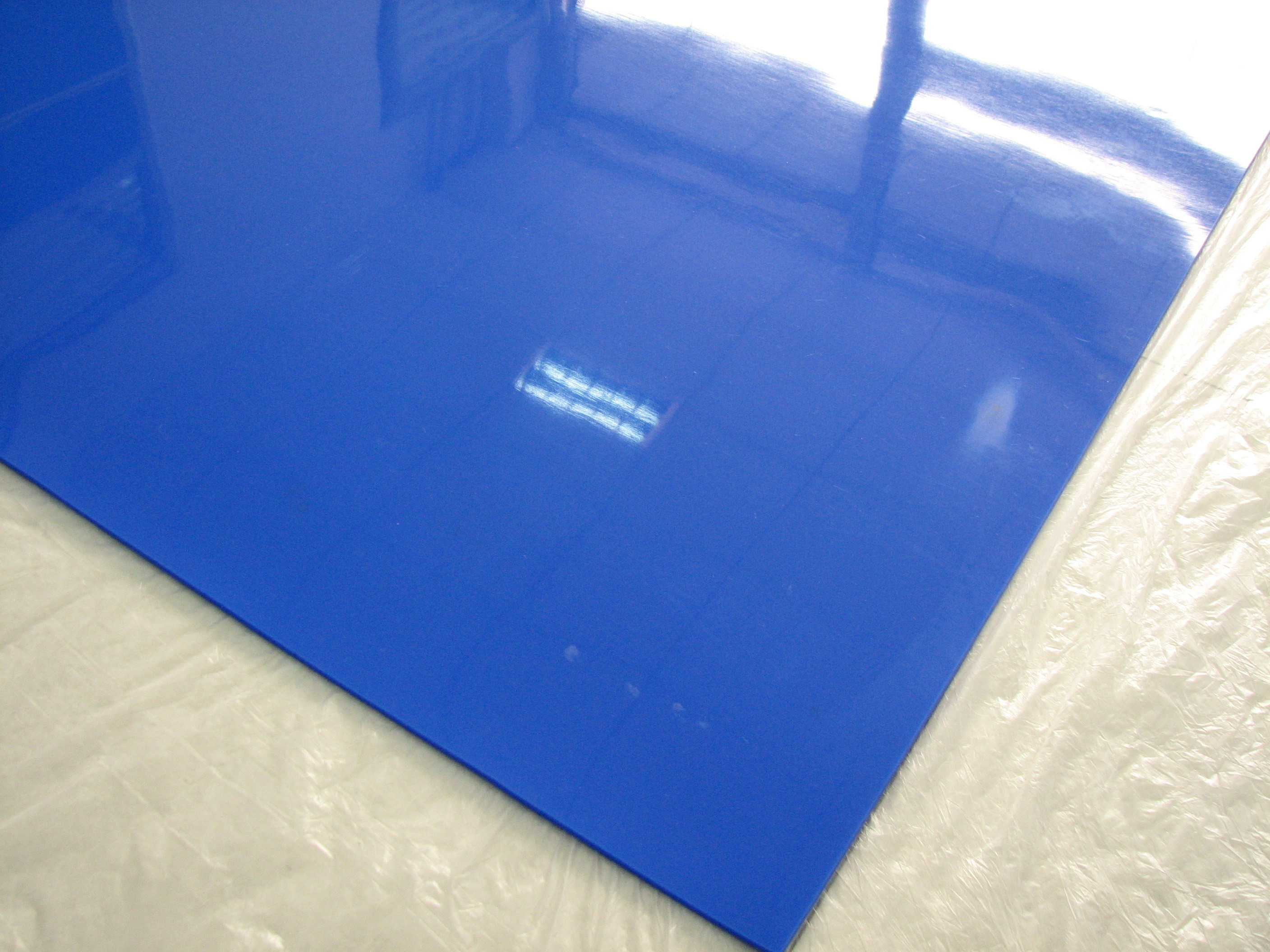

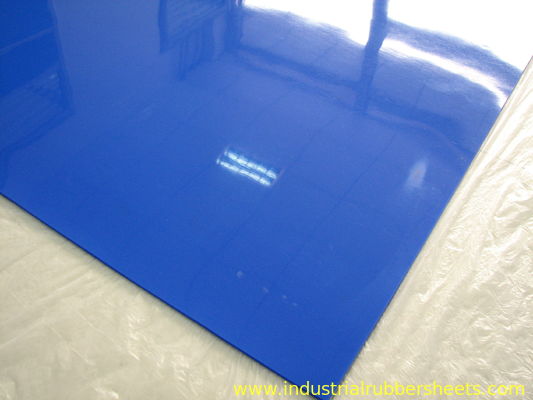

- Sky blue, 7.5 MPa, 50 Shore A, 350%, 26 N/mm Chinese silicone for safety glass on glass vacuum bag and laminator
- Dark blue, 8.0 MPa, 57 Shore A, 450%, 30 N/mm Chinese silicone for safety glass on glass vacuum bag and laminator
Special supply FDA grade silicone sheet with postcure and antistatic silicone sheet with fire-resistant, black color, smooth surface.
Special supply black antistatic silicone sheet backing with or without adhesive 3M. Thickness: 0.2, 0.5, 0.8, 1.0, 1.2, 1.5, 2.0, 3.0mm
For more data & information, please email to:
sales@3Arubber.com
When you enquire, please confirm the hardness, color, size and quantity
