Super Thin Thickness Virgin Silicone Rubber Sheet with Excellent Aging Resistance for Gaskets and Seals
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ISO9001 |
| Model Number | 3A1001 |
| Minimum Order Quantity | 200kgs |
| Price | USD3-6.20/kg |
| Packaging Details | Packing in rolls and pallets |
| Delivery Time | 7-15days after receive the buyer's payment |
| Payment Terms | L/C,D/P,T/T,Western Union |
| Supply Ability | 100000kgs/month |
Product Details
| Material | Virgin Silicone | Quality | Middle Tear Resistant |
|---|---|---|---|
| Surface | Smooth | Tensile Strength | 7.5Mpa |
| Hardness | 10-75shore A | Elongation | 350% |
| Density | 1.25g/cm3 | Tear Strength | 26-42N/mm |
| Shape | Rectangle | Application | Gaskets, Seals, Insulation, Cushioning |
| Color | Transparent | Operatingtemperature | -60℃ To +200℃ |
| Finish | Smooth Or Textured Finish | Power | As Per The Buyer's Request |
| Oem | OEM Service Available | Tolerance | ±0.1mm |
| Agingresistance | Excellent | Origin | China |
| Belt Width | 500-1200mm | Sample | Available |
| Highlight | Silicone Roll Membrane,Supper Thin Thickness Silicone Sheet,Silicone Rubber Sheet Membrane |
||
Product Description
Super Thin Thickness Silicone Rubber Sheet, Silicone Rubber Roll, Silicone Rubber Membrane
0.1-0.8mm x 0.5m x 50m Silicone Sheet, Silicone Roll, Silicone Membrane

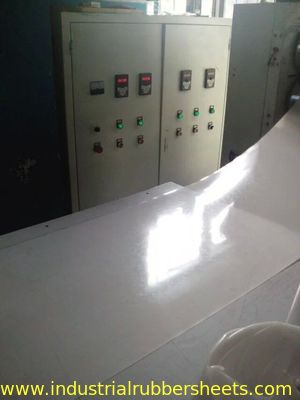

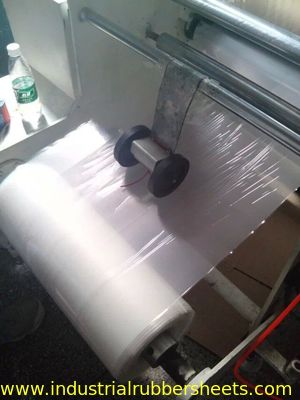

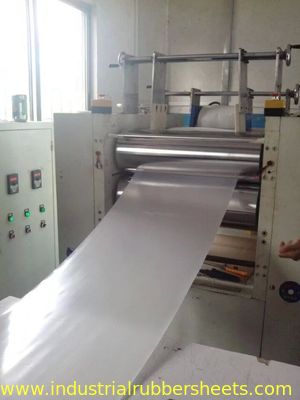

Our silicone sheets, membranes, and rolls are manufactured using high-quality silicone material on specialized vulcanizing equipment including rotocure vulcanizers and plain press vulcanizers, tailored to meet specific customer requirements.
We utilize advanced management systems, innovative techniques, and strict quality control with premium silicone materials and vulcanizing machinery. Our processes overcome common manufacturing challenges such as surface smoothness issues, thickness tolerances, and joint visibility, delivering seamless products with virtually unlimited length capabilities.
Our high-quality silicone rubber offers excellent performance characteristics including anti-aging properties, ozone resistance, heat resistance, electrical insulation, oil resistance, solvent resistance, corrosion resistance, and is non-toxic, odorless, and pollution-free. Suitable for working in air, water, oil, and other media at temperatures ranging from -60°C to +260°C (momentarily up to 300°C) with high stability, reliability, and non-sticky surface properties.
Product Specifications
| Parameter | Specifications |
|---|---|
| Material | 100% virgin HTV silicone material |
| Grade | Industrial grade, food grade, medical grade, FDA grade with postcured |
| Quality | High tear resistant, middle tear resistant, general tear resistant |
| Color | Translucent, dark red, black, milk white, grey, blue, etc. |
| Surface | Smooth/smooth, smooth/impression fabric, smooth/sand or double impression fabric |
| Reinforce | Insert 1 PLY fiberglass fabric, aramid fabric or wire mesh SS201, SS304, SS316 |
| Tensile Strength | 7.5-12.0 MPa |
| Hardness | 10, 20, 30, 40, 50, 60, 70, 80 +/-5 shore A |
| Elongation | 350%-720% |
| Density | 1.25-1.50 g/cm³ |
| Tear Strength | 26-42 N/mm |
| Working Temperature | -60°C to +260°C (momentarily 300°C) |
| Thickness | 0.1-50 mm |
| Width | 0.1-3.6 m |
| Length | 1-50 m |
Standard Sizes
- 0.1-1.0mm x 0.3-1.0m x 25-50m
- 0.5-12.0mm x 0.5-1.5m x 10-20m
- 10.0-50.0mm x 0.5/1.0/1.2/1.5m x 1-20m
- 1.0-8.0mm x 1.5-3.8m x 10-20m
OEM and customized sizes available upon agreement. Products are packed in rolls, pallets, or crates.
Special Silicone Membrane Applications
- Grey silicone membrane, 9.8 MPa, 40 shore A, 750%, 42 N/mm - German silicone for "+" and "-" press on wooden PVC vacuum laminator
- Translucent silicone membrane, 7.5 MPa, 50 shore A, 400%, 26 N/mm - Chinese silicone for "-" press only on wooden PVC vacuum laminator
- Grey silicone membrane, 12.0 MPa, 60-70 shore A, 350%, 45 N/mm - German silicone for photovoltaic module on solar vacuum laminator
- Sky blue silicone membrane, 7.5 MPa, 50 shore A, 350%, 26 N/mm - Chinese silicone for safety glass on glass vacuum bag and laminator
- Dark blue silicone membrane, 8.0 MPa, 57 shore A, 450%, 30 N/mm - Chinese silicone for safety glass on glass vacuum bag and laminator
Special supplies include FDA grade silicone sheet with postcure and antistatic silicone sheet with fire-resistant properties in black color with smooth surface. Also available: black antistatic silicone sheet backing with or without 3M adhesive in thicknesses of 0.2, 0.5, 0.8, 1.0, 1.2, 1.5, 2.0, 3.0 mm.
For more data & information, please contact:
sales@3Arubber.com
When you enquire, please confirm the hardness, color, size and quantity requirements.
sales@3Arubber.com
When you enquire, please confirm the hardness, color, size and quantity requirements.
