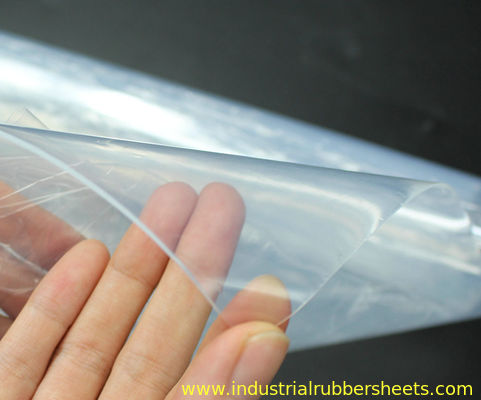

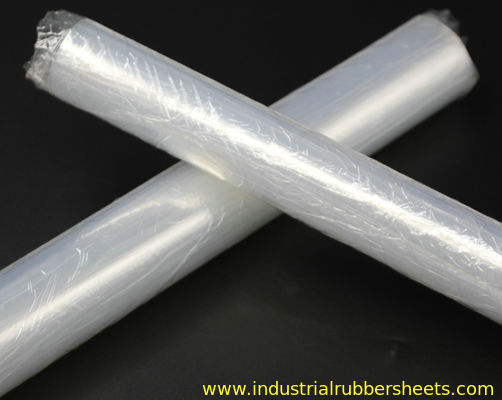

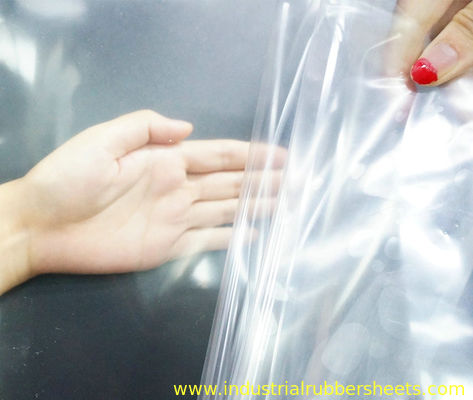

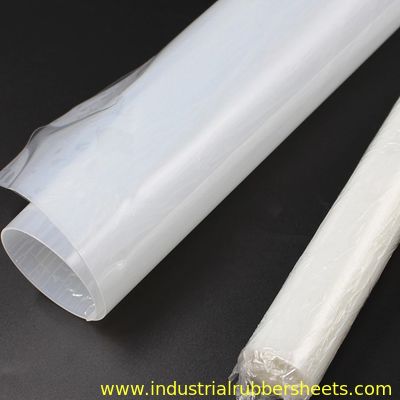

Virgin Silicone Rubber Sheet with High Tensile Strength and Chemical Resistance for Industrial Applications
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ISO9001 |
| Model Number | 3A1001 |
| Minimum Order Quantity | 200kgs |
| Price | USD3-6.20/kg |
| Packaging Details | Packing in rolls and pallets |
| Delivery Time | 7-15days after receive the buyer's payment |
| Payment Terms | L/C,D/P,T/T,Western Union |
| Supply Ability | 100000kgs/month |
| Material | Virgin Silicone | Quality | Superior |
|---|---|---|---|
| Surface | Smooth | Tensile Strength | 7.5Mpa |
| Hardness | 10-75shore A | Elongation | 350% |
| Density | 1.25g/cm3 | Tear Strength | 26-42N/mm |
| Keyword | 3 Mm Thick Silicone Rubber Sheet | Shape | Rectangle |
| Resistance | Chemical, Oil, Weather, UV, Ozone, Etc. | Proof Voltage | 15KV-50KV |
| Rubber Name | Silicon Sheet | Origin | China |
| Operatingtemperature | -60℃ To +200℃ | Grade | Industrial Grade |
| Lead Time | 20-30 Days | Size | Customed |
| Logo | Custom | ||
| Highlight | 1.0mm Silicone Rubber Sheet |
||
Our silicone sheets, membranes, and rolls are manufactured using high-quality silicone material on specialized rotocure vulcanizers or plain press vulcanizers, tailored to meet specific customer size requirements.
We utilize advanced management, innovative techniques, and strict quality control with premium silicone materials and vulcanizer machinery. This approach resolves common issues such as lower surface smoothness and high thickness tolerance in rotocure vulcanizers, as well as restricted width, length, and visible joints in press vulcanizing machines.
Our products feature excellent performance characteristics including anti-aging properties, ozone resistance, heat resistance, electrical insulation, oil resistance, solvent resistance, corrosion resistance, and are non-toxic, odorless, and pollution-free. They operate reliably in air, water, oil, and other media at temperatures ranging from -60°C to +260°C (momentarily up to 300°C).
Applications include punching various rubber seals and gaskets, as well as specialized uses in wooden PVC vacuum laminators, steel door vacuum laminators, safety glass vacuum laminating bags, solar photovoltaic module vacuum laminators, hot press laminators, card press laminators, and other industrial applications.
- General silicone sheets (0.5-12mm x 0.5-1.5m x 1-10m) produced on 4-roller rotocure vulcanizers
- Super wide and special silicone sheets (1.0-8.0mm x 1.5-3.8m x 10-20m) produced on 2-roller rotocure vulcanizers
- Super thin and special silicone sheets (0.1-1.0mm x 0.3-1.0m x 25-50m) produced on special oven road vulcanizers
- Super thick silicone sheets produced on plain press vulcanizers
- Super-wide drum-type vulcanizing press with 4000mm width capability
- Maximum width of 3800mm seamless without joints
| Material | 100% virgin HTV silicone material |
| Grade | Industrial grade, food grade, medical grade, FDA grade with postcured |
| Quality | High tear resistant, middle tear resistant, general tear resistant |
| Color | Translucent, dark red, black, milk white, grey, blue, etc. |
| Surface | Smooth/smooth, smooth/impression fabric, smooth/sand or double impression fabric |

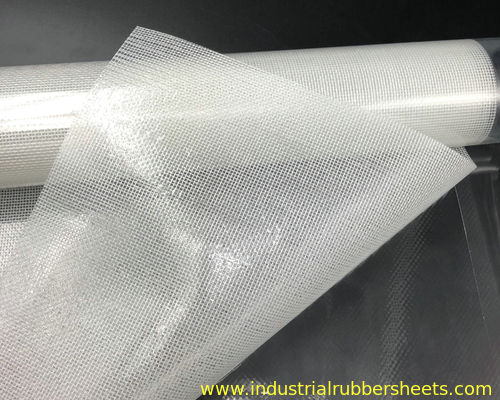

| Reinforcement | Insert 1 PLY fiberglass fabric, aramid fabric or wire mesh SS201, SS304, SS316 |
| Tensile Strength | 7.5-12.0 MPa |
| Hardness | 10, 20, 30, 40, 50, 60, 70, 80 +/-5 Shore A |
| Elongation | 350%-720% |
| Density | 1.25-1.50 g/cm³ |
| Tear Strength | 26-42 N/mm |
| Working Temperature | -60°C to +260°C (momentarily 300°C) |
| Thickness Range | 0.1-50 mm |
| Width Range | 0.1-3.6 m |
| Length Range | 1-50 m |
- 0.1-1.0mm x 0.3-1.0m x 25-50m
- 0.5-12.0mm x 0.5-1.5m x 10-20m
- 10.0-50.0mm x 0.5/1.0/1.2/1.5m x 1-20m
- 1.0-8.0mm x 1.5-3.8m x 10-20m
- OEM & customized sizes available upon agreement
- Packing in rolls, pallets, or crates
- Grey silicone membrane (9.8MPa, 40 Shore A, 750%, 42N/mm) - German silicone for "+" and "-" press on wooden PVC vacuum laminators
- Translucent silicone membrane (7.5MPa, 50 Shore A, 400%, 26N/mm) - Chinese silicone for "-" press only on wooden PVC vacuum laminators
- Grey silicone membrane (12.0MPa, 60-70 Shore A, 350%, 45N/mm) - German silicone for photovoltaic modules on solar vacuum laminators
- Sky blue silicone membrane (7.5MPa, 50 Shore A, 350%, 26N/mm) - Chinese silicone for safety glass on glass vacuum bags and laminators
- Dark blue silicone membrane (8.0MPa, 57 Shore A, 450%, 30N/mm) - Chinese silicone for safety glass on glass vacuum bags and laminators
Special supply available for FDA grade silicone sheets with postcure and antistatic silicone sheets with fire-resistant properties in black color with smooth surface. Also available: black antistatic silicone sheet backing with or without 3M adhesive in thicknesses of 0.2, 0.5, 0.8, 1.0, 1.2, 1.5, 2.0, and 3.0mm.
For more data & information, please contact:
sales@3Arubber.com
When making an enquiry, please confirm the hardness, color, size, and quantity requirements.
