Food Grade Silicone Rubber Sheet 1.25g/cm3 Density 350% Elongation

  • Food Grade Silicone Rubber Sheet 1.25g/cm3 Density 350% Elongation
  • Food Grade Silicone Rubber Sheet 1.25g/cm3 Density 350% Elongation
  • Food Grade Silicone Rubber Sheet 1.25g/cm3 Density 350% Elongation
  • Food Grade Silicone Rubber Sheet 1.25g/cm3 Density 350% Elongation
  • Food Grade Silicone Rubber Sheet 1.25g/cm3 Density 350% Elongation
  • Food Grade Silicone Rubber Sheet 1.25g/cm3 Density 350% Elongation
Place of Origin China
Brand Name 3A Rubber
Certification ISO9001
Model Number 3A1001
Minimum Order Quantity 200kgs
Price USD3-15.00/kg
Packaging Details packing in rolls, bags and pallets
Delivery Time 7-15days after receive the buyer's payment
Payment Terms L/C,D/P,T/T,Western Union,MoneyGram
Supply Ability 100000kgs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Virgin Silicone Quality Food Grade
Surface Double Impression Fabric Tensile Strength 7.5Mpa
Hardness 10-70 Shore A Elongation 350%
Density 1.25g/cm3 Tear Strength 26-42 N/mm
Application Industrial, Automotive, Etc. Width 0.1-3.6m
Elogation 290% Working Temperaturing -60℃-+260℃
Temperature Range -60°C To 230°C Tensible Strength 7-12Mpa
Working Temperature -60 ~ +260^C Uniform Heating Maximum 220 Degree C
Chemical Resistance Yes Flammability UL94-V0
Temperature Resistance -60°C To +230°C Surface Treatment Smooth, Embossed, Etc.
Customization Size, Color, Printing Reinforce Agree To Insert 1 PLY Fabric
Service OEM ODM Production Mold Compression
Agingresistance Excellent Temperature -60 To +230 ℃
Highlight

Silicone Roll Silicone Sheet

,

Silicone Membrane Silicone Sheet
Leave a Message
Product Description

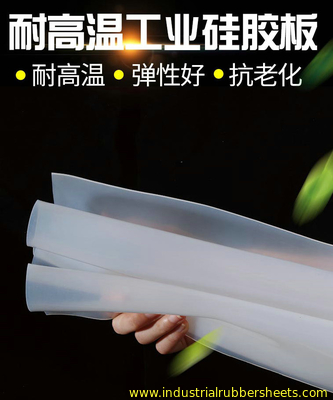

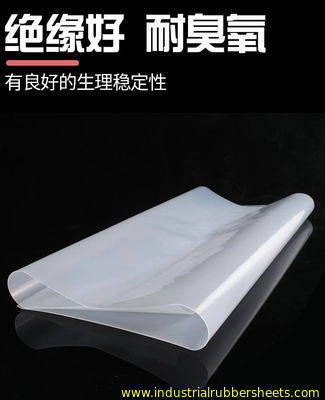

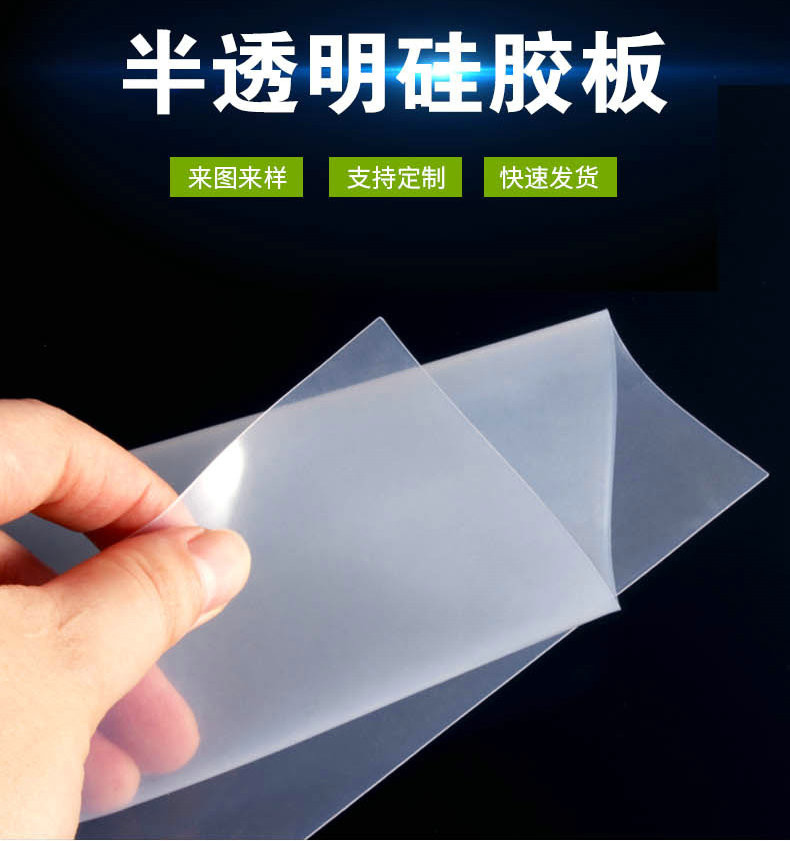

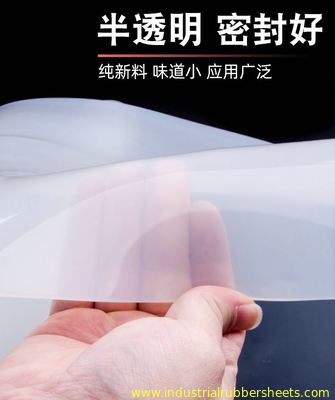

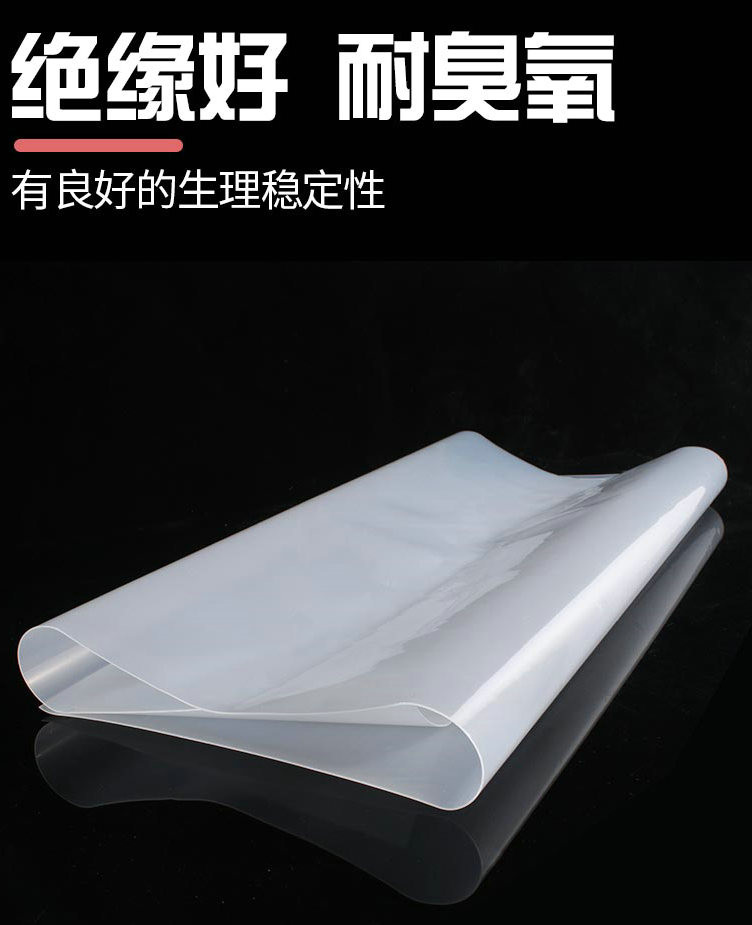

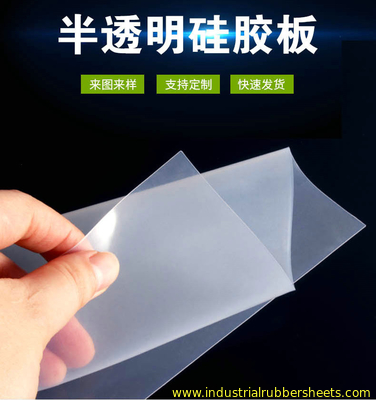

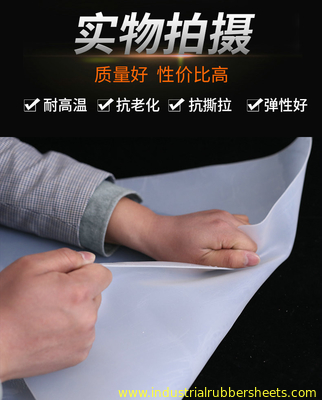

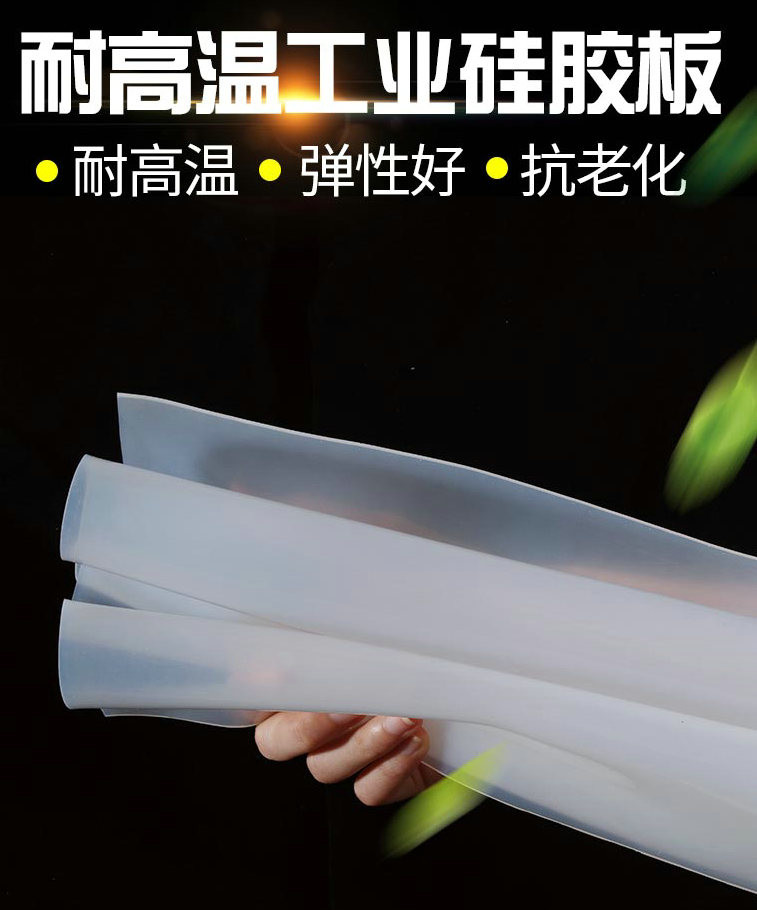

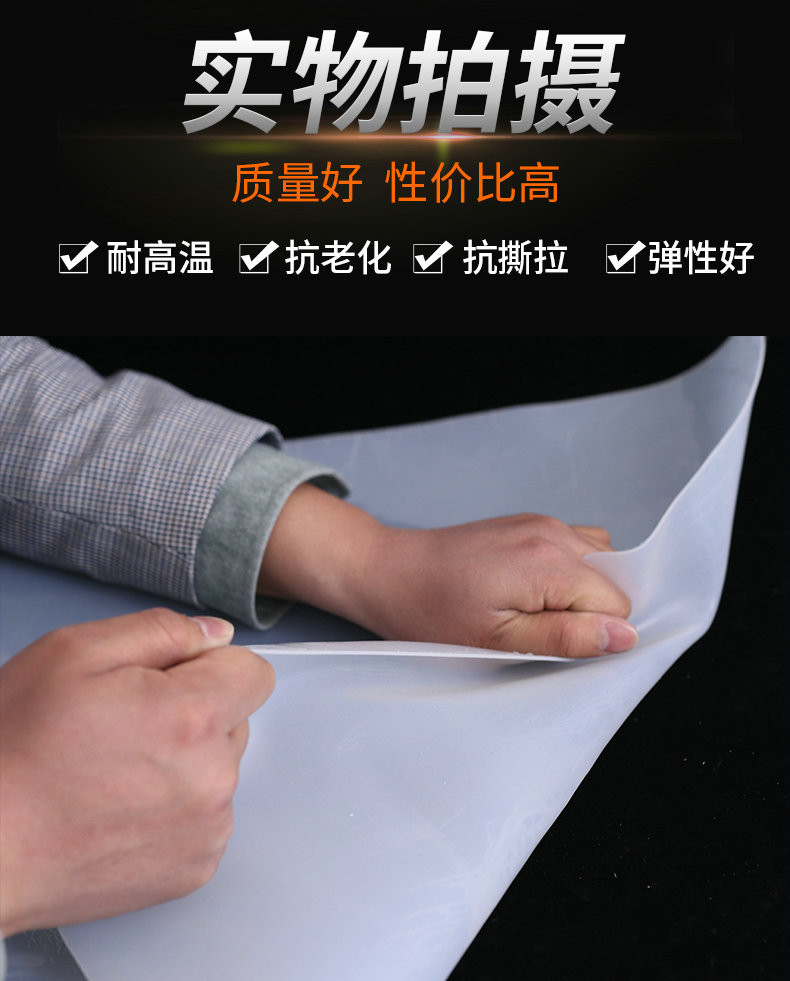

Food Grade Silicone Rubber Sheet, Silicone Roll, Silicone Membrane
Our premium silicone sheets, membranes, and rolls are manufactured using high-quality silicone material on specialized vulcanizing equipment to meet exact customer specifications. Available in various grades including industrial, food, medical, and FDA-compliant options.
Manufacturing Process
  • Standard sheets (0.5-12mm thickness, 0.5-1.5m width, 1-10m length) produced on 4-roller rotocure vulcanizers
  • Extra-wide sheets (1.0-8.0mm thickness, 1.5-3.8m width, 10-20m length) on 2-roller rotocure vulcanizers
  • Ultra-thin sheets (0.1-1.0mm thickness, 0.3-1.0m width, 25-50m length) on specialized oven road vulcanizers
  • Extra-thick sheets produced on plain press vulcanizers
Key Features
  • Seamless construction with infinite length capability
  • Super-wide production up to 3800mm width without joints
  • Excellent resistance to aging, ozone, heat, oil, solvents, and corrosion
  • Non-toxic, tasteless, and pollution-free
  • Operating temperature range: -60°C to +260°C (momentary peak at 300°C)
  • High stability and reliability with non-stick surface
Technical Specifications
Material 100% virgin HTV silicone material
Grades Available Industrial grade, food grade, medical grade, FDA grade with postcure
Quality Options High tear resistant, middle tear resistant, general tear resistant
Color Options Translucent, dark red, black, milk white, grey, blue, etc.
Surface Finishes Smooth/smooth, smooth/impression fabric, smooth/sand or double impression fabric
Reinforcement Options Insert 1 PLY fiberglass fabric, aramid fabric or wire mesh SS201, SS304, SS316
Tensile Strength 7.5-12.0Mpa
Hardness 10-80±5 Shore A
Elongation 350%-720%
Density 1.25-1.50g/cm³
Tear Strength 26-42N/mm
Standard Sizes
  • 0.1-1.0mm × 0.3-1.0m × 25-50m
  • 0.5-12.0mm × 0.5-1.5m × 10-20m
  • 10.0-50.0mm × 0.5/1.0/1.2/1.5m × 1-20m
  • 1.0-8.0mm × 1.5-3.8m × 10-20m
Custom sizes available upon request.
Special Silicone Membranes
  • Grey membrane (9.8Mpa, 40 Shore A) for wooden PVC vacuum laminators
  • Translucent membrane (7.5Mpa, 50 Shore A) for wooden PVC vacuum laminators
  • Grey membrane (12.0Mpa, 60-70 Shore A) for solar photovoltaic modules
  • Sky blue/dark blue membranes for safety glass vacuum bags and laminators
  • FDA grade and antistatic silicone sheets available
Food Grade Silicone Rubber Sheet 1.25g/cm3 Density 350% Elongation 0 Food Grade Silicone Rubber Sheet 1.25g/cm3 Density 350% Elongation 1 Food Grade Silicone Rubber Sheet 1.25g/cm3 Density 350% Elongation 2 Food Grade Silicone Rubber Sheet 1.25g/cm3 Density 350% Elongation 3
For more information:
When inquiring, please specify hardness, color, size, and quantity requirements.
