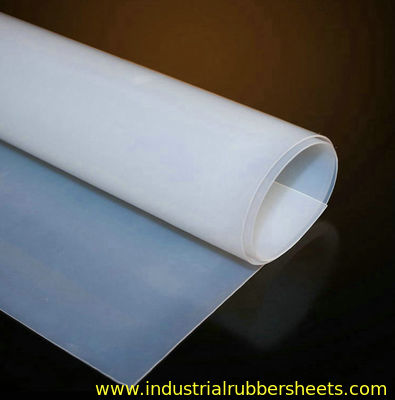

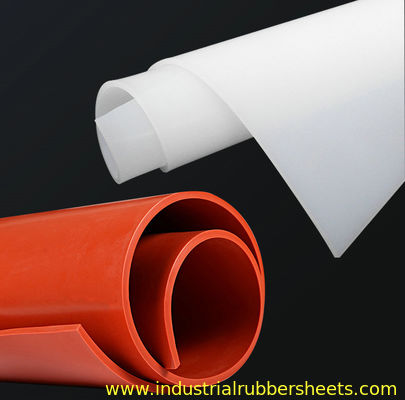

Translucent Food Grade Silicone Rubber Sheet with High Durability for Industrial Applications
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ISO9001 |
| Model Number | 3A1001 |
| Minimum Order Quantity | 100kgs |
| Price | USD3-15.00/kg |
| Packaging Details | packing in rolls, bags and pallets |
| Delivery Time | 7-15days after receive the buyer's payment |
| Payment Terms | L/C,D/P,T/T,Western Union,Paypal,Alipay,Wechat |
| Supply Ability | 100000kgs/month |
Product Details
| Working Temperaturing | -60℃-+260℃ | Finish | Smooth Or Textured Finish |
|---|---|---|---|
| Material | Silicone Rubber | Quality | Food Grade |
| Surface | Smooth | Tensile Strength | 7.5Mpa |
| Hardness | 60shore A | Elongation | 350% |
| Density | 1.25g/cm3 | Tear Strength | 26N/mm |
| Thickness | 0.1-12mm | Width | 0.3-3.6m |
| Length | 1-50m | Durability | High |
| Highlight | 7.5Mpa Translucent Silicone Sheet,0.1mm Translucent Silicone Sheet,0.1mm Translucent Rubber Sheet |
||
Product Description
Translucent Silicone Rubber Sheet Silicone Membrane Silicone Roll for Industrial Applications
Translucent Food Grade Silicone Sheet, Silicone Rubber Sheet
Our silicone sheets, membranes, and rolls are manufactured using high-quality silicone material on specialized rotocure vulcanizers or plain press vulcanizers, tailored to meet specific customer requirements. We utilize advanced management, innovative techniques, and strict quality control to deliver superior products with excellent surface smoothness and precise thickness tolerance.
Our manufacturing capabilities include:
- General silicone sheets produced on 4-roller rotocure vulcanizers
- Super-wide silicone sheets produced on 2-roller rotocure vulcanizers
- Super-thin silicone sheets produced on special oven road vulcanizers
- Super-thick silicone sheets produced on plain press vulcanizers
We have overcome traditional manufacturing limitations, achieving seamless, joint-free products with infinite length capabilities. Our super-wide drum-type vulcanizing press accommodates widths up to 4000mm, producing high-quality seamless silicone sheets up to 3800mm wide.
High-quality silicone rubber offers excellent performance characteristics including anti-aging, ozone resistance, heat resistance, electric insulation, oil resistance, solvent resistance, corrosion resistance, non-toxic and odorless properties, and pollution-free operation. Suitable for working in air, water, oil, and other media at temperatures ranging from -60°C to +260°C (momentarily up to 300°C) with high stability, reliability, and non-sticky surface properties.
Applications include punching various rubber seals and gaskets, and specialized uses in wooden PVC vacuum press laminators, wooden door vacuum press laminators, safety glass vacuum laminating bags, solar vacuum press laminators, hot press laminators, card press laminators, and other industrial applications.
Specifications
| Material | 100% virgin HTV silicone material |
|---|---|
| Grade | Industrial grade, food grade, medical grade, FDA grade with postcured |
| Quality | High tear resistant, middle tear resistant, general tear resistant |
| Color | Translucent, dark red, black, milk white, grey, blue, etc. |
| Surface | Smooth/smooth, smooth/impression fabric, smooth/sand or double impression fabric |
| Reinforce | Insert 1 PLY fiberglass fabric, aramid fabric or wire mesh SS201, SS304, SS316 |
| Tensile Strength | 7.5-12.0 MPa |
| Hardness | 10, 20, 30, 40, 50, 60, 70, 80 +/-5 Shore A |
| Elongation | 350%-720% |
| Density | 1.25-1.50 g/cm³ |
| Tear Strength | 26-42 N/mm |
| Working Temperature | -60°C - +260°C (moment 300°C) |
| Thickness | 0.1-50 mm |
| Width | 0.1-3.6 m |
| Length | 1-50 m |
Standard Sizes
- 0.1-1.0mm * 0.5m * 25/50m
- 0.5-10.0mm * 0.5-1.2m * 10/20m
- 1.0-30.0mm * 0.5/1.0/1.2/1.5m * 10/20m
- 1.0-8.0mm * 1.5-3.8m * 10/20/30m
OEM and customized sizes available upon agreement. Packing available in rolls, pallets, or crates.
Special Silicone Membranes
- Light Grey: 9.8 MPa, 40 Shore A, 750%, 42 N/mm Germany silicone for "+" and "-" press on wooden PVC vacuum press laminator
- Translucent: 7.5 MPa, 50 Shore A, 400%, 26 N/mm Chinese silicone for "-" press only on wooden PVC vacuum press laminator
- Dark Grey: 12.0 MPa, 60-70 Shore A, 350%, 45 N/mm Germany silicone for photovoltaic module on solar vacuum laminator
- Sky Blue: 7.5 MPa, 50 Shore A, 350%, 26 N/mm Chinese silicone for safety glass on glass vacuum bag and laminator
- Dark Blue: 8.0 MPa, 57 Shore A, 450%, 30 N/mm Chinese silicone for safety glass on glass vacuum bag and laminator
Special supply FDA grade silicone sheet with postcure and antistatic silicone sheet with fire-resistant, black color, smooth surface. Special supply black antistatic silicone sheet backing with or without adhesive 3M, thicknesses: 0.2, 0.5, 0.8, 1.0, 1.2, 1.5, 2.0, 3.0 mm.
When you inquire, please confirm the application, color, hardness, size, and quantity.
