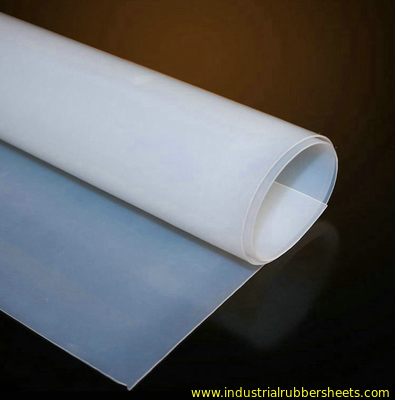

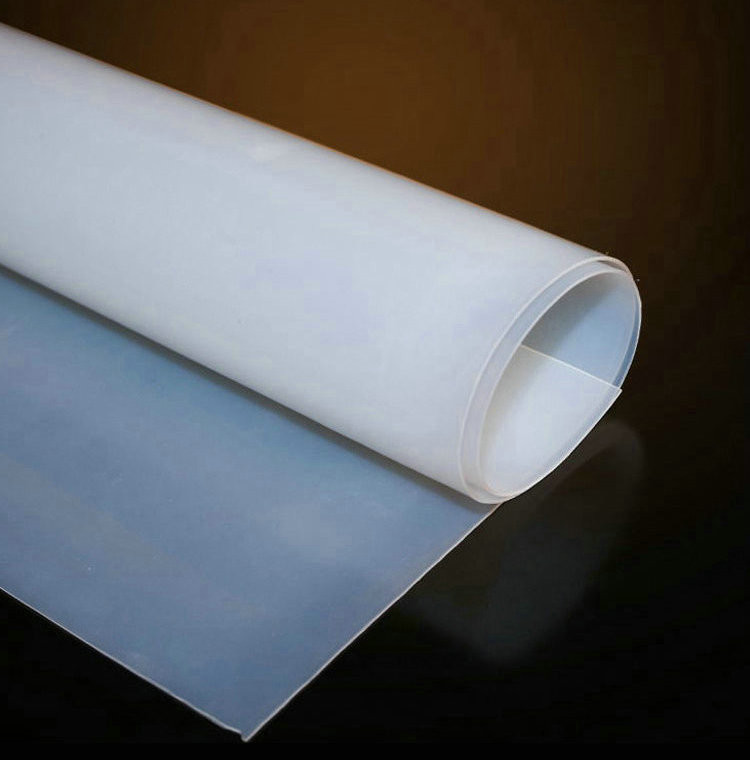

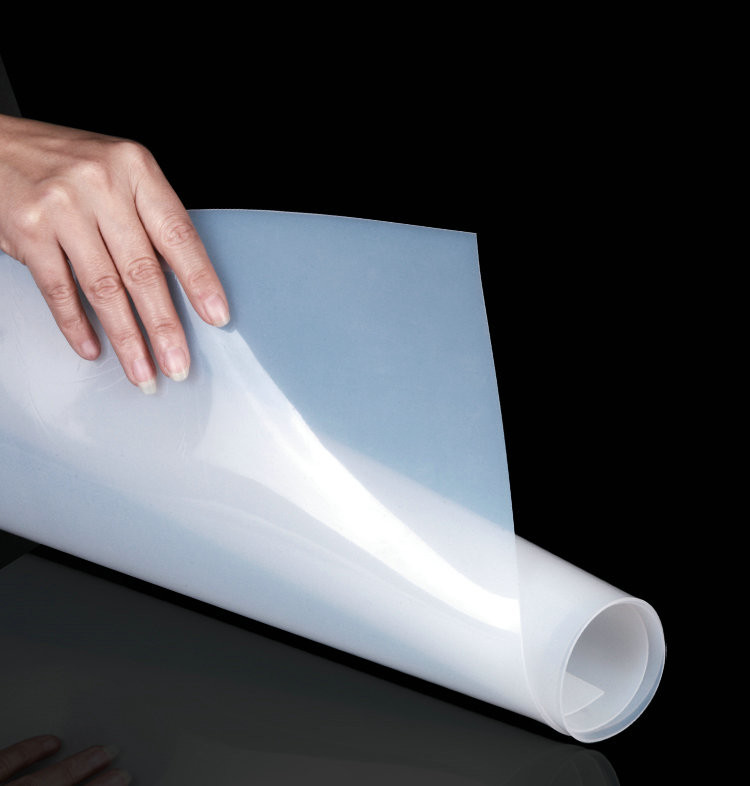

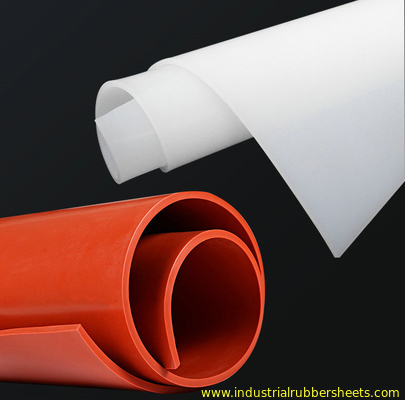

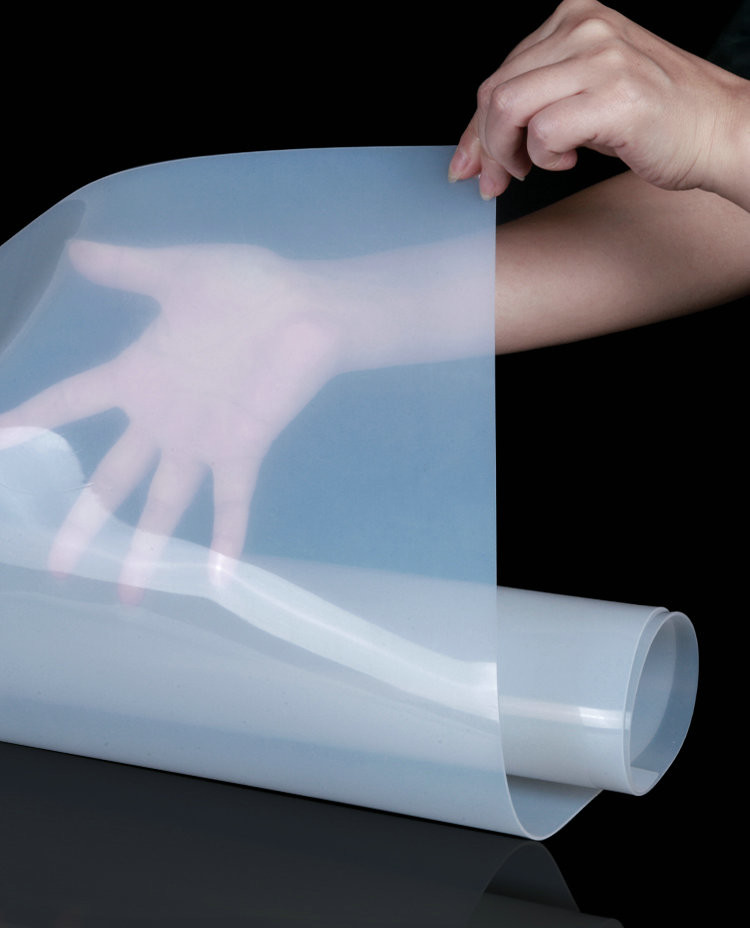

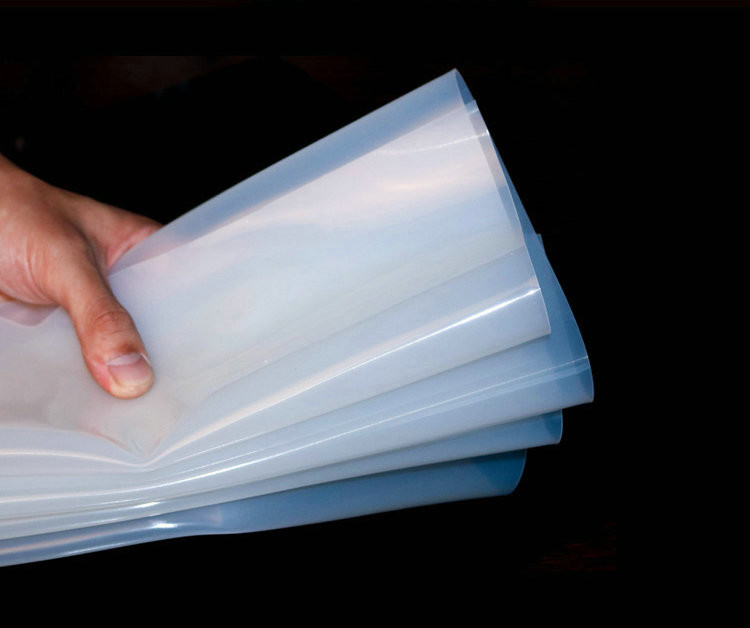

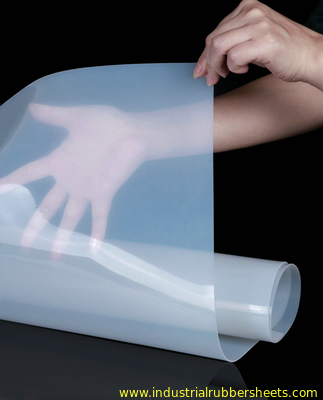

Food Grade Silicone Rubber Sheet 60 Shore A 0.1-12mm Thick

  • Food Grade Silicone Rubber Sheet 60 Shore A 0.1-12mm Thick
  • Food Grade Silicone Rubber Sheet 60 Shore A 0.1-12mm Thick
  • Food Grade Silicone Rubber Sheet 60 Shore A 0.1-12mm Thick
  • Food Grade Silicone Rubber Sheet 60 Shore A 0.1-12mm Thick
  • Food Grade Silicone Rubber Sheet 60 Shore A 0.1-12mm Thick
  • Food Grade Silicone Rubber Sheet 60 Shore A 0.1-12mm Thick
Place of Origin China
Brand Name 3A Rubber
Certification ISO9001
Model Number 3A1001
Minimum Order Quantity 100kgs
Price USD3-15.00/kg
Packaging Details packing in rolls, bags and pallets
Delivery Time 7-15days after receive the buyer's payment
Payment Terms L/C,D/P,T/T,Western Union,MoneyGram,Paypal,Alipay,Wechat
Supply Ability 100000kgs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Silicone Rubber Quality Food Grade
Surface Smooth Tensile Strength 7.5Mpa
Hardness 60shore A Elongation 350%
Density 1.25g/cm3 Tear Strength 26N/mm
Thickness 0.1-12mm Width 0.3-3.6m
Length 1-50m Durability High
Working Temperaturing -60℃-+260℃ Finish Smooth Or Textured Finish
Highlight

7.5Mpa Translucent Silicone Sheet

,

0.1mm Translucent Silicone Sheet

,

0.1mm Translucent Rubber Sheet
Leave a Message
Product Description
Translucent Silicone Rubber Sheet Silicone Membrane Silicone Roll for Industrial Applications
High-Quality Food Grade Silicone Sheet
Our silicone sheets, membranes, and rolls are manufactured using premium silicone material on specialized vulcanizing equipment tailored to customer requirements. We utilize different production methods for various specifications:
  • General silicone sheets produced on 4-roller rotocure vulcanizers
  • Extra-wide sheets produced on 2-roller rotocure vulcanizers
  • Ultra-thin sheets produced on special oven road vulcanizers
  • Extra-thick sheets produced on plain press vulcanizers
Our advanced manufacturing techniques and strict quality control ensure superior products with smooth surfaces and precise thickness tolerances. We offer seamless silicone sheets up to 3800mm wide with infinite length capabilities.
Key Properties
Our silicone rubber features excellent resistance to aging, ozone, heat (up to 260°C/300°C momentarily), oils, solvents, and corrosion. It's non-toxic, tasteless, and pollution-free, maintaining stability in air, water, and oil environments.
Applications
Ideal for manufacturing rubber seals, gaskets, and specialized uses in:
  • Wooden PVC vacuum press laminators
  • Wooden door vacuum press laminators
  • Safety glass vacuum laminating bags
  • Solar vacuum press laminators
  • Hot press and card press laminators
Technical Specifications
Parameter Specification
Material 100% virgin HTV silicone material
Grades Available Industrial, Food, Medical, FDA (with postcure)
Quality Levels High tear resistant, Medium tear resistant, General tear resistant
Color Options Translucent, dark red, black, milk white, grey, blue, etc.
Surface Finishes Smooth/smooth, smooth/impression fabric, smooth/sand or double impression fabric
Reinforcement Options Fiberglass fabric, aramid fabric, or wire mesh (SS201, SS304, SS316)
Tensile Strength 7.5-12.0 MPa
Hardness (Shore A) 10-80 ±5
Elongation 350%-720%
Density 1.25-1.50 g/cm³
Tear Strength 26-42 N/mm
Working Temperature -60°C to +260°C (momentarily 300°C)
Thickness Range 0.1-50 mm
Width Range 0.1-3.6 m
Length Range 1-50 m
Standard Sizes
  • 0.1-1.0mm × 0.5m × 25/50m
  • 0.5-10.0mm × 0.5-1.2m × 10/20m
  • 1.0-30.0mm × 0.5/1.0/1.2/1.5m × 10/20m
  • 1.0-8.0mm × 1.5-3.8m × 10/20/30m
Custom sizes available upon request. Packaging options include rolls, pallets, or crates.
Special Silicone Membranes
Application Specifications
Wooden PVC Vacuum Press Laminator ("+" and "-" press) Light grey, 9.8MPa, 40 Shore A, 750% elongation, 42N/mm tear strength (Germany silicone)
Wooden PVC Vacuum Press Laminator ("-" press only) Translucent, 7.5MPa, 50 Shore A, 400% elongation, 26N/mm tear strength (Chinese silicone)
Photovoltaic Module on Solar Vacuum Laminator Dark grey, 12.0MPa, 60-70 Shore A, 350% elongation, 45N/mm tear strength (Germany silicone)
Safety Glass on Glass Vacuum Bag and Laminator Sky blue, 7.5MPa, 50 Shore A, 350% elongation, 26N/mm tear strength (Chinese silicone)
Safety Glass on Glass Vacuum Bag and Laminator Dark blue, 8.0MPa, 57 Shore A, 450% elongation, 30N/mm tear strength (Chinese silicone)
Specialty Products
  • FDA grade silicone sheets with postcure treatment
  • Antistatic silicone sheets with fire-resistant properties (black color, smooth surface)
  • Black antistatic silicone sheets with/without 3M adhesive (thicknesses: 0.2-3.0mm)
Important: When inquiring, please specify your application requirements including color, hardness, dimensions, and quantity.
