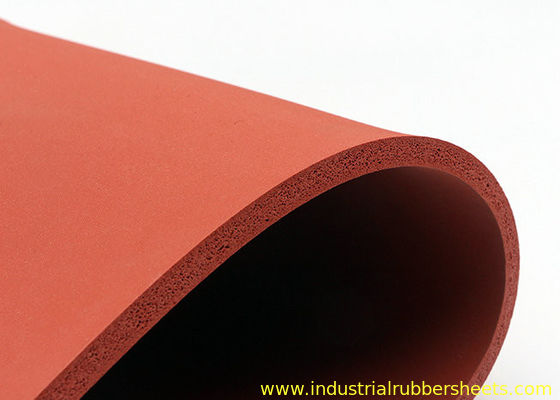

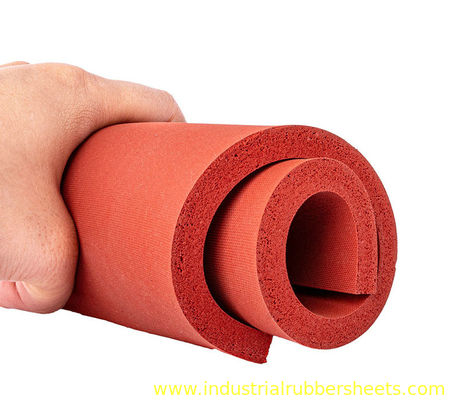

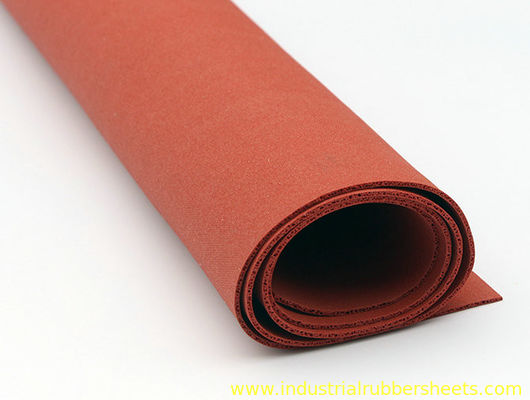

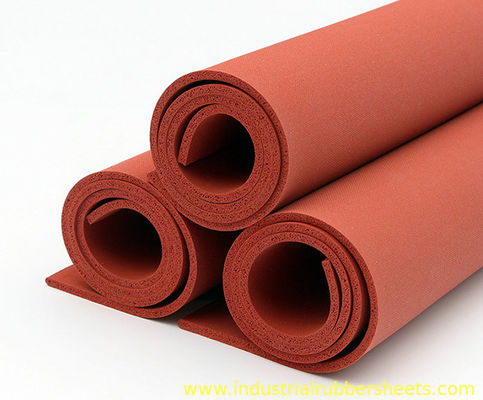

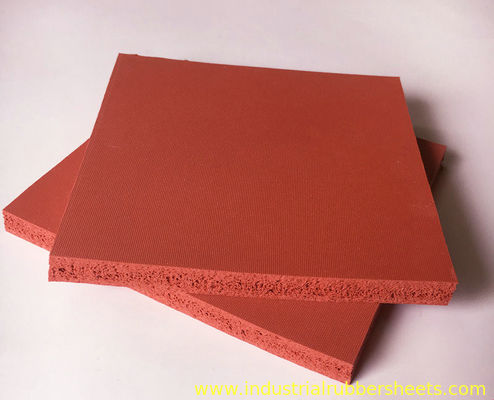

Close Cell 100psi 10-40 Shore A Silicone Foam Sheet and Silicone Sponge Sheet
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ISO9001 |
| Model Number | 3A1002 |
| Minimum Order Quantity | 100kgs |
| Price | USD5.20-8.00/kg |
| Packaging Details | packing in rolls, bags and pallets |
| Delivery Time | 7-15days after receive the buyer's payment |
| Payment Terms | L/C,D/P,T/T,Western Union,Alipay,Wechat |
| Supply Ability | 100000kgs/month |
Product Details
| Material | Silicone Sponge Rubber | Cell | Close Cell |
|---|---|---|---|
| Surface | Impression Fabric Or Smooth | Tensile Strength | 100psi |
| Hardness | 10-40shore A | Elongation | 100% |
| Density | 0.5-1.0g/cm3 | Thickness | 1.5-50mm |
| Width | 0.5-1.5m | Length | 0.5-10m |
| Certifications | FDA, RoHS, REACH | Aging Resistance | Excellent |
| Tear Strength | 6-25 N/mm | Flameresistance | UL94V-0 |
| Working Temperature | -40^C ~ +260^C | Working Temperaturing | -60℃-+260℃ |
| Elogation | ＞100% | Uniform Heating | As Per The Buyer's Request |
| Highlight | 1.0g/Cm3 Silicone Foam Sheet,0.5g/Cm3 Silicone Foam Sheet,100psi Silicone Sponge Sheet |
||
Product Description
0.5-1.0g/Cm³ 10-40 Shore A Close Cell 100psi Silicone Foam Sheet
Product Overview
High-performance closed cell silicone sponge and foam sheets manufactured using specialized continuous plain press vulcanizer technology. These materials offer exceptional temperature resistance, durability, and insulation properties for demanding industrial applications.
Key Features
- Excellent high temperature resistance and aging protection
- Superior ozone, fuel oil, and lubricant resistance
- Outstanding thermal and acoustic insulation properties
- High compressibility with low compression set
- Odorless and durable performance
- Wide working temperature range: -60°C to +220°C continuous use
- Intermittent use capability: -70°C to +260°C
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Virgin silicone sponge, silicone foam |
| Cell Structure | Closed cell |
| Available Colors | Dark red, white, grey, black, beige, brown, blue, etc. |
| Surface Finish | Double impression fabric |
| Tensile Strength | 100-200 PSI |
| Hardness Range | 10, 15, 20, 25, 30, 35, 40 ±5 Shore A |
| Elongation | 100% |
| Density Range | 0.5-1.0 g/cm³ |
| Thickness Range | 1.5-50 mm |
| Width Range | 0.1-1.5 m (maximum 1.5 m @ >5 mm thickness) |
| Length Range | 0.1-10 m |
Standard Sizes
- 1.5-50 mm * 1.0 m * 10 m
- 1.5-50 mm * 1.2 m * 10 m
- 5.0-50 mm * 1.5 m * 10 m
Density & Hardness Correlation
| Hardness (Shore A) | Density (g/cm³) |
|---|---|
| 10 | 0.48-0.50 |
| 15 | 0.50-0.55 |
| 20-25 | 0.60-0.65 |
| 25-30 | 0.65 |
| 30-40 | 1.00 |
Customization Options
- OEM and custom sizes available
- Multiple packaging options: cartons, rolls, pallets, or crates
- Backing adhesive options: Chinese general glue or USA 3M glue
- Perforated silicone sponge sheets: 6, 8, 10 mm * 0.9 m * 1.8 m (red, beige, white)
- Custom silicone sponge extrusions, profiles, and stripes
Important: When requesting a quotation, please specify color, hardness, surface finish, dimensions, and quantity requirements.
