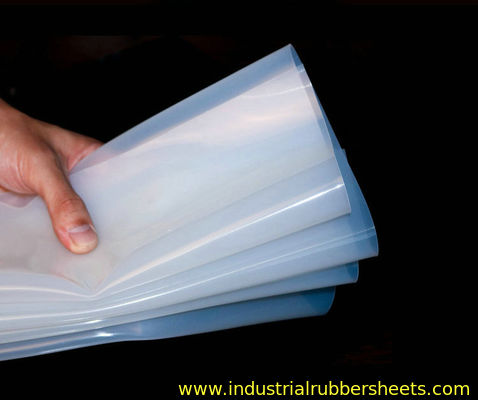

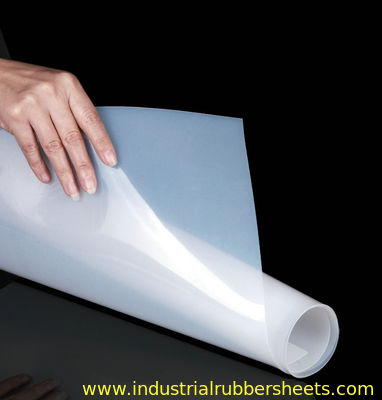

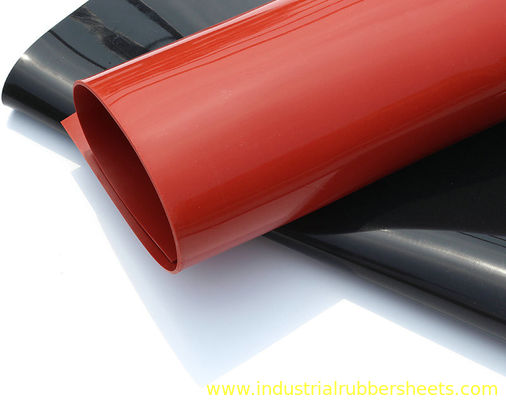

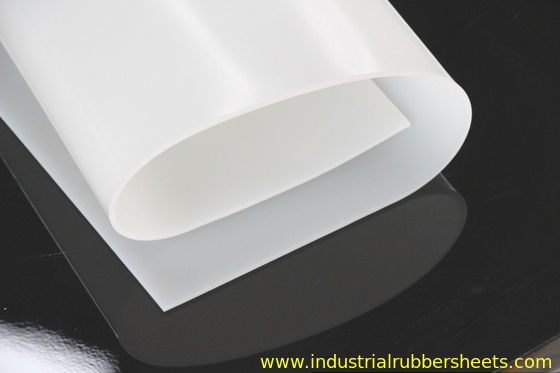

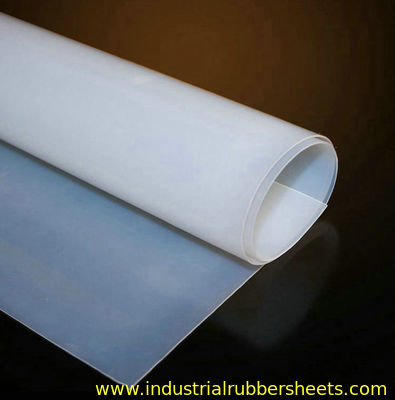

Food Grade UV-Resistant Silicone Rubber Sheet with High Tensile Strength 7.0Mpa for Custom Sizes
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ISO9001 |
| Model Number | 3A1002 |
| Minimum Order Quantity | 100kgs |
| Price | USD3-15.00/kg |
| Packaging Details | packing in rolls and bags |
| Delivery Time | 7-15days after receive the buyer's payment |
| Payment Terms | L/C,D/P,T/T,Western Union,Alipay,Wechat,Paypal |
| Supply Ability | 100000kgs/month |
Product Details
| Material | Plastic+silicone | Quality | Food Grade |
|---|---|---|---|
| Color | Red, White, Black, Blue, Etc. | Surface | Smooth Or Matt |
| Tensile Strength | 7.0Mpa | Hardness | 40-80 Shore A |
| Elongation | 300% | Density | 1.25g/cm3 |
| Thickness | 0.5mm, 1mm, 2mm, 3mm, Etc. | Width | 1.0-1.2mm |
| Length | 10m | Tearstrength | 25N/mm |
| Lead Time | 7-15 Days | Drawing | 2D Or 3D |
| Usage | Silicone Pad | Production | Mold Compression |
| Uv Resistance | UV-resistant | Reinforce | Agree To Insert 1 PLY Fabric |
| Fda Compliant | Yes | Top Material | Virgin Silicone With Rough Surface |
| Temperature Range | -50℃ To 200℃ | ||
| Highlight | 10m Silicone Rubber Sheet,10m High Temp Silicone Rubber Sheet,1mm Heat Resistant Silicone Rubber Sheet |
||
Product Description
Silicone Rubber Sheet Silicone Roll for Customized Sizes
Our silicone sheets, membranes, and rolls are manufactured using high-quality silicone material on specialized rotocure vulcanizers or plain press vulcanizers, tailored to meet specific customer requirements. We utilize advanced management, innovative techniques, and strict quality control to deliver superior products with excellent surface smoothness and precise thickness tolerance.
Manufacturing Excellence
We employ various vulcanization methods to meet diverse production needs: general silicone sheets on 4-roller rotocure vulcanizers, super-wide sheets on 2-roller rotocure vulcanizers, ultra-thin sheets on special oven road vulcanizers, and super-thick sheets on plain press vulcanizers. Our super-wide drum-type vulcanizing press accommodates widths up to 4000mm, producing seamless products up to 3800mm wide without joints.
Product Specifications
| Material | 100% virgin HTV silicone material |
| Grade | Industrial grade, food grade, medical grade, FDA grade with postcured |
| Quality | High tear resistant, middle tear resistant, general tear resistant |
| Color | Translucent, dark red, black, milk white, grey, blue, etc. |
| Surface | Smooth/smooth, smooth/impression fabric, smooth/sand or double impression fabric |
| Reinforcement | Insert 1 PLY fiberglass fabric, aramid fabric or wire mesh SS201, SS304, SS316 |
| Tensile Strength | 7.5-12.0 MPa |
| Hardness | 10, 20, 30, 40, 50, 60, 70, 80 ±5 Shore A |
| Elongation | 350%-720% |
| Density | 1.25-1.50 g/cm³ |
| Tear Strength | 26-42 N/mm |
| Working Temperature | -60°C to +260°C (momentary maximum 300°C) |
| Thickness | 0.1-50 mm |
| Width | 0.1-3.6 m |
| Length | 1-50 m |
Standard Sizes
- 0.1-1.0mm * 0.5m * 25/50m
- 0.5-10.0mm * 0.5-1.2m * 10/20m
- 1.0-30.0mm * 0.5/1.0/1.2/1.5m * 10/20m
- 1.0-8.0mm * 1.5-3.8m * 10/20/30m
- OEM & customized sizes available upon agreement
Special Silicone Membranes
- Light Grey: 9.8 MPa, 40 Shore A, 750%, 42 N/mm - Germany silicone for "+" and "-" press on wooden PVC vacuum press laminator
- Translucent: 7.5 MPa, 50 Shore A, 400%, 26 N/mm - Chinese silicone for "-" press only on wooden PVC vacuum press laminator
- Dark Grey: 12.0 MPa, 60-70 Shore A, 350%, 45 N/mm - Germany silicone for photovoltaic module on solar vacuum laminator
- Sky Blue: 7.5 MPa, 50 Shore A, 350%, 26 N/mm - Chinese silicone for safety glass on glass vacuum bag and laminator
- Dark Blue: 8.0 MPa, 57 Shore A, 450%, 30 N/mm - Chinese silicone for safety glass on glass vacuum bag and laminator
Special Products
We offer FDA grade silicone sheets with postcure treatment and antistatic silicone sheets with fire-resistant properties in black color with smooth surface. We also provide black antistatic silicone sheet backing with or without 3M adhesive in thicknesses of 0.2, 0.5, 0.8, 1.0, 1.2, 1.5, 2.0, and 3.0mm.
Important: When requesting a quotation, please specify the application, color, hardness, size, and quantity requirements.
