Custom Silicone Rubber Heater Pad 228.5x290mm 2.0mm Thickness 1000V

  • Custom Silicone Rubber Heater Pad 228.5x290mm 2.0mm Thickness 1000V
  • Custom Silicone Rubber Heater Pad 228.5x290mm 2.0mm Thickness 1000V
  • Custom Silicone Rubber Heater Pad 228.5x290mm 2.0mm Thickness 1000V
  • Custom Silicone Rubber Heater Pad 228.5x290mm 2.0mm Thickness 1000V
  • Custom Silicone Rubber Heater Pad 228.5x290mm 2.0mm Thickness 1000V
  • Custom Silicone Rubber Heater Pad 228.5x290mm 2.0mm Thickness 1000V
  • Custom Silicone Rubber Heater Pad 228.5x290mm 2.0mm Thickness 1000V
Place of Origin China
Brand Name 3A Rubber
Certification ISO9001
Model Number 3A1002
Minimum Order Quantity 20pieces
Price USD10.00/piece
Packaging Details packing in cartons
Delivery Time 7-15days after receive the buyer's payment
Payment Terms L/C,D/P,T/T,Western Union,MoneyGram,Alipay,Wechat
Supply Ability 10000pieces/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Silicone + Heating Film Color Red, Black, Grey
Size Customed Others As Per Buyer's Drawing
Aging Resistance Excellent Uv Resistance Excellent
Temperature Range -60°C - +260°C(moment 300°C) Density 1.25-1.50 G/cm³
Standard Width 0.5m,1.0m ,1.2m And 1.5m Heater Width Maxium 48 Inches
Usage Silicone Pad Working Temp -40^C ~ +260^C
Grade Food Grade Without Smell Drawing 2D Or 3D
Processing Service Moulding, Cutting, Moulding, Cutting Compression Set 5-15%
Compliance FDA, LFGB, RoHS, REACH, Custom
Highlight

2.0mm Silicone Rubber Sheet

,

3.0 Ohms Silicone Rubber Sheet

,

3A1002
Leave a Message
Product Description
Silicone Rubber Heater with High Temperature Heating Capability for New Energy Automobile

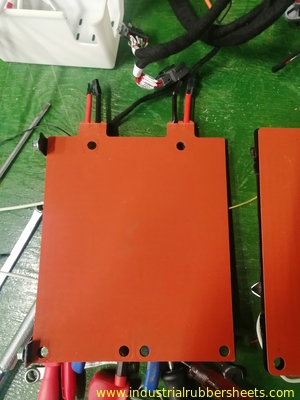

Model: 3A1002 | Dimensions: 2.0mm x 228.5mm x 290mm (Custom Sizes Available)

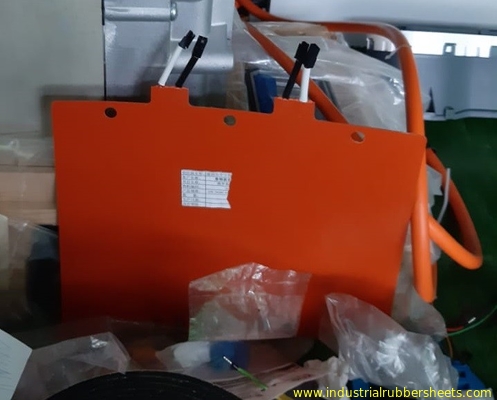

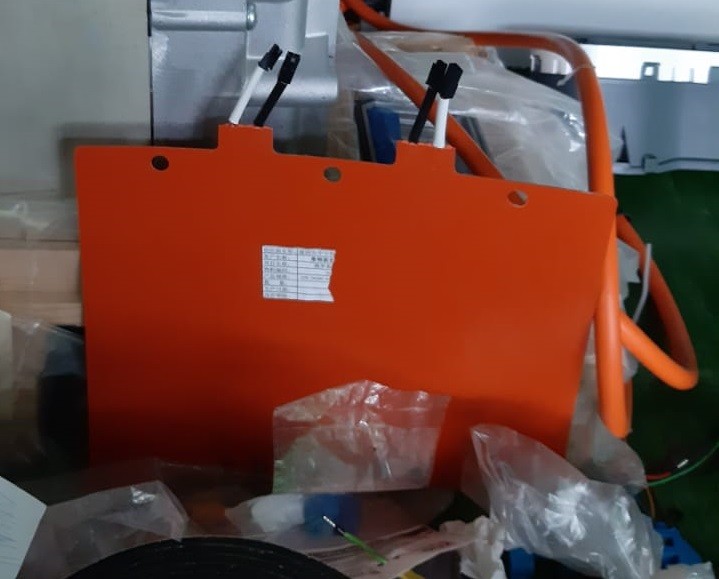

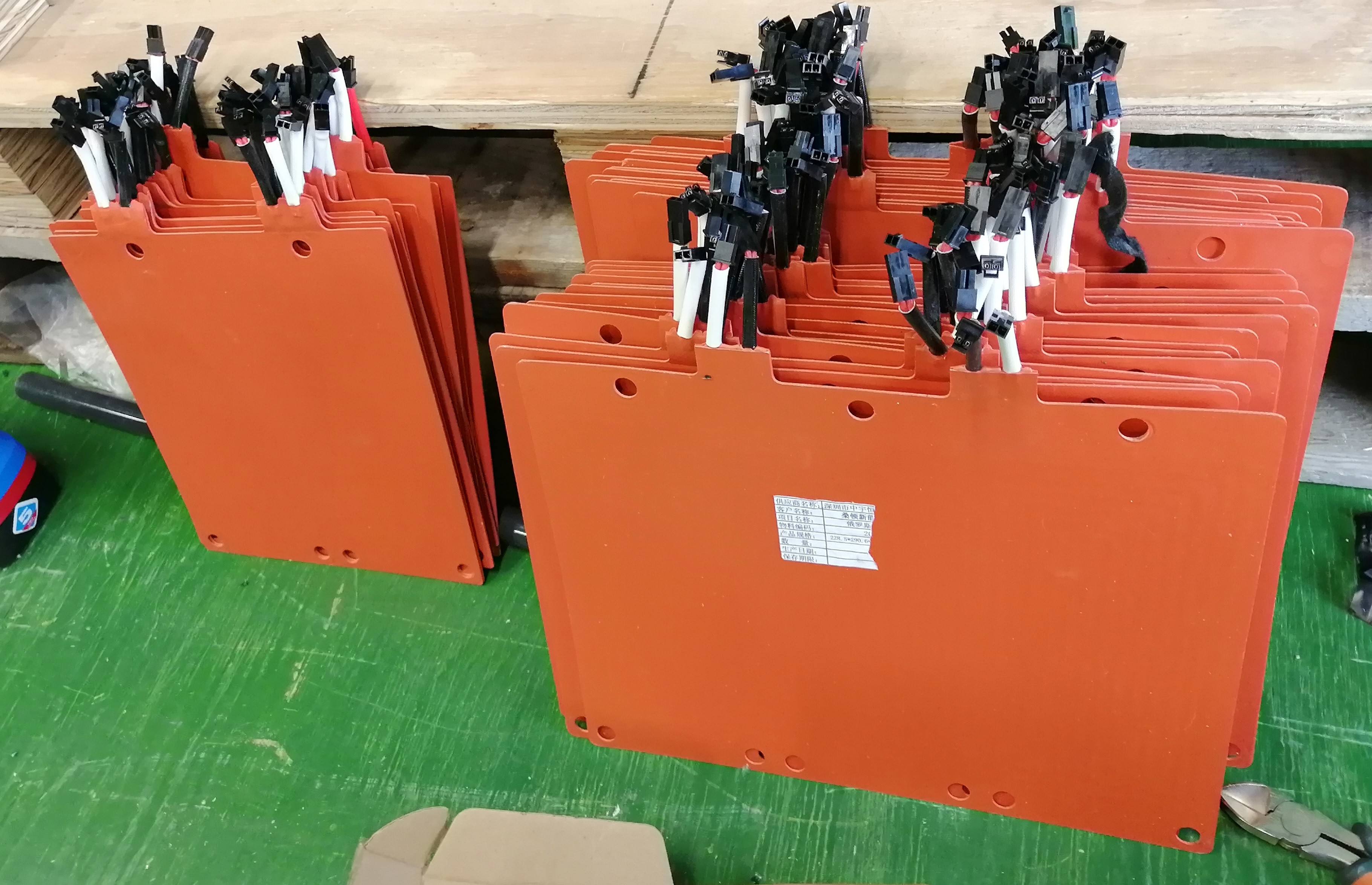

Custom silicone heater pad designed specifically for lithium battery heating in new energy vehicles. Features high temperature resistance and uniform heating performance.
Product Specifications

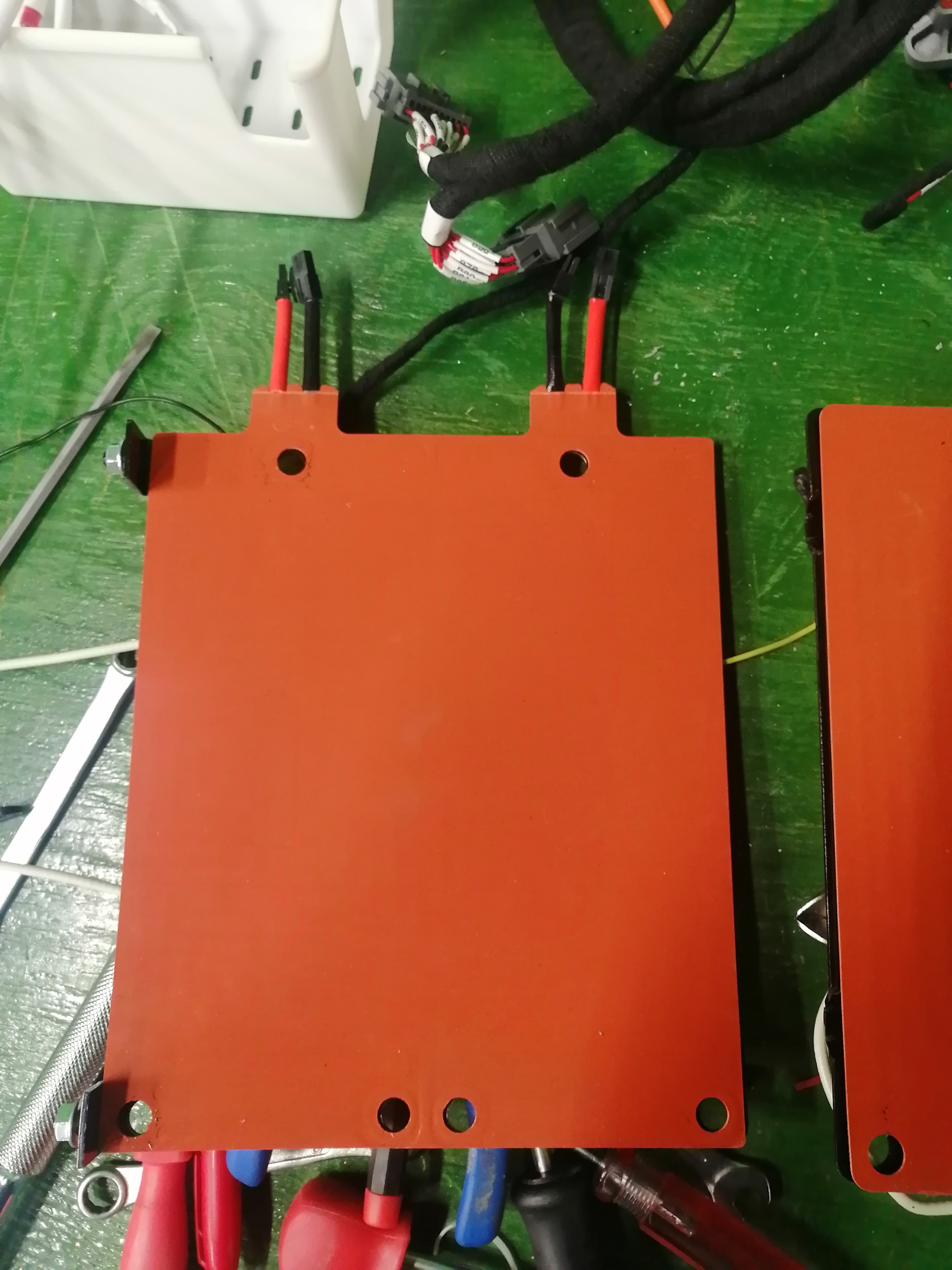

Standard Size 1 (228.5 x 290 mm)
  • Thickness: 2.0 mm

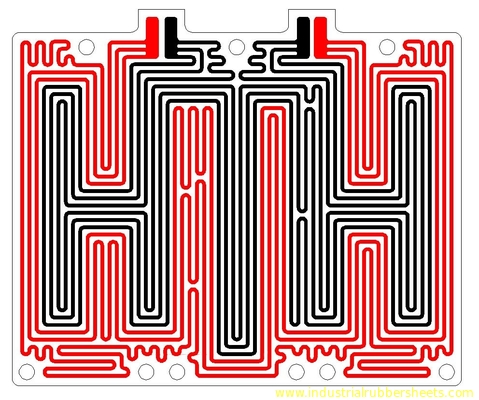

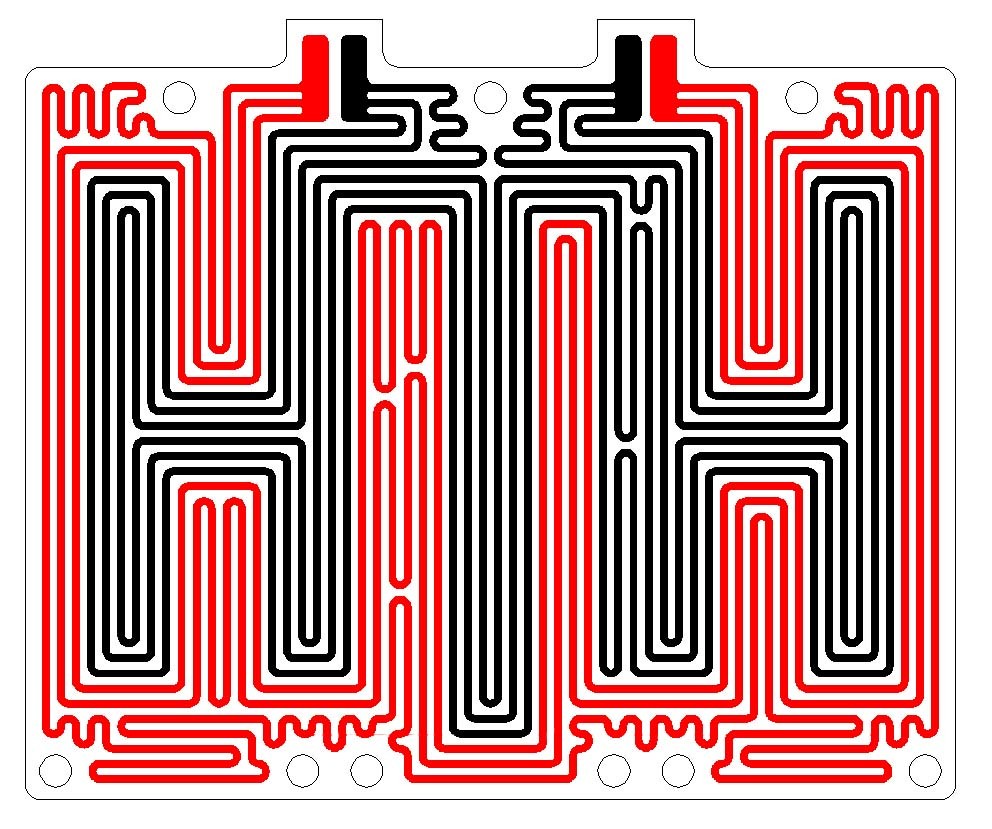

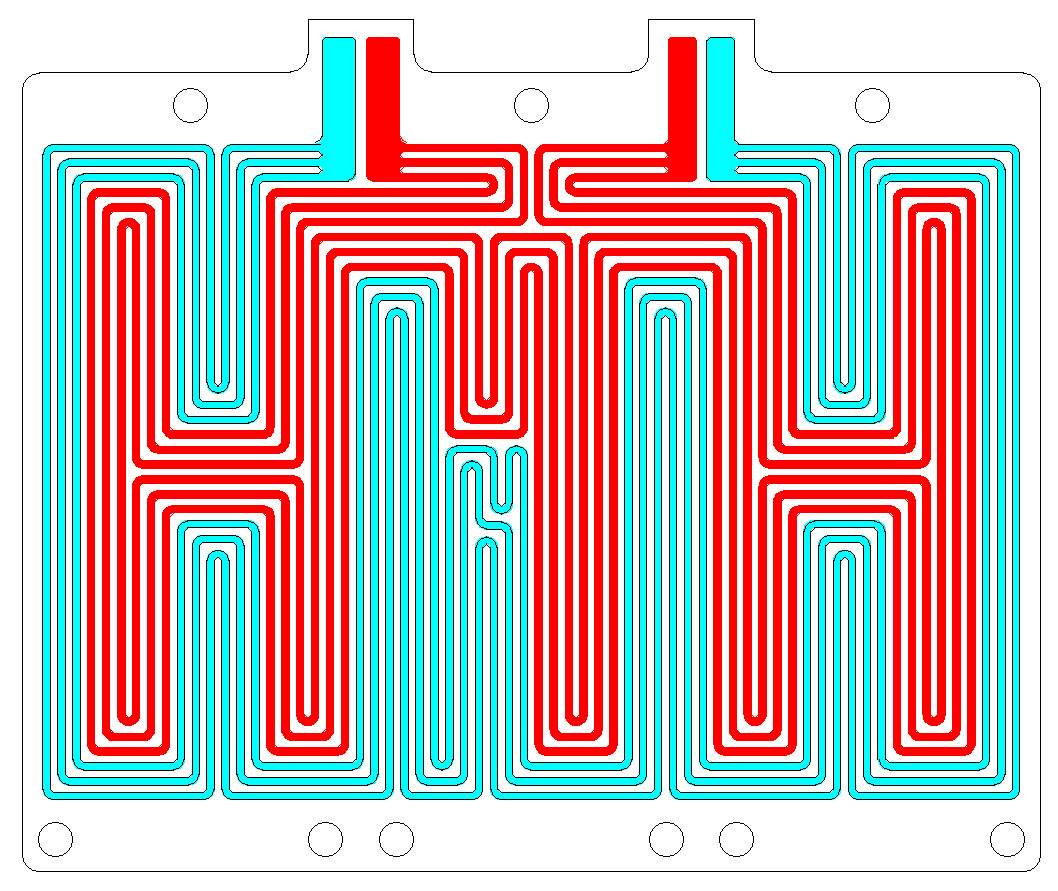

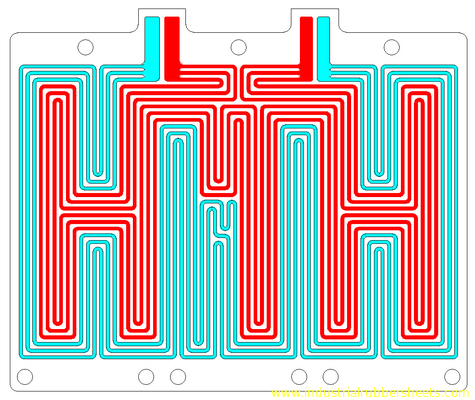

  • Two separate parallel heating elements with 3.0 Ohms resistance each
  • Two pairs of connectors for electrical circuit connection
  • Electrical strength: up to 1000 Volts
  • Insulating resistance: 200MΩ
  • Power deviation rate: ±10%
  • High voltage resistance: >1.5kV
  • Smooth, clean heating surface with uniform heat distribution
  • ROHS compliant materials
  • Certifications: UL94V-0, UL, CE

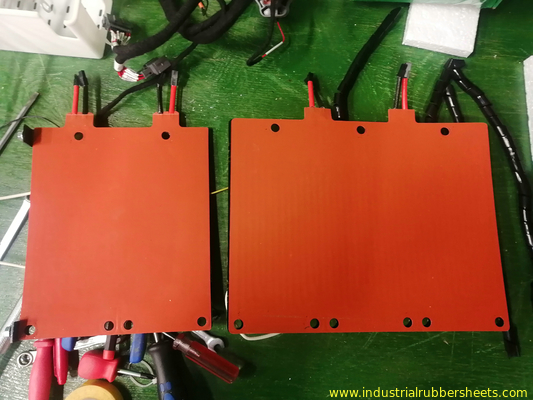

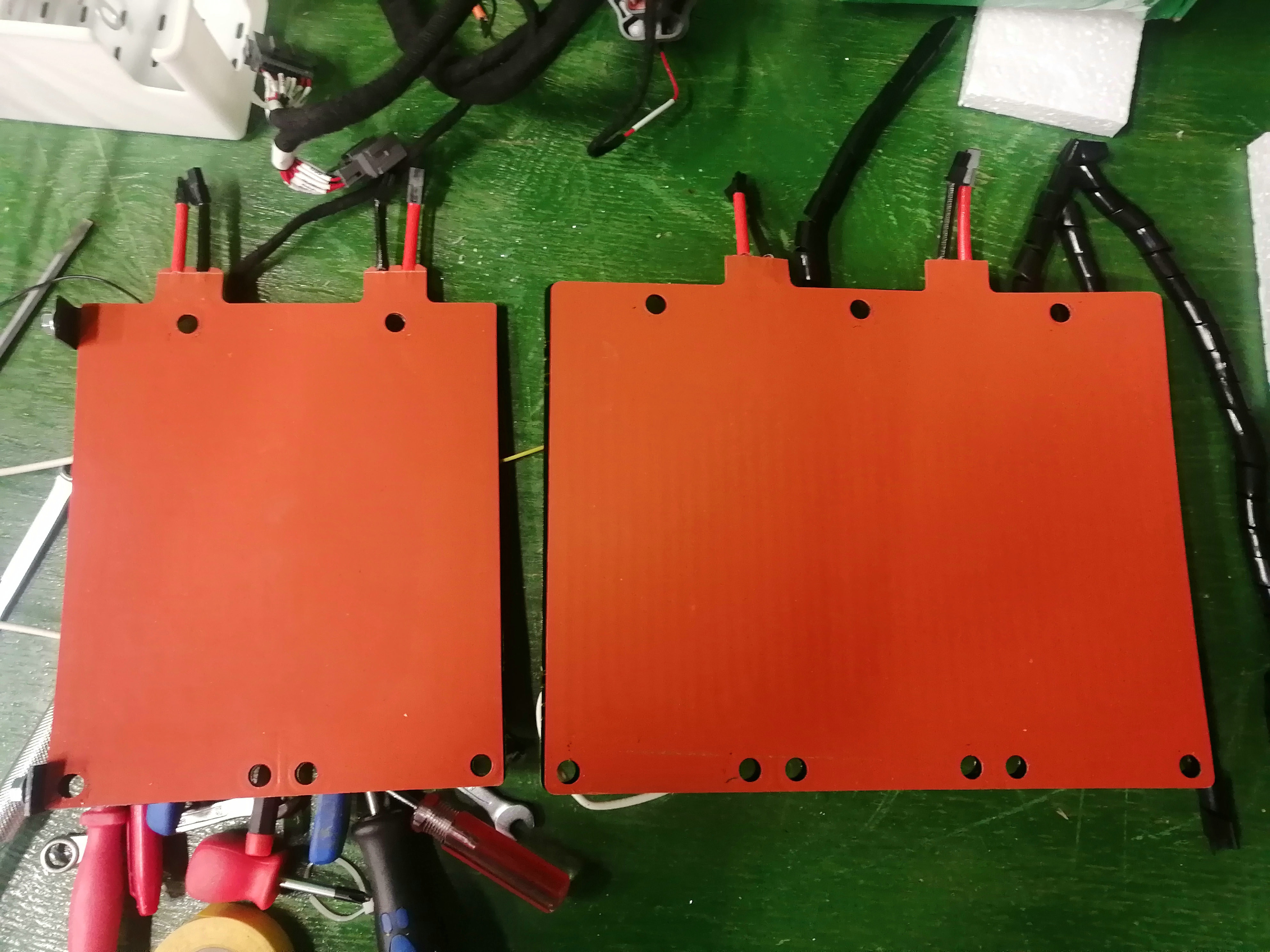

Standard Size 2 (228.5 x 193 mm)
  • Thickness: 2.0 mm
  • Two separate parallel heating elements with 2.0 Ohms resistance each
  • Two pairs of connectors for electrical circuit connection
  • Electrical strength: up to 1000 Volts
  • Insulating resistance: 200MΩ
  • Power deviation rate: ±10%
  • High voltage resistance: >1.5kV
  • Smooth, clean heating surface with uniform heat distribution
  • ROHS compliant materials
  • Certifications: UL94V-0, UL, CE
Technical Features
  • Material: Silicone + Heating Element
  • Voltage: up to 1000V
  • Cable: 4 cores, 0.2m length
  • Power: 350W
  • Electric thermostat options: K, NTC, PT100 Sonde
  • Uniform heating up to 220°C
  • Easy installation on flat or curved surfaces
  • Maximum width: 48 inches (1.2 m)
Temperature Rating 400°F (204°C) maximum operating
Size/Shape Limitations Maximum width of 48 inches, no maximum length
Thickness 0.06" (Single-Ply) ~ 0.12" (Dual-Ply)
Voltage Any AC or DC
Wattage Customer specified (Normal maximum of 5 watts per square inch)
Power Lead Wire Silicone rubber, SJ Power Cord, or PTFE insulated stranded wire
Attachment Hooks, lacing eyelets, or Velcro closure with temperature control (Thermostat)
Key Advantages
  • Thin, lightweight, sticky and flexible design
  • Improves heat transfer and accelerates warming
  • Reduces power consumption during operation
  • Fast heating with high thermal conversion efficiency
  • Waterproof and non-toxic construction
  • Fully customizable to specific requirements
Custom Silicone Rubber Heater Pad 228.5x290mm 2.0mm Thickness 1000V 0 Custom Silicone Rubber Heater Pad 228.5x290mm 2.0mm Thickness 1000V 1 Custom Silicone Rubber Heater Pad 228.5x290mm 2.0mm Thickness 1000V 2 Custom Silicone Rubber Heater Pad 228.5x290mm 2.0mm Thickness 1000V 3 Custom Silicone Rubber Heater Pad 228.5x290mm 2.0mm Thickness 1000V 4 Custom Silicone Rubber Heater Pad 228.5x290mm 2.0mm Thickness 1000V 5
Note: Please confirm required dimensions (length × width × thickness) before ordering. Custom sizes are available upon request.
