Custom Silicone Rubber Heater Pad with High Temperature Heating Capability and Uniform Heating for New Energy Automobile
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ISO9001 |
| Model Number | 3A1002 |
| Minimum Order Quantity | 20pieces |
| Price | USD10.00/piece |
| Packaging Details | packing in cartons |
| Delivery Time | 7-15days after receive the buyer's payment |
| Payment Terms | L/C,D/P,T/T,Western Union,Alipay,Wechat |
| Supply Ability | 10000pieces/month |
Product Details
| Material | Silicone + Heating Film | Color | Red, Black, Grey |
|---|---|---|---|
| Size | Customed | Others | As Per Buyer's Drawing |
| Aging Resistance | Excellent | Uv Resistance | Excellent |
| Temperature Range | -60°C - +260°C(moment 300°C) | Density | 1.25-1.50 G/cm³ |
| Standard Width | 0.5m,1.0m ,1.2m And 1.5m | Heater Width | Maxium 48 Inches |
| Usage | Silicone Pad | Working Temp | -40^C ~ +260^C |
| Grade | Food Grade Without Smell | Drawing | 2D Or 3D |
| Processing Service | Moulding, Cutting, Moulding, Cutting | Compression Set | 5-15% |
| Compliance | FDA, LFGB, RoHS, REACH, Custom | ||
| Highlight | 2.0mm Silicone Rubber Sheet,3.0 Ohms Silicone Rubber Sheet,3A1002 |
||
Product Description
Silicone Rubber Heater with High Temperature Heating Capability for New Energy Automobile 3A1002
Product Overview
Custom Silicone Heater Pad for Lithium Battery Heating on New Energy Automobile (3A1002)

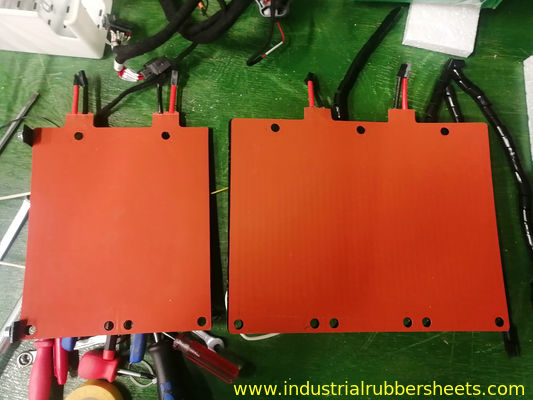

Dimensions: 2.0mm x 228.5mm x 290mm or 2.0mm x 228.5mm x 193mm
Custom Sizing: Available upon request
Technical Specifications - Model 228.5 x 290 mm
- Size: 228.5 x 290 mm, Thickness: 2.0 mm

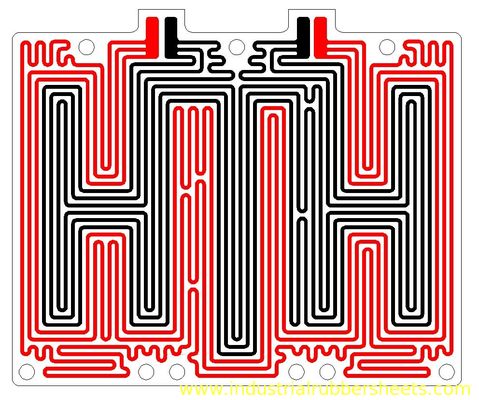

- Two separate parallel heating elements/coils with resistance of 3.0 Ohms each
- Two pairs of connectors for electrical circuit connection
- Electrical strength: Up to 1000 Volts
- Insulating resistance: 200 MΩ
- Power deviation rate: ±10%
- High voltage resistance: >1.5 kV
- Smooth, clean heating surface with no creases and uniform heating
- All raw materials meet ROHS standard
- Certifications: UL94V-0, UL/CE
Technical Specifications - Model 228.5 x 193 mm
- Size: 228.5 x 193 mm, Thickness: 2.0 mm

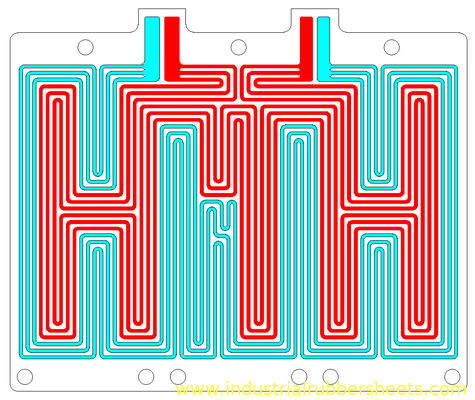

- Two separate parallel heating elements/coils with resistance of 2.0 Ohms each
- Two pairs of connectors for electrical circuit connection
- Electrical strength: Up to 1000 Volts
- Insulating resistance: 200 MΩ
- Power deviation rate: ±10%
- High voltage resistance: >1.5 kV
- Smooth, clean heating surface with no creases and uniform heating
- All raw materials meet ROHS standard
- Certifications: UL94V-0, UL/CE
Product Features
Material: Silicone + Heating Element
Voltage: Up to 1000V
Cable: 4 Cores, 0.2m length
Power: 350W
Electric Thermostat: K, NTC, PT100 Sonde
Uniform Heating: Up to 220°C
Installation: Easy to install
Maximum Width: 48 inches (1.2 m)
Mounting: Flat or curved surfaces
Technical Specifications Table
| Parameter | Specification |
|---|---|
| Temperature Rating | 400°F (204°C) maximum operating |
| Size/Shape Limitations | Maximum width of 48 inches, no maximum length |
| Thickness | 0.06" (Single-Ply) ~ 0.12" (Dual-Ply) |
| Voltage | Any AC or DC |
| Wattage | Customer specified (Normal maximum of 5 watts per square inch) |
| Power Lead Wire | Silicone rubber, SJ Power Cord, or PTFE insulated stranded wire |
| Attachment | Hooks, lacing eyelets, or Velcro closure with temperature control (Thermostat) |
Key Advantages
- Silicon Rubber Heating Pad/Sheet offers thinness, lightness, stickiness, and flexibility
- Improves heat transfer, accelerates warming, and decreases power consumption during operation
- Fast heating with high thermal conversion efficiency
Fast Heating & Long Service Life
Flexible & Customizable
Waterproof & Non-Toxic
Important: Please confirm the required dimensions (length * width * thickness) before purchasing.
