Super Thin Transparent Silicone Hose , Silicone Tube , Silicone Tubing
20kgs
MOQ
USD4.00-7.30 per kg
Price
Super Thin Transparent Silicone Hose , Silicone Tube , Silicone Tubing
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: 3A Rubber
Certification: ISO9001
Model Number: 3A1003
High Light:

26N/mm Reinforced Silicone Hose

,

60 Shore A Silicone Hose

,

7.5Mpa Reinforced Silicone Hose

Payment & Shipping Terms
Packaging Details: Packing in rolls and pallets
Delivery Time: 7-15days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram, Paypal, Alipay, Wechat
Supply Ability: 100000kgs/month
Specifications
Material: Virgin Chinese Silicone
Quality: Food Grade
Color: Transparent
Hardness: 60shore A
Tensile Strength: 7.5Mpa
Elongation: 350%
Density: 1.25g/cm3
Tear Strength: 26N/mm
Size: Standard Size, Agree To Custom
Product Description

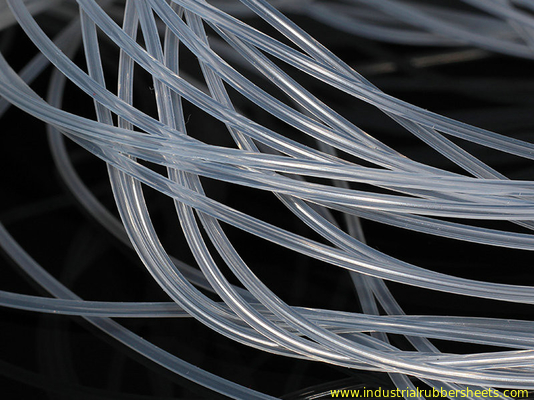

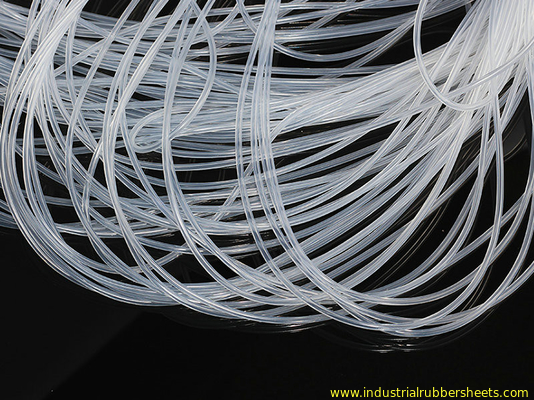

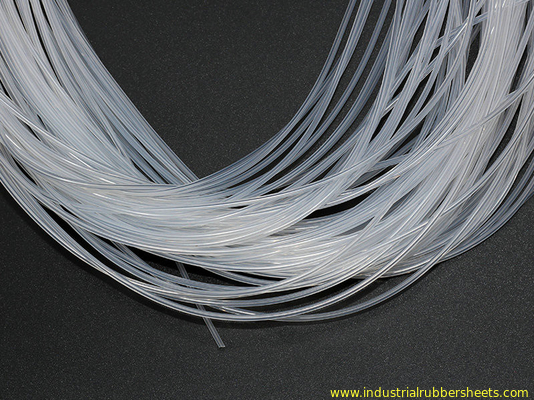

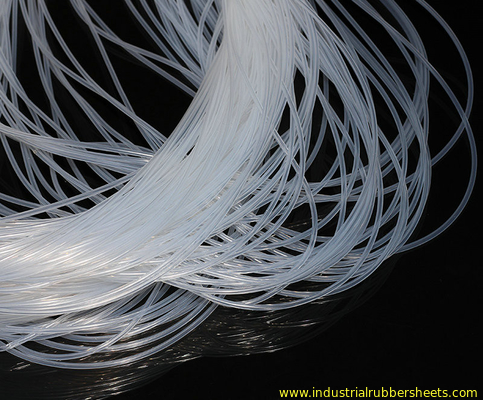

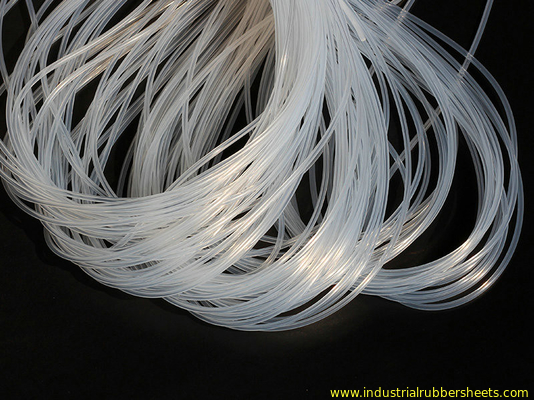

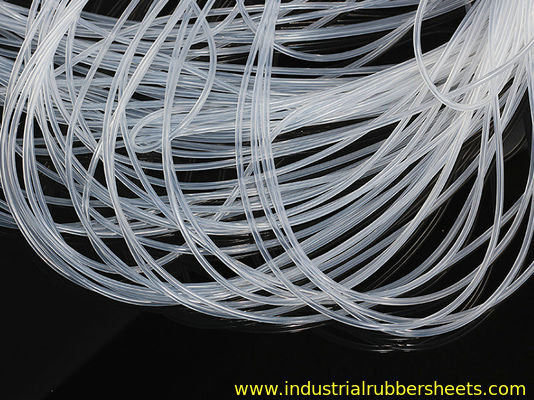

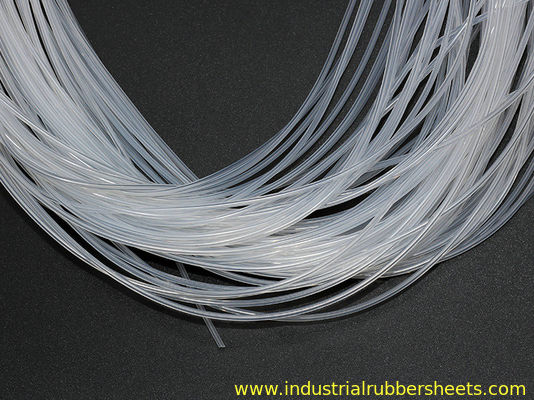

Super Thin Transparent Silicone Hose , Silicone Tube , Silicone Tubing





Specifications:

material: 100% virgin silicone material

quality: industrial grade, food grade under postcured or platinum cured

color: transparent, translucent, dark red, orange, black, milk white, blue, grey etc.

surface: smooth/smooth

fiber reinforced: insert 1-5PLY polyester fiber

tensile strength: 7.5-9.8Mpa

hardness: 50, 60, 70, 80+/-5shore A

elongation: 350-720%

density: 1.25+/-0.05g/cm3

tear strength: 26-42N/mm

working temperature: -60°C - +250°C

wall thickness: 1.0, 2.0, 3.0, 4.0, 5.0mm

standard size:



Ø0.5mm x Ø1.0mm x 5-20kgs

Ø0.5mm x Ø1.5mm x 5-20kgs

Ø0.5mm x Ø2.0mm x 5-20kgs

Ø0.8mm x Ø1.9mm x 5-20kgs

Ø1.0mm x Ø2.0mm x 5-20kgs

Ø1.0mm x Ø3.0mm x 5-20kgs



Ø1.0mm x Ø4.0mm x 5-20kgs

Ø1.5mm x Ø2.5mm x 5-20kgs

Ø1.5mm x Ø3.0mm x 5-20kgs

Ø1.6mm x Ø3.2mm x 5-20kgs

Ø2.0mm x Ø3.0mm x 5-20kgs

Ø2.0mm x Ø4.0mm x 5-20kgs

Ø2.0mm x Ø5.0mm x 5-20kgs



Ø2.0mm x Ø6.0mm x 5-20kgs

Ø3.0mm x Ø4.0mm x 5-20kgs

Ø3.0mm x Ø5.0mm x 5-20kgs

Ø3.0mm x Ø6.0mm x 5-20kgs

Ø3.0mm x Ø8.0mm x 5-20kgs

Ø3.0mm x Ø9.0mm x 5-20kgs

Ø4.0mm x Ø5.0mm x 5-20kgs

Ø4.0mm x Ø6.0mm x 5-20kgs



Ø4.0mm x Ø7.0mm x 5-20kgs

Ø4.0mm x Ø8.0mm x 5-20kgs

Ø5.0mm x Ø8.0mm x 5-20kgs

Ø5.0mm x Ø9.0mm x 5-20kgs

Ø5.0mm x Ø10.0mm x 5-20kgs

Ø6.0mm x Ø9.0mm x 5-20kgs



Ø6.0mm x Ø10.0mm x 5-20kgs

Ø6.0mm x Ø12.0mm x 5-20kgs

Ø7.0mm x Ø9.0mm x 5-20kgs

Ø7.0mm x Ø10.0mm x 5-20kgs

Ø7.0mm x Ø12.0mm x 5-20kgs

Ø8.0mm x Ø10.0mm x 5-20kgs



Ø8.0mm x Ø12.0mm x 5-20kgs

Ø8.0mm x Ø14.0mm x 5-20kgs

Ø9.0mm x Ø12.0mm x 5-20kgs

Ø9.0mm x Ø14.0mm x 5-20kgs

Ø9.0mm x Ø16.0mm x 5-20kgs

Ø10.0mm x Ø14.0mm x 5-20kgs



Ø10.0mm x Ø16.0mm x 5-20kgs

Ø10.0mm x Ø18.0mm x 5-20kgs

Ø12.0mm x Ø16.0mm x 5-20kgs

Ø12.0mm x Ø18.0mm x 5-20kgs

Ø12.0mm x Ø20.0mm x 5-20kgs

Ø14.0mm x Ø18.0mm x 5-20kgs



Ø14.0mm x Ø20.0mm x 5-20kgs

Ø14.0mm x Ø22.0mm x 5-20kgs

Ø16.0mm x Ø18.0mm x 5-20kgs

Ø16.0mm x Ø20.0mm x 5-20kgs

Ø20.0mm x Ø30.0mm x 5-20kgs

Ø30.0mm x Ø40.0mm x 5-20kgs

Ø40.0mm x Ø50.0mm x 5-20kgs

OEM & customized size are agreed

packing in rolls, bags, cartons, pallets or crates



Description: the silicone hose, silicone tube, silicone sleeve are extruded or moulded by special silicone extruding machine or moulded machine with high quality silicone material under full sets mould of different inside diameter and outside diameter according to the request from buyers, high tensile strength, flexibility strong anti-pull and wider revise hardness range with good aging resistant, ozone resistant, heat resistant, insulation property, fuel oil resistance and lube resistance, working in the air, water or oil medium at the temperature of -60°C - +250°C. industrial grade silicone hose is made with standard extrude silicone and vulcanized with import peroxide without smell; food grade silicone hose is made with food grade transparent fumed silicone, platinum vulcanized, nonpoisonous and tasteless; medical grade silicone hose is made with medical grade transparent fumed silicone, platinum vulcanized with FDA and LFGB certificate. Apply to corona roller or transfer water, air, oil and other medium etc.

Super Thin Transparent Silicone Hose , Silicone Tube , Silicone Tubing 0

Super Thin Transparent Silicone Hose , Silicone Tube , Silicone Tubing 1

Super Thin Transparent Silicone Hose , Silicone Tube , Silicone Tubing 2

Super Thin Transparent Silicone Hose , Silicone Tube , Silicone Tubing 3

Super Thin Transparent Silicone Hose , Silicone Tube , Silicone Tubing 4
