Food Grade Silicone Tube 60 Shore A 3-60mm OD

  • Food Grade Silicone Tube 60 Shore A 3-60mm OD
  • Food Grade Silicone Tube 60 Shore A 3-60mm OD
  • Food Grade Silicone Tube 60 Shore A 3-60mm OD
  • Food Grade Silicone Tube 60 Shore A 3-60mm OD
  • Food Grade Silicone Tube 60 Shore A 3-60mm OD
  • Food Grade Silicone Tube 60 Shore A 3-60mm OD
Place of Origin China
Brand Name 3A Rubber
Certification ISO9001
Model Number 3A1003
Minimum Order Quantity 20kgs
Price USD3.00-15.00 per kg
Packaging Details packing in rolls, cartons and pallets
Delivery Time 7-15days after receive the buyer's payment
Payment Terms L/C,D/P,T/T,Western Union,MoneyGram,Paypal,Alipay,Wechat
Supply Ability 100000kgs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Flexible, Non-toxic, Odorless Material Silicone
Quality Food Grade Color Transparent
Hardness 60shore A Tensile Strength 7.5 MPa
Elongation 350% Density 1.25g/cm3
Tear Strength 25 N/mm Size Standard Size, Agree To Custom
Certifications FDA, RoHS, REACH Tolerance ±0.1mm
Insert Polyester Resistant 18-25KV/mm
Compression Set 35% Temperature -40^C ~ +260^C
Working Press 0.3-0.9Mpa Outer Diameter 3mm-60mm
Oem Odm Available Chemical Resistance Excellent
Highlight

26N/mm Reinforced Silicone Hose

,

60 Shore A Silicone Hose

,

7.5Mpa Reinforced Silicone Hose
Leave a Message
Product Description
Super Thin Transparent Silicone Hose, Silicone Tube, Silicone Tubing
High-quality industrial and food-grade silicone hoses available in various sizes and colors, designed for extreme temperature resistance and durability.
Key Specifications
Property Value
Material 100% virgin silicone material
Quality Standards Industrial grade, food grade (postcured or platinum cured)
Available Colors Transparent, translucent, dark red, orange, black, milk white, blue, grey
Surface Finish Smooth/smooth
Reinforcement 1-5PLY polyester fiber insert
Tensile Strength 7.5-9.8Mpa
Hardness 50, 60, 70, 80±5 Shore A
Elongation 350-720%
Density 1.25±0.05g/cm³
Tear Strength 26-42N/mm
Temperature Range -60°C to +250°C
Wall Thickness 1.0, 2.0, 3.0, 4.0, 5.0mm
Standard Sizes
Ø0.5mm × Ø1.0mm × 5-20kgs
Ø0.5mm × Ø1.5mm × 5-20kgs
Ø0.5mm × Ø2.0mm × 5-20kgs
Ø0.8mm × Ø1.9mm × 5-20kgs
Ø1.0mm × Ø2.0mm × 5-20kgs
Ø1.0mm × Ø3.0mm × 5-20kgs
Ø1.0mm × Ø4.0mm × 5-20kgs
Ø1.5mm × Ø2.5mm × 5-20kgs
Ø1.5mm × Ø3.0mm × 5-20kgs
Ø1.6mm × Ø3.2mm × 5-20kgs
Ø2.0mm × Ø3.0mm × 5-20kgs
Ø2.0mm × Ø4.0mm × 5-20kgs
Ø2.0mm × Ø5.0mm × 5-20kgs
Ø2.0mm × Ø6.0mm × 5-20kgs
Ø3.0mm × Ø4.0mm × 5-20kgs
Ø3.0mm × Ø5.0mm × 5-20kgs
Ø3.0mm × Ø6.0mm × 5-20kgs
Ø3.0mm × Ø8.0mm × 5-20kgs
Ø3.0mm × Ø9.0mm × 5-20kgs
Ø4.0mm × Ø5.0mm × 5-20kgs
Ø4.0mm × Ø6.0mm × 5-20kgs
Ø4.0mm × Ø7.0mm × 5-20kgs
Ø4.0mm × Ø8.0mm × 5-20kgs
Ø5.0mm × Ø8.0mm × 5-20kgs
Ø5.0mm × Ø9.0mm × 5-20kgs
Ø5.0mm × Ø10.0mm × 5-20kgs
Ø6.0mm × Ø9.0mm × 5-20kgs
Ø6.0mm × Ø10.0mm × 5-20kgs
Ø6.0mm × Ø12.0mm × 5-20kgs
Ø7.0mm × Ø9.0mm × 5-20kgs
Ø7.0mm × Ø10.0mm × 5-20kgs
Ø7.0mm × Ø12.0mm × 5-20kgs
Ø8.0mm × Ø10.0mm × 5-20kgs
Ø8.0mm × Ø12.0mm × 5-20kgs
Ø8.0mm × Ø14.0mm × 5-20kgs
Ø9.0mm × Ø12.0mm × 5-20kgs
Ø9.0mm × Ø14.0mm × 5-20kgs
Ø9.0mm × Ø16.0mm × 5-20kgs
Ø10.0mm × Ø14.0mm × 5-20kgs
Ø10.0mm × Ø16.0mm × 5-20kgs
Ø10.0mm × Ø18.0mm × 5-20kgs
Ø12.0mm × Ø16.0mm × 5-20kgs
Ø12.0mm × Ø18.0mm × 5-20kgs
Ø12.0mm × Ø20.0mm × 5-20kgs
Ø14.0mm × Ø18.0mm × 5-20kgs
Ø14.0mm × Ø20.0mm × 5-20kgs
Ø14.0mm × Ø22.0mm × 5-20kgs
Ø16.0mm × Ø18.0mm × 5-20kgs
Ø16.0mm × Ø20.0mm × 5-20kgs
Ø20.0mm × Ø30.0mm × 5-20kgs
Ø30.0mm × Ø40.0mm × 5-20kgs
Ø40.0mm × Ø50.0mm × 5-20kgs
Custom sizes available: OEM & customized sizes available upon request.
Packaging options: Rolls, bags, cartons, pallets or crates.
Product Features
  • Extruded or moulded using specialized silicone processing equipment
  • High tensile strength with excellent flexibility and anti-pull properties
  • Wide hardness range with superior aging, ozone, and heat resistance
  • Excellent insulation properties with fuel oil and lube resistance
  • Suitable for air, water, or oil medium applications
  • Industrial grade: Standard extrude silicone, peroxide vulcanized
  • Food grade: Platinum vulcanized, non-toxic and tasteless
  • Medical grade: Platinum vulcanized with FDA and LFGB certification
  • Ideal for corona rollers or transferring various media
Product Images

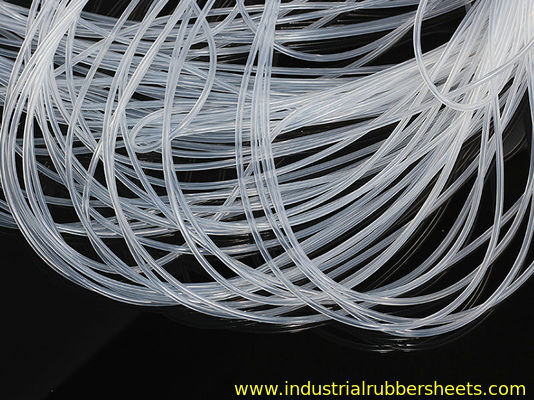

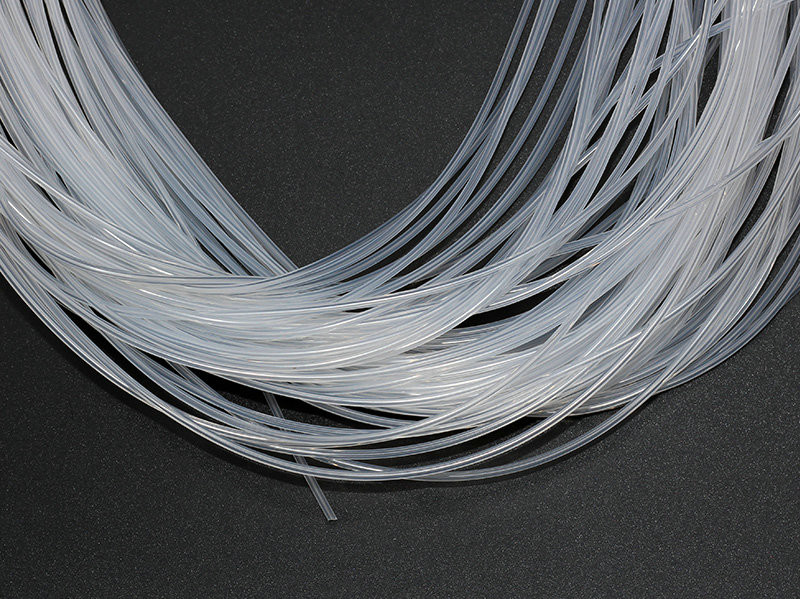

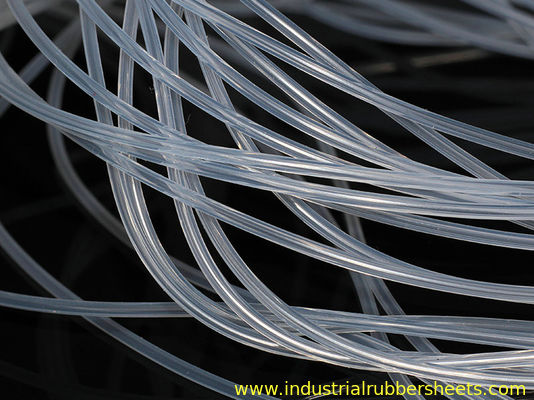

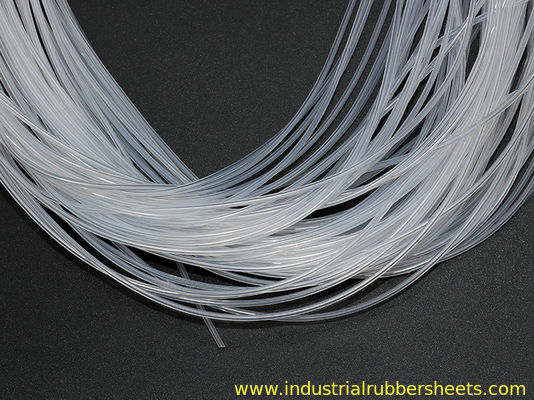

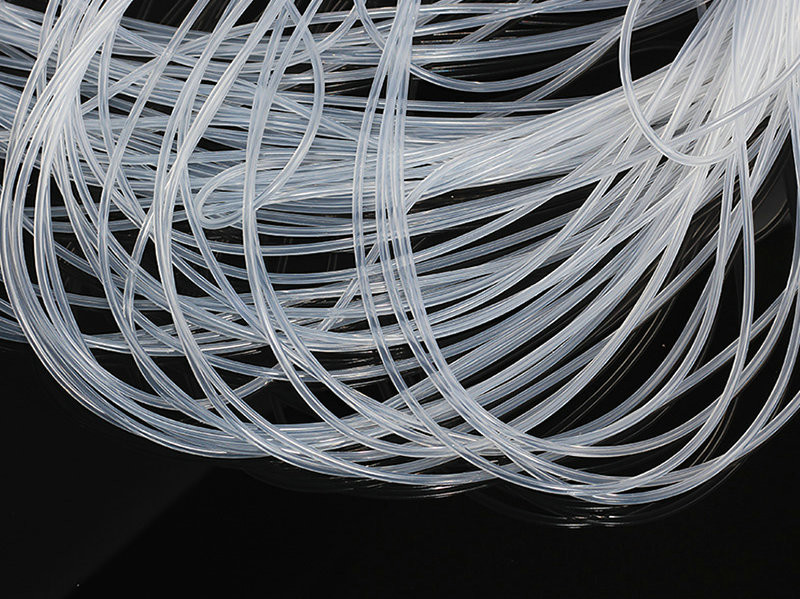

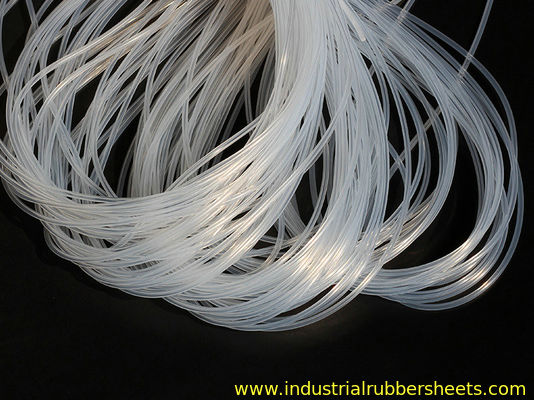

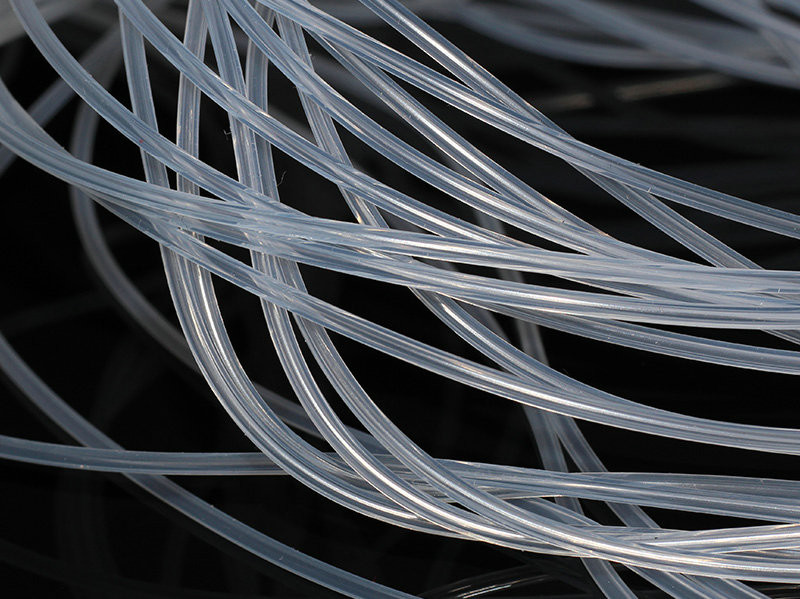

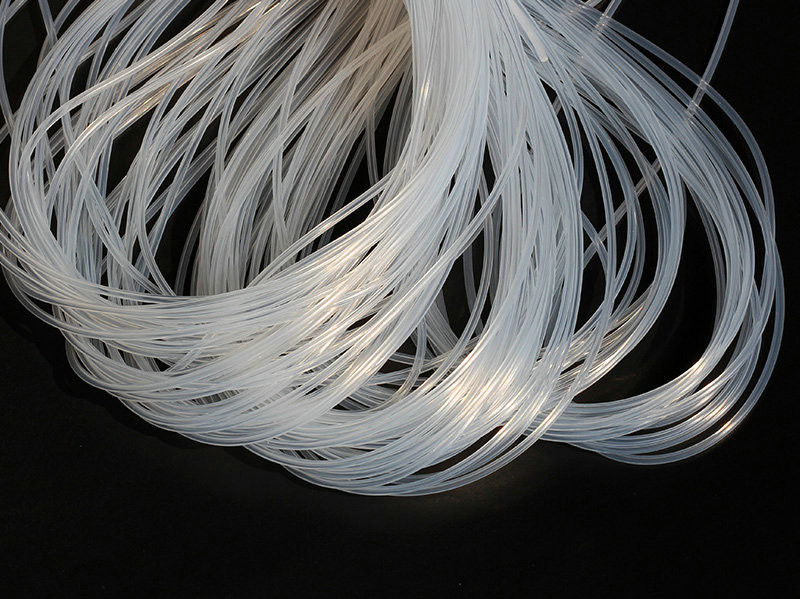

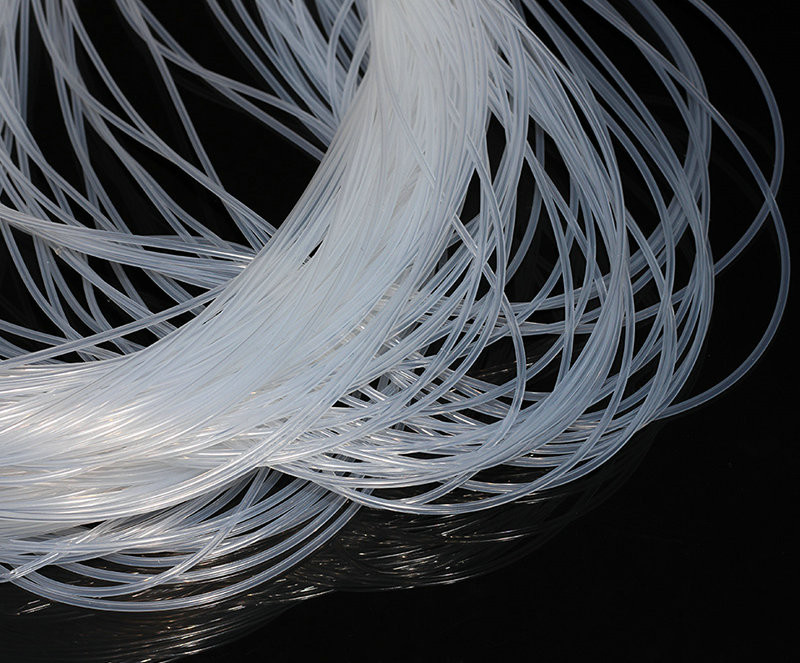

Food Grade Silicone Tube 60 Shore A 3-60mm OD 0 Food Grade Silicone Tube 60 Shore A 3-60mm OD 1 Food Grade Silicone Tube 60 Shore A 3-60mm OD 2 Food Grade Silicone Tube 60 Shore A 3-60mm OD 3 Food Grade Silicone Tube 60 Shore A 3-60mm OD 4 Food Grade Silicone Tube 60 Shore A 3-60mm OD 5 Food Grade Silicone Tube 60 Shore A 3-60mm OD 6 Food Grade Silicone Tube 60 Shore A 3-60mm OD 7
