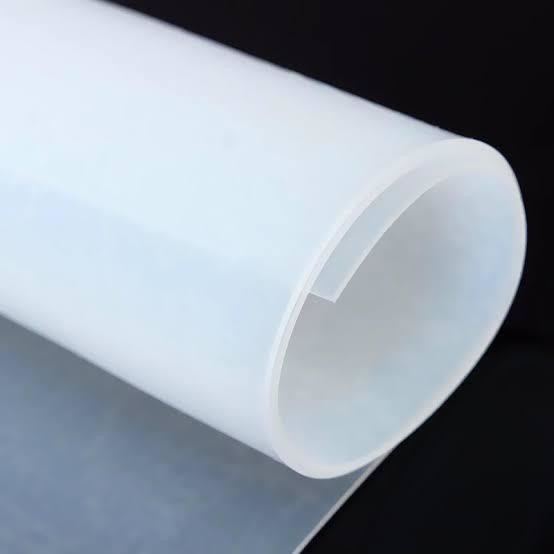

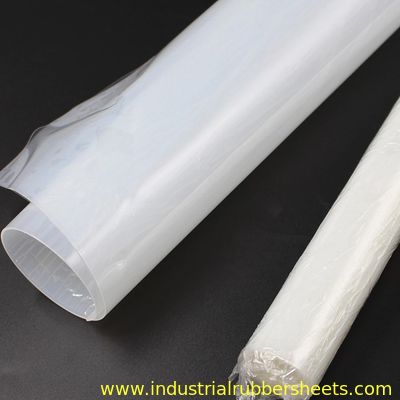

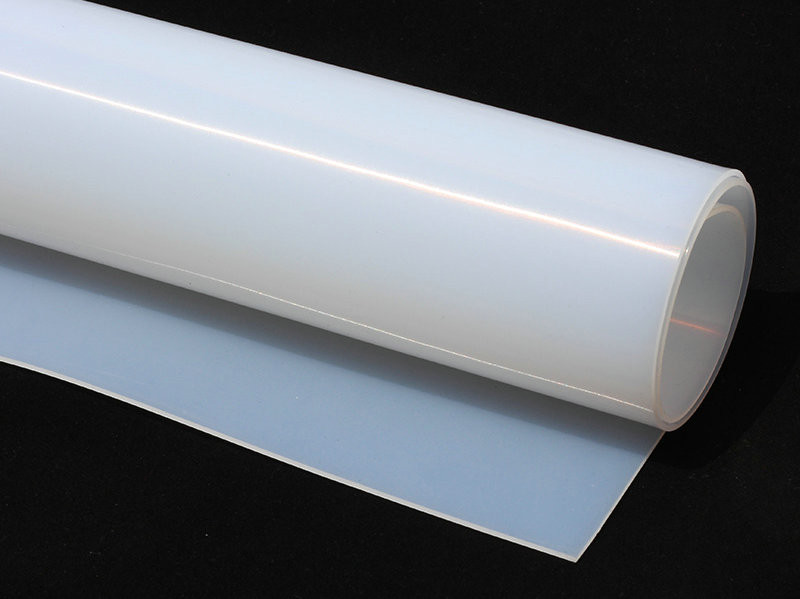

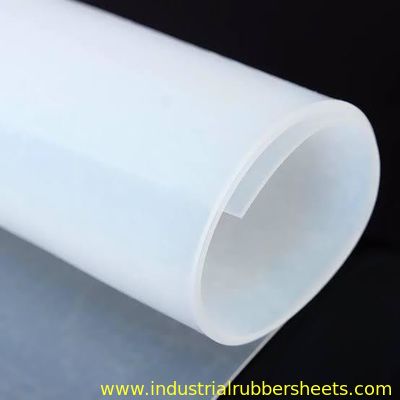

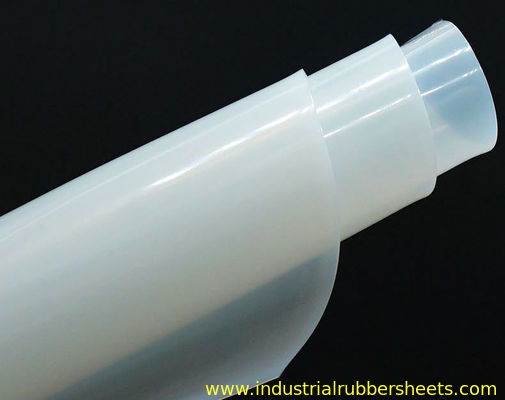

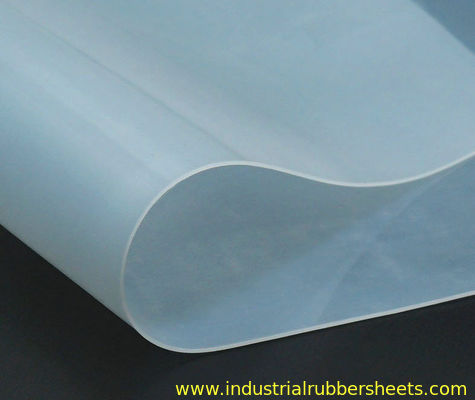

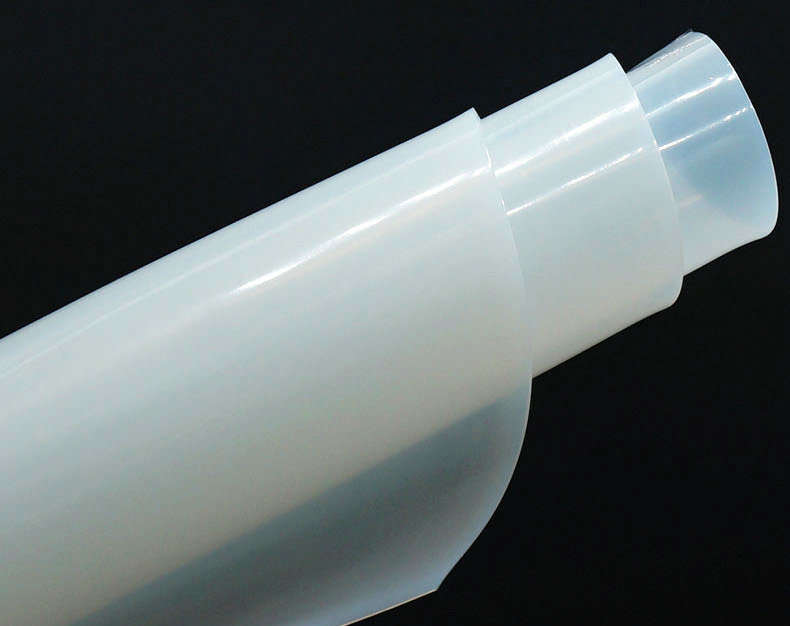

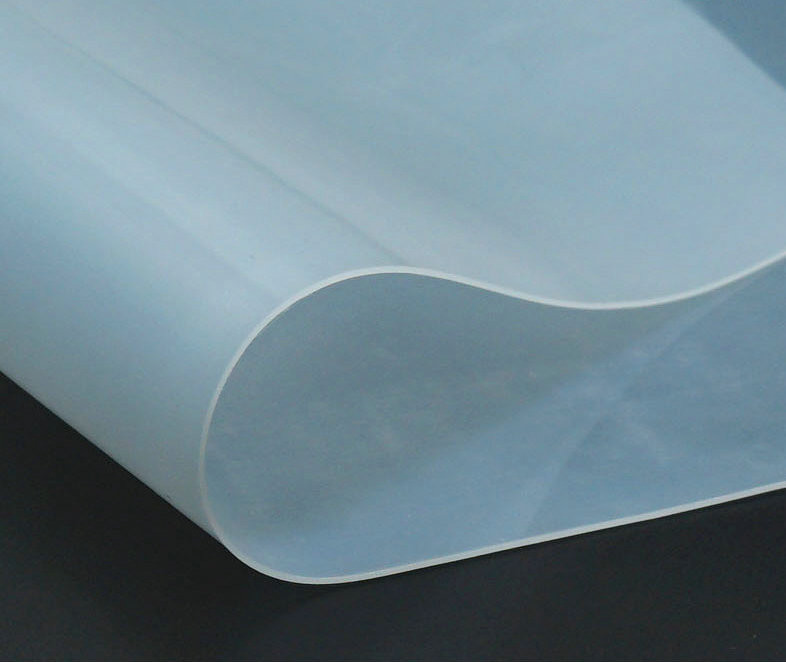

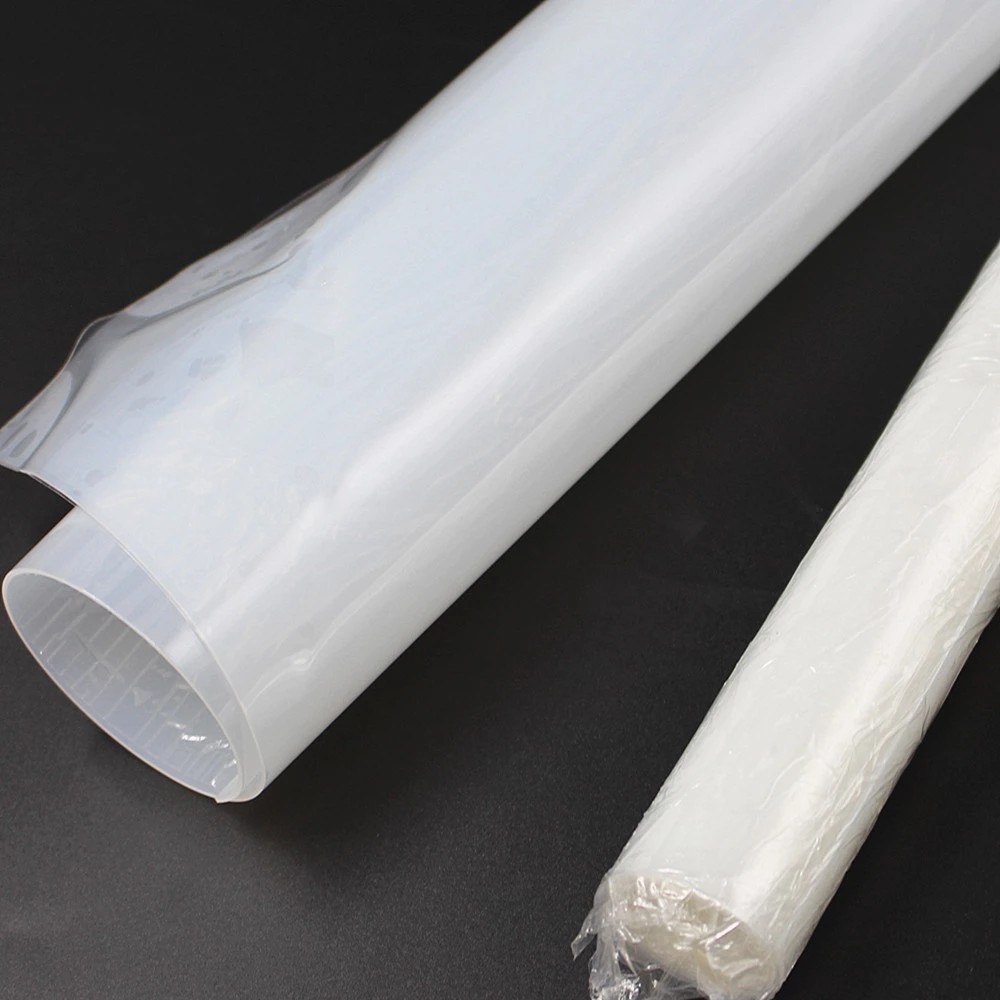

Translucent Food Grade Silicone Rubber Sheet Tear Resistant for Various Applications
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ISO9001 |
| Model Number | 3A1001 |
| Minimum Order Quantity | 200kgs |
| Price | USD3-15.00/kg |
| Packaging Details | packing in rolls, bags and pallets |
| Delivery Time | 7-15days after receive the buyer's payment |
| Payment Terms | L/C,D/P,T/T,Western Union,Alipay,Wechat,Paypal |
| Supply Ability | 100000kgs/month |
Product Details
| Material | Silicone Rubber | Quality | Food Grade Without Smell |
|---|---|---|---|
| Color | Translucent, Transparent | Surface | Smooth/Smooth |
| Tensile Strength | 7.5-12Mpa | Hardness | 40-80 Shore A |
| Elongation | 300-600% | Density | 1.25g/cm3 |
| Tear Strength | 26-42N/mm | Thickness | 1-10mm |
| Width | 1-1.2m | Length | 10m-50m |
| Tensible Strengh | 7-12Mpa | Logo | Customizable Logo |
| Grade | Food Grade | Flameresistance | UL94V-0 |
| Style | Mechanical Seal | Certifications | FDA, RoHS, REACH |
| Oem | OEM Service Available | ||
| Highlight | 10m Silicone Rubber Sheet,10mm Silicone Rubber Sheet,7.5Mpa Translucent Silicone Gasket |
||
Product Description
Translucent Silicone Rubber Sheet - Tear Resistant for Various Applications
Product Overview
Translucent Food Grade Silicone Sheet, Silicone Gasket available in sizes 1-10mm thickness * 1.2m width * 10m length. High-quality silicone sheets manufactured using advanced techniques for superior performance across industrial applications.
Technical Specifications
| Material | 100% virgin HTV silicone material |
| Available Grades | Industrial grade, food grade, medical grade, FDA grade with postcured |
| Quality Levels | High tear resistant, middle tear resistant, general tear resistant |
| Available Colors | Translucent, dark red, black, milk white, grey, blue, etc. |
| Surface Finishes | Smooth/smooth, smooth/impression fabric, smooth/sand or double impression fabric |
| Reinforcement Options | Insert 1 PLY fiberglass fabric, aramid fabric or wire mesh SS201, SS304, SS316 |
| Tensile Strength | 7.5-12.0 MPa |
| Hardness Range | 10, 20, 30, 40, 50, 60, 70, 80 ±5 Shore A |
| Elongation | 350%-720% |
| Density | 1.25-1.50 g/cm³ |
| Tear Strength | 26-42 N/mm |
| Working Temperature | -60°C to +260°C (momentary 300°C) |
Available Dimensions
- Thickness: 0.1-50mm
- Width: 0.1-3.6m
- Length: 1-50m
Standard Sizes
- 0.1-1.0mm * 0.5m * 25/50m
- 0.5-8.0mm * 0.5-1.2m * 10/20m
- 1.0-30.0mm * 0.5/1.0/1.2/1.5m * 10/20m
- 1.0-6.0mm * 1.5-3.6m * 10/20/30m
OEM and customized sizes available upon agreement. Packing options include rolls, pallets, or crates.
Special Applications
- Press for Wooden Laminator: Translucent-grey Germany silicone membrane for "+" and "-" press on wooden PVC vacuum press laminator
- Chinese Silicone Membrane: Translucent Chinese silicone membrane for "-" press only on wooden PVC vacuum press laminator
- Special Grades: FDA grade silicone sheet with postcure and antistatic silicone sheet with fire-resistant, black color, smooth surface
Important: When requesting a quote, please specify your application requirements, preferred color, hardness, dimensions, and quantity.
Manufacturing Excellence
Our silicone sheets, membranes, and rolls are manufactured using high-quality silicone materials on specialized vulcanizing equipment tailored to customer requirements. We utilize advanced 4-roller rotocure vulcanizers for general sheets, 2-roller rotocure vulcanizers for super-wide sheets, specialized oven road vulcanizers for ultra-thin sheets, and plain press vulcanizers for extra-thick sheets.
Through advanced management, innovative techniques, and strict quality control, we have overcome traditional manufacturing limitations, delivering products without joints and with virtually infinite length. Our super-wide drum-type vulcanizing press accommodates widths up to 4000mm, producing high-quality silicone sheets up to 3600mm wide without joints.
Performance Characteristics
- Excellent anti-aging and ozone resistance
- Superior heat resistance and electric insulation
- Outstanding oil, solvent, and corrosion resistance
- Non-toxic, odorless, and pollution-free
- High stability and reliability across temperature ranges
- Surface inactive without stickiness
Applications
Ideal for punching various rubber seals and gaskets, and specialized applications including:
- Wooden PVC vacuum press laminators
- Wooden door vacuum press laminators
- Safety glass vacuum laminating bags
- Solar vacuum press laminators
- Hot press laminators
- Card press laminators
- Various other industrial applications
