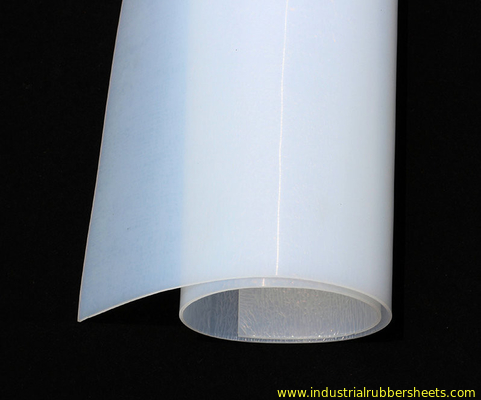

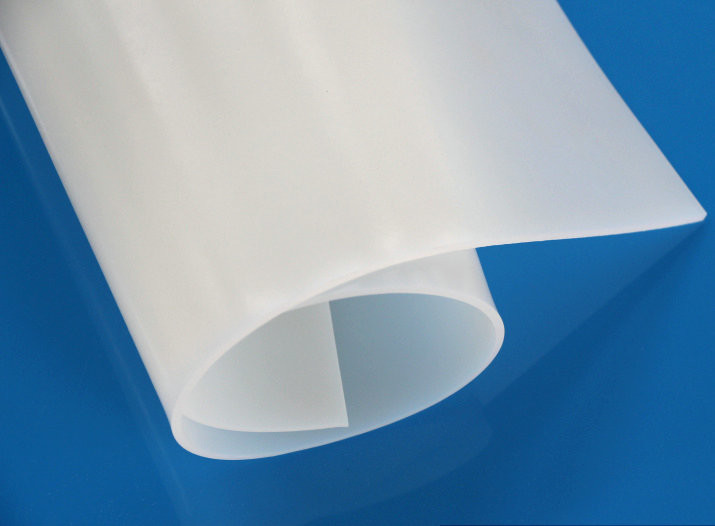

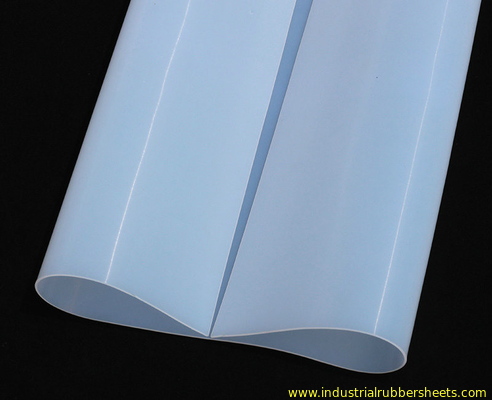

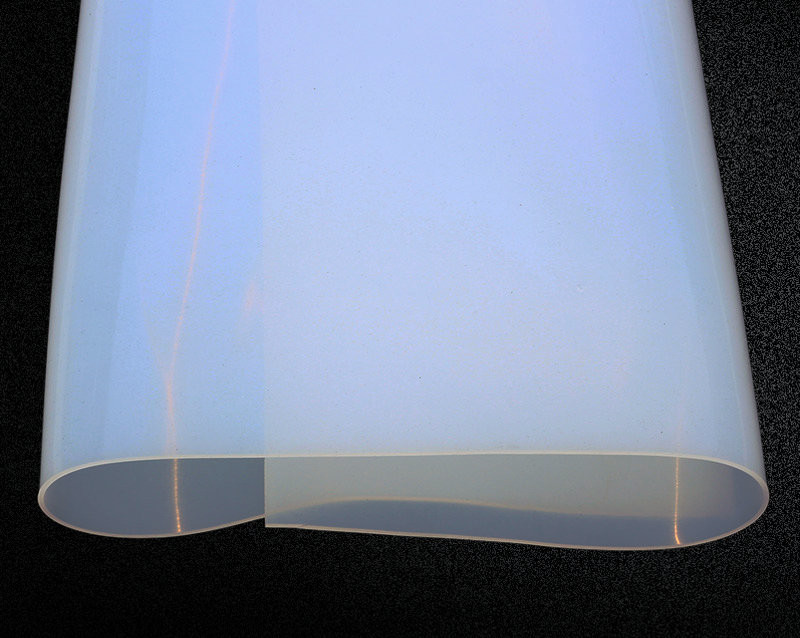

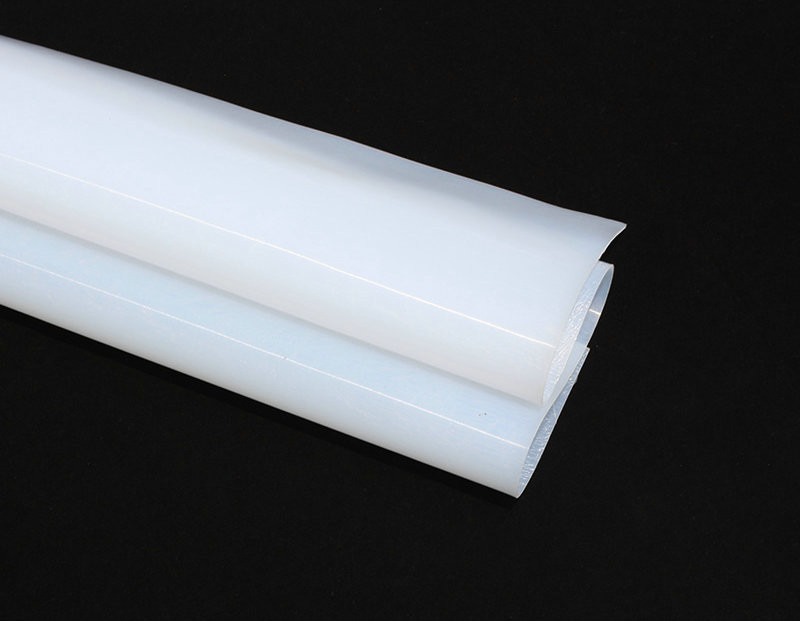

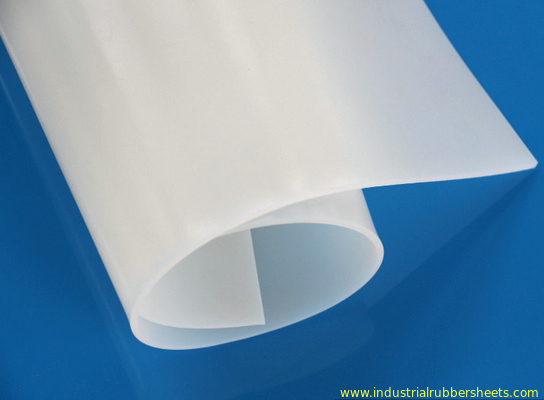

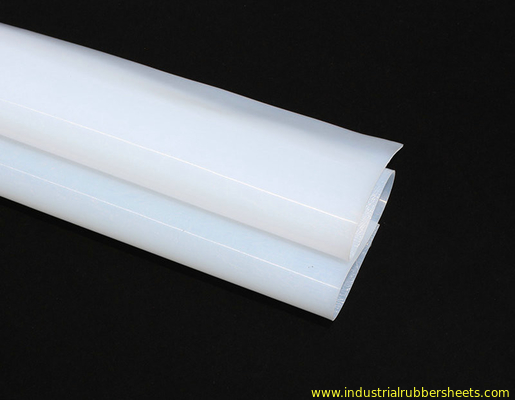

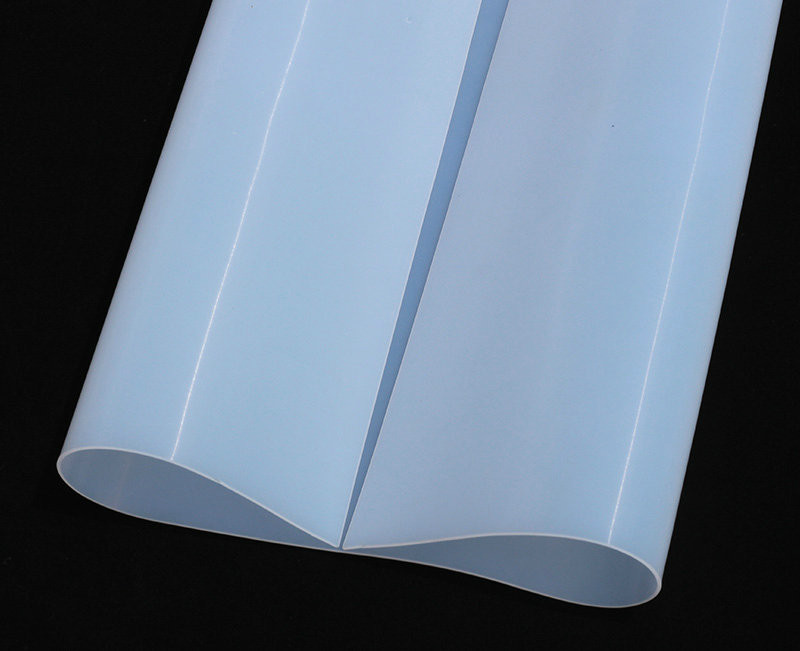

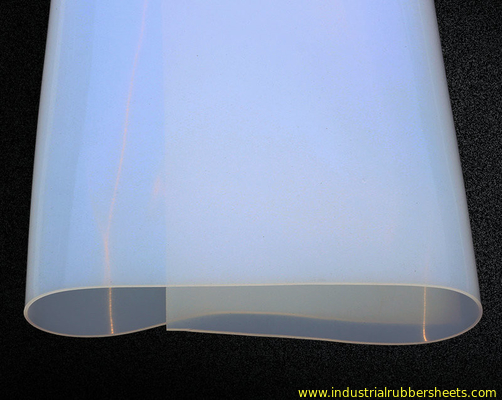

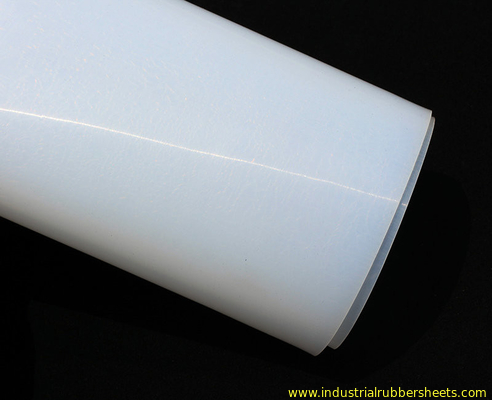

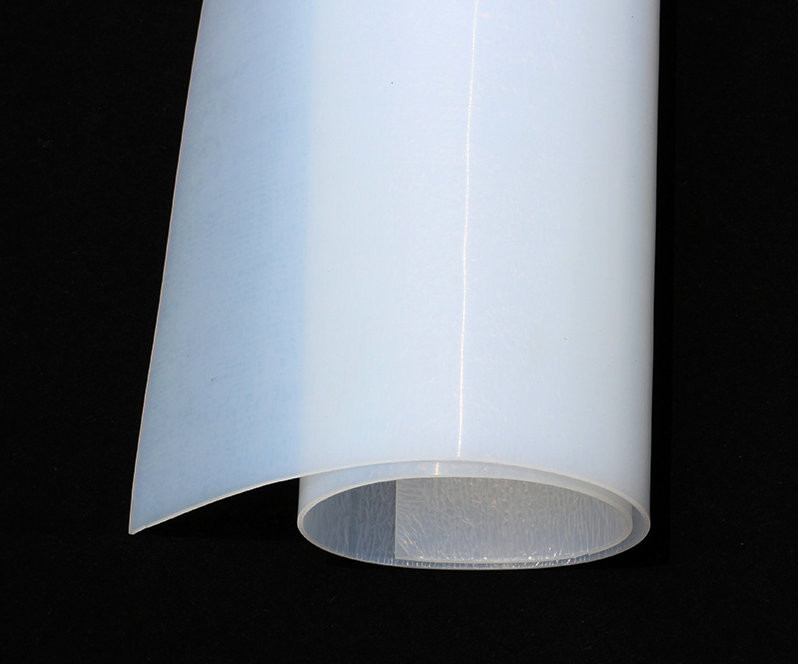

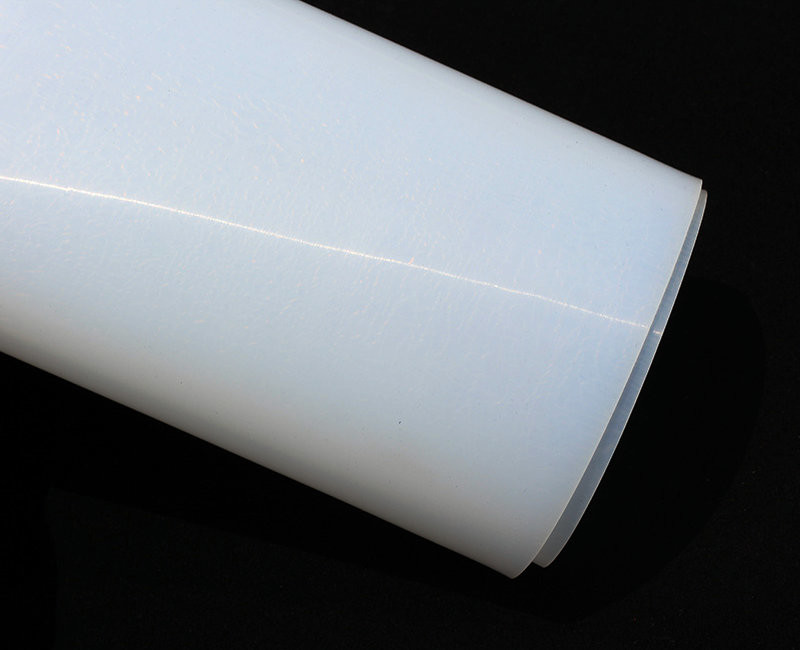

Food Grade Silicone Sheet 1-10mm Thick Translucent 1m x 10m
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ISO9001 |
| Model Number | 3A1001 |
| Minimum Order Quantity | 200kgs |
| Price | USD3-15.00/kg |
| Packaging Details | Packing in rolls and pallets |
| Delivery Time | 7-15days after receive the buyer's payment |
| Payment Terms | L/C,D/P,T/T,Western Union,MoneyGram,Alipay,Wechat,Paypal |
| Supply Ability | 100000kgs/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Silicone Rubber | Quality | Food Grade Without Smell |
|---|---|---|---|
| Color | Translucent, Transparent | Surface | Smooth/Smooth |
| Tensile Strength | 7.5-12Mpa | Hardness | 40-80 Shore A |
| Elongation | 350%-720% | Density | 1.25g/cm3 |
| Tear Strength | 26-42N/mm | Thickness | 1-10mm |
| Width | 1-1.2m | Length | 10m |
| Weather Resistance | Excellent | Lead Time | 7-15 Days |
| Drawing | 2D Or 3D | Usage | Silicone Pad |
| Fda Compliance | Yes | Surface Treatment | Smooth, Embossed, Etc. |
| Top Layer | 10^7-10^9Ω | Electrical Isolation | Excellent |
| Backing Adhesive | Agreed | Volume Resistance | 10^13-10^15Ω·cm |
| Highlight | 10mm Translucent Silicone Sheet,12Mpa Translucent Silicone Sheet,42N/mm Silicone Gasket |
||
Product Description

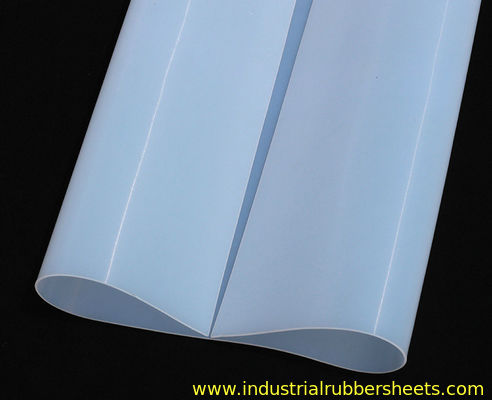

Food Grade Translucent Silicone Sheet
Silicone Gasket Sized 1-10mm x 1m x 10m
High-quality silicone sheets made from 100% virgin HTV silicone material, available in various grades including industrial, food, medical, and FDA compliant with postcure treatment.
Specifications
- Material: 100% virgin HTV silicone material
- Grade: Industrial grade, food grade, medical grade, FDA grade with postcured
- Quality: High tear resistant, middle tear resistant, general tear resistant
- Color options: Translucent, dark red, black, milk white, grey, blue
- Surface finish: Smooth/smooth, smooth/impression fabric, smooth/sand or double impression fabric
- Reinforcement options: Insert 1 PLY fiberglass fabric, aramid fabric or wire mesh SS201, SS304, SS316
- Tensile strength: 7.5-12.0Mpa
- Hardness: 10, 20, 30, 40, 50, 60, 70, 80+/-5 shore A
- Elongation: 350%-720%
- Density: 1.25-1.50g/cm³
- Tear strength: 26-42N/mm
- Working temperature: -60°C to +260°C (momentary 300°C)
Standard Sizes
| Thickness | Width | Length |
|---|---|---|
| 0.1-1.0mm | 0.5m | 25/50m |
| 0.5-8.0mm | 0.5-1.2m | 10/20m |
| 1.0-30.0mm | 0.5/1.0/1.2/1.5m | 10/20m |
| 1.0-6.0mm | 1.5-3.6m | 10/20/30m |
Custom sizes available upon agreement. Packing options include rolls, pallets or crates.
Special Applications
- Translucent-grey Germany silicone membrane for "+" and "-" press on wooden PVC vacuum press laminator
- Translucent Chinese silicone membrane for "-" press only on wooden PVC vacuum press laminator
- Special FDA grade silicone sheet with postcure
- Antistatic silicone sheet with fire-resistant properties (black color, smooth surface)
When making an inquiry, please confirm the application, color, hardness, size and quantity requirements.
Product Description
Our silicone sheets, membranes, and rolls are manufactured using high-quality silicone material on specialized rotocure vulcanizers or plain press vulcanizers, tailored to meet specific customer requirements.
Production methods vary according to product specifications:
- General silicone sheets produced on 4-roller rotocure vulcanizers
- Super wide silicone sheets produced on 2-roller rotocure vulcanizers
- Super thin silicone sheets produced on special oven road vulcanizers
- Super thick silicone sheets produced on plain press vulcanizers
Our advanced manufacturing techniques and strict quality control ensure excellent product characteristics:
- High-quality silicone rubber with superior performance
- Anti-aging and ozone resistant
- Excellent heat resistance (-60°C to +260°C, momentary maximum 300°C)
- Electric insulation properties
- Oil, solvent, and corrosion resistant
- Non-toxic, tasteless, and pollution-free
- High stability and reliability in various media (air, water, oil)
- Surface inactive without stickiness
Applications include:
- Punching various rubber seals and gaskets
- Wooden PVC vacuum press laminators
- Wooden door vacuum press laminators
- Safety glass vacuum laminating bags
- Solar vacuum press laminators
- Hot press laminators
- Card press laminators
- Various other industrial applications
