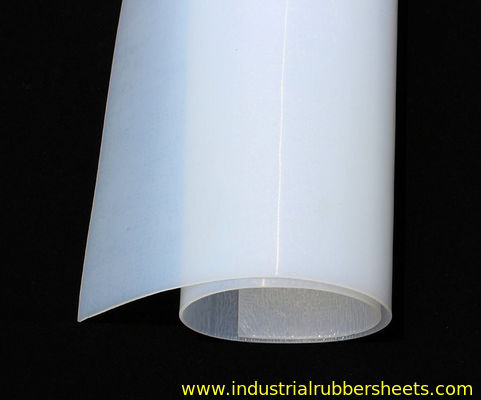

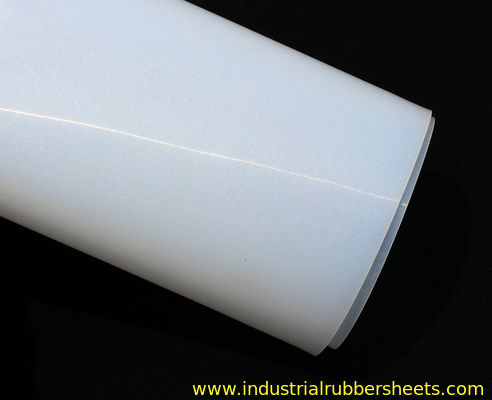

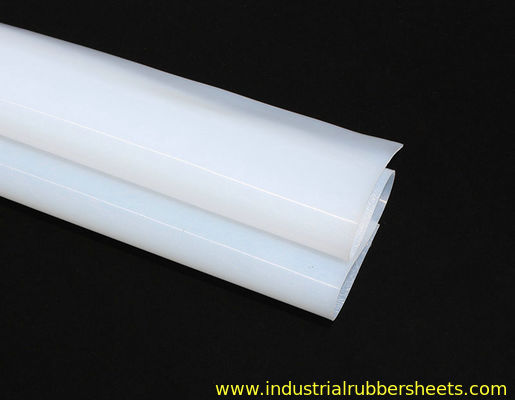

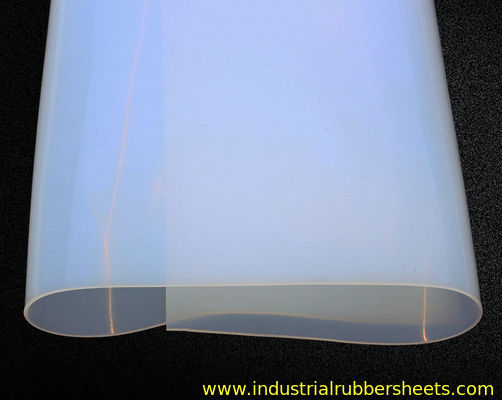

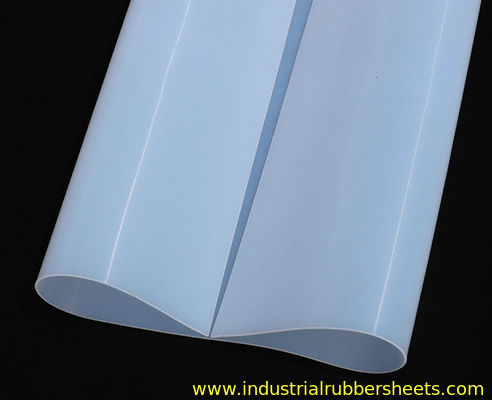

Food Grade Translucent Silicone Rubber Sheet and Gasket with 1-10mm Thickness

  • Food Grade Translucent Silicone Rubber Sheet and Gasket with 1-10mm Thickness
  • Food Grade Translucent Silicone Rubber Sheet and Gasket with 1-10mm Thickness
  • Food Grade Translucent Silicone Rubber Sheet and Gasket with 1-10mm Thickness
  • Food Grade Translucent Silicone Rubber Sheet and Gasket with 1-10mm Thickness
  • Food Grade Translucent Silicone Rubber Sheet and Gasket with 1-10mm Thickness
  • Food Grade Translucent Silicone Rubber Sheet and Gasket with 1-10mm Thickness
  • Food Grade Translucent Silicone Rubber Sheet and Gasket with 1-10mm Thickness
Place of Origin China
Brand Name 3A Rubber
Certification ISO9001
Model Number 3A1001
Minimum Order Quantity 200kgs
Price USD3-15.00/kg
Packaging Details Packing in rolls and pallets
Delivery Time 7-15days after receive the buyer's payment
Payment Terms L/C,D/P,T/T,Western Union,Alipay,Wechat,Paypal
Supply Ability 100000kgs/month
Product Details
Surface Treatment Smooth, Embossed, Etc. Top Layer 10^7-10^9Ω
Electrical Isolation Excellent Backing Adhesive Agreed
Volume Resistance 10^13-10^15Ω·cm Material Silicone Rubber
Quality Food Grade Without Smell Color Translucent, Transparent
Surface Smooth/Smooth Tensile Strength 7.5-12Mpa
Hardness 40-80 Shore A Elongation 350%-720%
Density 1.25g/cm3 Tear Strength 26-42N/mm
Thickness 1-10mm Width 1-1.2m
Length 10m Weather Resistance Excellent
Lead Time 7-15 Days Drawing 2D Or 3D
Usage Silicone Pad Fda Compliance Yes
Highlight

10mm Translucent Silicone Sheet

,

12Mpa Translucent Silicone Sheet

,

42N/mm Silicone Gasket
Leave a Message
Product Description
Food Grade Translucent Silicone Sheet, Silicone Gasket Sized 1-10mm X 1m X 10m
High-quality silicone sheets and membranes manufactured using premium silicone materials on specialized vulcanizing equipment. These products offer excellent performance characteristics including anti-aging properties, ozone resistance, heat resistance, electrical insulation, oil resistance, solvent resistance, corrosion resistance, and are non-toxic, odorless, and pollution-free.
Product Specifications
Material 100% virgin HTV silicone material
Grade Industrial grade, food grade, medical grade, FDA grade with postcured
Quality High tear resistant, middle tear resistant, general tear resistant
Color Translucent, dark red, black, milk white, grey, blue, etc.
Surface Smooth/smooth, smooth/impression fabric, smooth/sand or double impression fabric
Reinforcement Insert 1 PLY fiberglass fabric, aramid fabric or wire mesh SS201, SS304, SS316
Tensile Strength 7.5-12.0 MPa
Hardness 10, 20, 30, 40, 50, 60, 70, 80 +/-5 Shore A
Elongation 350%-720%
Density 1.25-1.50 g/cm³
Tear Strength 26-42 N/mm
Working Temperature -60°C to +260°C (momentary 300°C)
Thickness 0.1-50 mm
Width 0.1-3.6 m
Length 1-50 m
Standard Sizes
  • 0.1-1.0mm * 0.5m * 25/50m
  • 0.5-8.0mm * 0.5-1.2m * 10/20m
  • 1.0-30.0mm * 0.5/1.0/1.2/1.5m * 10/20m
  • 1.0-6.0mm * 1.5-3.6m * 10/20/30m
Specialized Applications
Press for Wooden Laminator:
Translucent-grey Germany silicone membrane for "+" and "-" press on wooden PVC vacuum press laminator.
Translucent Chinese silicone membrane for "-" press only on wooden PVC vacuum press laminator.
Special Supplies:
FDA grade silicone sheet with postcure and antistatic silicone sheet with fire-resistant, black color, smooth surface.
Applications
Suitable for punching various types of rubber seals, rubber gaskets, or specialized applications including:
  • Wooden PVC vacuum press laminator
  • Wooden door vacuum press laminator
  • Safety glass vacuum laminating bags
  • Solar vacuum press laminator
  • Hot press laminator
  • Card press laminator
  • Various other industrial applications
Important: When making an inquiry, please confirm the application, color, hardness, size, and quantity requirements.
Product Images

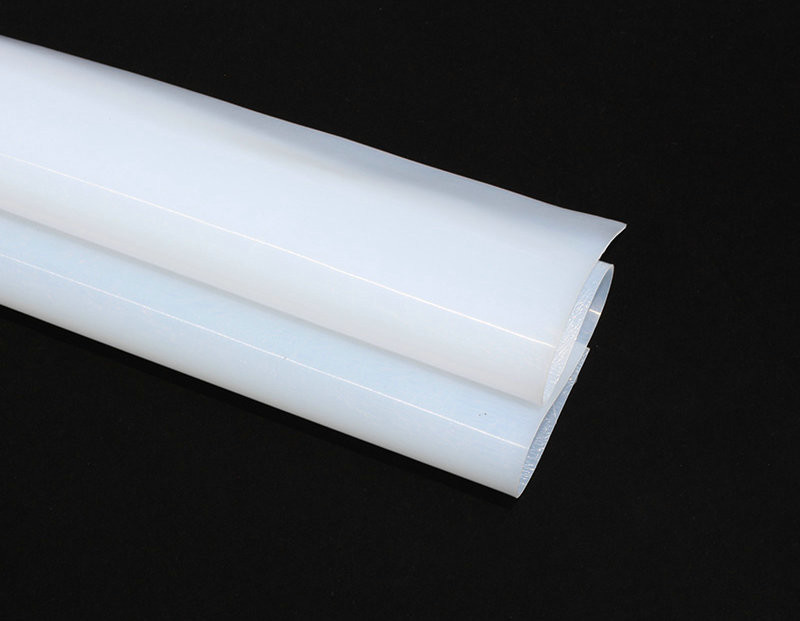

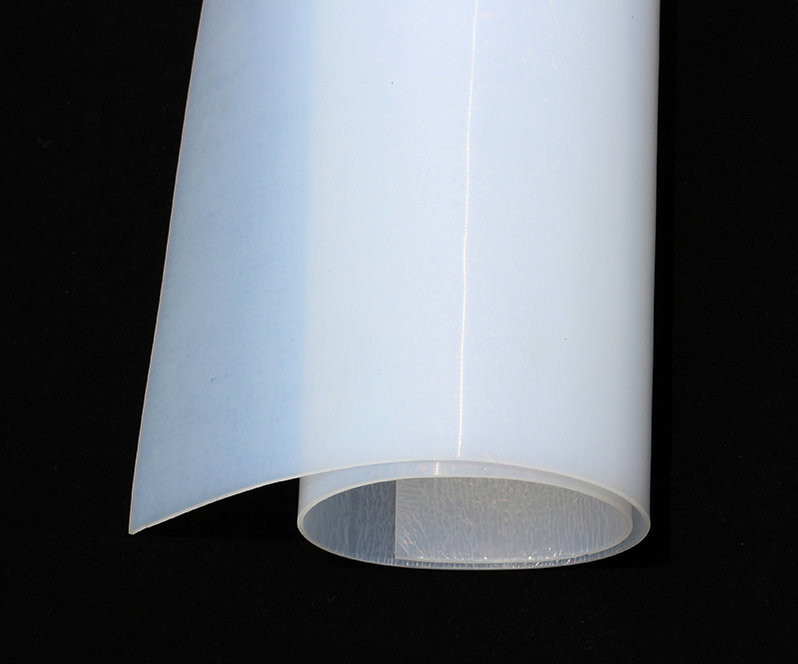

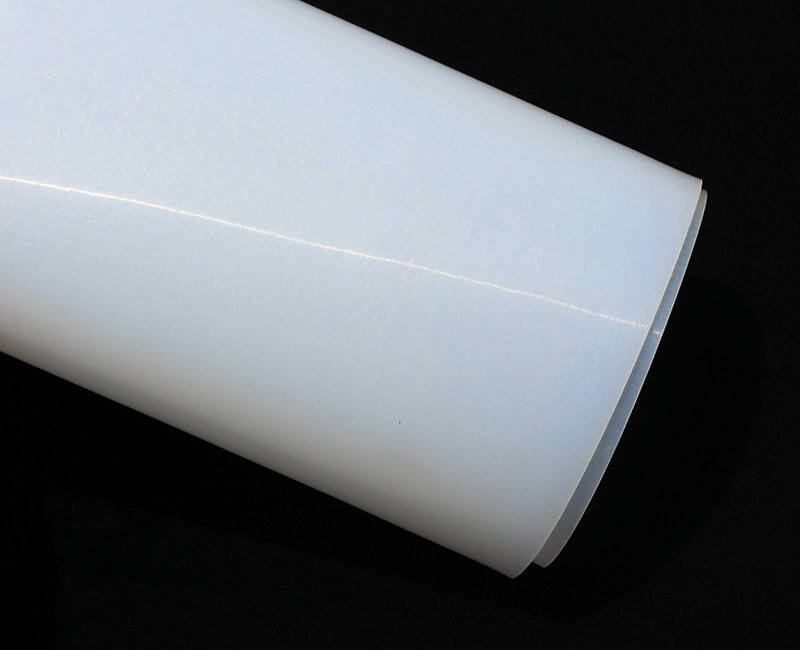

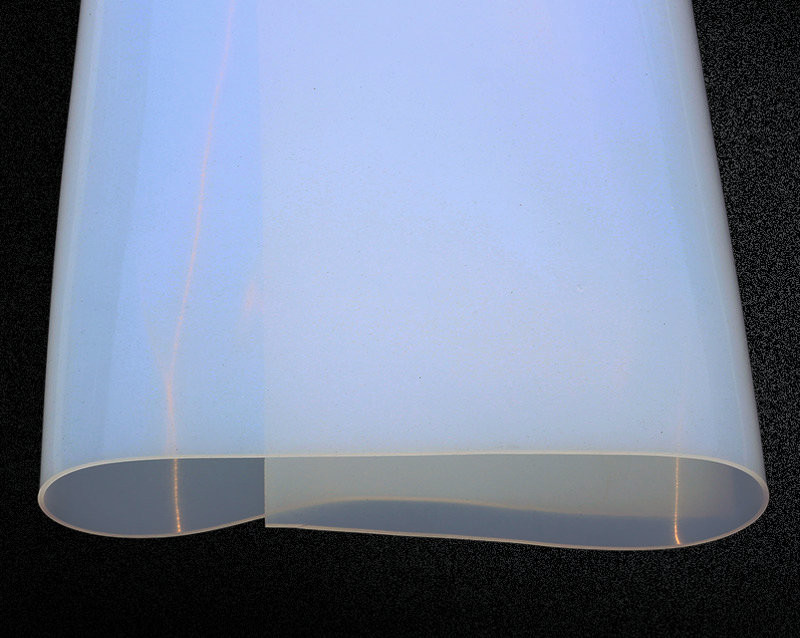

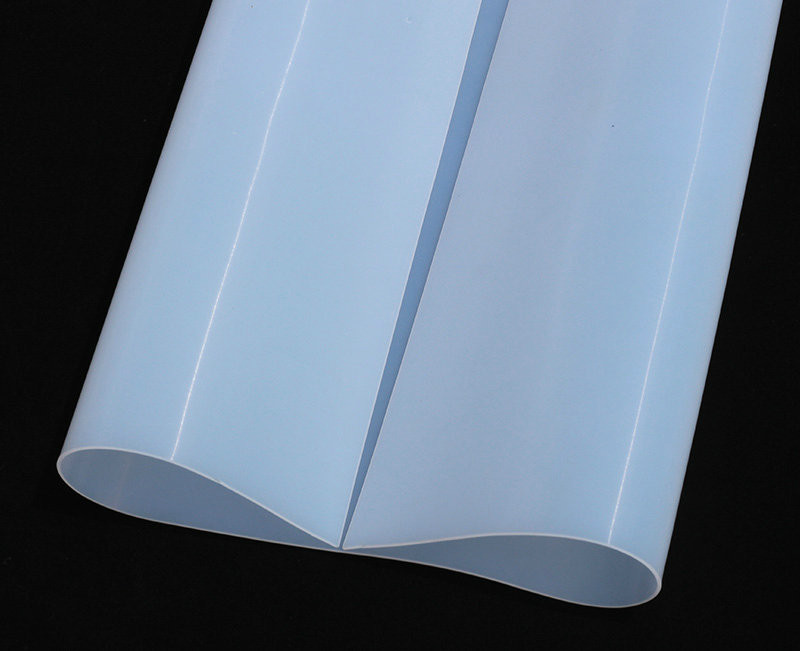

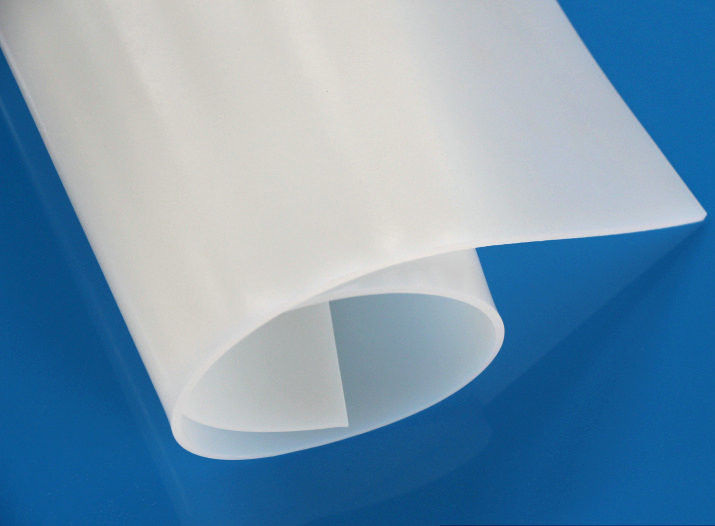

Food grade translucent silicone sheet roll Silicone sheet close-up showing texture and quality Industrial silicone sheet manufacturing process Silicone sheet applications in industrial settings
Manufacturing Process: Our advanced manufacturing processes and strict quality control ensure superior surface smoothness and precise thickness tolerance. We utilize specialized vulcanizing equipment including 4-roller rotocure vulcanizers for general sheets, 2-roller rotocure vulcanizers for super-wide sheets, special oven road vulcanizers for super-thin sheets, and plain press vulcanizers for super-thick sheets. Our super-wide drum-type vulcanizing press with 4000mm width capability produces high-quality products up to 3600mm width without joints.
