Food Grade Silicone Sheet and Roll with High Tensile Strength 7.5Mpa and Temperature Resistance -60°C to 260°C

  • Food Grade Silicone Sheet and Roll with High Tensile Strength 7.5Mpa and Temperature Resistance -60°C to 260°C
  • Food Grade Silicone Sheet and Roll with High Tensile Strength 7.5Mpa and Temperature Resistance -60°C to 260°C
  • Food Grade Silicone Sheet and Roll with High Tensile Strength 7.5Mpa and Temperature Resistance -60°C to 260°C
  • Food Grade Silicone Sheet and Roll with High Tensile Strength 7.5Mpa and Temperature Resistance -60°C to 260°C
  • Food Grade Silicone Sheet and Roll with High Tensile Strength 7.5Mpa and Temperature Resistance -60°C to 260°C
  • Food Grade Silicone Sheet and Roll with High Tensile Strength 7.5Mpa and Temperature Resistance -60°C to 260°C
Place of Origin China
Brand Name 3A Rubber
Certification ROHS/FCC/SGS
Model Number 3A1001
Minimum Order Quantity 200kgs
Price USD3-15.00/kg
Packaging Details Packing in rolls and pallets
Delivery Time 10-20 working days after received your payment
Payment Terms T/T,L/C,Paypal,Western Union,D/P,Alipay,Wechat
Supply Ability 1000000kgs per month
Product Details
Surface Smooth/smooth Material 100% Virgin Silicone Material
Quality Food Grade Without Smell Tensile Strength 7.5Mpa
Hardness 10-80 Shore A Elongation 350%
Density 1.25g/m3 Thickness 0.5mm, 1mm, 2mm, 3mm, 5mm, Etc.
Width 1m, 1.2mm Length 10-20m
Application For Washer, Gasket Working Temperature -40^C ~ +260^C
Temperature Range -50℃ To 200℃ Finish Smooth Or Textured Finish
Compliance FDA, LFGB, RoHS, REACH, Custom Chemical Resistance Yes
Temperature Resistance -60°C To 230°C Color Transparent, Red, Blue, Black, White, Grey, Etc.
Flameresistance UL94V-0 Gasket As Per The Buyer's Drawing
Usage Silicone Pad Rubber Name Silicon Sheet
Highlight

7.5Mpa Silicone Rubber Roll

,

10mm Silicone Rubber Sheet

,

60 Shore A Silicone Sheet
Leave a Message
Product Description
Silicone Sheet & Roll - Multiple Sizes Available
Product Overview

High-quality silicone sheets and rolls available in various thicknesses including 1mm, 1.5mm, 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, and 10mm, with standard dimensions of 1.2m x 10m. Custom sizes available upon request.

Technical Specifications
Material: 100% virgin HTV silicone material
Grades Available: Industrial grade, food grade, medical grade, FDA grade with postcured
Quality Options: High tear resistant, middle tear resistant, general tear resistant
Colors: Translucent, dark red, black, milk white, grey, blue, etc.
Surface Finishes: Smooth/smooth, smooth/impression fabric, smooth/sand or double impression fabric
Reinforcement Options: Insert 1 PLY fiberglass fabric, aramid fabric or wire mesh SS201, SS304, SS316
Tensile Strength: 7.5-12.0 MPa
Hardness: 10, 20, 30, 40, 50, 60, 70, 80 ±5 Shore A
Elongation: 350%-720%
Density: 1.25-1.50 g/cm³
Tear Strength: 26-42 N/mm
Working Temperature: -60°C to +260°C (momentary 300°C)
Available Dimensions
Thickness Range Width Range Length Range
0.1-50 mm 0.1-3.6 m 1-50 m
Standard Sizes
  • 0.1-1.0mm * 0.5m * 25/50m
  • 0.5-8.0mm * 0.5-1.2m * 10/20m
  • 1.0-30.0mm * 0.5/1.0/1.2/1.5m * 10/20m
  • 1.0-6.0mm * 1.5-3.6m * 10/20/30m
Special Applications

Translucent-grey Germany silicone membrane for "+" and "-" press on wooden PVC vacuum press laminator. Translucent Chinese silicone membrane for "-" press only on wooden PVC vacuum press laminator. Special supply FDA grade silicone sheet with postcure and antistatic silicone sheet with fire-resistant properties.

Manufacturing Process

Our silicone sheets and membranes are manufactured using high-quality silicone material on specialized rotocure vulcanizers or plain press vulcanizers. We utilize advanced management, innovative techniques, and strict quality control to ensure superior surface smoothness and precise thickness tolerance. Our super-wide drum-type vulcanizing press accommodates widths up to 4000mm, producing seamless products up to 3600mm wide without joints.

Key Properties
  • Excellent anti-aging and ozone resistance
  • Superior heat resistance and electric insulation
  • Outstanding oil, solvent, and corrosion resistance
  • Non-toxic, odorless, and pollution-free
  • High stability and reliability across temperature ranges
  • Surface inactive without stickiness
Applications
  • Punching rubber seals and gaskets
  • Wooden PVC vacuum press laminators
  • Wooden door vacuum press laminators
  • Safety glass vacuum laminating bags
  • Solar vacuum press laminators
  • Hot press laminators and card press laminators
When requesting a quote, please specify your application requirements, preferred color, hardness, dimensions, and quantity.

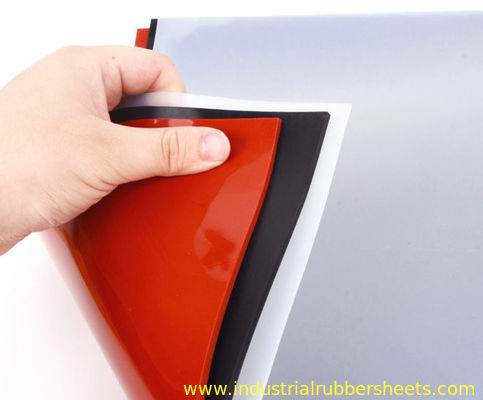

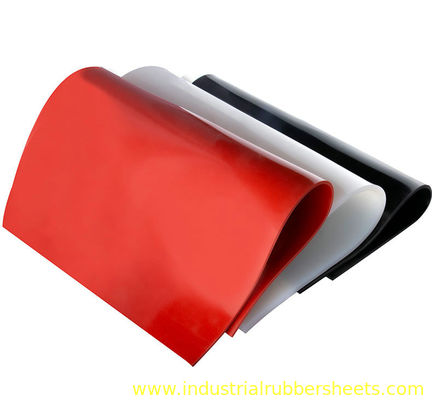

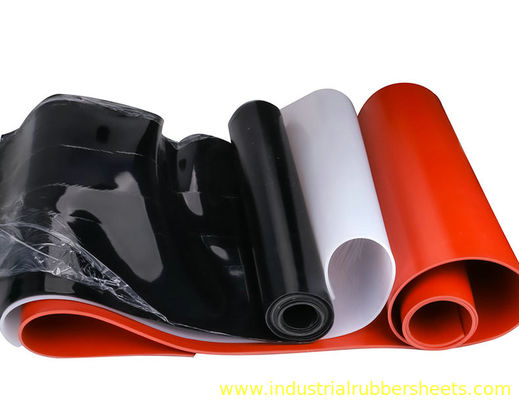

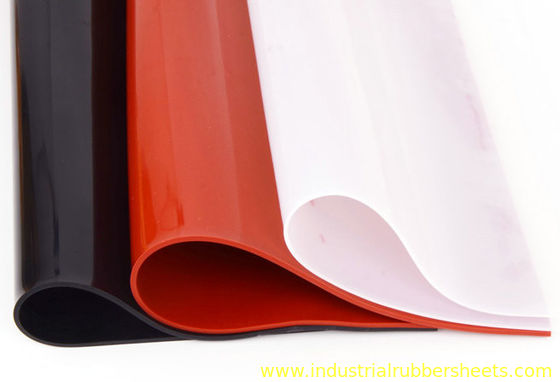

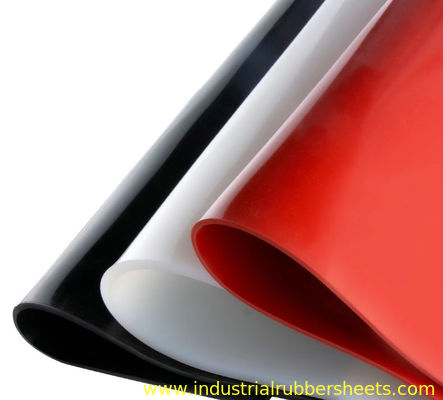

Silicone sheet product display showing various thicknesses and colors Close-up view of silicone sheet surface texture and quality Silicone roll packaging and storage demonstration
