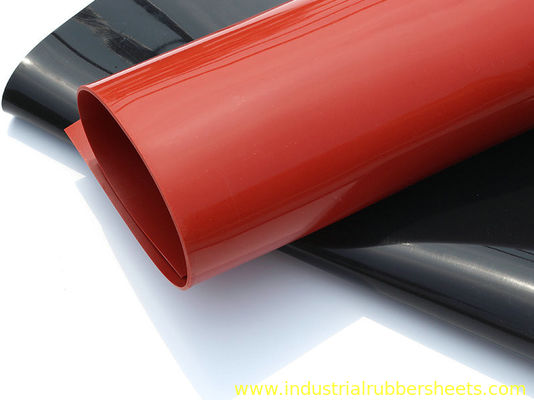

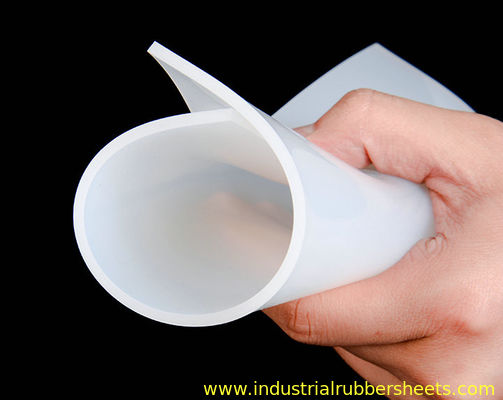

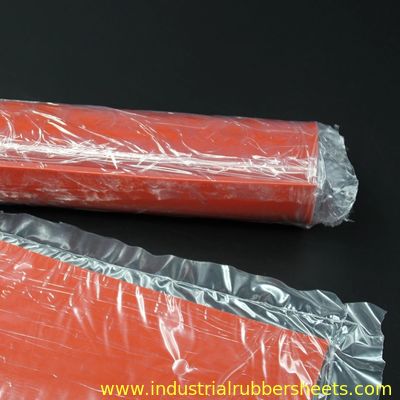

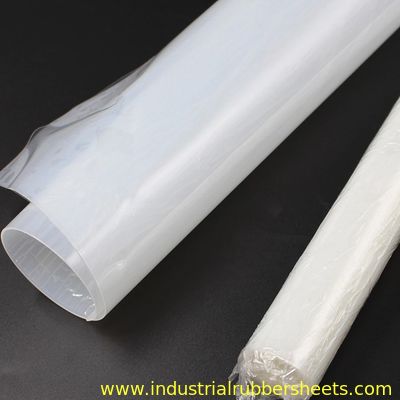

Food Grade High Tear Resistant Silicone Rubber Sheet with Customized Size for Industrial Applications
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A1001 |
| Minimum Order Quantity | 200kgs |
| Price | USD3.2-22.0 per kg |
| Packaging Details | Packing in rolls and crates |
| Delivery Time | 10-20 working days after received your payment |
| Payment Terms | T/T,L/C,Paypal,Western Union,D/P,Alipay,Wechat |
| Supply Ability | 1000000kgs per month |
Product Details
| Surface | Smooth, Matt, Impression Fabric | Material | 100% Virgin Silicone Rubber |
|---|---|---|---|
| Quality | Food Grade Without Smell | Tensile Strength | 7.0Mpa |
| Hardness | 60 Shore A | Elongation | 300% |
| Density | 1.25-1.35 G/cm³ | Thickness | 1-6.0mm |
| Width | 1m, 1.2mm | Length | 10-20m |
| Application | Gaskets, Seals, Washer, Etc. | Elongation At Break | 300-700% |
| Adhesive Backing | Yes, Custom | Grade | Industrial Grade |
| Ozone Resistance | Excellent | Belt Width | 500-3600mm |
| Color | Transparent/Customized | Tensible Strength | 7-12Mpa |
| Flammability | UL94-V0 | ||
| Highlight | Gasket Recycled Rubber Sheets,7.0Mpa Recycled Rubber Sheets |
||
Product Description
Silicone Rubber Sheet for Industrial Food Medical Grade
Product Overview
High tear resistant silicone rubber sheets with smooth surface, available in customized sizes. Made from 100% virgin HTV silicone material suitable for industrial, food, and medical applications.
Specifications
| Material | 100% virgin HTV silicone material |
|---|---|
| Grade | Industrial grade, food grade, medical grade, FDA grade with postcured |
| Quality | High tear resistant, middle tear resistant, general tear resistant |
| Color | Translucent, dark red, black, milk white, grey, blue, etc. |
| Surface | Smooth/smooth, smooth/impression fabric, smooth/sand or double impression fabric |
| Reinforcement | Insert 1 PLY fiberglass fabric, aramid fabric or wire mesh SS201, SS304, SS316 |
| Tensile Strength | 7.5-12.0 Mpa |
| Hardness | 10, 20, 30, 40, 50, 60, 70, 80 +/-5 shore A |
| Elongation | 350%-720% |
| Density | 1.25-1.50 g/cm³ |
| Tear Strength | 26-42 N/mm |
| Working Temperature | -60°C to +260°C (momentary 300°C) |
Available Sizes
- Thickness: 0.1-50mm
- Width: 0.1-3.6m
- Length: 1-50m
- Standard sizes available from 0.1mm to 30.0mm thickness
- OEM & customized sizes available upon agreement
Special Applications
- Translucent-grey Germany silicone membrane for "+" and "-" press on wooden PVC vacuum press laminator
- Translucent Chinese silicone membrane for "-" press only on wooden PVC vacuum press laminator
- Special supply FDA grade silicone sheet with postcure
- Antistatic silicone sheet with fire-resistant properties
Product Features
Our silicone sheets, membranes, and rolls are manufactured using high-quality silicone material on specialized rotocure vulcanizers or plain press vulcanizers according to customer requirements. We utilize advanced management, innovative techniques, and strict quality control to ensure superior product quality.
- High-quality silicone rubber with excellent anti-aging properties
- Ozone resistance and heat-resistant up to 260°C
- Electric insulation and oil resistance
- Solvent resistance and corrosion resistant
- Non-toxic, tasteless, and pollution-free
- High stability and reliability with non-sticky surface
- Suitable for air, water, oil, and other media applications
Applications
Ideal for punching various rubber seals, rubber gaskets, and specialized applications including:
- Wooden PVC vacuum press laminator
- Wooden door vacuum press laminator
- Safety glass vacuum laminating bags
- Solar vacuum press laminator
- Hot press laminator
- Card press laminator
- Various industrial applications
Important: When making an enquiry, please confirm the application, color, hardness, size, and quantity requirements.
