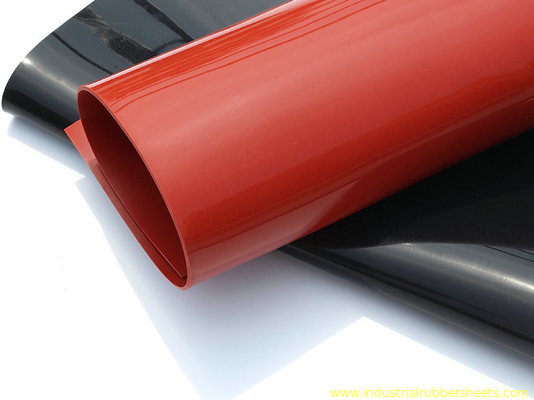

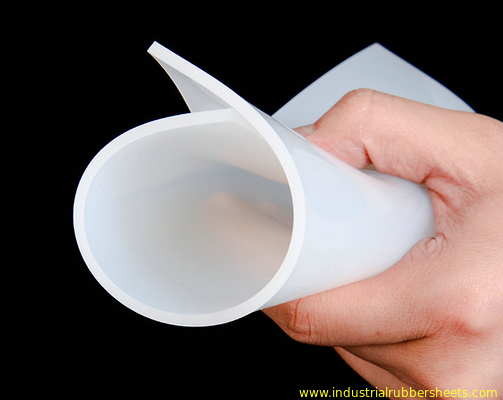

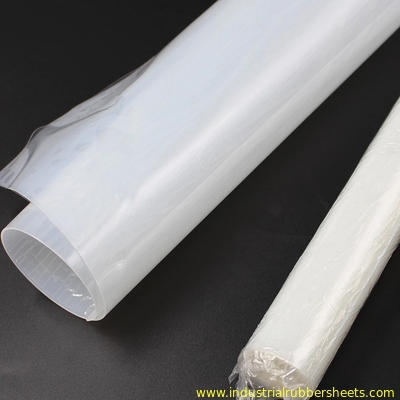

1-6mm Food Grade Silicone Rubber Sheet 60 Shore A 7.0Mpa Tensile
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A1001 |
| Minimum Order Quantity | 200kgs |
| Price | USD3.2-22.0 per kg |
| Packaging Details | Packing in rolls and crates |
| Delivery Time | 10-20 working days after received your payment |
| Payment Terms | T/T,L/C,Paypal,Western Union,D/P,MoneyGram,Alipay,Wechat |
| Supply Ability | 1000000kgs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Surface | Smooth, Matt, Impression Fabric | Material | 100% Virgin Silicone Rubber |
|---|---|---|---|
| Quality | Food Grade Without Smell | Tensile Strength | 7.0Mpa |
| Hardness | 60 Shore A | Elongation | 300% |
| Density | 1.25-1.35 G/cm³ | Thickness | 1-6.0mm |
| Width | 1m, 1.2mm | Length | 10-20m |
| Application | Gaskets, Seals, Washer, Etc. | Elongation At Break | 300-700% |
| Adhesive Backing | Yes, Custom | Grade | Industrial Grade |
| Ozone Resistance | Excellent | Belt Width | 500-3600mm |
| Color | Transparent/Customized | Tensible Strength | 7-12Mpa |
| Flammability | UL94-V0 | ||
| Highlight | Gasket Recycled Rubber Sheets,7.0Mpa Recycled Rubber Sheets |
||
Product Description
Silicone Rubber Sheet for Industrial, Food & Medical Applications
High Tear Resistant Smooth Surface Customized Size 100% Virgin HTV Silicone Material
1-6mm x 1-1.2m x 10m Silicone Sheet, Silicone Sheeting, Silicone Rolls, Silicone Rubber Sheet
Product Specifications
| Material | 100% virgin HTV silicone material |
|---|---|
| Grade | Industrial grade, food grade, medical grade, FDA grade with postcured |
| Quality | High tear resistant, middle tear resistant, general tear resistant |
| Color Options | Translucent, dark red, black, milk white, grey, blue etc. |
| Surface Finish | Smooth/smooth, smooth/impression fabric, smooth/sand or double impression fabric |
| Reinforcement Options | Insert 1 PLY fiberglass fabric, aramid fabric or wire mesh SS201, SS304, SS316 |
| Tensile Strength | 7.5-12.0Mpa |
| Hardness | 10, 20, 30, 40, 50, 60, 70, 80+/-5 shore A |
| Elongation | 350%-720% |
| Density | 1.25-1.50g/cm³ |
| Tear Strength | 26-42N/mm |
| Working Temperature | -60°C to +260°C (momentary 300°C) |
Available Dimensions
- Thickness: 0.1-50mm
- Width: 0.1-3.6m
- Length: 1-50m
Standard Sizes
- 0.1-1.0mm x 0.5m x 25/50m
- 0.5-8.0mm x 0.5-1.2m x 10/20m
- 1.0-30.0mm x 0.5/1.0/1.2/1.5m x 10/20m
- 1.0-6.0mm x 1.5-3.6m x 10/20/30m

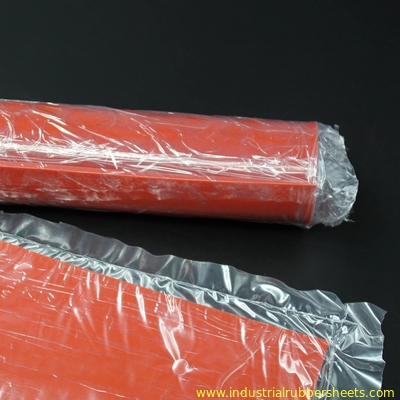

OEM & customized sizes available upon agreement. Packing options include rolls, pallets or crates.
Special Applications
Press for Wooden Laminator
- Translucent-grey Germany silicone membrane for "+" and "-" press on wooden PVC vacuum press laminator
- Translucent Chinese silicone membrane for "-" press only on wooden PVC vacuum press laminator
Specialty Products
- FDA grade silicone sheet with postcure
- Antistatic silicone sheet with fire-resistant properties
- Black color, smooth surface options available
Product Description
Our silicone sheets, membranes, and rolls are manufactured using high-quality silicone material on specialized rotocure vulcanizers or plain press vulcanizers, tailored to meet specific customer requirements.
Production methods vary based on product specifications:
- General silicone sheets: Produced on 4-roller rotocure vulcanizers
- Super wide silicone sheets: Produced on 2-roller rotocure vulcanizers
- Super thin silicone sheets: Produced on special oven road vulcanizers
- Super thick silicone sheets: Produced on plain press vulcanizers
Through advanced management, innovative techniques, and strict quality control using premium silicone materials and vulcanizer machines, we've overcome common manufacturing challenges such as surface smoothness, thickness tolerance, and joint visibility.
Our capabilities include:
- Super-wide drum-type vulcanizing press with 4000mm width capacity
- High-quality products up to 3600mm width without joints
- Infinite length production capabilities
Material Properties
Our high-quality silicone rubber offers excellent performance characteristics:
- Anti-aging
- Ozone resistance
- Heat-resistant
- Electric insulation
- Oil resistance
- Solvent resistance
- Corrosion resistant
- Non-toxic and tasteless
- Pollution-free
Operational in air, water, oil and other media at temperatures ranging from -60°C to +260°C (momentary maximum 300°C), our silicone sheets maintain high stability and reliability with surface inactive properties that prevent sticking.
Applications
- Punching various rubber seals and gaskets
- Wooden PVC vacuum press laminators
- Wooden door vacuum press laminators
- Safety glass vacuum laminating bags
- Solar vacuum press laminators
- Hot press laminators
- Card press laminators
- Various other industrial applications
When making an inquiry, please confirm the application, color, hardness, size and quantity requirements.
