Transparent Non Slip Silicone Rubber Sheet with High Temperature Resistance for Food Grade Applications

  • Transparent Non Slip Silicone Rubber Sheet with High Temperature Resistance for Food Grade Applications
  • Transparent Non Slip Silicone Rubber Sheet with High Temperature Resistance for Food Grade Applications
  • Transparent Non Slip Silicone Rubber Sheet with High Temperature Resistance for Food Grade Applications
  • Transparent Non Slip Silicone Rubber Sheet with High Temperature Resistance for Food Grade Applications
  • Transparent Non Slip Silicone Rubber Sheet with High Temperature Resistance for Food Grade Applications
  • Transparent Non Slip Silicone Rubber Sheet with High Temperature Resistance for Food Grade Applications
  • Transparent Non Slip Silicone Rubber Sheet with High Temperature Resistance for Food Grade Applications
Place of Origin China
Brand Name 3A Rubber
Certification ISO9001
Model Number 3A1001
Minimum Order Quantity 100kgs
Price USD2.60-16.00/kg
Packaging Details packing in rolls and pallets
Delivery Time 7-15days after receive the buyer's payment
Payment Terms L/C,T/T,D/P,T/T,Western Union,Alipay,Paypal,Wechat
Supply Ability 100000kgs/month
Product Details
Material Silicone Rubber Color Translucent Color
Surface Smooth Hardness 45, 50, 60, 70, 75shore A
Tensile Strength 7.5-12Mpa Elongation 350-720%
Density 1.25-1.5g/cm3 Thickness 0.1-50mm
Width 0.1-3.6m Length 1-20m
Packing In Rolls And Pallets Thickness Range 1.5-50mm
Uv Resistance UV-resistant Top Impression Fabric
Fda Compliance Yes Shape Rectangle
Adhesive Backing Yes, Custom Sample Available
Size Customer's Drawings Working Temperature -60 ~ +260^C
Logo Customizable Logo Temperature -60 To +230 ℃
Backing Adhesive Agreed
Highlight

silicone gasket sheet

,

flexible rubber sheet
Leave a Message
Product Description
Transparent Non Slip Silicone Rubber Sheet High Temperature Resistance Food Grade Silicone Sheet
Product Overview

Transparent non-slip high temperature resistance food grade silicone sheet, silicon sheet, silicone membrane made from premium quality silicone materials using specialized vulcanization processes.

Our advanced manufacturing techniques and strict quality control ensure superior surface smoothness and precise thickness tolerance. We offer joint-free silicone sheets with infinite length capabilities, including super-wide options up to 3600mm width without joints.

High quality silicone rubber provides excellent performance characteristics including anti-aging, ozone resistance, heat resistance, electric insulation, oil resistance, solvent resistance, corrosion resistance, non-toxic and tasteless properties, and pollution-free operation.

Technical Specifications
Material 100% virgin HTV silicone material
Grade Options Industrial grade, food grade, medical grade, FDA grade with postcured
Quality Types High tear resistant, middle tear resistant, general tear resistant
Available Colors Translucent, dark red, black, milk white, grey, blue, etc.
Surface Options Smooth/smooth, smooth/impression fabric, smooth/sand or double impression fabric
Reinforcement Options Insert 1 PLY fiberglass fabric, aramid fabric or wire mesh SS201, SS304, SS316
Tensile Strength 7.5-12.0 MPa
Hardness 40, 50, 60, 70, 80 +/-5 Shore A
Elongation 350%-720%
Density 1.25-1.50 g/cm³
Tear Strength 26-42 N/mm
Working Temperature -60°C to +260°C (momentary maximum 300°C)
Dimensions & Sizes
  • Thickness: 0.1-50mm
  • Width: 0.1-3.6m
  • Length: 1-50m
Standard Sizes
  • 0.1-1.0mm * 0.5m * 25/50m
  • 0.5-8.0mm * 0.5-1.2m * 10/20m
  • 1.0-30.0mm * 0.5/1.0/1.2/1.5m * 10/20m
  • 1.0-6.0mm * 1.5-3.6m * 10/20/30m

OEM & customized sizes available upon agreement. Packing options include rolls, pallets, or crates.

Applications

Suitable for working in air, water, oil and other media with high stability, reliability and surface inactive without sticky properties. Applications include:

  • Punching all types of rubber seals and rubber gaskets
  • Wooden PVC vacuum press laminators
  • Wooden door vacuum press laminators
  • Safety glass vacuum laminating bags
  • Solar vacuum press laminators
  • Hot press laminators
  • Card press laminators
  • Various other industrial applications
Press for Wooden Laminator Specifications:
• Translucent-grey Germany silicone membrane for "+" and "-" press on wooden PVC vacuum press laminator
• Translucent Chinese silicone for "-" press only on wooden PVC vacuum press laminator
• Special supply FDA grade silicone rubber sheet with postcure and antistatic silicone sheet with fire-resistant, black color, smooth surface

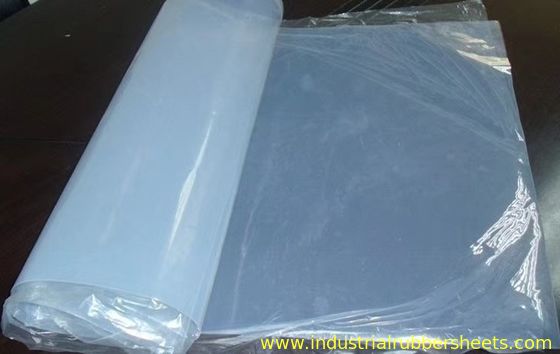

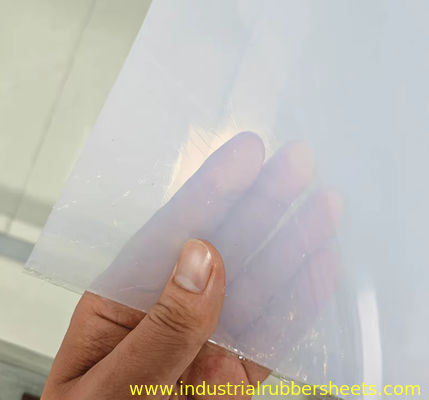

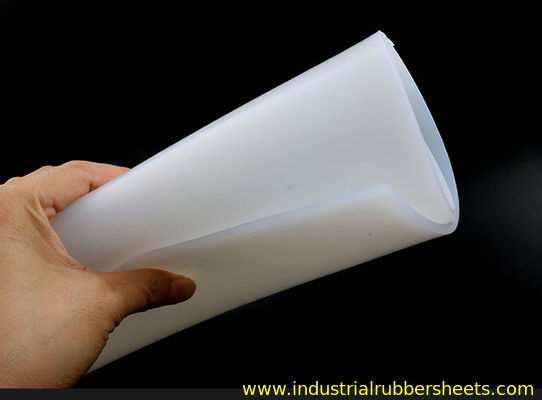

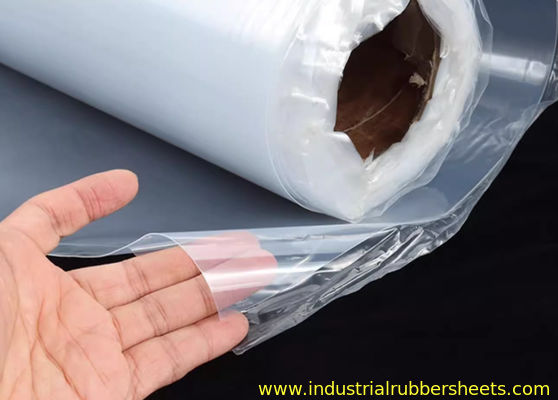

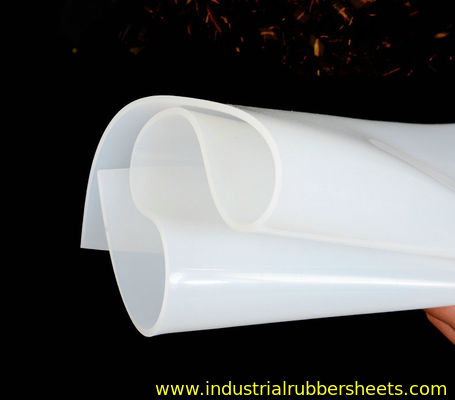

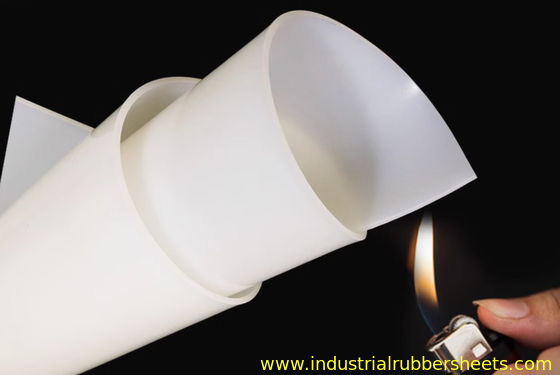

Transparent silicone rubber sheet sample showing clarity and texture Silicone sheet manufacturing process and quality control Industrial application of silicone sheets in laminating press Close-up view of silicone sheet surface and thickness Silicone sheet roll packaging and storage
Important: When making an enquiry, please confirm the application, color, hardness, size and quantity requirements.
