Food Grade Silicone Rubber Sheet with High Temperature Resistance and Customizable Thickness for Industrial Applications
| Place of Origin | China |
|---|---|
| Brand Name | 3Arubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A1002 |
| Minimum Order Quantity | 100kgs |
| Price | negotation |
| Packaging Details | packed in rolls and pallets |
| Delivery Time | 10-20 working day after recieveed your payment |
| Payment Terms | T/T,L/C,Paypal,Western Union,D/P,MoneyGram |
| Supply Ability | 100000kgs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Surface | Smooth/smooth, | Reinforce | Insert 1 Ply Fabric |
|---|---|---|---|
| Tensible Strengh | 7-12Mpa | Hardness | 40,50,60,70,80+/-5shore A |
| Elongation | 350%-720% | Density | .25+/-0.05g/cm3 (1.5g/cm3 For Fire-Resis |
| Thickness | 0.1-50mm | Width | 0.1-3.6m |
| Length | 1-100m | Top Material | Virgin Silicone With Rough Surface |
| Temperature Range | -60°C To 200°C | Working Temperature | -60 ~ +260^C |
| Working Temperaturing | -60℃-+260℃ | Keyword | 3 Mm Thick Silicone Rubber Sheet |
| Aging Resistance | Excellent | Uv Resistance | Excellent |
| Temperature | 200℃ | Manufacturer | Tenchy Silicone |
| Elongation At Break | ≥300% | ||
| Highlight | silicone gasket sheet,flexible rubber sheet |
||
Product Description
Applications
Ideal for silicone rubber sheet users, vacuum laminating press manufacturers, and rubber seal gasket manufacturers.
Product Overview
100% Food Grade Silicone Sheet, Silicone Sheeting, and Silicone Gasket Sheet manufactured using premium materials and advanced production techniques.
Manufacturing Excellence

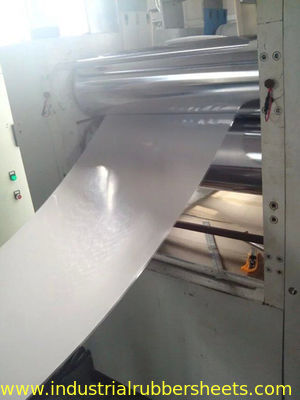

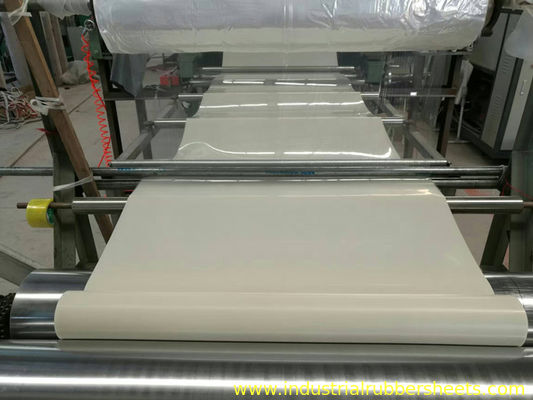

Produced on drum-type vulcanizing presses or standard vulcanizing presses according to customer specifications. Our advanced management, innovative techniques, and strict quality control ensure superior surface smoothness and precise thickness tolerance.
Key Advantages
- Eliminates issues with surface smoothness and thickness tolerance common in ROTOCURE vulcanizing machines
- Solves limitations of restricted width, length, and visible joints in press vulcanizing machines
- Seamless construction with unlimited length capabilities
- Super-wide drum-type vulcanizing press with 4000mm width capacity
- Maximum product width of 3600mm without joints
Material Properties
High-quality silicone rubber with excellent performance characteristics:
- Anti-aging and ozone resistance
- Heat-resistant (-60°C to +260°C, momentary maximum 300°C)
- Excellent electric insulation properties
- Oil, solvent, and corrosion resistance
- Non-toxic, odorless, and pollution-free
- High stability and reliability
- Surface inactive without stickiness
Technical Specifications
| Material | 100% virgin HTV silicone rubber or liquid silicone |
| Grade | Industrial grade, food grade, medical grade, FDA grade postcured |
| Quality | High tear resistant, middle tear resistant |
| Color | Transparent, translucent, dark red, black, milk white, grey, blue, and custom colors |
| Surface | Smooth/smooth, smooth/impression fabric, smooth/sand or double impression fabric |
| Reinforcement | Insert 1 PLY fabric |
| Tensile Strength | 7-12 Mpa |
| Hardness | 10, 20, 30, 40, 50, 60, 70, 80 ±5 shore A |
| Elongation | 350%-720% |
| Density | 1.25-1.50 g/cm³ |
| Tear Strength | 26-42 N/mm |
| Working Temperature | -60°C to +260°C (momentary 300°C) |
| Thickness | 0.1-50 mm |
| Width | 0.1-3.6 m |
| Length | 1-50 m |
Standard Sizes
Transparent, 8 shore A: 1.2mm, 1.7mm, 2.2mm, 2.5mm, 3.0mm * 330mm * 330mm
Translucent, 10 shore A: 3.0mm * 330mm * 330mm
Translucent, 45-75 shore A: Various dimensions from 0.1-30.0mm thickness, 0.5-3.8m width, and 10-200m length
Custom OEM sizes available upon agreement
Press Compatibility
Germany silicone: Compatible with "+" and "-" press on wooden PVC vacuum laminators
Chinese silicone: Compatible with "-" press only on wooden PVC vacuum laminators
Special Products
FDA grade silicone rubber sheet with postcure treatment and antistatic silicone sheet with fire-resistant properties (black color, smooth surface)
Important: When requesting a quote, please specify your application requirements, preferred color, hardness, dimensions, and quantity.
