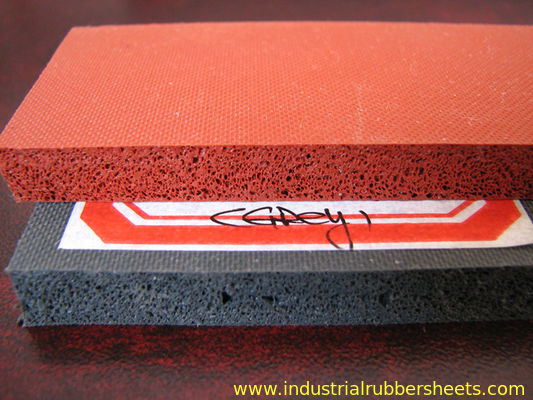

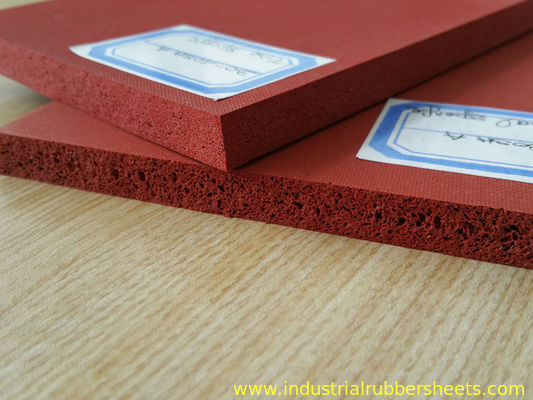

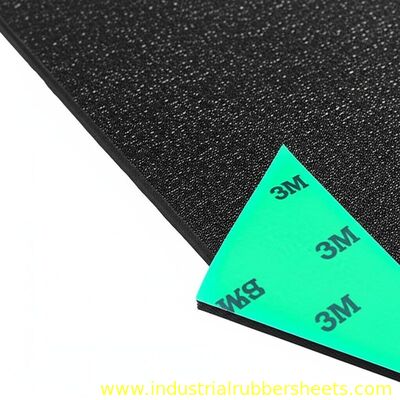

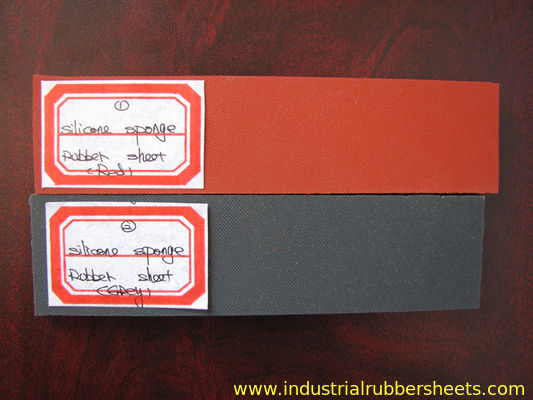

Close Cell Silicone Sponge Rubber Sheet with 3M Adhesive Backing for High Temperature Resistance
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Top | Impression Fabric | Bottom | Adhesive 3M Glue |
|---|---|---|---|
| Cell | Close Cell | Material | Silicone Sponge |
| Hardness | 10-30 Shore A | Tensible Strength | 200pis |
| Elongation | 100% | Density | 0.5-1.0g/cm³ |
| Thickness | 1-10mm | Width | 0.1-1.0m |
| Length | 0.1-10m | Color | Dark Red |
| Highlight | silicone gasket sheet,flexible rubber sheet |
||
Product Description
Close Cell Silicone Sponge Rubber Sheet with 3M Adhesive Backing
Our silicone sponge and foam rubber sheets are manufactured using specialized continuous vulcanizing plain press vulcanizers with high-quality closed cell or open cell silicone sponge materials. These sheets feature exceptional high-temperature resistance, aging resistance, ozone resistance, heat insulation, fuel oil resistance, lubricant resistance, odor-free composition, and excellent durability. They offer high compressibility and low compression set across a wide working temperature range, along with superior acoustic and thermal insulation properties.
Close Cell Silicone Sponge Sheet Specifications
| Property | Specification |
|---|---|
| Cell Structure | Closed Cell |
| Material | Virgin Silicone Sponge |
| Available Colors | Dark Red, White, Grey, Black, Beige, Brown, Blue, etc. |
| Surface | Double Impression Fabric |
| Tensile Strength | 100-200 PSI |
| Hardness | 10, 15, 20, 25, 30, 35, 40+/-5 Shore A |
| Elongation | 100% |
| Density | 0.5-1.0 g/cm³ |
| Working Temperature | -60°C to +220°C (momentary 260°C) |
| Thickness | 1.5-50 mm |
| Width | 0.1-1.5 m (maximum 1.5 m for thickness >5 mm) |
| Length | 0.1-10 m |
Standard Sizes - Close Cell
| Dimensions |
|---|
| 1-50 mm * 1.0 m * 10 m |
| 1-50 mm * 1.2 m * 10 m |
| 5-50 mm * 1.5 m * 10 m |
Custom OEM sizes are available upon agreement. We offer backing adhesive options including Chinese general glue or premium USA 3M glue. Perforated silicone sponge sheets are available in 10 mm * 0.9 m * 1.8 m dimensions.
Open Cell Silicone Sponge Sheet Specifications
| Property | Specification |
|---|---|
| Cell Structure | Open Cell |
| Material | Virgin Silicone Sponge |
| Available Colors | Blue, Red, Yellow, etc. |
| Surface | Natural Surface |
| Tensile Strength | 100 PSI |
| Hardness | 15, 20, 25, 30, 35, 40, 45+/-5 Shore A |
| Elongation | 100% |
| Density | 0.15-0.45 g/cm³ |
| Working Temperature | -60°C to +220°C (momentary 260°C) |
| Thickness | 6, 8, 10, 15 mm |
| Width | 1.0, 1.5 m |
| Length | 5-10 m |
Standard Sizes - Open Cell
| Dimensions |
|---|
| 6 mm * 1.0 m * 10 m |
| 6 mm * 1.5 m * 10 m |
| 8 mm * 1.0 m * 10 m |
| 8 mm * 1.5 m * 10 m |
| 10 mm * 1.0 m * 10 m |
| 10 mm * 1.5 m * 10 m |
| 15 mm * 1.0 m * 10 m |
| 15 mm * 1.5 m * 10 m |
These silicone sponge sheets are manufactured using vulcanizing press technology with high-quality silicone rubber and specialized sponge techniques. They provide excellent performance characteristics including high temperature resistance, aging resistance, ozone resistance, heat insulation, fuel oil resistance, lubricant resistance, odor-free composition, and superior durability. The material offers high compressibility and low compression set across a wide working temperature range, along with outstanding acoustic and thermal insulation properties.
Suitable for continuous use at -60°C to +200°C and intermittent use at -70°C to +260°C. Ideal for various ironing table applications and specialized gasket requirements.
Important: When submitting an inquiry, please specify the color, hardness, surface type, dimensions, and quantity requirements.
