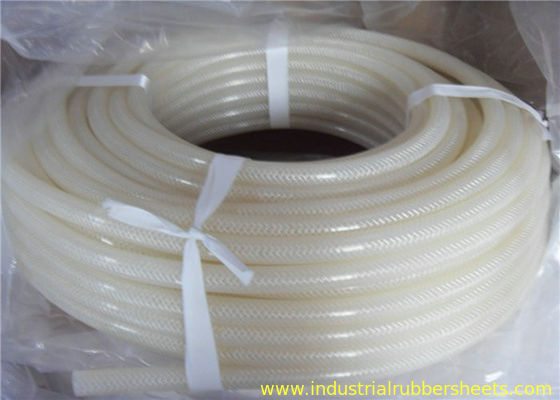

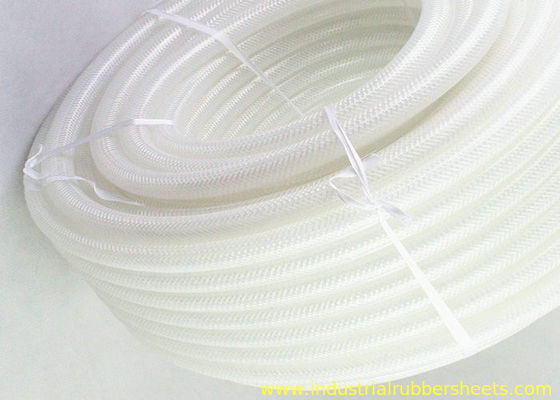

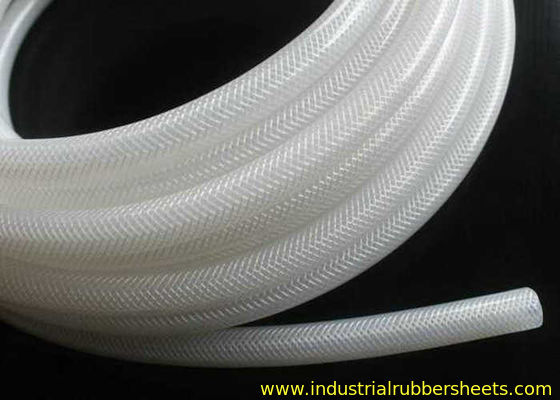

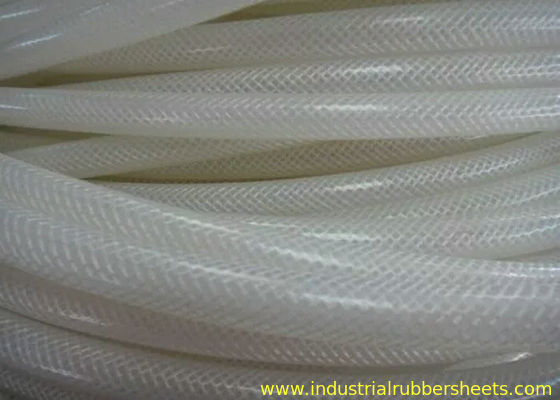

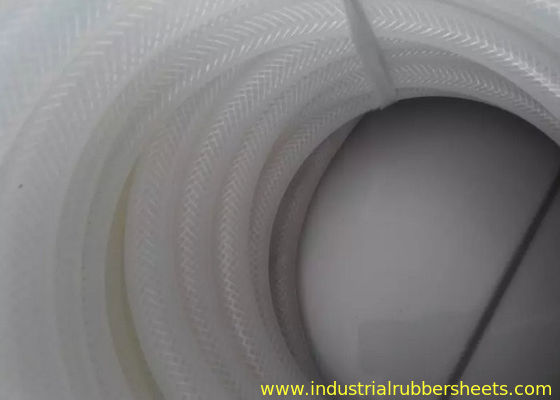

Food Grade Transparent Silicone Hose Reinforced with Polyester for High Temperature Applications
Product Details
| Material | Virgin Silicone + Polyester | Quality | Food Grade Without Smell |
|---|---|---|---|
| Working Temperature | -30 ~ +250^C | Working Press | 10kgs |
| Inside Diameter | 5-32mm | Outside Diameter | 6-42mm |
| Tensile Strength | 6.5Mpa | Hardness | 50shore A |
| Color | Transparent | Density | 1.2g/cm3 |
| Application | Medical, Food And Beverage, Industrial | Tensile Strength | 7-12 MPa |
| Keyword | Silicone Hose | Inside Diameter | 2-350mm |
| Quality | Industrial Grade | Uv Resistance | Excellent |
| Outer Diameter | 3mm-60mm | Elongation At Break | 300-600% |
| Oem Odm | Available | Rohs Compliance | Yes |
| Customization | Size, Color, Printing | Tear Resistance | 25-35 KN/m |
| Compression Set | 20-40% | Reinforced | Insert 1-4PLY Fabric |
| Highlight | flexible silicone tubing,high temperature silicone rubber tubing |
||
Product Description
Food Grade Transparent Silicone Tube / Silicone Hose Reinforced With Polyester Material
Silicone braided hose is a specialized comprehensive rubber product with exceptional properties including excellent electrical insulation, aging resistance, chemical stability, anti-oxidative weathering, radiation resistance, physiological inertness, air permeability, and resistance to high and low temperatures. It can operate continuously between -30°C and 250°C, with capability to function from -60°C to 300°C.
Product Classification
- Fine silicone wire
- Silicone tube (strip)
- High pressure-resistance silicone tube
- Gear-like silicone tube
- Silicone seals
- Special-shaped bars
- Food safety silicone tube and strip (non-toxic)
- Medical silicone tube
- Medicinal silicone tube
- Fiber silicone tube (for delivering liquid food, biological products)
- Medical silicone fittings
- Silicone sealed pipe
- Flame-retardant pipe (tube)
- Silicone foaming tube and strip
- Temperature-resistant products
Applications
Silicone braided hose is widely used as super sealed material and for liquid transfer in aviation, electronics, petroleum, chemical industry, machinery, electrical equipment, medical, oven, and food industries. Applications include ancillary facilities for small home appliances, coffee pots, sukey, irons, rice cookers, deep fryers, disinfection cabinets, water dispensers, fruit syrup machines, bread machines, gas appliances, water heaters, electronics, automobile accessories, and medical machine products.
Product Specifications
| Item | Food Hose |
|---|---|
| Material | Food Grade Silicone Rubber |
| Reinforced | Polyester |
| Standard Color | Transparent or as requested |
| Surface | Smooth |
| Tensile Strength | 7.5 MPa |
| Hardness | 50 shore A |
| Elongation | 245% |
| Density | 1.2 g/cm³ |
| Working Pressure | 10 kgs |
| Minimum Working Temperature | -30°C |
| Maximum Working Temperature | +250°C |
| ID Size | 5~32 mm |
| Wall Thickness | 3~5 mm |
| Size Tolerance | ID less than 1/2": ±0.3 mm; ID more than 1/2": ±0.5 mm |
Standard Sizes
| Inner Diameter × Outer Diameter |
|---|
| 5 mm × 11 mm |
| 6 mm × 12 mm |
| 8 mm × 14 mm |
| 11 mm × 17 mm |
| 13 mm × 21 mm |
| 16 mm × 24 mm |
| 19 mm × 27 mm |
| 25 mm × 35 mm |
| 32 mm × 42 mm |
Key Properties
Anti-aging
Erosion-endurable
High temperature resistance
Anti-shock
Advantages
Customized solutions
High performance
High quality
Favorable pricing
Rich manufacturing experience
