T40-T210 SBT Polyurethane Coupling with 70-98 Shore A Hardness and 22.4-2500NM Torque for Jaw Coupling

  • T40-T210 SBT Polyurethane Coupling with 70-98 Shore A Hardness and 22.4-2500NM Torque for Jaw Coupling
  • T40-T210 SBT Polyurethane Coupling with 70-98 Shore A Hardness and 22.4-2500NM Torque for Jaw Coupling
  • T40-T210 SBT Polyurethane Coupling with 70-98 Shore A Hardness and 22.4-2500NM Torque for Jaw Coupling
  • T40-T210 SBT Polyurethane Coupling with 70-98 Shore A Hardness and 22.4-2500NM Torque for Jaw Coupling
  • T40-T210 SBT Polyurethane Coupling with 70-98 Shore A Hardness and 22.4-2500NM Torque for Jaw Coupling
  • T40-T210 SBT Polyurethane Coupling with 70-98 Shore A Hardness and 22.4-2500NM Torque for Jaw Coupling
Place of Origin China
Brand Name 3A Rubber
Certification ISO9001
Model Number 3A2006
Minimum Order Quantity 10pieces
Price connect with us
Packaging Details packing in cartons
Delivery Time 10-20days
Payment Terms Western Union,L/C,D/P,T/T,Paypal
Supply Ability 1000000pieces/month
Product Details
Type SBT Type Material TPU Or NBR
Color Black, Yellow, Red Hardness 70, 90, 95, 98Shore A
Tensile Strength 10-50Mpa Elongation 690% Maximum
Density 1.25g/cm3 Size T40-T210
Highlight

rubber coupling

,

pu coupling
Leave a Message
Product Description
T40 - T210 SBT Polyurethane Coupling Curved Jaw Coupling Yellow
Product Overview

T40 - T210 SBT Elastic Spider, SBT Polyurethane Coupling, SBR Spider Coupling for Jaw Coupling

SBT Type elastic spider is suitable for water pumps and provides mechanical cushioning effect to joint of transmission shaft.

Key Advantages
  • Extremely resistant to wear, oil, ozone and ageing. Also resistant to hydrolysis (ideal for tropical climates)
  • Protect the drive against dynamic overload
  • Good physical properties
  • Easy installation
  • OEM compatible
Technical Specifications
Product Advantage Widely used in all types of water pumps
Easy installation
Material Composition TPU, NBR
Working Temperature -30℃ to +100℃
Product Hardness (Shore A) TPU: 90, 95, 98±2 Shore A
NBR: 70±5 Shore A
Torque 22.4-2500 NM
Size Any regular size or based on customer request
Color Black or natural
Logo Customer logo available
Working Media Water, oil
OEM & ODM Welcome
Sample Lead Time Within 7 days
Production Lead Time 15 days or as per customer's order quantity
Shipping Methods Ocean/air or express available
Delivery Port Sanhe, Beijing or Shanghai
Payment Terms T/T, L/C, Western Union
Standard Sizes - SBT Series
Part Number ID (mm) OD (mm) H (mm)
SBT-40 18 40 10
SBT-45 20 45 10
SBT-56 27 56 15
SBT-62 30 62 15
SBT-65 30 65 15
SBT-75 35 75 15
SBT-79 40 79 15
SBT-90 45 90 18
SBT-94 45 94 18
SBT-104 55 104 23
SBT-108 55 108 24
SBT-126 60 126 28
SBT-133 60 133 25
SBT-154 79 154 27
SBT-170 80 170 28
SBT-175 85 175 30
SBT-180 90 180 30
SBT-200 100 200 36

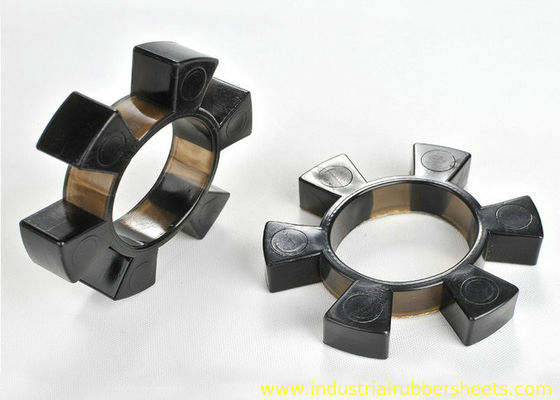

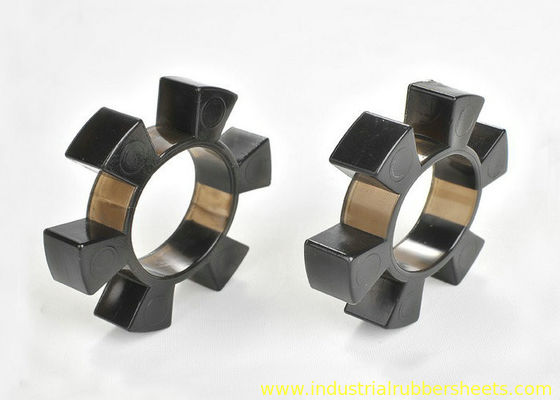

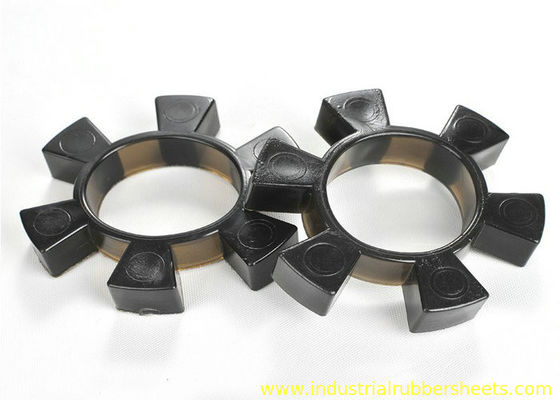

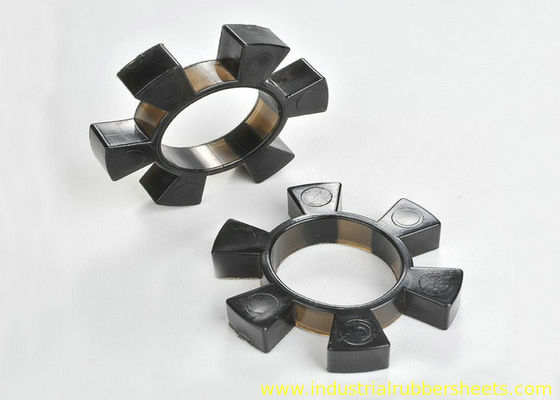

SBT Polyurethane Coupling Product Image
Additional Standard Sizes Available

Polyurethane Coupling: GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180, GS14, GS19, GS24, GS28, GS38, GS42, GS48, GS55, GS65, GS75, GS90, GS100, GS110, GS125, GS140, GS160, GS180, MT1-MT13, ML1-ML13, MH45, MH55, MH65, MH80, MH90, MH115, MH130, MH145, MH175, MH200, HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280, L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225, L276, FALK-R 10R-80R, T40-T210

Rubber Coupling: Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315, HRC70-HRC280, L35-L225, NM50-NM265, Gear 3J-11J

Nylon Coupling: NL1-NL10

Special sizes can be manufactured according to customer drawings and specifications.

When making an inquiry, please confirm product number and quantity for accurate pricing and delivery information.
