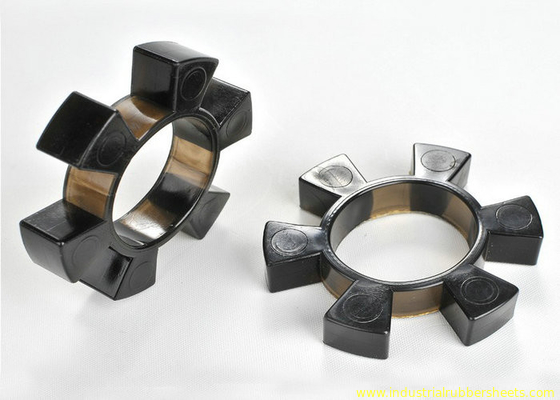

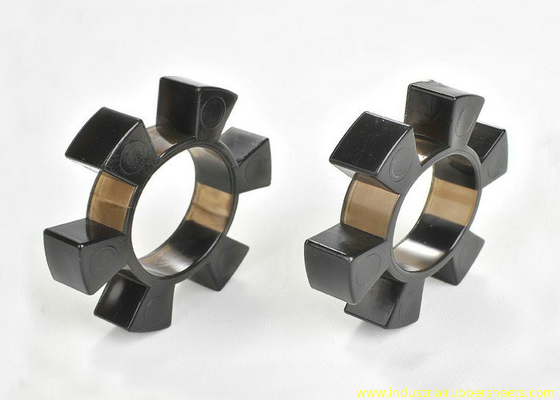

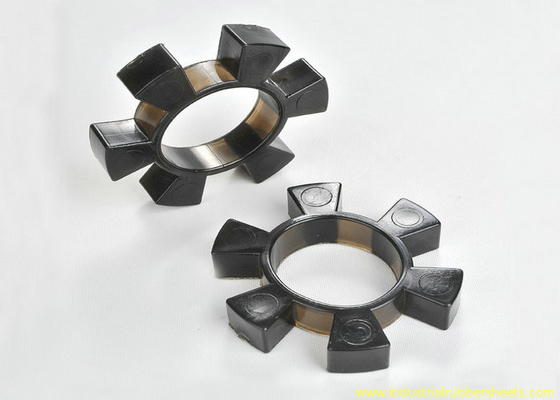

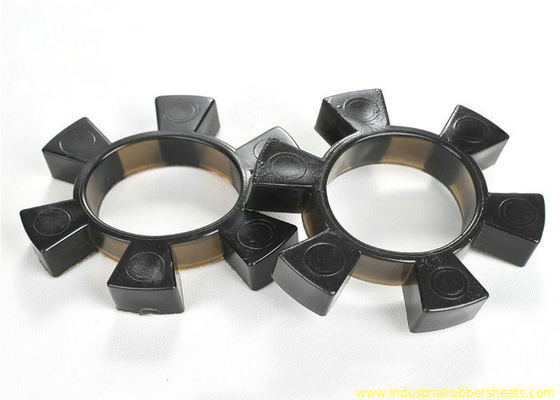

T40 - T210 SBT Polyurethane Coupling Curved Jaw Coupling Yellow

T40 - T210 SBT Polyurethane Coupling Curved Jaw Coupling Yellow
T40 - T210 SBT Polyurethane Coupling Curved Jaw Coupling Yellow T40 - T210 SBT Polyurethane Coupling Curved Jaw Coupling Yellow T40 - T210 SBT Polyurethane Coupling Curved Jaw Coupling Yellow T40 - T210 SBT Polyurethane Coupling Curved Jaw Coupling Yellow

Large Image :  T40 - T210 SBT Polyurethane Coupling Curved Jaw Coupling Yellow

Product Details:
Place of Origin: China
Brand Name: 3A Rubber
Certification: ISO9001
Model Number: 3A2006
Payment & Shipping Terms:
Minimum Order Quantity: 10pieces
Price: connect with us
Packaging Details: packing in cartons
Delivery Time: 10-20days
Payment Terms: Western Union, L/C, D/P, T/T, MoneyGram, Paypal
Supply Ability: 1000000pieces/month
Detailed Product Description
Type: SBT Type Material: TPU Or NBR
Color: Black, Yellow, Red Hardness: 70, 90, 95, 98Shore A
Tensile Strength: 10-50Mpa Elongation: 690% Maximum
Density: 1.25g/cm3 Size: T40-T210
High Light:

rubber coupling

,

pu coupling

T40 - T210 SBT Elastic Spider , SBT Polyurethane Coupling , SBR Spider Coupling for Jaw Coupling



SBT Type elastic spider is suitable to water pumps and mechnical cushinoning effect to joint of transmission shaft.



Advabtages:

1. Extremely resistant to wear, oil, ozone and ageing. Also resistant to hydrolysis (ideal for tropical climates)

2. Protect the drive against dynamic overload.

3. Good physical properties.

4. Easy installation .

5. OEM



Technical Data

Operating conditions
Temperature: -40~+100°C
Torque:  22.4-2500NM

Material
Material: NBR, CPU/TPU
Hardness: 70, 90, 95, 98 Shore A


Specifications:
product advantage 1. Widely used in all kinds of water pumps
  2. Easy installation
Material composition TPU, NBR
Working Temperature -30℃~+100℃
Product hardness(shore A) TPU:90, 95, 98+-2shore A, NBR:70+/-5shore A
Torque 22.4-2500NM
Size any regular size or based on customer request
Color black or natural
Logo customer logo is available
working midea water, oil
OEM&ODM welcome
Sample lead time Within 7 days
Production lead time 15 days or as per customers' order quantity
Ship menthods by ocean/air or express is okay
Delivery port Sanhe, Beijing or Shanghai
Payment terms 1.T/T 2. L/C 3. Western Union
Our Advantage: 1.nearly 10 years manufacturing experience
skilled workers, technology are abuntant.

2.In 1991,we cooperate with Chinese Academy of Science conducting the cooperation for seal technology applying in the mine, hydraulic and pneumatic system and engineering system.



Normal Size
part number ID(mm) OD(mm) H(mm)
SBT-40 18 40 10
SBT-45 20 45 10
SBT-56 27 56 15
SBT-62 30 62 15
SBT-65 30 65 15
SBT-75 35 75 15
SBT-79 40 79 15
SBT-90 45 90 18
SBT-94 45 94 18
SBT-104 55 104 23
SBT-108 55 108 24
SBT-126 60 126 28
SBT-133 60 133 25
SBT-154 79 154 27
SBT-170 80 170 28
SBT-175 85 175 30
SBT-180 90 180 30
SBT-200 100 200 36

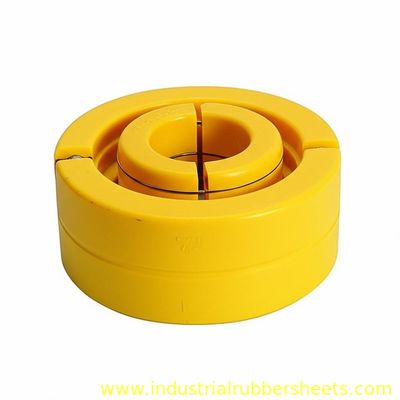

T40 - T210 SBT Polyurethane Coupling Curved Jaw Coupling Yellow 0



standard size for polyurethane coupling:
GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180
GS14, GS19, GS24, GS28, GS38, GS42, GS48, GS55, GS65, GS75, GS90, GS100, GS110, GS125, GS140, GS160, GS180
MT1, MT2, MT3, MT4, MT5, MT6, MT7, MT8, MT9, MT10, MT11, MT12, MT13
ML1, ML2, ML3, ML4, ML5, ML6, ML7, ML8, ML9, ML10, ML11, ML12, ML13
MH45, MH55, MH65, MH80, MH90, MH115, MH130, MH145, MH175, MH200
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225, L276
FALK-R 10R, 20R, 30R, 40R, 50R, 60R, 70R, 80R
T40, T45, T50, T55, T60, T65, T70, T75, T80, T85, T90, T95, T100, T105, T108, T110, T115, T120, T125, T130, T135, T140, T145, T150, T154, T170, T185, T190, T210

standard size for rubber coupling:
Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225
NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265
Gear 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J
special size build molding according to the buyer's drawings

standard size for nylon coupling:
NL1, NL2, NL3, NL4, NL5, NL6, NL7, NL8, NL9, NL10
special size build molding according to the buyer's drawings
