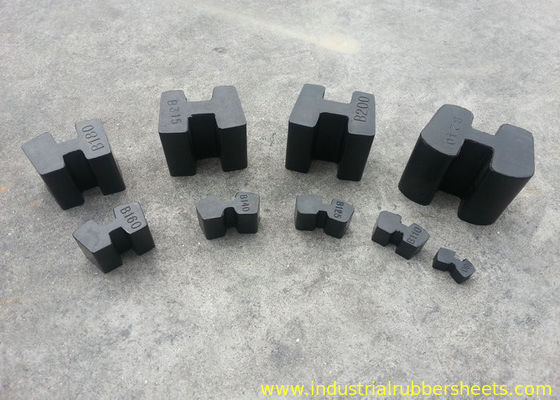

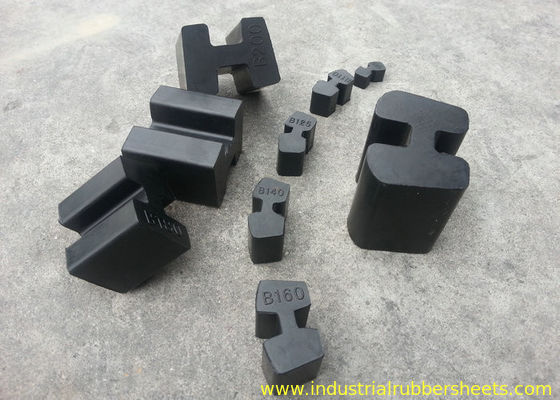

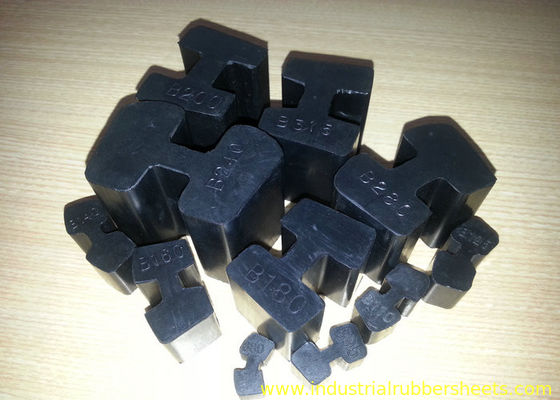

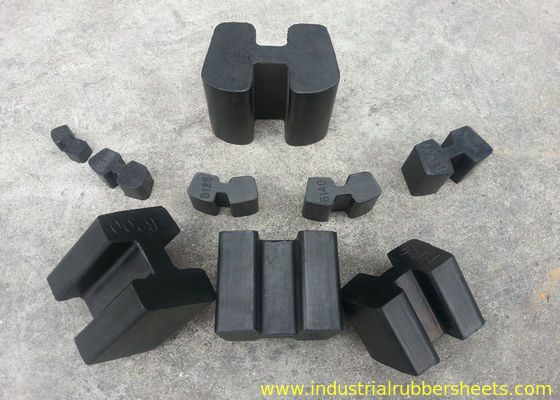

Hb Rubber Coupling with CSM and SBR Rubber, 8-12Mpa Tensile Strength, 1.25g/cm3 Density for Industrial Shaft Coupling
Product Details
| Material | CSM And SBR Rubber | Color | Black |
|---|---|---|---|
| Type Number | Hb Type | Tensile Strength | 8-12Mpa |
| Hardness | 70+/-5shore A | Elongation | 350% |
| Density | 1.25g/cm3 | Size | Standard Size Of B80-B350 |
| Packing | In Cartons | ||
| Highlight | rubber coupling,pu coupling |
||
Product Description
B80 - B350 Hb Rubber Coupling Made 8-12Mpa 1.25g/Cm³ With CSM SBR
B80 - B350 Rubber Coupling, Hb Rubber Coupling made with High Quality CSM and SBR
Manufactured by injection with high quality polyester or mould CSM/SBR. Specifically designed for all kinds of metal shaft couplings with exceptional performance characteristics including high tensile strength, superior wear resistance, excellent elastic resilience, water resistance, oil resistance, outstanding fatigue resilience, and high impact resistance.
We maintain complete sets of molds and supply a full range of GR, GS, MT, Hb, HRC, L, NM and Gear J series couplings with superior quality and extensive manufacturing experience. Suitable for all types of industrial metal shaft coupling applications.
Technical Specifications
Material
Polyester, CSM/SBR
Color Options
Yellow, red, purple, green, black, etc.
Surface
Smooth
Tensile Strength
12-55 MPa
Hardness
80-98 Shore A
Elongation
400%-650%
Density
1.25 g/cm³
Elasticity Impact
>25%
Tear Strength
35-155 KN/m
Akron Abrasion Loss
<0.05 cm³/1.61 km
Compression Set (22h*70°C)
<10%
Working Temperature
120°C
Standard Size for Hb Rubber Coupling (mm)
| Item | A | B | C | D | E | F | Height |
|---|---|---|---|---|---|---|---|
| B80 | 21 | 16 | 5 | 3 | 4 | 8 | 9 |
| B95 | 25 | 21 | 8 | 7 | 4.5 | 11 | 12 |
| B110 | 29 | 23 | 8 | 7 | 5 | 11 | 15 |
| B125 | 32 | 27 | 8 | 7 | 5 | 12 | 18 |
| B140 | 35 | 30 | 12 | 8 | 5 | 13 | 22 |
| B160 | 36 | 30 | 12 | 10 | 6 | 17 | 24 |
| B180 | 44 | 37 | 15 | 12 | 9 | 29 | 35 |
| B200 | 48 | 42 | 19 | 17 | 11 | 34 | 43 |
| B240 | 61 | 51 | 17 | 16 | 10 | 39 | 47 |
| B280 | 52 | 42 | 16 | 12 | 11 | 31 | 39 |
| B315 | 48 | 43 | 18 | 18 | 11 | 34 | 41 |
| B350 | 60 | 45 | 18 | 15 | 11 | 47 | 46 |
Custom Manufacturing Available: Special sizes can be manufactured according to buyer's drawings and specifications.
