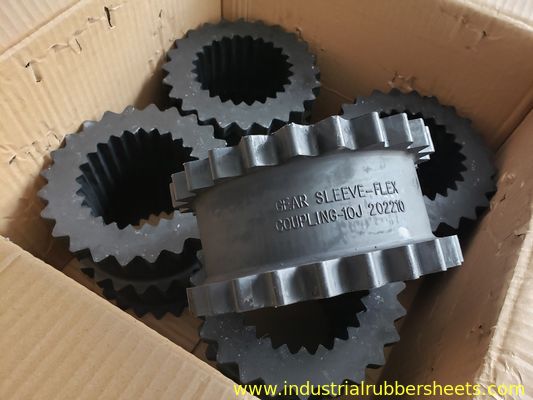

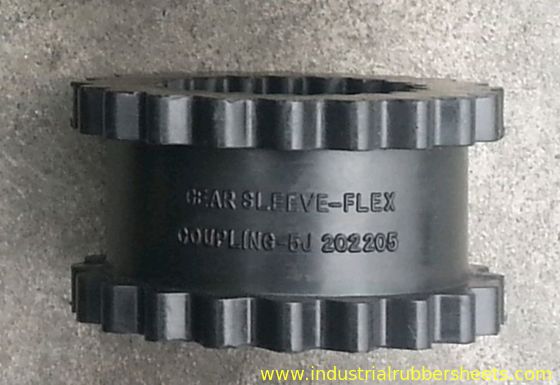

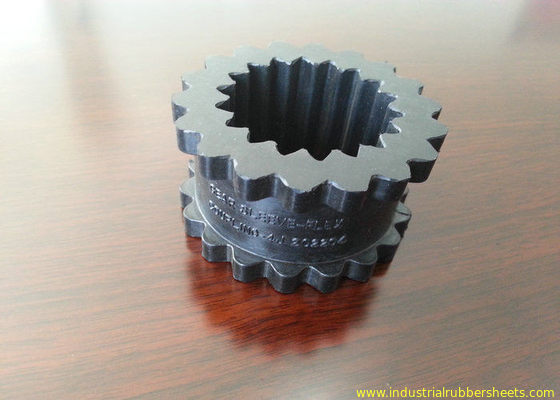

High Tensile Strength Polyurethane Coupling with 3J-14J Size Range and 80-98 Shore A Hardness for Screw Air Compressors
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A2006 |
| Minimum Order Quantity | 10pieces |
| Price | negotiation |
| Packaging Details | Packed in cartons |
| Delivery Time | 10 working days after received your payment |
| Payment Terms | T/T,L/C,Paypal,Western Union |
| Supply Ability | 10000kgs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | NBR, CSM/SBR, Polyurethane | Color | Black, Red |
|---|---|---|---|
| Tensile Strength | 12-55Mpa | Hardness | 80-98shore A |
| Elongation | 350% | Density | 1.25g/cm3 |
| Size | 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J | ||
| Highlight | pu coupling,rubber coupling |
||
Product Description

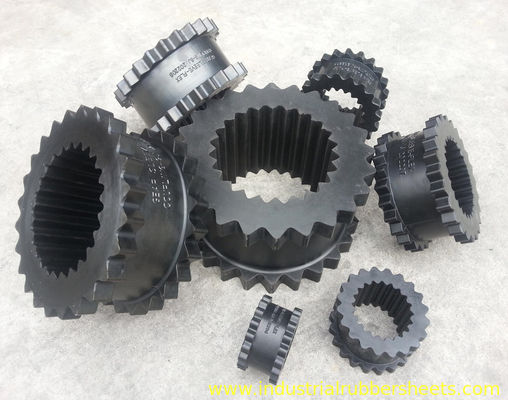

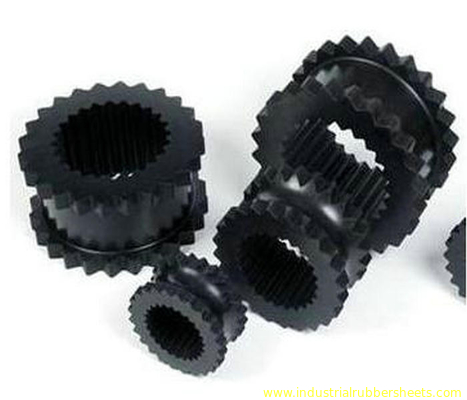

CSM/SBR Polyurethane Shaft Coupling (3J-14J Gear Series)
Product Description
High-performance 3J-14J gear polyurethane coupling and NBR rubber coupling designed specifically for screw air compressors.
Technical Specifications
| Item | 14J | 13J | 11J | 10J | 9J | 8J | 7J | 6J | 5J | 4J | 3J |
|---|---|---|---|---|---|---|---|---|---|---|---|
| OD(mm) | 333 | 284 | 208 | 179.4 | 152 | 128.6 | 110.4 | 95.3 | 74.6 | 58.7 | 48 |
| ID(mm) | 193 | 165 | 122.3 | 102 | 87 | 75 | 64.5 | 54.6 | 44 | 34 | 26.5 |
| Thickness(mm) | 165 | 138 | 101.6 | 87.3 | 76.2 | 63.5 | 55.6 | 47.6 | 39.7 | 31.8 | 25.5 |
| Gear Qty(Piece) | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 20 | 20 | 18 | 18 |
| Weight(g) | 7550 | 6000 | 1750 | 1210 | 700 | 407 | 262 | 171 | 81 | 40 | 20 |
Atlas Copco Spare Parts Shaft Coupling Numbers
1613688500
2903101500
1613949900
1613958500
2903101701
2903101601
1615436200
1614873800
1614873900
Compatible With
Atlas Copco, Sullair, Fusheng, Compare, HITACHI and other major air compressor brands.
Material Specifications
Material: Polyester, CSM/SBR
Color Options: Yellow, Red, Purple, Green, Black
Surface: Smooth
Tensile Strength: 12-55Mpa
Hardness: 80-98Shore A
Elongation: 400%-650%
Density: 1.25g/cm³
Elasticity Impact: >25%
Tear Strength: 35-155KN/m
Akron Abrasion Loss: <0.05cm³/1.61km
Compression Set (22h*70°C): <10%
Working Temperature: Up to 120°C
Key Features
- Specifically designed for air compressors
- Manufactured on dedicated production lines
- High quality at competitive prices
- Custom packaging available
- OEM services with quality assurance checks
- Claw-type surface design for effective vibration damping
- Compensates for axial, radial and angular displacement
- Superior wear resistance and extended service life
- Flexible installation (horizontal or vertical)
Product Advantages
The CJ series coupling features a simple yet stable design with three-component structure for easy installation and maintenance. The involute arc elasticity design avoids stress concentration while effectively transmitting higher torque. The elastic body's small protuberance pad isolates metal contact, providing effective insulation without requiring lubrication.
Manufactured through injection molding with high-quality polyester or CSM/SBR materials, these couplings offer exceptional performance characteristics including high tensile strength, wear resistance, elastic resilience, and resistance to water, oil, and fatigue. Suitable for all industrial metal shaft coupling applications.
