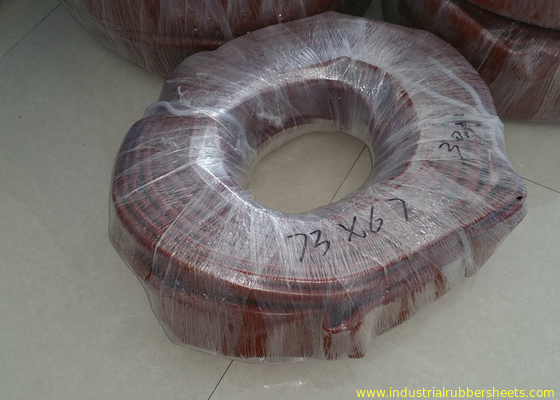

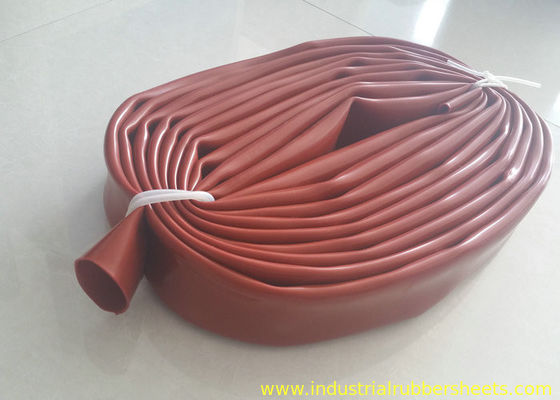

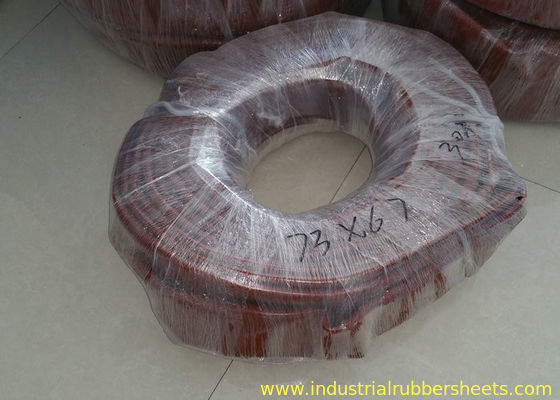

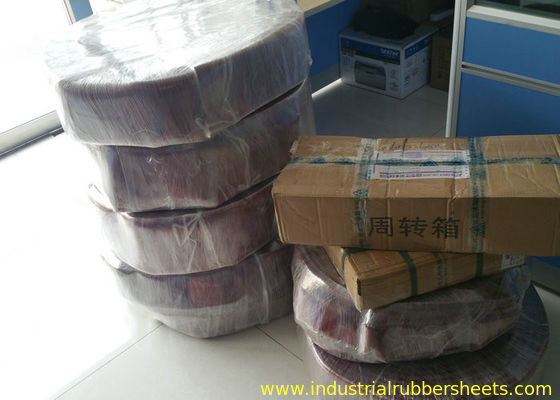

High Temperature Resistant Large Diameter Silicone Hose Reducer with Customizable Length up to 50m
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A1003 |
| Minimum Order Quantity | 20kgs |
| Price | USD3-15.00/kg |
| Packaging Details | packing in rolls, cartons and pallets |
| Delivery Time | 10-20 working days after received your payment |
| Payment Terms | T/T,L/C,Paypal,Western Union,D/P,Alipay,Wechat |
| Supply Ability | 100000kgs per month |
Product Details
| Application | For Corona Roller | Quality | Food Grade |
|---|---|---|---|
| Material | High Tear Resistant Silicone Rubber | Hardness | 60-70shore A |
| Elongation | 400%-600% | Density | 1.25g/cm3 |
| Working Temperature | -60°C - +260°C(moment 300°C) | Resistant | 18-25KV/mm |
| Wall Thickness | 3-4mm | Inside Diameter | 5-32mm |
| Working Press | 10kgs | Resistance | High Temperature, UV, Ozone, Chemicals |
| Produced | Extrude Or Cutting | Produced | Extrude Or Cutting |
| Chemical Resistance | Excellent | Oem Odm | Available |
| Oem Odm | Available | Temperature | -40^C ~ +260^C |
| Insert | Polyester | Temperature Resistance | Up To 200°C |
| Temperature Range | -60°C To 200°C | Cured | Platinum Cured |
| Reinforce | Polyester Braid Reinforced | Length | Customizable |
| Highlight | flexible silicone tubing,high temperature silicone rubber tubing |
||
Product Description
High Temperature Resistant Silicone Hose Reducer Large Diameter, Maximum Length 50m
High temperature resistant large diameter silicone tube, silicone sleeve, silicone hose with maximum length of 50 meters.
Key Features
- Flexible and arc-resistant construction
- Reducer silicone hoses for various applications
- Custom OEM hoses available with your logo
Technical Specifications
- Temperature range: -50°C to 260°C
- Excellent resistance to UV, water, ozone, and oxygen
- Custom OEM hoses with your branding
- Reducer silicone hoses for diverse applications
- Flexible and arc-resistant design
- Custom processing according to your drawings or samples
Material Properties
Material:
100% virgin silicone from Germany
Available Colors:
Orange, dark red, black, etc.
Tensile Strength:
8-12 MPa
Hardness:
60-70 Shore A
Elongation:
400%-720%
Density:
1.25 g/cm³
Working Temperature:
-60°C to +260°C
Resistance:
18-25 KV/mm
Wall Thickness:
3.0 mm, 4.0 mm
Standard Sizes
| Dimensions (mm) | Length Range |
|---|---|
| Ø32mm x Ø38mm | 2-50m |
| Ø32mm x Ø40mm | 2-50m |
| Ø34mm x Ø42mm | 2-50m |
| Ø46mm x Ø54mm | 2-50m |
| Ø50mm x Ø58mm | 2-50m |
| Ø55mm x Ø62mm | 2-50m |
| Ø60mm x Ø66mm | 2-50m |
| Ø60mm x Ø68mm | 2-50m |
| Ø63mm x Ø71mm | 2-50m |
| Ø67mm x Ø75mm | 2-50m |
| Ø75mm x Ø83mm | 2-50m |
| Ø80mm x Ø88mm | 2-50m |
| Ø90mm x Ø98mm | 2-50m |
| Ø98mm x Ø102mm | 2-50m |
| Ø106mm x Ø114mm | 2-50m |
| Ø140mm x Ø150mm | 2-50m |
| Ø145mm x Ø153mm | 2-50m |
| Ø162mm x Ø172mm | 2-50m |
Custom OEM sizes available upon agreement
Important: When making an inquiry, please confirm the color, quality, hardness, size, and quantity requirements.
