marine rubber mounting , rubber mounts , rubber vibration dampers , rubber buffer

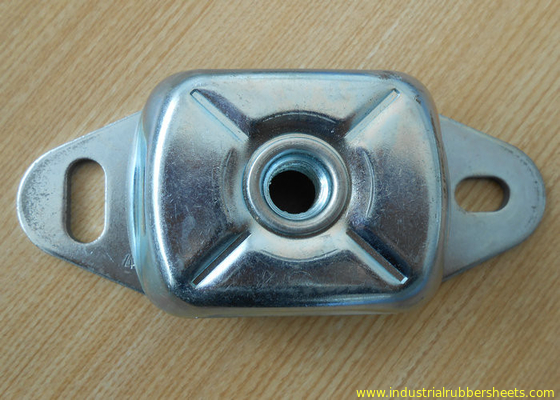

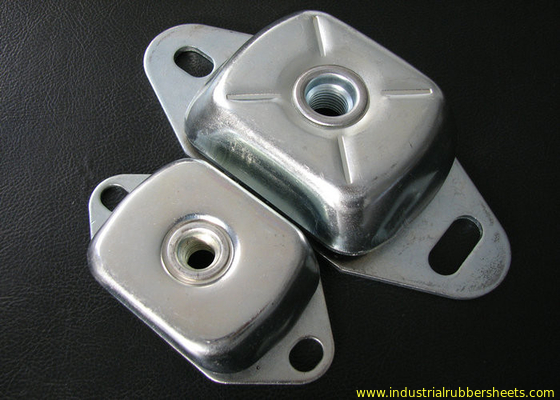

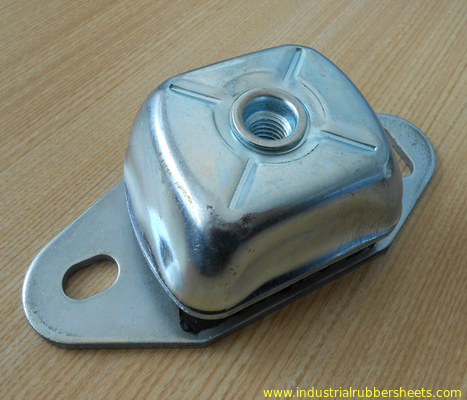

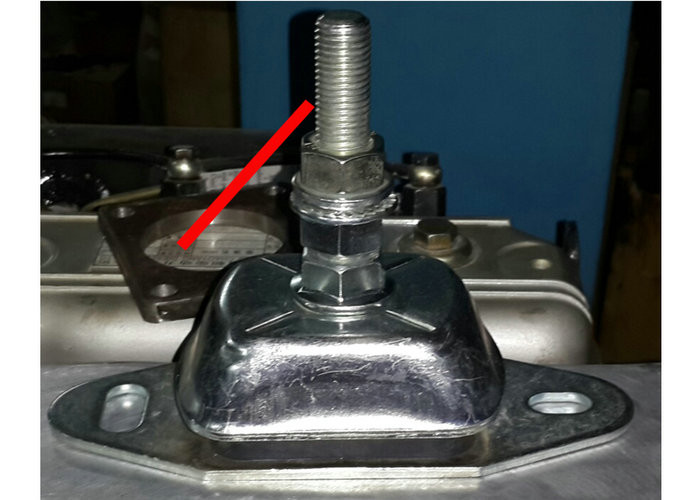

marine rubber mountings is one of bell-type shock absorber screw with professional technology and inimitable formulation. It is easy install with small size and designed for enginee on ship. The top is rectangle cap of female screw made with high quality zinc coated metal sheet, the bottom is support metal sheet with 2 stockets, the middle is high quality rubber of NBR, NR with full adhesive between the rubber and metal parts. It is excellent properties of anti-vibration on axial and lateral for generators, engines, motors system with 32-3000kgs and less than 8Hz, small rubber compress but higher load, and it help to get more safety with special design of safety lock. Apply to anti-vibration and shock absorption for generators, engines, motors on ship and vessel.
Specifications:
material: galvanized metal + rubber
rubber: NR, NBR(default is NR)
quality: industrial grade
color: black
top: metal cap with screw thread
middle: high tensile rubber
bottom: metal seat with grooves
surface: smooth
tensile strength: 8Mpa
hardness: 45, 50, 60, 70, 80+/-5shore A
elongation: 350%
density: 1.4g/cm3
working temperature: -40°C - +120°C
size: standard without mould cost
OEM: agree to produce by the buyer's drawing
packing in cartons
***when you order, pls confirm the quantity and product code number or your drawings***
Item |
IRHD |
Dimensions (mm) |
Average Load |
Max Load |
Max Compression |
|||||
daN/mm |
A |
B |
C |
P |
CF |
L |
Kg/mm |
Kgs |
mm |
|
Marine1 8038M12W |
45 |
80 |
38 |
60 |
M12 |
100 |
120 |
9 |
36 |
4 |
Marine1 8038M12K |
50 |
80 |
38 |
60 |
M12 |
100 |
120 |
13 |
52 |
4 |
Marine1 8038M12M |
60 |
80 |
38 |
60 |
M12 |
100 |
120 |
16 |
64 |
4 |
Marine1 8038M12H |
70 |
80 |
38 |
60 |
M12 |
100 |
120 |
24 |
96 |
4 |
Marine2 10450M16XW |
35 |
104 |
50 |
78 |
M16 |
140 |
186 |
16 |
80 |
5 |
Marine2 10450M16W |
45 |
104 |
50 |
78 |
M16 |
140 |
186 |
24 |
120 |
5 |
Marine2 10450M16M |
60 |
104 |
50 |
78 |
M16 |
140 |
186 |
38 |
190 |
5 |
Marine2 10450M16H |
70 |
104 |
50 |
78 |
M16 |
140 |
186 |
60 |
300 |
5 |
Marine2 10450M16XH |
80 |
104 |
50 |
78 |
M16 |
140 |
186 |
95 |
475 |
5 |
Marine3 13271M20W |
45 |
132 |
71 |
112 |
M20 |
182 |
230 |
55 |
330 |
6 |
Marine3 13271M20M |
60 |
132 |
71 |
112 |
M20 |
182 |
230 |
80 |
480 |
6 |
Marine3 13271M20H |
70 |
132 |
71 |
112 |
M20 |
182 |
230 |
135 |
810 |
6 |
Marine3 13271M20XH |
80 |
132 |
71 |
112 |
M20 |
182 |
230 |
220 |
880 |
4 |
