E-PF rubber mounting , rubber mounts , rubber vibration dampers , rubber buffer

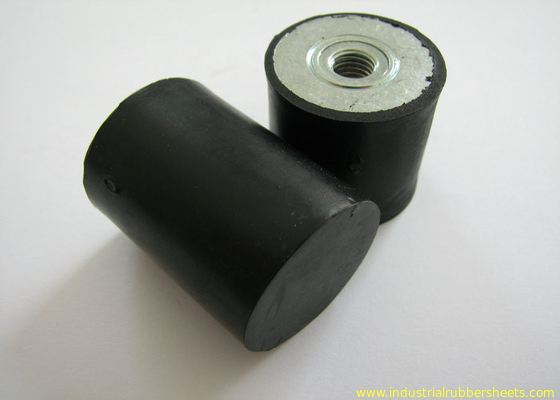

E-PF rubber mountings is one of shock absorber screw with professional technology, inimitable formulation and full set of moulds without mould cost. one side is female screw made with high quality zinc coated metal and standard screwthread, another side is plain surface with high quality rubber of NR, NBR, EPDM, SBR etc.(currently rubber is NR). Apply to the anti-vibration and shock absorption for all kinds machinery, include mobile anti-vibration parts, health care equipment, machinery anti-vibration parts, computer parts.
Specifications:
material: galvanized metal + rubber
rubber: NR, NBR, EPDM, SBR etc.(default is NR)
quality: industrial grade
color: black
top: screw thread
bottom: plate rubber without metal
surface: smooth
tensile strength: 8Mpa
hardness: 40, 50, 60+/-5shore A
elongation: 350%
density: 1.4g/cm3
size: standard without mould cost
OEM: agree to produce by the buyer's drawing
packing in cartons
***when you order, pls confirm the quantity and product code number or your drawings***
Name | E-PF rubber mounting, rubber shock absorber |
Brand | 3A Rubber |
Metal shell | Q235 OR as your request |
Material | NR, NBR, EPDM, SBR, IIR, IR etc. |
Dimension | Standard size or per drawing or request |
Color | Black or per request |
Shape | Standard and Non-standard |
Hardness | 40~60shore A |
MOQ | 100pcs |
Price | Based on dimension & qty |
Port | Shanghai or Beijing |
Shipping | 1) Small quantity, DHL/FEDEX/UPS/TNT-express fee will be born |
by the buyer; | |
2)Large quantity, sea/air freight | |
Delivery Time | 20days after confirmation of the sample or according to |
customers’ order quantity | |
Payment Term | T/T , 30% as deposit, balance before shipment |
Package | Polybag and carton or per request |
Sample lead time | 7 days |
Carton Size | TO YOUR ORDER |
Code |
A (mm) |
B (mm) |
M |
I(mm) |
E0607M3 |
6 |
7 |
M3 |
3 |
E0808M3 |
8 |
8 |
M3 |
4 |
E1008M4 |
10 |
8 |
M4 |
4 |
E1010M4 |
10 |
10 |
M4 |
4 |
E1508M4 |
15 |
8 |
M4 |
4 |
E1510M4 |
15 |
10 |
M4 |
4 |
E1515M4 |
15 |
15 |
M4 |
4-7 |
E1520M4 |
15 |
20 |
M4 |
4-7 |
E1525M4 |
15 |
25 |
M4 |
4-7 |
E1508M5 |
15 |
8 |
M5 |
3 |
E1510M5 |
15 |
10 |
M5 |
3 |
E1515M5 |
15 |
15 |
M5 |
3 |
E1520M5 |
15 |
20 |
M5 |
3 |
E1525M5 |
15 |
25 |
M5 |
3 |
E1610M4 |
16 |
10 |
M4 |
3 |
E1615M4 |
16 |
15 |
M4 |
3 |
E1620M4 |
16 |
20 |
M4 |
3 |
E1610M5 |
16 |
10 |
M5 |
3 |
E1615M5 |
16 |
15 |
M5 |
3 |
E1620M5 |
16 |
20 |
M5 |
3 |
E2010M6 |
20 |
10 |
M6 |
4 |
E2015M6 |
20 |
15 |
M6 |
4-6 |
E2020M6 |
20 |
20 |
M6 |
4-6 |
E2025M6 |
20 |
25 |
M6 |
4-6 |
E2030M6 |
20 |
30 |
M6 |
4-6 |
E2513M6 |
25 |
13 |
M6 |
6 |
E2515M6 |
25 |
15 |
M6 |
6 |
E2520M6 |
25 |
20 |
M6 |
6-8 |
E2522M6 |
25 |
22 |
M6 |
6-8 |
E2525M6 |
25 |
25 |
M6 |
6-8 |
E2530M6 |
25 |
30 |
M6 |
6-8 |
E2513M8 |
25 |
13 |
M8 |
6 |
E2515M8 |
25 |
15 |
M8 |
6 |
E2520M8 |
25 |
20 |
M8 |
6-10 |
E2522M8 |
25 |
22 |
M8 |
6-10 |
E2525M8 |
25 |
25 |
M8 |
6-10 |
E2530M8 |
25 |
30 |
M8 |
6-10 |
E3010M6 |
30 |
10 |
M6 |
6 |
E3012M6 |
30 |
12 |
M6 |
6 |
E3015M6 |
30 |
15 |
M6 |
6 |
E3017M6 |
30 |
17 |
M6 |
6 |
E3020M6 |
30 |
20 |
M6 |
6-10 |
E3022M6 |
30 |
22 |
M6 |
6-10 |
E3025M6 |
30 |
25 |
M6 |
6-10 |
E3030M6 |
30 |
30 |
M6 |
6-10 |
E3040M6 |
30 |
40 |
M6 |
6-10 |
E3012M8 |
30 |
12 |
M8 |
6 |
E3015M8 |
30 |
15 |
M8 |
6 |
E3017M8 |
30 |
17 |
M8 |
6 |
E3020M8 |
30 |
20 |
M8 |
6-10 |
E3022M8 |
30 |
22 |
M8 |
6-10 |
E3025M8 |
30 |
25 |
M8 |
6-10 |
E3030M8 |
30 |
30 |
M8 |
6-10 |
E3040M8 |
30 |
40 |
M8 |
6-10 |
E4015M8 |
40 |
15 |
M8 |
6 |
E4020M8 |
40 |
20 |
M8 |
6-10 |
E4025M8 |
40 |
25 |
M8 |
6-10 |
E4028M8 |
40 |
28 |
M8 |
6-10 |
E4030M8 |
40 |
30 |
M8 |
6-10 |
E4035M8 |
40 |
35 |
M8 |
6-10 |
E4040M8 |
40 |
40 |
M8 |
6-10 |
E4045M8 |
40 |
45 |
M8 |
6-10 |
E4015M10 |
40 |
15 |
M10 |
6 |
E4020M10 |
40 |
20 |
M10 |
9 |
E4025M10 |
40 |
25 |
M10 |
9 |
E4028M10 |
40 |
28 |
M10 |
9 |
E4030M10 |
40 |
30 |
M10 |
9 |
E4035M10 |
40 |
35 |
M10 |
9 |
E4040M10 |
40 |
40 |
M10 |
9 |
E4045M10 |
40 |
45 |
M10 |
9 |
E5015M10 |
50 |
15 |
M10 |
9 |
E5020M10 |
50 |
20 |
M10 |
9 |
E5025M10 |
50 |
25 |
M10 |
9 |
E5030M10 |
50 |
30 |
M10 |
9 |
