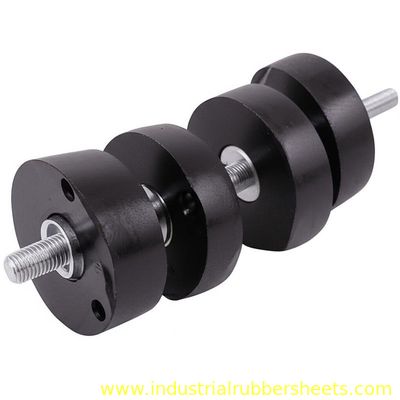

D-PF rubber shock absorber , rubber mounting , rubber damper anti vibration mounts
-PM rubber mountings is one of shock absorber screw with professional technology, inimitable formulation and full set of moulds without mould costtion. one side is male bolt made with high quality zinc coated metal and standard screwthread, another side is plain surface with high quality rubber of NR, NBR, EPDM, SBR etc.(currently rubber is NR). Apply to the anti-vibration and shock absorption for all kinds machinery, include mobile anti-vibration parts, health care equipment, machinery anti-vibration parts, computer parts.
Packaging Details: | Manufacturer Customize rubber Vibration Shock Mounts packing: PE Bags+Carton, We can package according to customer's requirement |
Delivery Detail: | 5~10 days for first article, 10-25 days for MP samples. |
Focusing on ODM & OEM Service
Manufacturer Customize rubber Vibration Shock Mounts
Part Name | Manufacturer Customize rubber Vibration Shock Mounts |
Service | OEM OR ODM |
Part Material | Silicone or rubber (NR, NBR,SBR,BR,IR,CR,EPDM,IIR,FKM(FKM),SIR,PU,ACM,CO,etc) |
Material Hardness | 40~60shore A |
Size | Standard size |
Shape | Customized |
Color | Customized according to Pantone colors |
Appearance | as customer's requirement |
Drawings | 2D OR 3D acceptable |
Temperature Resistance | -40~300 degree centigrade |
Tolerance | 0.05mm |
Technology | Hot pressing molding or injection Molding |
Second Processing | Vulcanizing/ Deburring/Silk-screen/Carving/printing |
Quality control | internal QC control |
Part Feature | 1.Oxidation , Chemical,oil, acid ,alkali , weather resistance |
2. colorful ,Anti-aging,good flexibility, good elasticity | |
Food grade material | FDA or LFGB |
MOQ: | Amount : More than USD 500/each part(depends on specific part) |
Shipping ways | 1. By sea from Shenzhen port or Guangzhou port. 2. By express: DHL/UPS/FEDEX ,etc 3. By air |
Package | Normally PE bag+carton or customized as customer's request |
Trade Term | Ex-works; FOB Shenzhen/Guangzhou ; CIF |
Payment Term | Sample mold: 100% prepaid,MP Mould: 50% deposit by T/T in advance, balance 50% paid after samples approval |
Goods: 50% deposit, 50% before shipment | |
T/T, L/C, Western Union, PAYPAL | |
Lead time | 5~10 days for first article,10~25 days for MP parts (depends on part structure ) |
Specification | Confirm to ISO-9001 and ROHS Directive Compliant Green Products |
Application field | 1. Electron components |
2. Medical equipment | |
3. Home appliance | |
4. Mechanical equipment | |
5. Office facilities | |
6. Aviation | |
7. Construction | |
8. Automobile |
Specifications:
material: galvanized metal + rubber
rubber: NR, NBR, EPDM, SBR etc.(default is NR)
quality: industrial grade
color: black
top: screw bolt
bottom: plate rubber without metal
surface: smooth
tensile strength: 8Mpa
hardness: 40, 50, 60+/-5shore A
elongation: 350%
density: 1.4g/cm3
size: standard without mould cost
OEM: agree to produce by the buyer's drawing
packing in cartons
***when you order, pls confirm the quantity and product code number or your drawings***
Code |
A (mm) |
B (mm) |
M |
H (mm) |
D0607M3 |
6 |
7 |
M3 |
10 |
D0808M3 |
8 |
8 |
M3 |
10 |
D1008M4 |
10 |
8 |
M4 |
6.5-8-10 |
D1010M4 |
10 |
10 |
M4 |
6-8-10 |
D1508M4 |
15 |
8 |
M4 |
6.5-10-14 |
D1510M4 |
15 |
10 |
M4 |
6.5-10-14 |
D1515M4 |
15 |
15 |
M4 |
6.5-10-14 |
D1520M4 |
15 |
20 |
M4 |
6.5-10-14 |
D1525M4 |
15 |
25 |
M4 |
6.5-10-14 |
D1508M5 |
15 |
8 |
M5 |
12-14 |
D1510M5 |
15 |
10 |
M5 |
12-14 |
D1515M5 |
15 |
15 |
M5 |
12-14 |
D1520M5 |
15 |
20 |
M5 |
12-14 |
D1525M5 |
15 |
25 |
M5 |
12-14 |
D1610M4 |
16 |
10 |
M4 |
8-10-12 |
D1615M4 |
16 |
15 |
M4 |
8-10-12 |
D1620M4 |
16 |
20 |
M4 |
8-10-12 |
D1610M5 |
16 |
10 |
M5 |
8-10-12 |
D1615M5 |
16 |
15 |
M5 |
8-10-12 |
D1620M5 |
16 |
20 |
M5 |
8-10-12 |
D2010M6 |
20 |
10 |
M6 |
8-10-12-16-18-20 |
D2015M6 |
20 |
15 |
M6 |
8-10-12-16-18-20 |
D2020M6 |
20 |
20 |
M6 |
8-10-12-16-18-20 |
D2025M6 |
20 |
25 |
M6 |
8-10-12-16-18-20 |
D2030M6 |
20 |
30 |
M6 |
8-10-12-16-18-20 |
D2510M6 |
25 |
10 |
M6 |
10-12-14-16-18-20 |
D2513M6 |
25 |
13 |
M6 |
10-12-14-16-18-20 |
D2515M6 |
25 |
15 |
M6 |
10-12-14-16-18-20 |
D2520M6 |
25 |
20 |
M6 |
10-12-14-16-18-20 |
D2522M6 |
25 |
22 |
M6 |
10-12-14-16-18-20 |
D2525M6 |
25 |
25 |
M6 |
10-12-14-16-18-20 |
D2530M6 |
25 |
30 |
M6 |
10-12-14-16-18-20 |
D2510M8 |
25 |
10 |
M8 |
14-18-20 |
D2513M8 |
25 |
13 |
M8 |
14-18-20 |
D2515M8 |
25 |
15 |
M8 |
14-18-20 |
D2520M8 |
25 |
20 |
M8 |
14-18-20 |
D2522M8 |
25 |
22 |
M8 |
14-18-20 |
D2525M8 |
25 |
25 |
M8 |
14-18-20 |
D2530M8 |
25 |
30 |
M8 |
14-18-20 |
D3010M6 |
30 |
10 |
M6 |
12-18 |
D3012M6 |
30 |
12 |
M6 |
12-18 |
D3015M6 |
30 |
15 |
M6 |
12-18 |
D3017M6 |
30 |
17 |
M6 |
12-18 |
D3020M6 |
30 |
20 |
M6 |
12-18 |
D3022M6 |
30 |
22 |
M6 |
12-18 |
D3025M6 |
30 |
25 |
M6 |
12-18 |
D3030M6 |
30 |
30 |
M6 |
12-18 |
D3040M6 |
30 |
40 |
M6 |
12-18 |
D3010M8 |
30 |
10 |
M8 |
14-18-20-23-25-35 |
D3012M8 |
30 |
12 |
M8 |
14-18-20-23-25-35 |
D3015M8 |
30 |
15 |
M8 |
14-18-20-23-25-35 |
D3017M8 |
30 |
17 |
M8 |
14-18-20-23-25-35 |
D3020M8 |
30 |
20 |
M8 |
14-18-20-23-25-35 |
D3022M8 |
30 |
22 |
M8 |
14-18-20-23-25-35 |
D3025M8 |
30 |
25 |
M8 |
14-18-20-23-25-35 |
D3030M8 |
30 |
30 |
M8 |
14-18-20-23-25-35 |
D3040M8 |
30 |
40 |
M8 |
14-18-20-23-25-35 |
D4005M8 |
40 |
5 |
M8 |
14-18-20-23-25-28-35 |
D4010M8 |
40 |
10 |
M8 |
14-18-20-23-25-28-35 |
D4015M8 |
40 |
15 |
M8 |
14-18-20-23-25-28-35 |
D4020M8 |
40 |
20 |
M8 |
14-18-20-23-25-28-35 |
D4025M8 |
40 |
25 |
M8 |
14-18-20-23-25-28-35 |
D4028M8 |
40 |
28 |
M8 |
14-18-20-23-25-28-35 |
D4030M8 |
40 |
30 |
M8 |
14-18-20-23-25-28-35 |
D4035M8 |
40 |
35 |
M8 |
14-18-20-23-25-28-35 |
D4040M8 |
40 |
40 |
M8 |
14-18-20-23-25-28-35 |
D4045M8 |
40 |
45 |
M8 |
14-18-20-23-25-28-35 |
D4005M10 |
40 |
5 |
M10 |
15-18.5-20-25-28-35 |
D4010M10 |
40 |
10 |
M10 |
15-18.5-20-25-28-35 |
D4015M10 |
40 |
15 |
M10 |
15-18.5-20-25-28-35 |
D4020M10 |
40 |
20 |
M10 |
15-18.5-20-25-28-35 |
D4025M10 |
40 |
25 |
M10 |
15-18.5-20-25-28-35 |
D4028M10 |
40 |
28 |
M10 |
15-18.5-20-25-28-35 |
D4030M10 |
40 |
30 |
M10 |
15-18.5-20-25-28-35 |
D4035M10 |
40 |
35 |
M10 |
15-18.5-20-25-28-35 |
D4040M10 |
40 |
40 |
M10 |
15-18.5-20-25-28-35 |
D4045M10 |
40 |
45 |
M10 |
15-18.5-20-25-28-35 |
D5015M10 |
50 |
15 |
M10 |
15-18.5-20-25-28-35 |
D5020M10 |
50 |
20 |
M10 |
15-18.5-20-25-28-35 |
D5025M10 |
50 |
25 |
M10 |
15-18.5-20-25-28-35 |
D5030M10 |
50 |
30 |
M10 |
15-18.5-20-25-28-35 |
D5040M10 |
50 |
40 |
M10 |
15-18.5-20-25-28-35 |
D5045M10 |
50 |
45 |
M10 |
15-18.5-20-25-28-35 |
D5050M10 |
50 |
50 |
M10 |
15-18.5-20-25-28-35 |
D6030M10 |
60 |
30 |
M10 |
25-28-35 |
D6035M10 |
60 |
35 |
M10 |
25-28-35 |
D6040M10 |
60 |
40 |
M10 |
25-28-35 |
D6045M10 |
60 |
45 |
M10 |
25-28-35 |
D6050M10 |
60 |
50 |
M10 |
25-28-35 |
D6030M12 |
60 |
30 |
M12 |
28-37 |
D6035M12 |
60 |
35 |
M12 |
28-37 |
D6040M12 |
60 |
40 |
M12 |
28-37 |
D6045M12 |
60 |
45 |
M12 |
28-37 |
D6050M12 |
60 |
50 |
M12 |
28-37 |
D6550M12 |
65 |
50 |
M12 |
28-37 |
D7030M12 |
70 |
30 |
M12 |
28-37 |
D7040M12 |
70 |
40 |
M12 |
28-37 |
D7050M12 |
70 |
50 |
M12 |
28-37 |
D7525M12 |
75 |
25 |
M12 |
28-37 |
D7530M12 |
75 |
30 |
M12 |
28-37 |
D7540M12 |
75 |
40 |
M12 |
28-37 |
D7545M12 |
75 |
45 |
M12 |
28-37 |
D7550M12 |
75 |
50 |
M12 |
28-37 |
D7555M12 |
75 |
55 |
M12 |
28-37 |
D8080M12 |
80 |
80 |
M12 |
35-45 |
D8080M16 |
80 |
80 |
M16 |
35-45 |
D10040M16 |
100 |
40 |
M16 |
35-45-47 |
D10050M16 |
100 |
50 |
M16 |
35-45-47 |
D10055M16 |
100 |
55 |
M16 |
35-45-47 |
D10060M16 |
100 |
60 |
M16 |
35-45-47 |
D100100M16 |
100 |
100 |
M16 |
35-45-47 |
